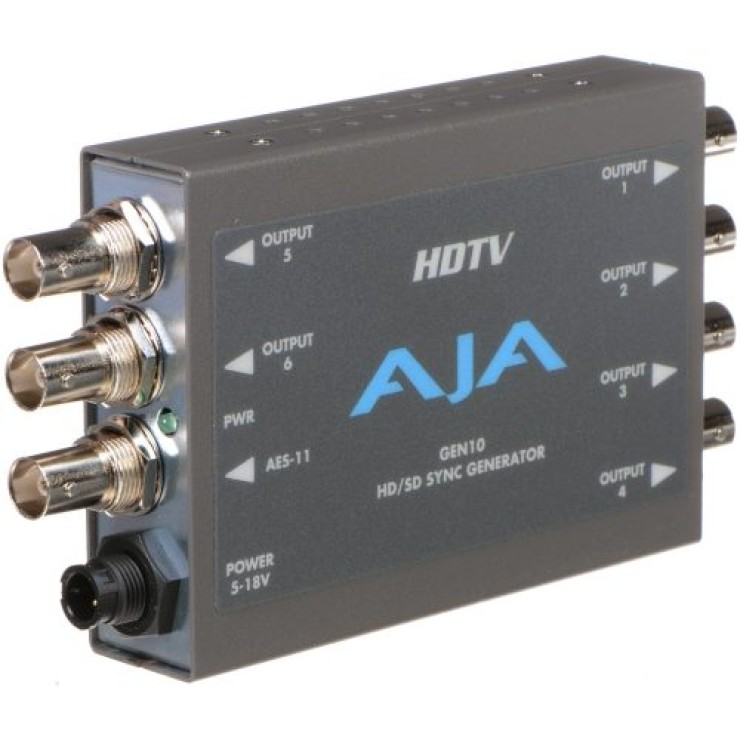

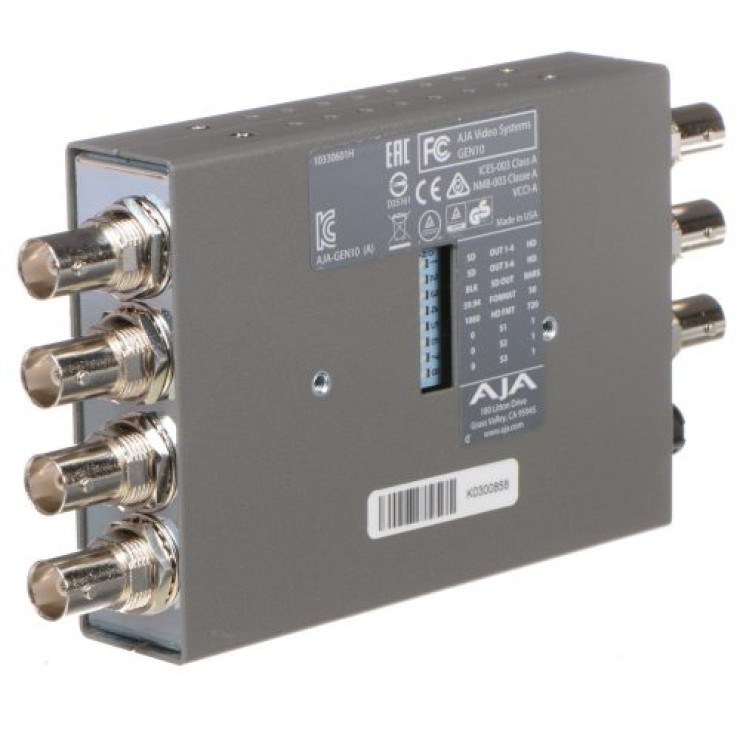

AJA GEN10 HD/SD/AES Sync Generator with Universal Power Supply

Key Features

• Cost-Effective Signal Timing Solution
• Multi-Format Tri-Level Sync
• Color Black and 75% Color Bar Sync
• AES Tone or Silence Sync
• Supports 1080p/30 NTSC or 1080p/25 PAL
• 7 Synched Outputs Sourced from Timebase
• LED Power Indicator
• Universal Power Supply Included

The AJA GEN10 HD/SD/AES Sync Generator with Universal Power Supply is a very cost effective sync generator, providing multi-format tri-level sync, color black sync, 75% color bar sync, and AES tone or silence sync. GEN10 supports up to 1080p/30 NTSC or 1080p/25 PAL and features seven outputs. One is an AES-11 that switches between silence and tone. The remaining six are two groups of independently controlled sync outputs — one group SD, one HD. The SD outputs can be switched between color black or 75% color bars; and the HD outputs feature tri-level sync and can be switched between 19 different HD formats. All outputs are in sync with each-other and are sourced from an accurate master timebase.
