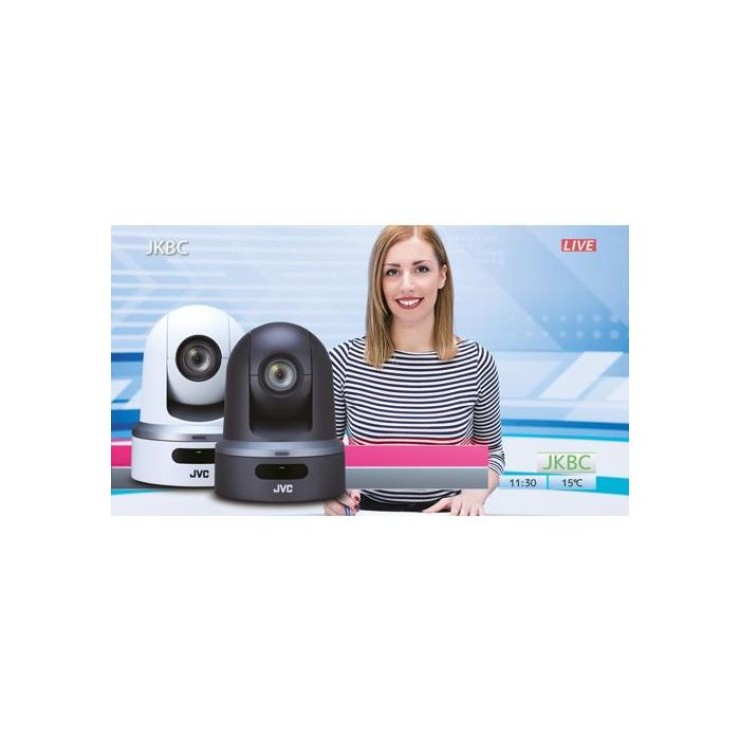

JVC KY-PZ100BEBC ROBOTIC PTZ IP PRODUCTION CAMERA (BLACK) WITH GRAPHIC OVERLAY

150$ ~~200$~~

JVC’s first robotic pan, tilt, and zoom video production camera, the KY-PZ100, features JVC’s unique IP communications engine, providing network connection via Wi-Fi, 4G/LTE, or LAN. Ideal for studio or field use, the PTZ camera offers all the IP connectivity from JVC’s range of live streaming camcorders, plus a unique built-in graphics overlay capability, with full-screen graphics ideal for robotic applications.

Category: Marshall

SKU: 10

Advanced IP network communication and live HD streaming

The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your program with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.

Features

Broadcast Info Overlay
Saves overlay info at every preset position (up to 10)
Broadcaster logos, “Live” mark, watermark, time, and temperature can be overlaid.
Full-Screen Graphics Overlay and Slide Show
Up to 50 full-screen (max. 23MB) custom graphics
Various language characters supported with provided software SDP Generator.
Selectable pre-loaded logos.
3G-SDI and HDMI digital outputs
Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6~4.7)
Robotic pan, tilt, and zoom
Full HD 1080p, 1080i, 720p video
1/2.8-inch CMOS sensor (2.2 million pixels)
2 channels audio (or 1 channel balanced audio w/phantom power)
USB host connection for WiFi or 4G LTE adapter
Can memorize 100 preset settings and positions
IR controller
Can be mounted upside-down or right-side-up
Remote control via RS-232C / RS-422, or via IP controller
Micro SDHC/SDXC memory card recording
LAN connector supports Power over Ethernet
Advanced IP communications capability: Streaming with SMPTE 2022 forward error correction. Advanced Zixi reliable communication with ARQ, FEC, and adaptive bitrate control. Low latency streaming. RTMP /RTMPS streaming directly to the content delivery networks (YouTube, Ustream, etc.)

Items Included:

JVC KY-PZ100BE Robotic PTZ Camera (Black)
AC/DC adapter
Power cord
Mounting screws
IR controller
Ceiling mount bracket
Fall Prevention wire
Template

Product Highlights :

1/2.8" CMOS Sensor, 1080i/p, 720p
Remote Pan, Tilt, and Zoom
30x Optical Zoom
0.01 Lux in LoLux Mode
Built-in graphics overlay capability

KY-PZ100BEBC - Specification

More Information

Camera Front-End Specifications
Image Sensor (inch):	1/2.8 Inch CMOS
Mega Pixels:	13
Shutter speed:	1/8 to 1/10000
Optical Specifications
Lens mount:	Internal
Dynamic Zoom x times:	12
Lens ratio from/to:	4.3mm to 129mm
Auto Focus:	Yes
Build in ND Filters:
PTZ Head Features
PAN Angle in degree +/-:	175
PAN Speed with POE+ max degree/sec.:	400
TILT Speed with AC Adapter max degree/sec.:	300
Preset Positions:	100
Recording Formats
Media:	micro SDHC/microSDXC
Recording slots:	1
Recording Resolution Formats:
Resolution 1440 x 1080:	Yes, 60i/50i
Recording Data Rate 1:	5, 18, 28Mbps
Recording Data Rate 3:	50Mbps (XHq/YUV422)
Audio Recording modes:	LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
IP Section of the Product
IP Main Connection:	USB A Host, Ethernet LAN RJ45 1000Base-T with POE+
IP Features Live-Streaming:	Yes
IP Features FTP:	Yes
Live-Streaming Protocols:	RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
Live-Streaming Multicast:	Yes
Live-Streaming and simultaneous REC:	Yes
FTP Protocol formats:	FTP / SFTP / FTPS
Note for all kinds of USB Adapters:	The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: a WIFI dongle / 3G/4G dongle or a CAT Network adapter. The Adapter you going to be using must be registered (see attached compatible list), cause all of these Adapter needs dedicated drivers, which are to be implemented into the camcorder. In the case of LTE adapters, there must be done a pre-set of these dongles in your local PC first!
WIFI Dongle 1:	Sitecom WLA.1001
WIFI Dongle 3:	ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 5:	EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 7:	TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
Recommendation for Ethernet adapters:
Ethernet Dongle 2:	Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 4:	D-LINK DUB-E100 (rev C1)
Recommendation for 3G/4G (LTE) Adapters:	Dear Customer, for most countries we have a recommendation for adapters, please download of info sheet for LTE support, below you find a special recommendation, which should work in most countries.
LAN Terminal:	Yes, RJ45 1000Base-T with POE+ /48V support
IN-OUT´s Connections
OUT HDSDI:	Yes, 3G
OUT HDMI:	Yes
IN Audio AUX:	Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo
Wired remote IN:	Yes, RS232C IN/OUT 8 PIN Mini-DIN
PTZ Serial Interface RS-422:	Yes, Serial over RJ-45 connector
PTZ Supported Protocols:	Serial, PelcoD, IP JVC, IP others
Power and Environment Spec
Power AC:	Yes, via AC/DC Adapter
Battery types:
Operation Temperature in Celsius degrees:	0 to 40
Operation Humidity in %:	30 to 80
Mechanical Information
Weight in kg:	2
Measurements (WxHxD) in mm:	W 154 x H 200.7 x D 191
Include Package
AC/DC adapter:	Yes
Cable 1:	Yes, the Power cord
Instructions:	Yes
Remote Control unit:	Yes, the IR controller
Fall Prevention wire:	Yes
Ceiling mount bracket:	Yes
Additional s:	Yes, Mounting screws, for Fall Prevention

SPECS

Camera Front-End Specifications	Image Sensor (inch)	1/2.8 Inch CMOS
	Number of Sensors	1
	Mega Pixels	13
	Gain in dB	0 to 48
	Shutter speed	1/8 to 1/10000
	White Balance modes	FAW, AWA, 3200K, 5600K, Manual
Optical Specifications	Lens mount	Internal
	Optical Zoom x times	30
	Dynamic Zoom x times	12
	Lens F Number	1.6 to 4.7
	Lens ratio from/to	4.3mm to 129mm
	Lens ratio equivalent to 35mm	31mm to 915mm
	Auto Focus	Yes
	Optical Image stabilization	Yes
	Built-in ND Filters
PTZ Head Features	PAN Angle in degree +/-	175
	PAN Speed with AC Adapter max degree/sec.	480
	PAN Speed with POE+ max degree/sec.	400
	TILT Angle in degree	-30 to 90
	TILT Speed with AC Adapter max degree/sec.	300
	TILT Speed with POE+ max degree/sec.	200
	Preset Positions	100
Recording Formats	Mediamirco	SDHC/microSDXC
	Media Class	Class 10
	Recording Slots	1
	Encoder	H.264
	Recording Resolution Formats
	Resolution 1920 x 1080	Yes, 60p/50p/30p/25p/60i/50i
	Resolution 1440 x 1080	Yes, 60i/50i
	Resolution 1280 x720	Yes, 60p/50p/30p/25p
	Recording Data Rate 1	5, 18, 28Mbps
	Recording Data Rate 2	35Mbps (UHQ)
	Recording Data rate 3	50Mbps (XHq/YUV422)
	Audio Channels	2
	Audio Recording modes	LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
	Audio Filters	Yes, Wind Cut, Gains
IP Section of the Product	IP Main Connection	USB A Host, Ethernet LAN RJ45 1000Base-T with POE+
	IP Connection supports	Ethernet, WIFI - and LTE USB Adapters
	IP Features Live-Streaming	Yes
	IP Features Remote	Yes, via RM-LP100 or Web-Browser, no apps are needed
	IP Features FTP	Yes
	Live-Streaming Bitrates	0.3,0.8,1.5, 2.5, 3,5,8,12,16, 20Mbps
	Live-Streaming Protocols	RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
	Live-Streaming Single cast	Yes
	Live-Streaming Multicast	Yes
	Live-Streaming reconnect	Yes
	Live-Streaming and simultaneous REC	Yes
	Live-Streaming Pre-sets of destinations	4
	FTP Protocol formats	FTP / SFTP / FTPS
	FTP servers preset	4
	Note for all kinds of USB Adapters	The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: a WIFI dongle / 3G/4G dongle or a CAT Network adapter. The Adapter you going to be using must be registered (see attached compatible list), cause all of these Adapter needs dedicated drivers, which are to be implemented into the camcorder. In the case of LTE adapters, there must be done a pre-set of these dongles in your local PC first!
	Recommendation for WIFI USB Adapters (EU only)	Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but the product name is not changed, we can´t track such issues so may is possible that such dongles even its mentioned here, may not work. The Adapters below are workable in the 2,4 GHz and 5 GHz infrastructure.
	WIFI Dongle 1	Sitecom WLA.1001
	WIFI Dongle 2	EnGenius EUB1200AC /Realtek RTL8812AU
	WIFI Dongle 3	ASUS USB1200AC /Realtek RTL8812AU
	WIFI Dongle 4	D-LINK DWA-172 (revA1) /Realtek RTL8811AU
	WIFI Dongle 5	EDIMAX EW-781UTC /Realtek RTL8811AU
	WIFI Dongle 6	D-LINK DWA-171(revA1) /Realtek 8811AU
	WIFI Dongle 7	TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
	WIFI Dongle 8	Wideband (over Amazon) ACWIFI DEWIFIC001A
	Recommendation for Ethernet adapters
	Ethernet Dongle 1	EDIMAX EU-4208
	Ethernet Dongle 2	Sitecom LN-030 V2 not Sitecom LN-030 V3
	Ethernet Dongle 3	Hamlet HNU2GTX
	Ethernet Dongle 4	D-LINK DUB-E100 (rev C1)
	Ethernet Dongle 5
	Recommendation for 3G/4G (LTE) Adapters	Dear Customer, for most countries we have a recommendation for adapters, please download of info sheet for LTE support, below you find a special recommendation, which should work in most countries.
	LTE Specials 1	Universal LTE dongle Huawei E8372LTE Wingle so far works with Telekom/O2/Vodafone, others have not been tested yet.
	LAN Terminal	Yes, RJ45 1000Base-T with POE+ /48V support
IN-OUT´s Connections	OUT HDSDI	Yes, 3G
	OUT HDSDI Format max.	1080/60p,50p 8 Bit 4:2:2 EE
	OUT HDMI	Yes
	OUT HDMI Format max.	1920x1080 60/50p 8 Bit 4:2:2
	IN Audio AUX	Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo
	Wired remote IN	Yes, RS422 Serial Control (RJ-45)
	Wired remote IN	Yes, RS232C IN/OUT 8 PIN Mini-DIN
	USB HOST	Yes
	PTZ Serial Interface RS-422	Yes, Serial over RJ-45 connector
	PTZ Serial Interface RS-232C in/out	Yes, over 8 PIN mini DIN
	PTZ Supported Protocols	Serial, PelcoD, IP JVC, IP others
Power and Environment Spec	Power AC	Yes, via AC/DC Adapter
	Power DC	Yes, 12 Volt or DC42V to 57V POE+ over Network LAN
	Battery types
	Power consumption	1.6 Ampere (AC-Adapter), 04 Ampere (POE+)
	Operation Temperature in Celsius degrees	0 to 40
	Storage Temperature in Celsius degrees	-20 to 50
	Operation Humidity in %	30 to 80
	Storage Humidity under %	85
Mechanical Information	Weight in kg	2
	Measurements (WxHxD) in mm	W 154 x H 200.7 x D 191
