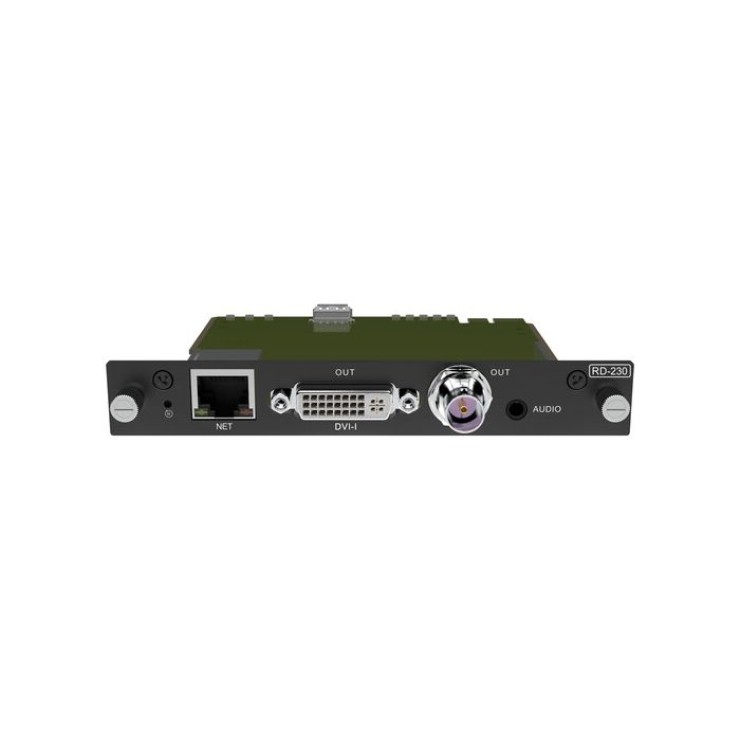

KILOVIEW 4-CHANNEL SRT & IP TO SDI/HDMI/DVI VIDEO DECODER

The Kiloview 4-Channel SRT & IP to SDI/DVI Video Decoder Card adds an IP to DVI/SDI decoder card to your Cradle RU01, RU03, or RU03S frame. The decoder card inserts into one of the Cradle frame slots and provides decoding of H.264 SRT/RTMP/RTSP streaming video via its RJ45 Ethernet input and outputs video via the 3G-SDI or DVI-I outputs. It also features a 3.5mm analog audio output to de-embed the audio to an analog destination.

The card can simultaneously output up to four channels of 1080p30 video and can output up to two channels of 1080p60 video. The SDI and DVI-I outputs can either output the same video on both interfaces, or they can output different decoded streams. The card allows you to preview the video using an image or view the video, and it allows you to view the video with a background, logo, or text overlay. It can be managed via a web interface.

Key Features :

• Card for Cradle RU01, RU03, RU03S Frames
• Simultaneously Decode IP to SDI/DVI Out
• Video up to 1080p60, H.264 Decoding
• SRT/RTMP/RTSP Gigabit Ethernet Input
• 3G-SDI & DVI-I Outputs
• 3.5mm Analog Audio Output
• Preview with Background/Logo/Overlay

RD-230 - Specification

More Information

General Network : 1 * 100M/1000M RJ- 45 Video Decoding Algorithm : H.264 Decoding Capacity : Up to 4 Channels Decoding (4*1080P30 or 2 * 1080P60 and below? Protocols Supported: SRT/RTMP/RTMPS/RTMPServer/HLS/ TSover UDP/RTP/RTSP Audio Decoding Algorithm : AAC/G.711 Management Portal : Web Output Video Output: 3G- SDI+DVI Dual Output, with Different Content Audio Output : SDI/HDMI Embedded, or 3.5mm Analog Output
