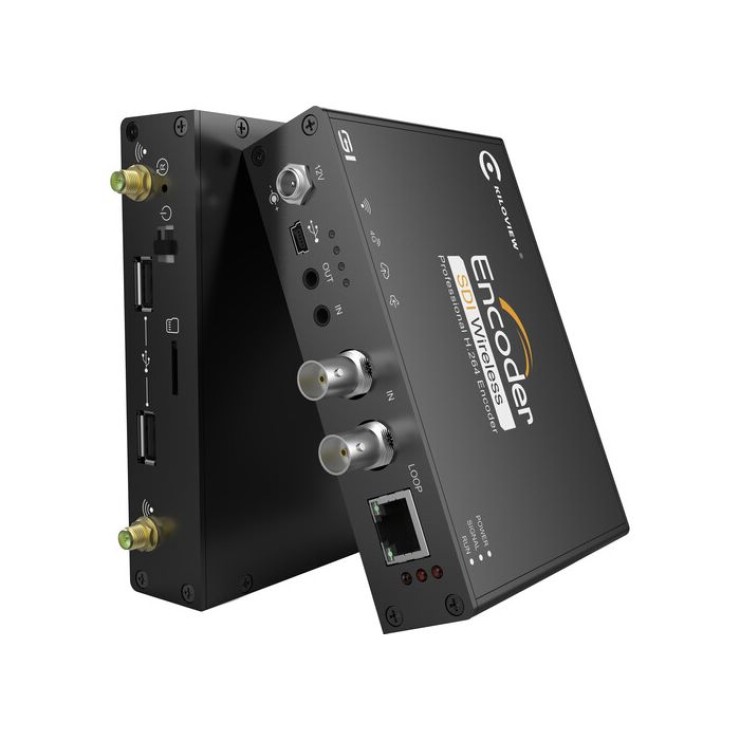

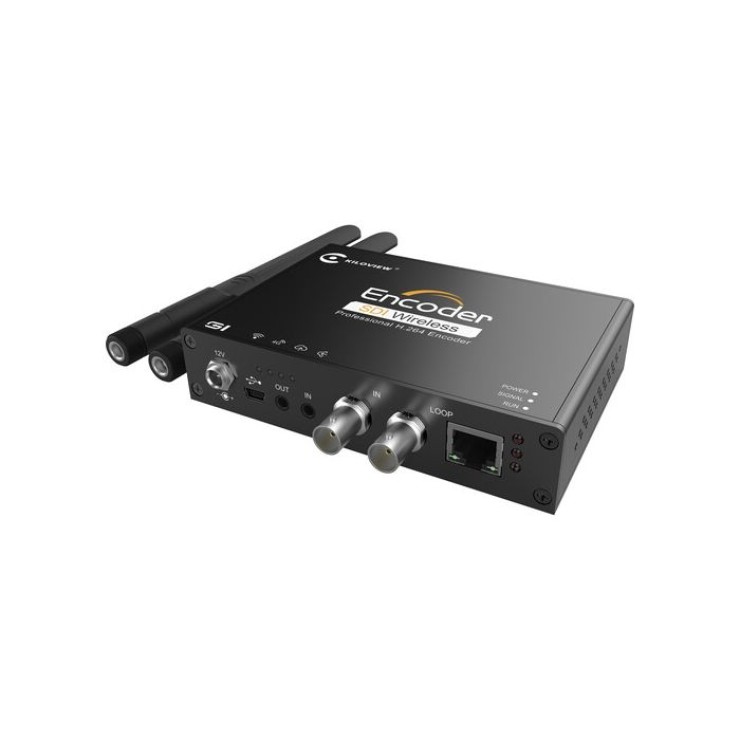

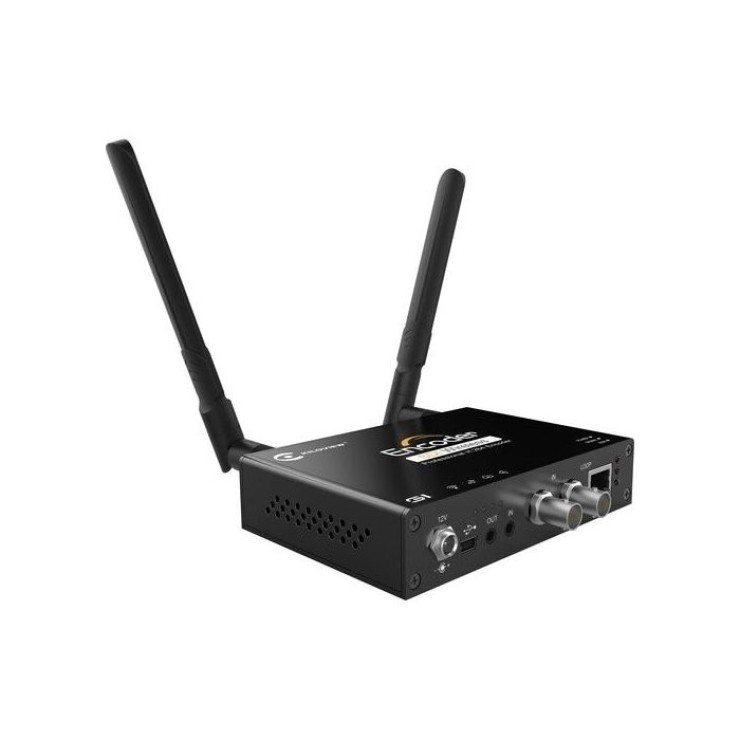

The HD/3G-SDI to RTSP Wi-Fi Video Encoder from Kiloview is an HD/3G-SDI H.264 video encoder that supports HD-SDI/3G-SDI standard compatible signal input, and HD/3G-SDI looping. It has a built-in dual-band (2.4G/5G) Wi-Fi and supports a 10/100M self-adaptive Ethernet interface. This encoder supports unbinding audio from HD/3G-SDI signal as well as input audio from analog line-in. It features a microSD/TF card slot and USB Type-A and mini-USB ports for storage. Multi-language is supported for worldwide users. Two Wi-Fi dual-band antennas and a 12 VDC power adapter are included.
Integrates FPGA, video co-processor, and video encoding chip
Supports 1080p60 Full HD video encoding, meanwhile enabling up to 960x540 at 60 Hz sub-stream encoding
VLB (Very-Low Bit Rate) H.264 video encoding technology
Built-in Wi-Fi, supporting USB extension and select network accesses
Supports multi 4G-LTE dongle bonding communication (available separately)
Built-in Sunshine streaming media engine, fully supports RTP, RTSP, RTMP, HLS, and TS
20-50 concurrent users can access it simultaneously
Supports ONVIF 1.1/2.0 that can be easily connected to secure safety system/NVR system
Use Web interface to manage device
Designed for broadcast and TV, interactive media, medical, network education, secure safety, and other fields
YouTube, UStream, and Twitch global live video platforms supported (tested)
Wowza, FMS, RED5, and SRS streaming media server platforms/CDN systems supported (tested)
Supports image rotation, cutting, grayscale, and other special image processing
Supports character/image overlay
Supports quick function customization based on customers' needs (Please contact factory technical support)
