In the encoding mode, the N50 easily converts a 4K 12G-SDI video signal into an NDI or NDI|HX stream.
While in decoding mode, it will automatically adapt the NDI and NDI|HX format as your end needs.
N50 handles your NDI transmission easily with low latency of less than 80ms.
Pro-level Color Performance
N50 supports a professional YCbCr 4:2:2 color space and a 10-bit color depth (the common 8-bit color depth is also available).
N50 provides higher color and image quality to match the high standard in the broadcast and medical industries.

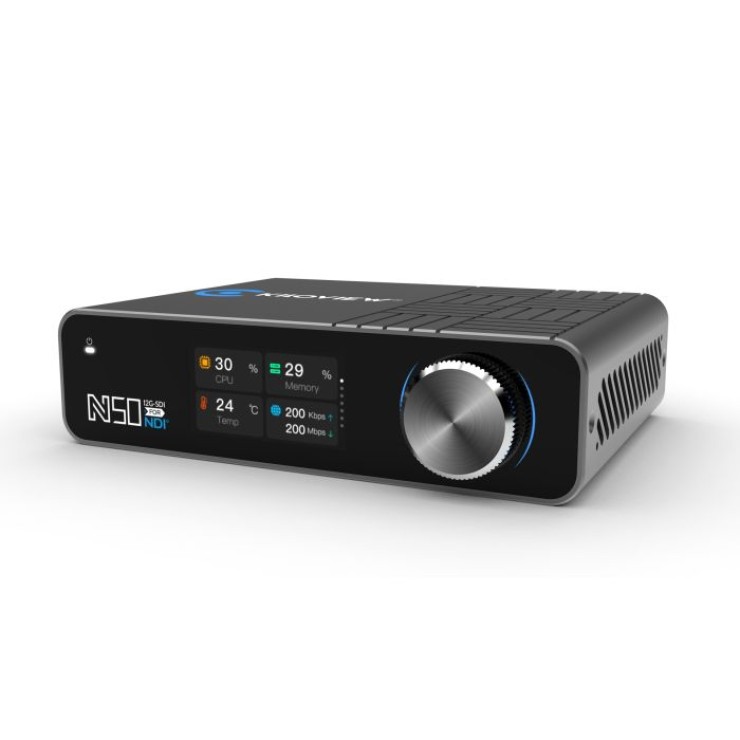

Built-in LCD Screen and Scroll Wheel
As a 12G-SDI version of Kiloview N60, the N50 cares about user experiences the same way.

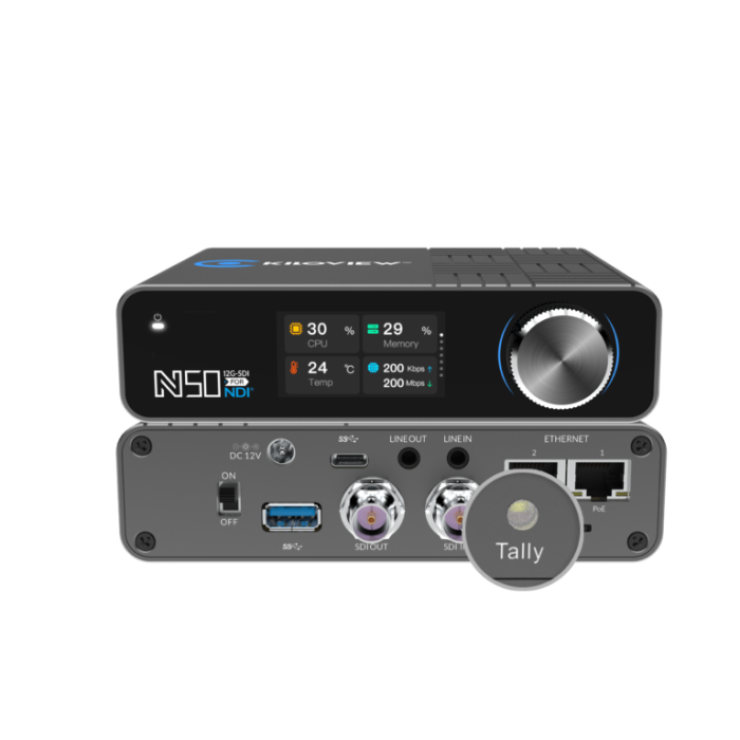

The N50 is equipped with a big color LCD screen for users to check the unit parameters anytime, anywhere. It can also be used as a big tally and works in conjunction with the small tally on the back panel, making it easy for all personnel in the field to check the PVW or PGM status in real time.
The scroll wheel enables users to customize settings, switch on/off, set quick shortcuts, and control all video sources with preeminent ease.
USB Extension
N50 has both USB 3.0 Type-A and USB 3.0 Type-C interfaces for users to :
- Access a Web Camera via USB 3.0 Type-A as a video input source for encoding;
- Connect to PC via USB 3.0 Type-C as a USB video input;
- Control PTZ Camera via USB expansion.
Users can achieve unlimited possibilities with USB extensions by seamlessly bringing NDI technology to such applications as video conferencing, image processing, and PTZ camera control.
PTZ Control
N50 supports PTZ control through USB to serial RS-232/RS-485/RS-422.
It also adopts network control protocols (such as Sony Visca/PELCO-D/PELCO-P) for external PTZ control.

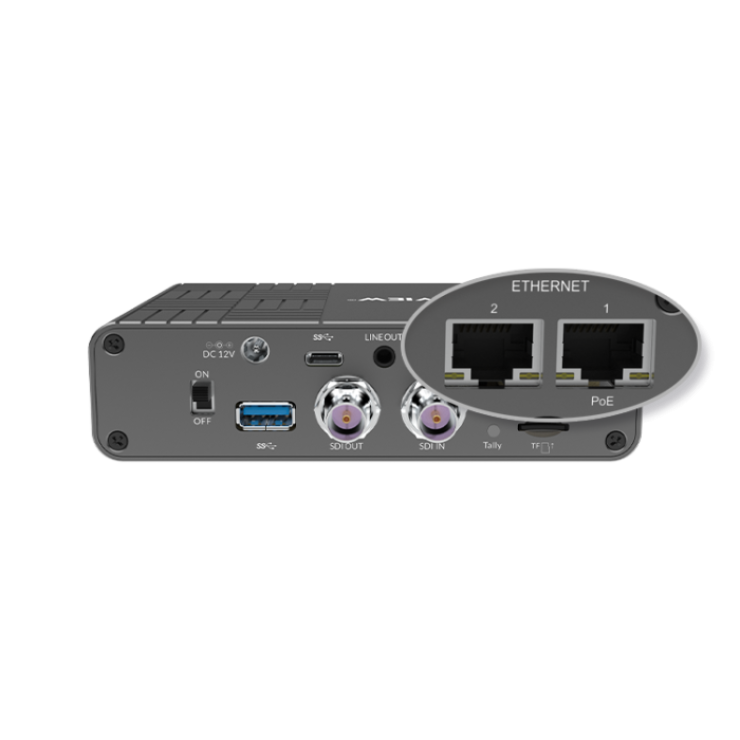

Power Supply: PoE and DC
N50 has 2 interfaces of Ethernet, one of which supports the PoE（IEEE 802.3AT）power supply.
Just plug in a network cable, and you can easily access both the power supply and network transmission.
It also supports a DC 12V power supply and can easily power the device with a portable charger or camera battery.
TF Storage
N50 offers a TF storage extension that eases your recording of encoding NDI video directly into a TF card (local recording supports MOV. format).
TF storage prevents your recording process from losing video frames caused by network delay, network interruption, or fluctuation.
Product Highlights:
- Full-functional NDI&NDI|HX Converter
- Encoding & Decoding with Ultra-low Latency
- Pro-level Color Performance
- Built-in LCD Screen and Scroll Wheel
