KILOVIEW D350 HARDWARE VIDEO DECODER WITH DUAL OUTPUTS

• Designed for professional video decoding, the Kiloview D350 4K H.265/H.264 IP Video Decoder supports up to UHD 4K60 video input and output and can simultaneously decode up to 9 channels of 1080p60 or 16 channels of 1080p30 IP video. It features one 3G-SDI and two HDMI outputs, supports multiple audio formats, and offers multiple display options. The D350 has an integrated display for real-time monitoring and it supports NDI|HX2, NDI|HX3 (beta), full NDI, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP for decoding from any streaming source.

  Simultaneously Decodes up to 16 Channels

  • The D350 decoder supports simultaneous decoding of up to 16 streams, depending on the resolution:
  • 4Kp60 NDI: 1 x channel
  • 4Kp30: 2 x channels
  • 1080p60: 9 x channels
  • 1080p30: 16 x channels

  User-Defined Display Layouts

  • Customized multi-output displays include grids and PiP, PbP, and PoP
  • Adjustable frame rates, output resolutions, and de-interlacing
  • View up to 9 output streams and up to 16 previews

  Output Options

  Two HDMI 2.0 ports and one 3G-SDI port support three output options:

  • Independent outputs
  • A combination of multichannel video output
  • Simultaneous, single-stream replication

  RMTP Server Support

  The D350 can simplify your workflow by directly accessing a video encoder and outputting video streams through RTMP without any relay platform



  Dual USB Interfaces

  USB-A and USB-C ports offer PRZ camera control using a USB keyboard, connection to an SSD for local storage, and intercom use via a USB headset



  Audio Decoding Options

  • Supported audio formats include AAC, AAC MPEG-4, MPEG-2, G.711, Opus, and LPCM
  • Real-time audio mix and audio gain to output alternatively through its HDMI ports, SDI port, and 3.5mm line out port

Items Included:

• Kiloview D350 4K H.265/H.264 IP Video Decoder
• 12 VDC Power Supply
• Limited 1-Year Manufacturer Warranty

•


  Product Highlights:

  • Decode up to 4Kp60 H.264/H.265 IP Video
  • 1 x 3G-SDI & 2 x HDMI Outputs
  • Up to 4Kp60 Out, Simultaneous Outputs

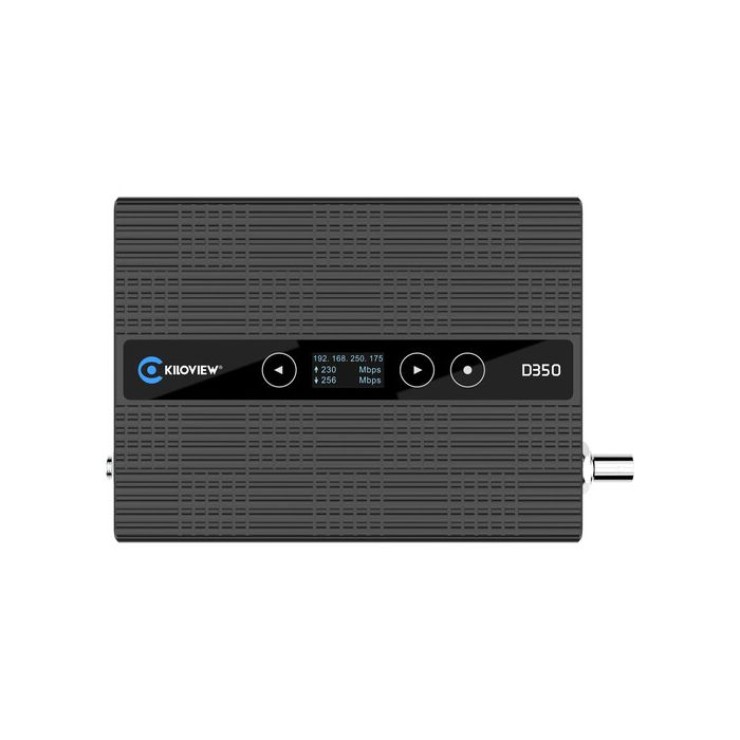

  • Built-In LCD Screen for Easy Monitoring
  • Independent, Multichannel, or Replication
  • Dynamic Switching, Background & Logos
  • Supports Multiple Audio Formats
  • 3.5mm Line Out, Audio On/Off
  • USB-A for Intercom/USB-C for SSD Storage
  • Customizable Logos, Frames & Graphics

**Inputs/Outputs**

Video Inputs

- 2 x RJ45

Audio Inputs

- None

Video Outputs

- 1 x BNC (3G-SDI)

- 2 x HDMI (HDMI 2.0)

Audio Outputs

- 1 x 1/8" / 3.5 mm TRS Stereo Analog

Other I/O

- 1 x USB-A

- 1 x USB-C

Expansion Slots

- None

Latency

- up to 200 ms

**Format Support**

Input Video Format

- RJ45

- UHD 4K at 30 fps

- 1080p at 30/50/60 fps

- 1080i at 50/60 fps

- 720p

Output Video Format

- SDI

- 1080p at 24/25/29.97/30/50/59.94/60 fps

- 1080i at 50/59.94 fps

- 720p at 50/59.94/60 fps

- 576i / 625 lines at 50 fps

- 480i / 525 lines at 60 fps

HDMI

- UHD 4K at 25/30/50/60 fps

- 1080p at 24/25/30/50/60 fps

- 1080i at 50/60 fps

- 720p at 50/60 fps

Output Audio Format

- Analog

- Embedded Audio: HDMI/LAN(RJ45)/SDI

**Standards**

HDR Compatibility

- Not Specified by Manufacturer

IP Streaming

Video IP Decoding

- H.264, H.265, HLS, NDI, RTMP, RTP, RTSP, TS, UDP: 3840 x 2160

Audio IP Decoding

- AAC

**Hardware**

Display Size

- 0.9"

Tally Light

- Yes

Wi-Fi

- None

**Power**

Power I/O

- 1 x Barrel (12 VDC) Input

Power Consumption

- 12 VDC at 1 A (6 W)

**Environmental**

Operating Temperature

- -4 to 140°F / -20 to 60°C

**General**

Dimensions

- 5.5 x 4.1 x 1.1" / 140 x 105 x 28 mm

Weight

- 13.4 oz / 380 g

**Packaging Info**

Package Weight

- 1.495 lb

Box Dimensions (LxWxH)

- 7.8 x 6.7 x 3.3"
