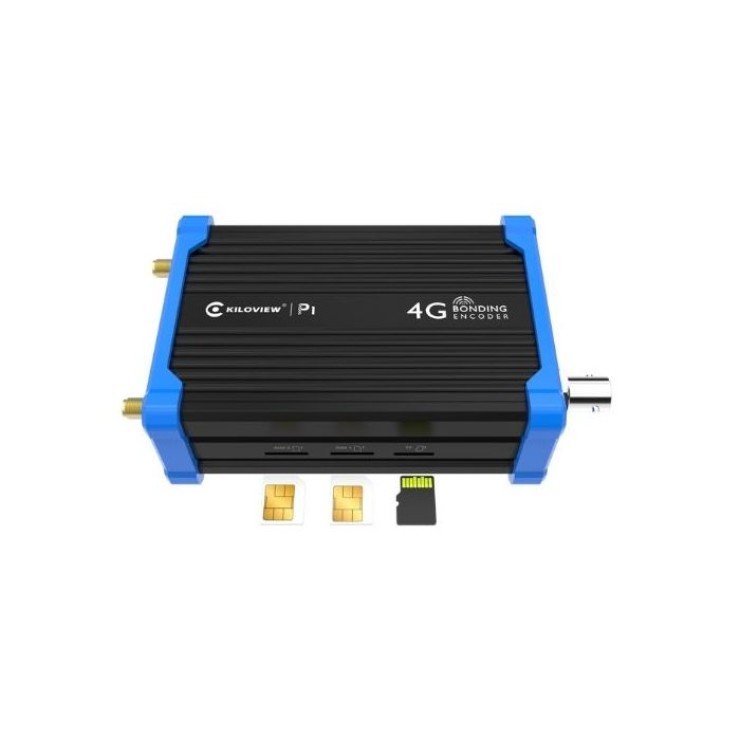

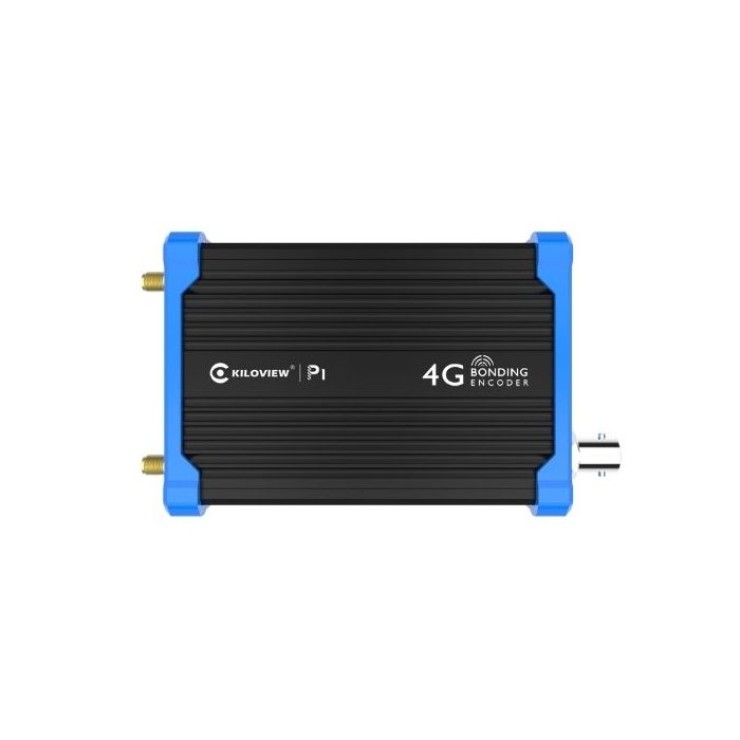

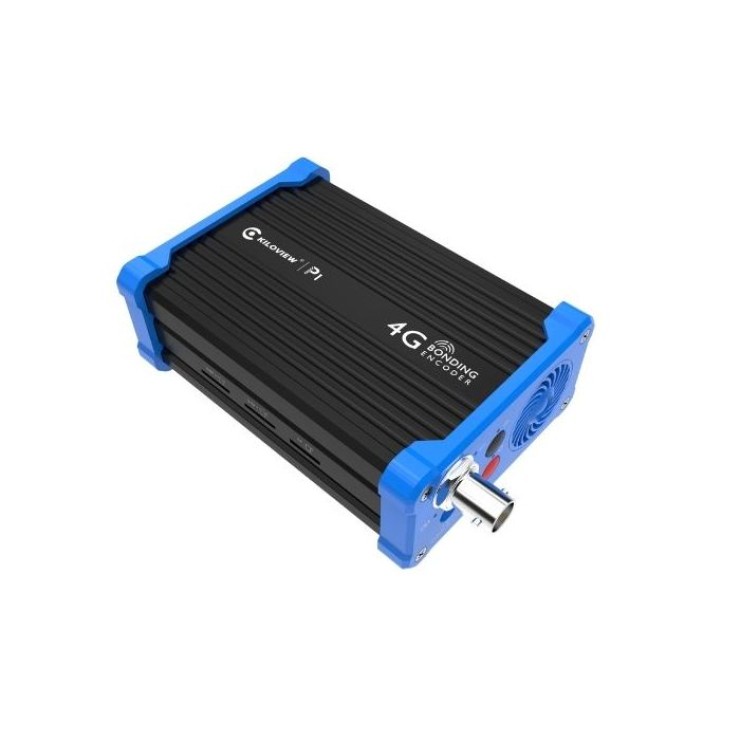

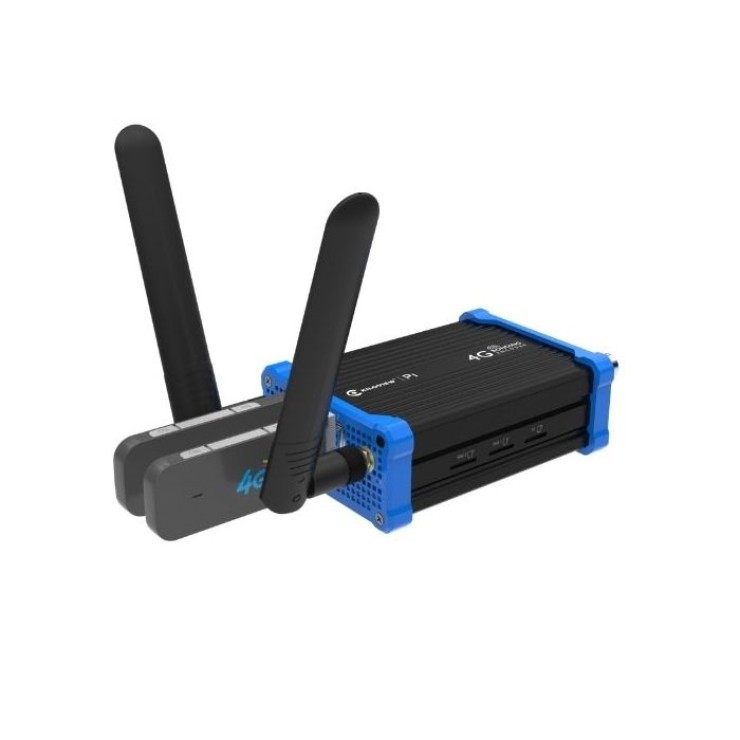

KILOVIEW P1 P SERIES 4G CELLULAR BONDING VIDEO ENCODER

Request For Price

Simultaneously stream your Full HD video to up to 16 x platforms with this HDMI 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming from Kiloview. The small, portable unit inputs 3G-SDI video up to 1080p60 and outputs the signal over cellular bonding, for North America only, as well as via Wi-Fi and Ethernet.

Category: Kiloview

SKU: 10

It supports RTMP/HLS/SRT/TS streaming media protocols, allowing it to work with a variety of platforms. Powered by an internal battery, the encoder supports embedded audio and 3.5mm analog audio input and output in ACC or G.711 format. It features a microSD card slot for recording your video, and it supports PTZ control over USB.

Up to 5 Connections

2 x Internal 4G Cellular + 2 x USB 4G Cellular (LAN) + 1 x Wi-Fi (+ 1 RJ45) supported and it's free configurable of any desired network

Cellular Bonding

With the patented bonding algorithm with KiloLink, P series encoders can automatically balance the data of all connections and adjust the bitrate accordingly to make sure reliable streaming. In addition, the P1 can support Wi-Fi hotspots for data and file transmission.

Self-Deploy Bonding Cloud With Device Management

Kiloview provides bonding software for free; it's available for deployment on your server or cloud-based server.
With KiloLink Server, you can manage all your registered devices on the server end, such as monitoring device status, previewing a stream, parameter settings, firmware updating, port forwarding, and so on. Real-time connection status and data statistics are also available on the server end.
It's easy to manage with a single QR code.

Ultra-Low Latency for End-to-End Video Transmission

With optimized technology, the Kiloview P series offers an ultra-low latency video streaming experience, which is suitable for remote production, IRL streaming, or audience interaction with high quality. End-to-end latency with a 4G-bonding server is less than one second under normal working conditions.

RSTP, RTMP, SRT, HLS, and TS-UDP

No matter if you are using a single connection or the bonding connection, with the Kiloview P series, you can not only stream your video to YouTube/Facebook and other platforms with RTMP(S), but also transmit your video remotely by SRT and others workflows using different protocols such as RTSP, UDP, and HLS. Outdoor streaming was never so easy.

Multiple Platform Streaming

Kiloview P series encoder supports streaming to 16 platforms simultaneously by configuring the main and sub-stream in the web console, which means you can stream to all the popular platforms with the same content. (Mainstream resolution up to 1080P60, sub-stream resolution up to 720P60).

Video Rotate/Crop, and Image Overlay

With an FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video, which makes it social media friendly. You can also mirror the stream, or adjust the color. Moreover, you can set your overlay image at any position such as adding a logo, text, etc.

Product Highlights:

Dual-Stream Output, Main and Sub
2x Internal, 2x External 4G Antennas
Convert SDI to IP
Simultaneously Stream to 16 Platforms
Wi-Fi and RJ45 Outputs
Supports up to 1080p60
microSD Card Slot
Web-Based Interface
Supports RTMP/HLS/SRT/TS Protocols
Portable Form Factor

Items included :

P series encoder PCS 1

4G Antenna PCS 2

DC12V/1A power adaptor PCS 1

USB-DC cable PCS 1

USB-RJ45 converter PCS 1

Hot shoe rack PCS 1

Hot shoe bracket PCS 1

Quick start guide PCS 1

Certificate/Warranty card PCS 1

Model No.: P1, P2

Input: SDI (P1), HDMI (P2)

Transmission mode: 4G-LTE, WIFI (2.4/5G dual band), Ethernet (USB expansion)

4G bonding capacity: 4 channels of 4G bonding (2 CH internal + 2 CH external)

Video resolution: Up to 1080P60Hz:

1080p23.98/24/25/29.97/30

1080p50/59.94/60

1080i50/59.94/60

720p23.98/24/25/29.97/30

720p50/59.94/60

Video encoding: H.264/AVC, Motion-JPEG

Audio encoding: AAC/G.711

Encoding latency: Less than 67ms

Media protocol: RTMP/RTSP/SRT/RTP/HLS/TS over UDP, custom for SIP

Graphic overlay: User-defined text, image overlay

Recording: TF card slot/hard disk (USB expansion) for local recording and NAS network storage

Management: Android APP/Web

Hot shoe: Removable

Battery capacity: 3.7V 6800mAh (29.6Wh)

Power supply: DC 12V 1A

Power consumption: 6.5W

Operating temperature: -20°C to 45°C

Dimension: 115*75*35mm (4.53”*2.95”*1.38”)

Weight: 400g (14 oz)
