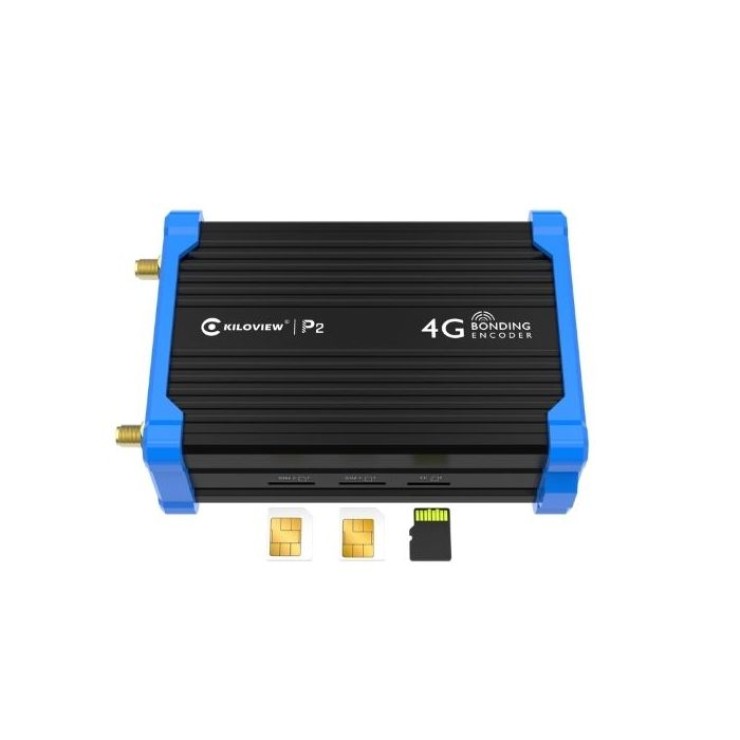

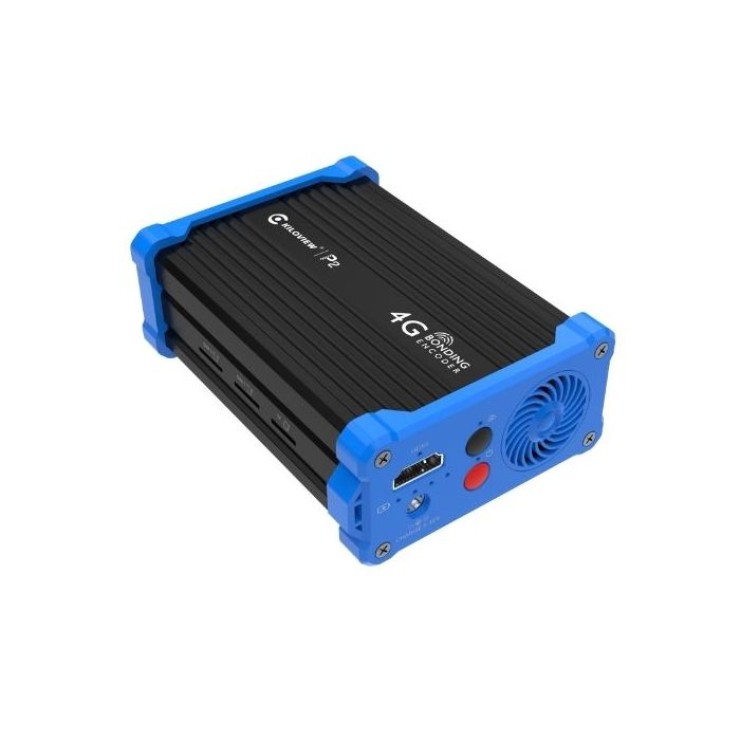

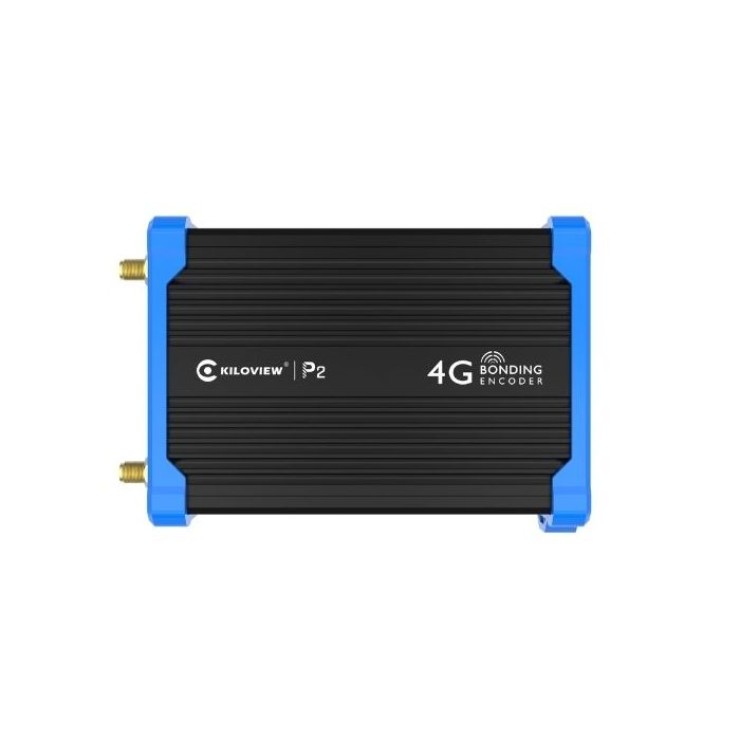

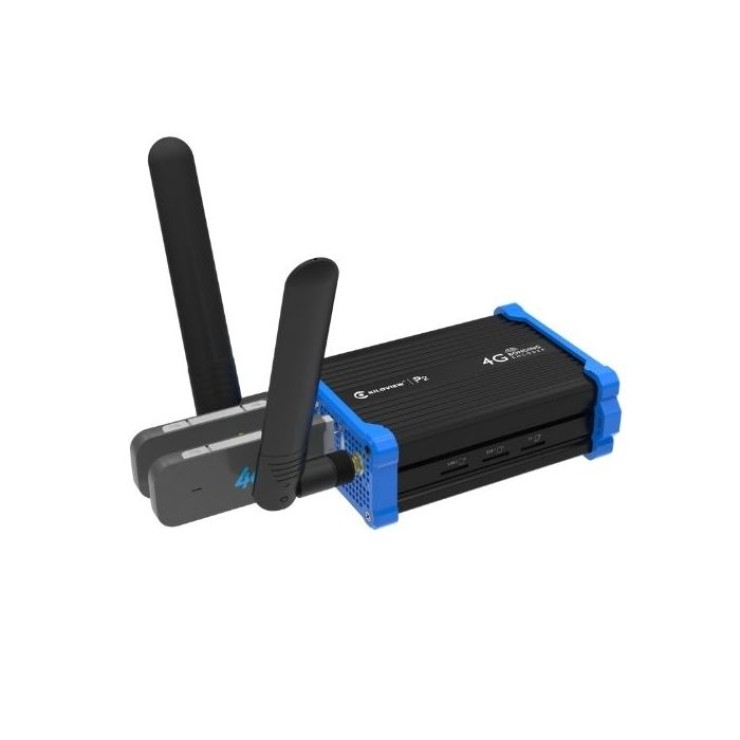

KILOVIEW P2 P SERIES 4G CELLULAR BONDING VIDEO ENCODER

Kiloview P series video encoder is a professional high-end encoding device specially designed for mobile applications. It adopts KiloLink – Kiloview’s patented algorithm to solve the problem of poor connectivity. It perfectly suits outdoor live streaming and transmission in such scenarios as live events, concerts, sports, field broadcasts, emergency spots, and more, anytime, anywhere.

Kiloview P series features ultra-low end-to-end latency (<1s), meanwhile, it supports voice intercom with Kiloview KIS, it’s also perfect for remote program production or group interaction.

Up to 5 Connections Bonding, Stream Like a Pro

2x Internal 4G Cellular + 2x USB 4G Cellular (LAN)+ 1x Wi-Fi (+1*RJ45) supported and it’s free configurable of any desired network.

With the patented bonding algorithm with KiloLink, P series encoders can automatically balance the data of all connections and adjust the bitrate accordingly to make sure reliable streaming.

Besides, P serials can support Wi-Fi hotspots for data and file transmission.

Ultra-Low Latency for End-to-End Video Transmission

With optimized technology, the Kiloview P series offers an ultra-low latency video streaming experience, which is suitable for remote production, IRL streaming, or audience interaction with high quality. End-to-end latency with a 4G-bonding server is less than one second under normal working conditions.

RSTP, RTMP, SRT, HLS, TS-UDP and more

No matter you are using a single connection or the bonding connection, with the Kiloview P series, you can not only stream your video to Youtube/Facebook and other platforms with RTMP(S), but also transmit your video remotely by SRT, and other workflows using different protocols such as RTSP, UDP and HLS. Outdoor streaming is never so easy.

Multiple Platform Streaming

Kiloview P series encoder supports streaming to 16 platforms simultaneously by configuring the main and substream in the web console, which means you can stream to all the popular platforms with the same content.

(Mainstream resolution up to 1080P60, sub stream resolution up to 720P60)

Video Rotate/Crop, and Image Overlay

With an FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly. You can also mirror the stream, or adjust the color. Moreover, you can set your overlay image at any position such as adding a logo, text, etc.

Product highlights:

• It supports the full range of protocols including RTSP/ RTMP/ RTMPS/ RTP/ SRT/ HLS/ TS-UDP/ Onvif and customizes for SIP etc.
• That means live streaming with RTMP/RTMPS, while remote production with SRT, all can be handled at the same time.
• It supports ONVIF 1.1/2.0 for easy access to the security protection system/NVR system.

More Information

SPECS

Model No.: P1, P2

Input:

- SDI (P1)

- HDMI (P2)

Transmission mode:

- 4G-LTE

- WIFI (2.4/5G dual band)

- Ethernet by USB expansion

4G bonding capacity: 4 channels of 4G bonding (2 CH internal + 2 CH external)

Video resolution:

- Up to 1080P60Hz

- 1080p23.98/24/25/29.97/30

- 1080p50/59.94/60

- 1080i50/59.94/60

- 720p23.98/24/25/29.97/30

- 720p50/59.94/60

Video encoding: H.264/AVC, Motion-JPEG

Audio encoding: AAC/G.711

Encoding latency: <67ms

Media protocol: RTMP/RTSP/SRT/RTP/HLS/TS over UDP, custom for SIP

Graphic overlay: User-defined text, image overlay

Recording:

- TF card slot/hard disk by USB expansion for local recording

- NAS network storage

Management: Android APP/Web

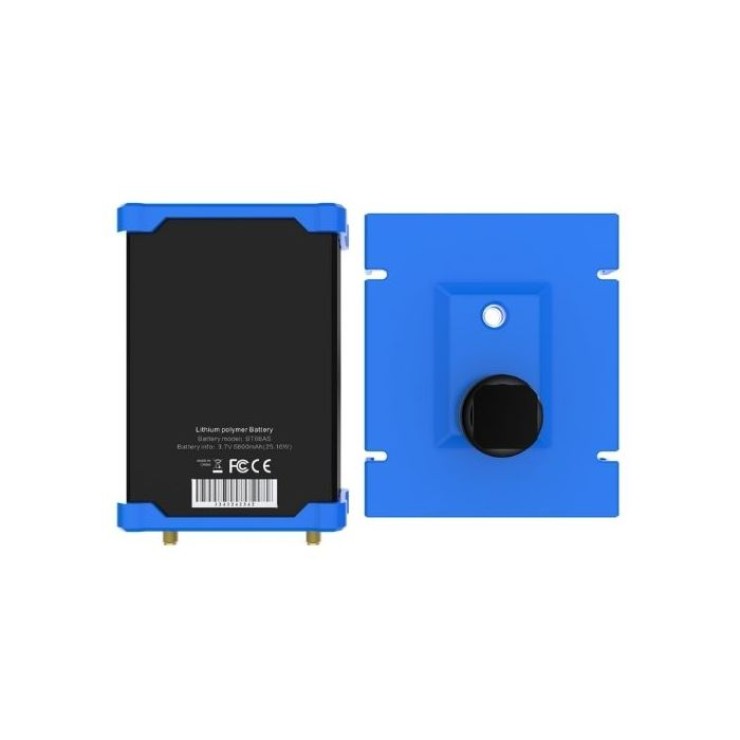

Hot shoe: Removable

Battery capacity: 3.7V 6800mAh (29.6Wh)

Power supply: DC 12V 1A

Power consumption: 6.5w

Operating temperature: -20~45℃

Dimension: 115*75*35mm (4.53”*2.95”*1.38”)

Weight: 400g (14 oz)
