MAGEWELL ULTRA STREAM SDI ENCODER

• Android 5.0 and above
• iOS 9.0 and above

• Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards; 2048 x 1080 2K input and loop-through signals; 8/10/12-bit color depths; 60p, 60i, 50p, 50i, 30p, 25p signal formats
• Limited support for the first stream of 3Gb-DS
• Limited support for the first link of dual-link interfaces:

• Extract embedded HDMI stereo audio for recording, streaming, and output via the headphone interface
• Record and stream analog audio from the 3.5mm microphone interface

• H.264/HEVC video and AAC high-quality audio encoding
• Support for video bitrates up to 8Mb/s for the mainstream and 2Mb/s for the substream
• Encode input resolutions up to 1920x1080 at 60 fps

• Live stream using the RTMP/RTMPS protocol to applications such as Flash Media Server, Wowza, Red5, and NGINX server
• RTSP protocol support
• Live streaming to popular services such as Facebook Live, YouTube, and Twitch
• Stream to up to two servers simultaneously
• Allows specifying network priority when multiple networks are connected

• Record to 32GB of internal storage or a USB flash drive
• Loop recording supported
• Auto-recording when the input signal is stable
• Record video clips in different durations
• Record as MP4 or MOV files
• USB flash drive file system formats: FAT32, NTFS, exFAT, VFAT
• Download video clips saved in internal storage using the WebUI

• Up to 1280 x 720 resolution at 30 fps in MP4 file format
• Capture still image snapshots during the recording
• Record files and screenshots to system album
• Preview main and substreams
• Timer recording: 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes

• Remote control using the WebUI or the companion iOS/Android app that connects to the Ultra Stream SDI over Bluetooth
• Connect via Wi-Fi, a wired network, or a hotspot
• Check device status
• Set volume, network, recording, and live streaming parameters
• Simultaneous mainstream and substream encoding with customizable parameters
• Support for multiple users logging in simultaneously
• In-app online help
• Device configuration via the WebUI

• Status of the input signal, Ethernet network, Wi-Fi, USB flash drive

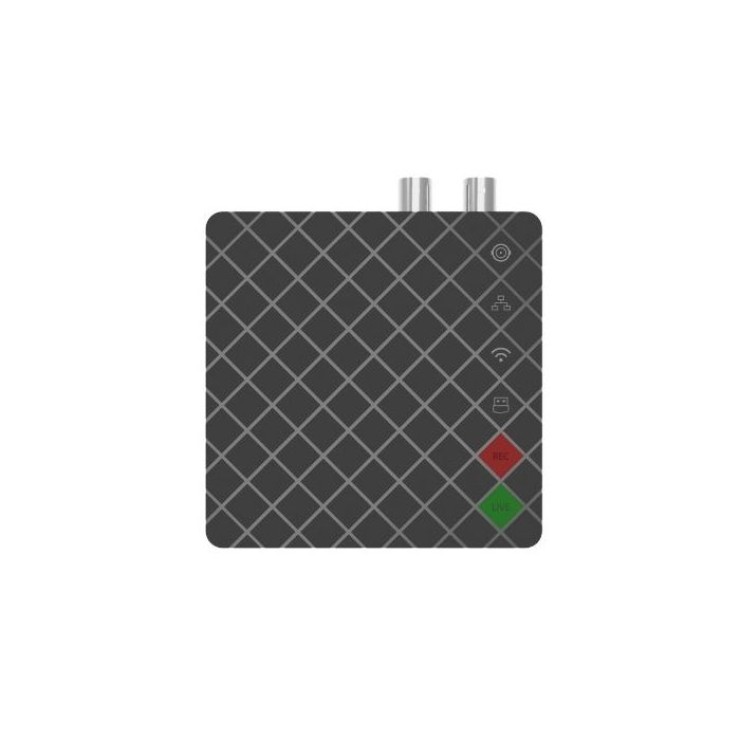

• Operating status: startup, recording, streaming, updating

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

Product Highlights:

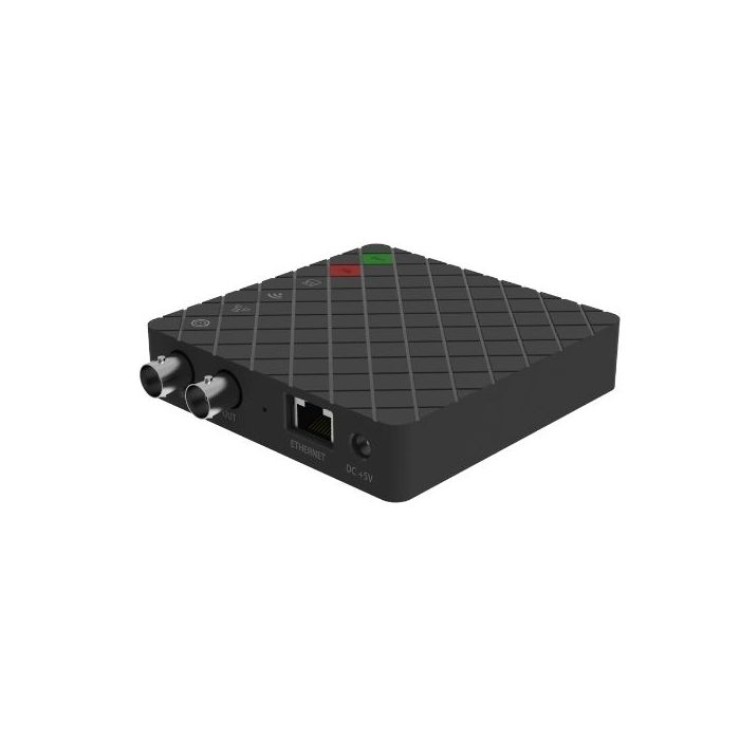

• SDI Input and Loop Output
• Two Streams over Wi-Fi/Ethernet/Hotspot
• Stream to CDNs and RTSP Servers
• 1080p60 Streaming and 720p30 Recording
• Internal and USB Flash Drive Recording

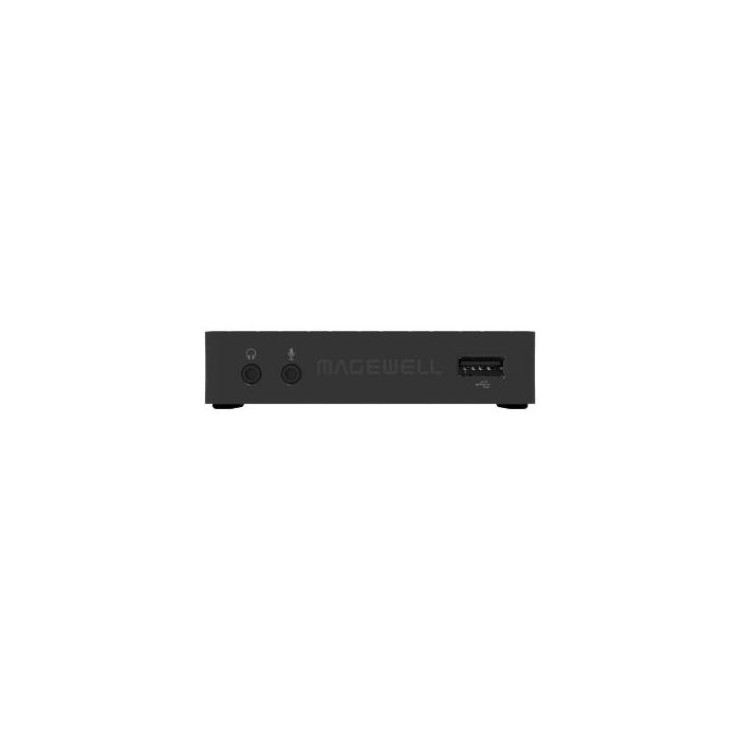

• Mic and Headphone Ports
• iOS/Android and WebUI Control

Items Included:

• Magewell Ultra Stream SDI
• AC Power Supply
• Limited 2-Year Warranty

**More Information**

**SPECS**

 **IP Encoding / Decoding**

**IP Video:**

- Encoding: 480 x 270 to 1920 x 1080 at 60p

**IP Audio:**

- AAC: Encoding

**Transport Protocols:**

- RTMP, RTMPS, RTSP

**Simultaneous Streams:**

- 2 Streams

**Wireless**

**Wi-Fi:**

- Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)

**Bluetooth:**

- 4.0

**Interfaces**

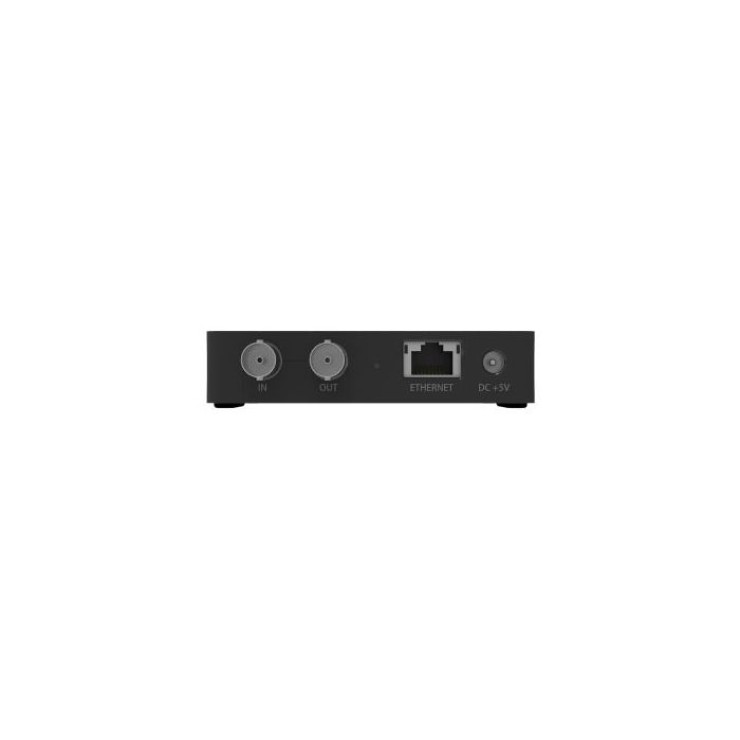

**Video I/O:**

- 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input

- 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Output

**Audio I/O:**

- 1 x 1/8" / 3.5 mm TRS Input

- 1 x 1/8" / 3.5 mm TRS Output

**Other I/O:**

- 1 x RJ45

- 1 x USB-A

**Embedded Audio:**

- SDI

 **Internal Recording**

**Recording Media:**

- 1 x USB-A 2.0 (External Drives)

**Internal Storage:**

- 32 GB

**Recording Modes:**

- 1280 x 720p up to 30 fps (MP4)

 **Power**

**Power Connector:**

- 1 x Barrel (5 VDC at 2 A) Input

**Power Consumption:**

- (6 W)

 **Environmental**

**Operating Temperature:**

- 32 to 72°F / 0 to 40°C

**Operating Humidity:**

- 5 to 90%

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

 **General**

**Dimensions:**

- 3.7 x 3.7 x 0.9" / 94 x 94 x 22 mm

**Packaging Info**

**Package Weight:**

- 1.2 lb

**Box Dimensions (LxWxH):**

- 8.7 x 7.7 x 1.7"
