MARSHALL ELECTRONICS CV226 ALL-WEATHER HD LIPSTICK CAMERA (3G-SDI)

150$ ~~200$~~

The Marshall Electronices CV226 All-Weather HD Lipstick Camera is small in size and can be mounted virtually anywhere. It features an IP67 rating for dust and water intrusion so you can use it in dirty and wet environments. The camera can capture at 1080p, 1080i, and 720p, outputting through a full-size BNC output. An interchangeable M12 3.6mm lens is included and provides a 72° horizontal angle of view; the lens is covered by a cap that enables the camera to maintain its IP67 rating.

Category: Marshall

SKU: 10

The Marshall Electronics CV226 All-Weather HD Lipstick Camera is small in size and can be mounted virtually anywhere. It features an IP67 rating for dust and water intrusion so you can use it in dirty and wet environments. The camera can capture at 1080p, 1080i, and 720p, outputting through a full-size BNC output. An interchangeable M12 3.6mm lens is included and provides a 72° horizontal angle of view; the lens is covered by a cap that enables the camera to maintain its IP67 rating.

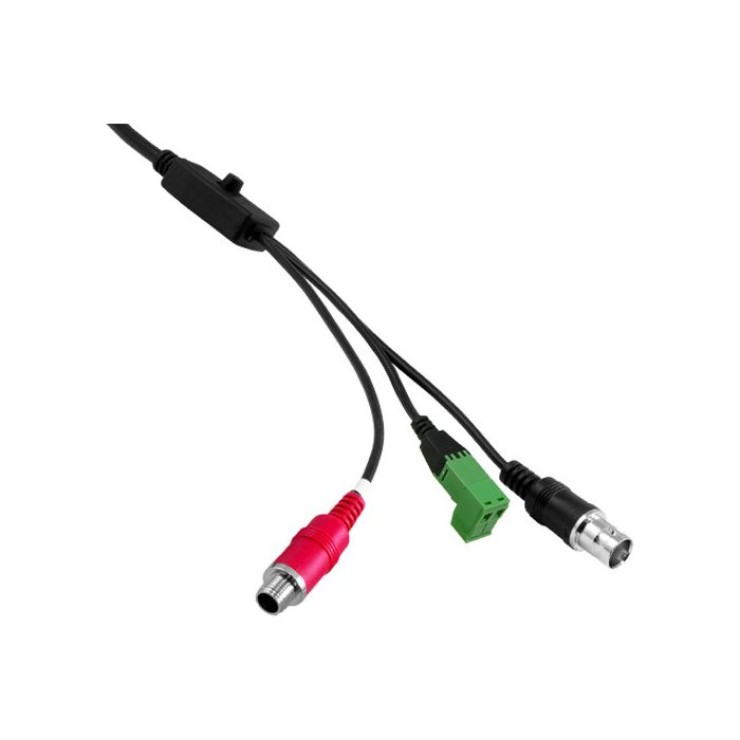

The integrated 10' long breakout cable features a locking power cable connector, a full-size BNC cable, a Phoenix connector for RS-485 Visca control, and a built-in joystick that enables navigating the OSD menu system. The body of the camera incorporates a 1/4"-20 threaded mounting hole, allowing you to mount the camera to a variety of mounting systems.

Features

Full-sized 3G/HD-SDI (BNC) output
2.5 Megapixel (1/2.86") sensor (4:2:2 color)
10' long breakout cable with BNC (3G-SDI), RS-485 remote adjust, and locking 12V power connector
Interchangeable M12 3.6mm lens with IP67 cap included
IP67-rated weatherproof housing allows you to submerge the camera in water up to 10 feet for several hours
Full-HD resolutions: 1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98, 1920 x 1080i 60/59.94/50, and 1280 x 720p 60/59.94/50/30/29.97/25/24/23.98 fps
Remote adjustable through RS-485 (Visca) or OSD menu joystick
CV-RCP-V2 touchscreen RCP compatible and free Camera Control Software option
Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more

Applications

Broadcast television
Professional sports
College sports
OB vans/trucks
Concerts and studio music videos
Reality TV
Performing arts
Culinary shows
Car TV shows
Hidden camera shows
International racing circuits
Off-road racing
Horse racing
Houses of worship
POV video shots

Items Included:

Marshall Electronics CV226 All-Weather HD Lipstick Camera (3G-SDI)
Universal Power Supply with Locking Connector
10' Long Breakout Cable (Attached)
Limited 1-Year Warranty

Product Highlights:

For Dusty and Wet Environments
IP67 Rated
1080p, 1080i, and 720p Frame Rates
Includes 3.6mm Lens with a 72° AOV
RG6 Flexible Coaxial Breakout Cable
Integrated Joystick on Breakout Cable
Full-Size 3G/HD-SDI BNC Output Connector
Supports RS-485 Visca Control
1/4"-20 Threaded Mounting Socket

CV226 - Specification

More Information

General
Imaging Sensor:	2.5 MP 1/2.86" CMOS Sensor
Scanning System:	16:9 Progressive Scan
Frame Rate (fps):	1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98
Video Output:	3G/HD-SDI
Lens Mount:	M12 Mount
Focal Length:	3.6mm
Power:	12 VDC
Dimension (Diameter x Depth):	0.77 x 2.46" / 1.95 x 6.25 cm
Weight:	Approx. 0.17 lb / 80 g (with Cable)
Packaging Info
Package Weight:	1.42 lb
Box Dimensions (LxWxH):	9.5 x 5.2 x 4.2"
