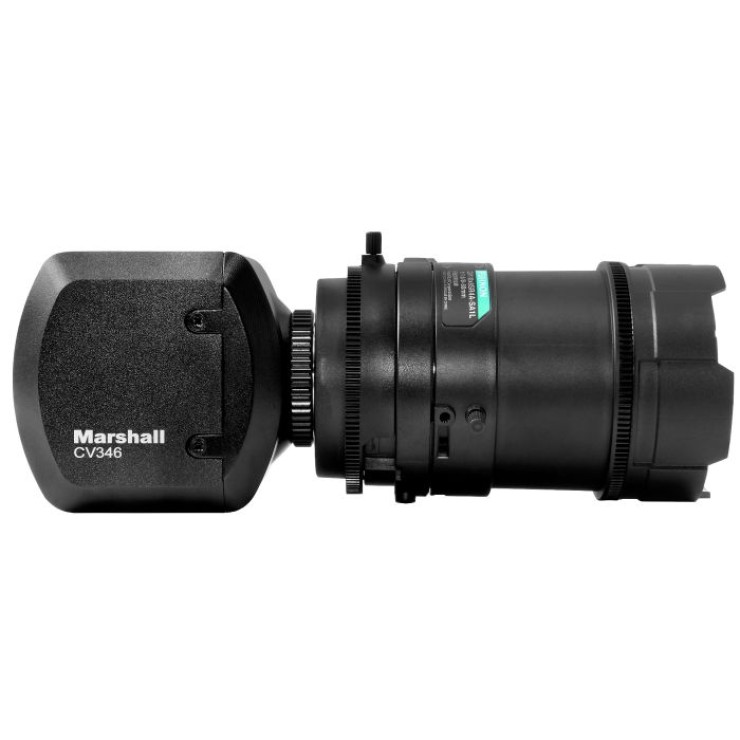

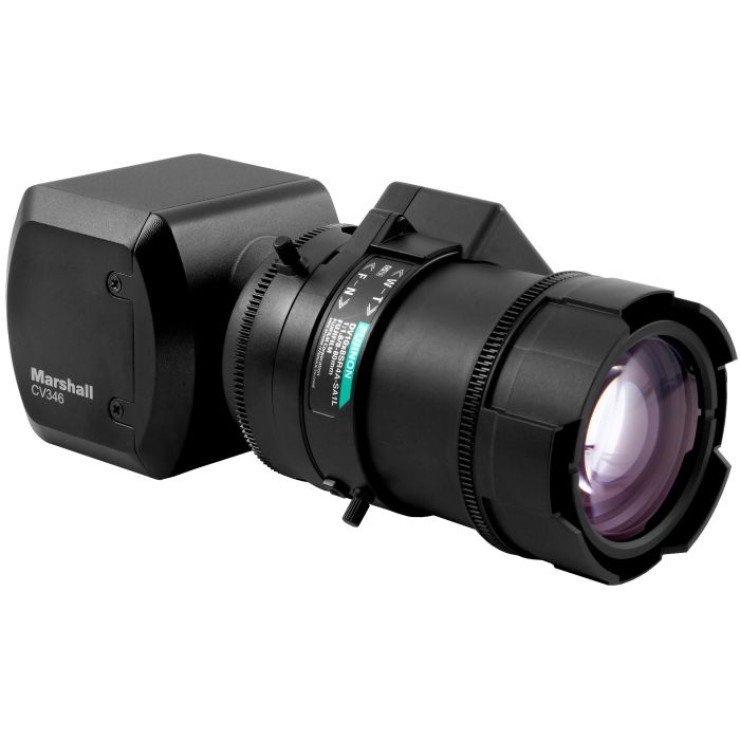

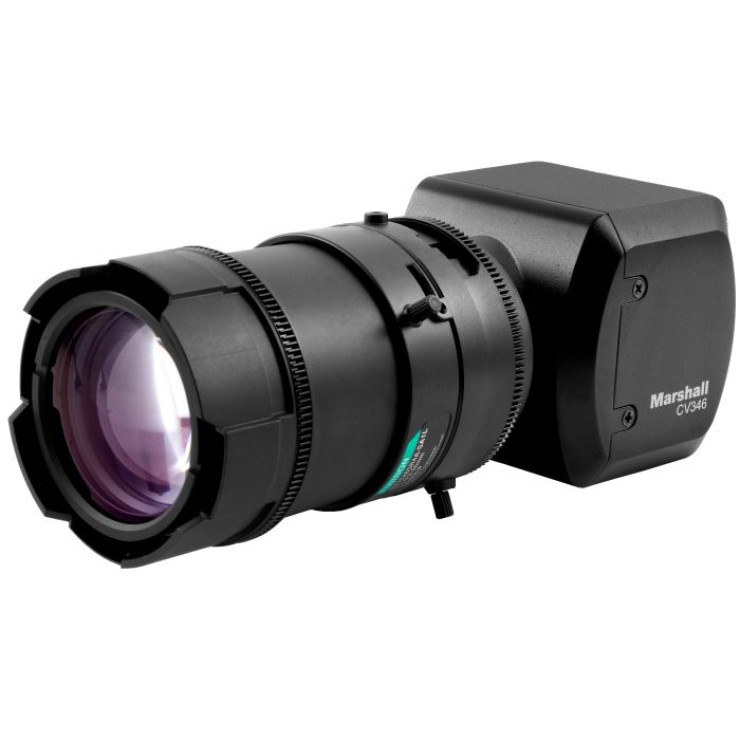

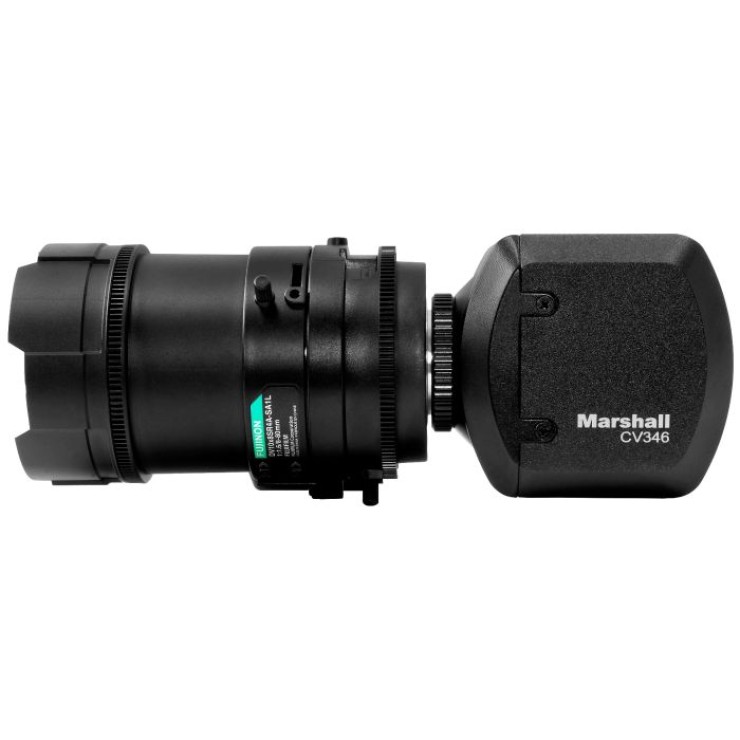

MARSHALL ELECTRONICS CV346 COMPACT FULL-HD CAMERA (3G/HDSDI & HDMI)

Marshall Electronics next generation Miniature CV505 and Compact CV345 HD Pro-Series Cameras add the convenience of HDSDI/3GSDI (BNC) and HDMI (v.1.3) simultaneous outputs and optional audio Mic or Line-Level (CV345) selectable input. Built around next-generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.

New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry-leading low power consumption draws very low power in full-HD resolutions. CV505-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with the ease of use and broadcast-centric feature sets.

• Camera Breakout Cable

• C-Mount Lens Adapter
• 12v Dc Adapter


• Product Highlights:


  • 2.5 Megapixel 1/3-inch CMOS sensor
  • CS/C Mount with DC-Auto Iris (lens sold separately)
  • Hirose-style (I/O) connector contains: RS-485 connectors, 12V power connector & audio TRS Mic/Line level input

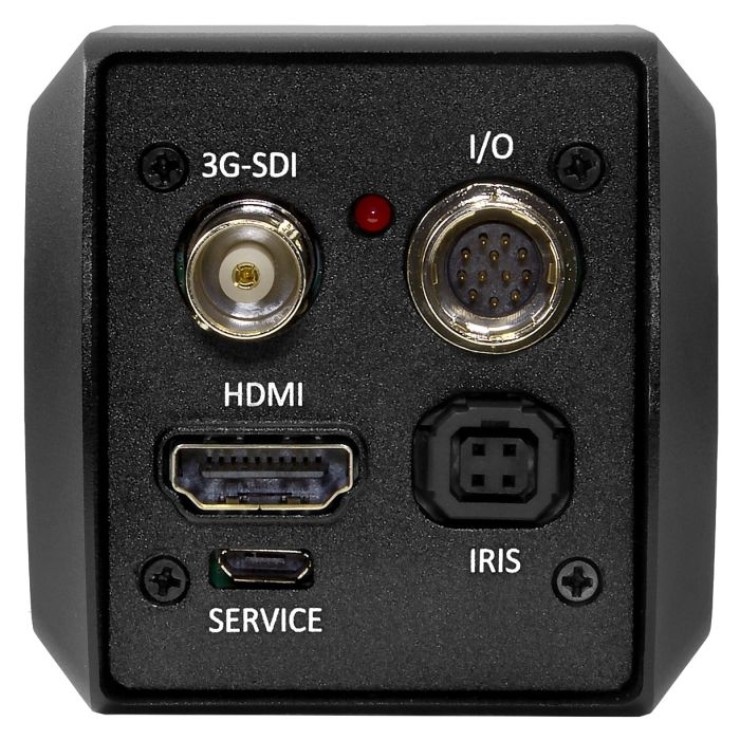

  • 3G/HDSDI (BNC) & HDMI (full size-v1.3) built into the rear panel
  • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
  • The new WDR function supports high speed & high sensitivity to various light sources.

CV346 - Specification
