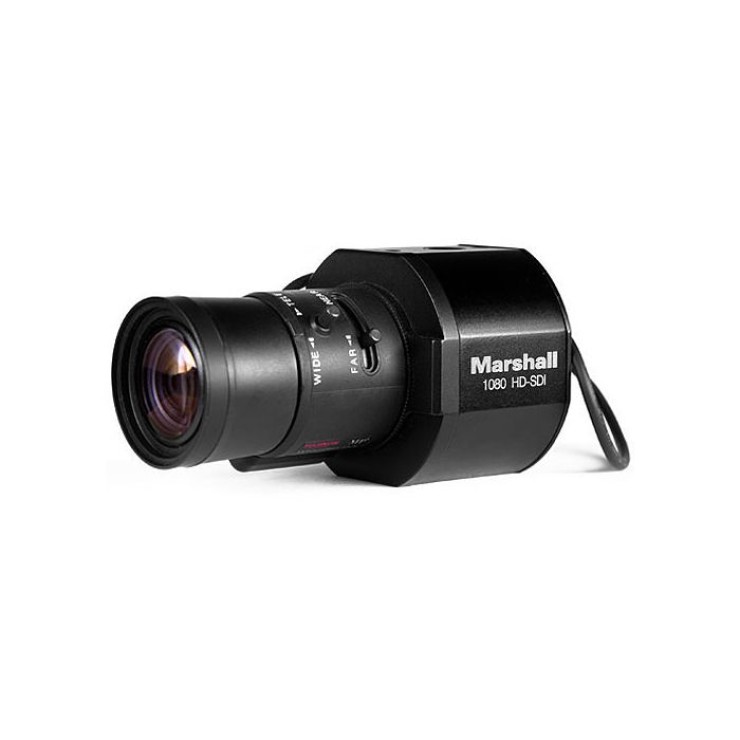

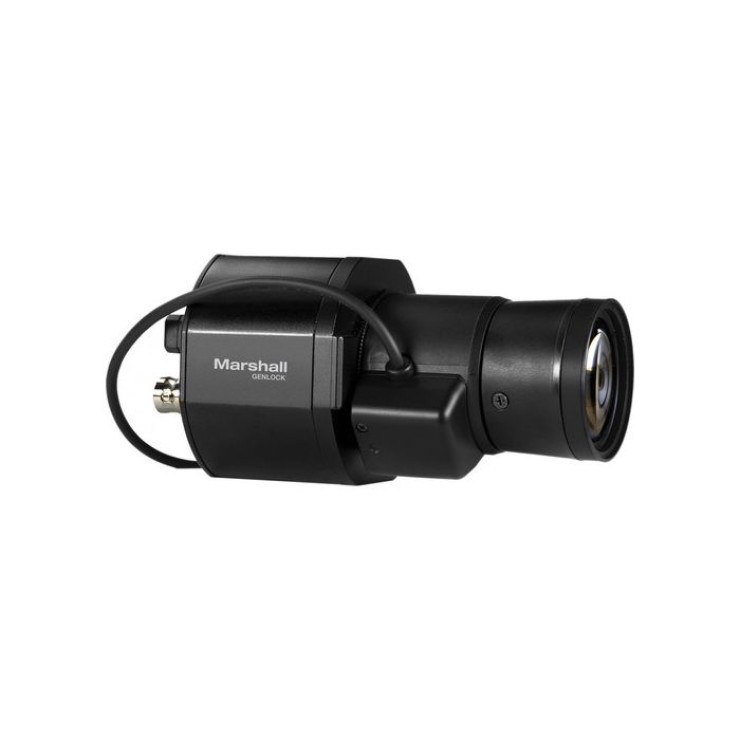

MARSHALL ELECTRONICS CV365-CGB 2.5MP COMPACT GENLOCK 3G-SDI / HDMI CAMERA

Details:

Using Tri-Level Sync the CV365-CGB locks 3G/HD video signals (genlock) up to 1920x1080p @ 59.94/50/60 frames per second, as well as 1920x1080i @ 59.94/50/60fps and 1280x720p @ 59.94/50/60fps. Also features a 3.5mm TRS Mic-Level or Line-Level Input with 2.5V and broadcast convenient HDSDI/3GSDI (BNC) with additional HDMI (v.1.3) output. Marshall's Compact GENLOCK Camera Sync adds the convenience of Tri-Level Sync up to 1080p59.94/50fps at camera level to ensure seamless switch transitions. Built around next-generation chipsets and higher-performing sensors CV365 improves on every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.

New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry-leading low power consumption draws very low power in full-HD resolutions. CV365-CGB PRO-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall PRO-Series Cameras continue to establish a broadcast standard for POV cameras with the ease of use and broadcast-centric feature sets.

Items Include:

• Marshall Electronics CV365-CGB 2.5MP Compact Genlock 3G-SDI / HDMI Camera
• Breakout I/O Cable
• Limited 1-Year Warranty
•


• Features:




• • 1/3" 2.5MP CMOS Sensor
  • C/CS Mount with DC Auto-Iris Support
  • 3G/HD-SDI and HDMI Outputs
  • 1080p, 1080i, & 720p Output up to 60 fps
  • Breakout Cable with OSD Menu Joystick
  • Genlock Tri-Level Sync Input/Output
  • TRS Audio Input with 2.5V Power
  • RS-485 Control Interface
  • WDR, BLC, and 3D Noise Reduction
  • Privacy Masking and Motion Detection
