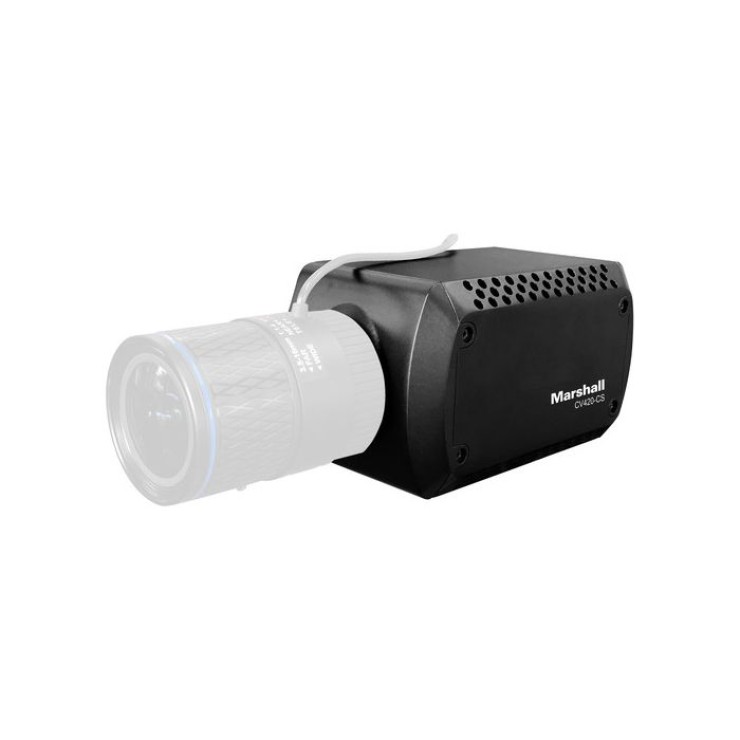

MARSHALL ELECTRONICS CV420-CS 12.4MP COMPACT 4K60 CAMERA WITH 12G-SDI AND HDMI OUTPUT (NO LENS)

Product Highlights :

• Supports DCI 4K, UHD, and HD up to 60p
• Supports PLQ and HLQ HDR
• 12.4 MP 1/1.7" Sony Sensor
• CS/C Lens Mount
• Day/Night Vision
• 12G-SDI BNC & HDMI 2.0 Outputs
• Breakout Cable
•


• CV420-CS - Specification

  More Information

  Imaging Image Sensor: 1/2.5" 8 MP CMOS Supported Video Resolutions: UHD 4K: 59.94/50/29.97/25 1080p: 59.94/50/29.97/25 720p: 59.94/50/29.97/25 Zoom Ratio: Optical: 30x Focal Length: 4.6 to 135mm Horizontal Angle of View: 68-3.5° Aperture Range: f/1.5 to f/3.4 Shutter Speed: 1 to 1/10,000 Second Minimum Object Distance: Wide/Telephoto: 4.9' / 1.5 m Video S/N Ratio: > 50 dB Minimum Illumination: Color: 0.1 Lux, f/1.6, 50 IRE, AGC On Night Mode: BW: 0.02 Lux, f/1.6, 50 IRE, AGC On Filter Design: Day, Night Modes: Mechanical IR Cut Filter Presets: 128 View Patrol: Groups: 4 Iris Control: Auto, Manual (Remote Control) Autofocus: Auto, One-Push fast AF, Interval AF Zoom Trigger AF, Zoom Tracking, ICR Compensation AF Exposure Control: Auto Mode: WDR (Wide Dynamic Range) Mode Shutter Speeds: Manual: 1 to 1/10,000 Sec Shutter Priority: 1 to 1/10,000 Sec Flickerless: NTSC: 1/60 Sec, PAL: 1/50 Sec Gain Control: Auto, Manual White Balance: Auto: 2500K to 7500K ATW: 2000K to 10,000K Manual: R/B Gain, One-Push WB Indoor: 3200K Outdoor: 5800K Backlight Compensation: On, Off Defog: Yes Exposure Compensation: Auto/Flickerless/Shutter-Priority Mode: -7 to +7 Gamma Correction: Yes Sharpness: Configurable Noise Reduction: 2D/3D Noise Reduction Dynamic Range: Wide Dynamic Range, 120 dB Privacy Mask Type: Spherical Zone Mask Orientation: Off, Flip, Mirror, Both Electronic Image Stabilization: Yes Encoder Video Profile: Multiple Profiles Video Standard: H.265, H.264, MJPEG, Haivision SRT Zoom Ratio:: Video Streaming Output Modes: HDMI or Single Stream Output: UHD 4K: 59.94/50 Simultaneous HDMI & Streaming Outputs: UHD 4K: 29.97/25 1080p: 59.94/50/29.97/25 720p: 59.94/50/29.97/25 Multiple Streaming: Triple Streaming Structure: H.265 8M 60 fps, H.264 2M 60 fps, H.264 D1 30 fps HDMI Data Rate: CBR: 64 to 20000, Default: 8000 CVBR: 64 to 20000, Default Max: 8000 VBR: 1 to 10 MJPEG: High, Mid, Low System Compatibility: ONVIF Profile S Protocols: ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP IGMP, IPv4/6, NTP, RTSP/RTCP/RTP, QoS SMTP, SNMP, TCP, TLS/TTLS, UDP, UPnP 802.1X, SRT, MPEG-TS Internet Security: IEEE 802.1X HTTPS Audio Audio Compression Format: G.711 Audio In: Line In, 3.5 mm (Stereo/Mono) Audio Out: Line Out, 3.5 mm (Stereo/Mono) Interface HDMI Out: 1 x HDMI Type A, HDMI 2.0 Ethernet: 1 x RJ45 Control Interface: RS-232, IP RS-232: In: 1 x 8-Pin Mini DIN Power DC In: 12 V +/- 20% PoE: 802.3 of Power Consumption: < 12 W Physical & Environmental Tripod Mount Thread: 1/4"-20 Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C Dimensions (WxDxH): 7.4 x 2.6 x 2.6" / 188.4 x 67 x 67 mm Weight: 2.2 lb / 1 kg Packaging Info Package Weight: 3.73 lb Box Dimensions (LxWxH): 10.9 x 6.7 x 3.5" Package Weight: 2.805 lb Box Dimensions (LxWxH): 13.05 x 5.45 x 4.15" Sensor: 12.4 MP, 1/1.7" Sony Lens Mount: CS/C Resolution: 4096 x 2160p: 60/59.94/50/30/29.97/25/24/23.98 : 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.98 : 1080p: 60/59.94/50/30/29.97/25/24/23.98 : 1080i: 60/59.94/50 : 720p: 60/59.94/50/30/29.97/25/24/23.98 Mount: 2 x 1/4"-20 Universal Mounting Screws Connectors: 1 x 12G-SDI BNC: Video Output : 1 x HDMI 2.0: Video Output : 2 x Micro-USB: Firmware Update Ports : 1 x DC-Auto Iris Control Port : 1 x Breakout Port: Power/Control/Audio Indicator: 1 x Power Indicator Breakout Cable Connectors: Connector 1: : 1 x Breakout Port : Connector 2: : 1 x 12 VDC Power Input : 1 x RS-485 Control Port : 1 x TRS Stereo Audio Line Input : 1 x Audio Microphone Input Compatible Lenses: CS-0734-12MP, CS-3.2-12MP, CS-5.0-12MP, and CS-1040-8MP

•
