MARSHALL ELECTRONICS CV503 MINIATURE FULL-HD CAMERA (3G/HD-SDI)

The Marshall CV503 Full-HD Miniature Camera offers performance, flexibility, and value in a tiny form factor. Built around a next-generation 2.5-Megapixel, 1/2.86-inch sensor, the CV503 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.

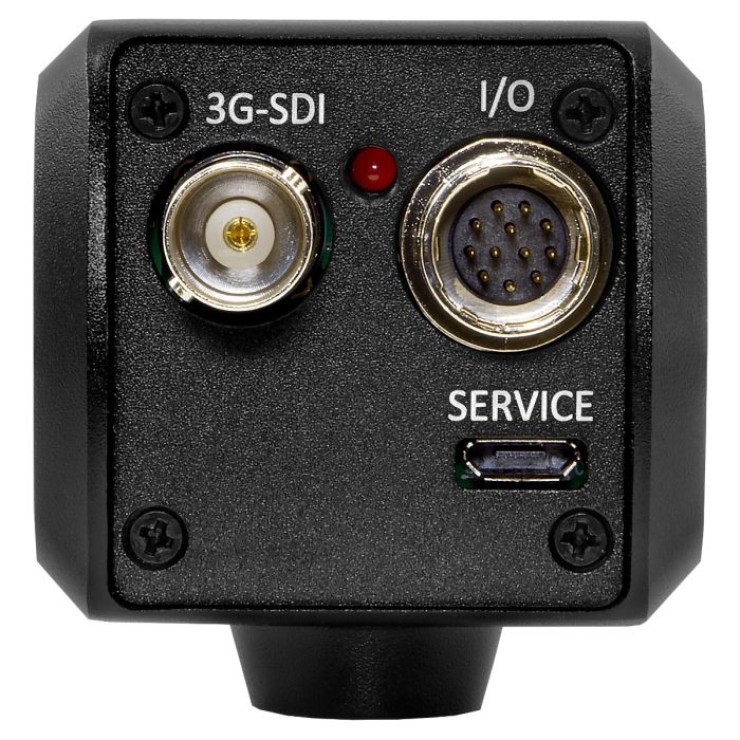

The CV503 utilizes a full-sized BNC (3G/HDSDI) output on the rear panel and a locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV503's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV503 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on the locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.

The CV503 is suitable for use in full-HD broadcast and Pro AV workflows including live broadcast productions, sportscasts, newscasts, reality television, concerts, corporate, government, courtroom, house of worship, and many more.

Marshall Electronics CV503 Mini HD Camera (3G/HD-SDI)

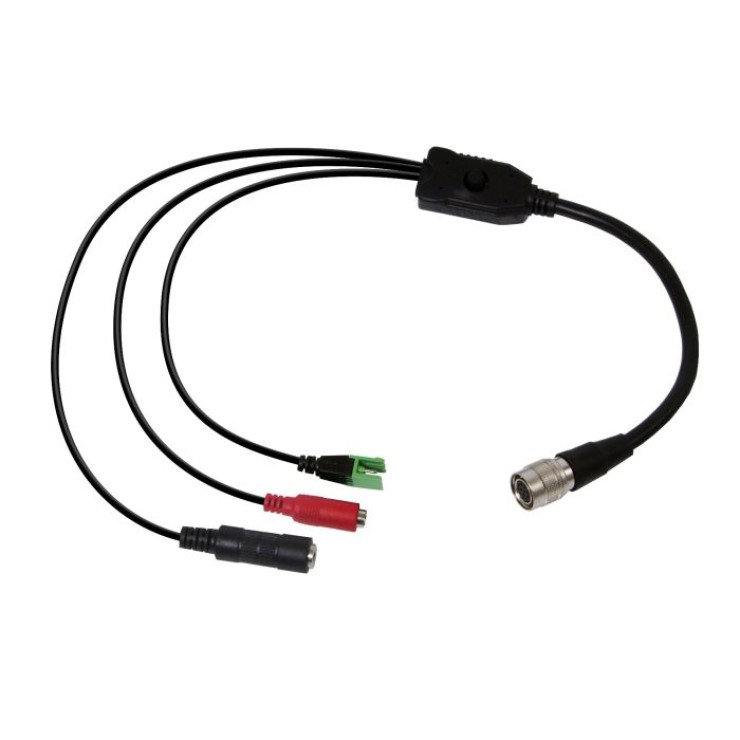

• Camera Breakout Cable
• 3.6mm Lens in M12 Mount
• 12 VDC Power Supply
• Limited 2-Year Warranty

Products Highlights :

• 3G/HDSDI output
• 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
• Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV))
• Full-HD resolutions: 1920 x 1080p, 1920 x 1080i, and 1280 x 720p
• Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• Remote adjust through RS485 (Visca) or OSD menu joystick
• Wide range of picture adjustment settings including paint (red/blue), white balance, gain control, pedestal (blacks), white clip, exposure, gamma, and more
• Includes 12V power supply inbox

CV503 - Specification
