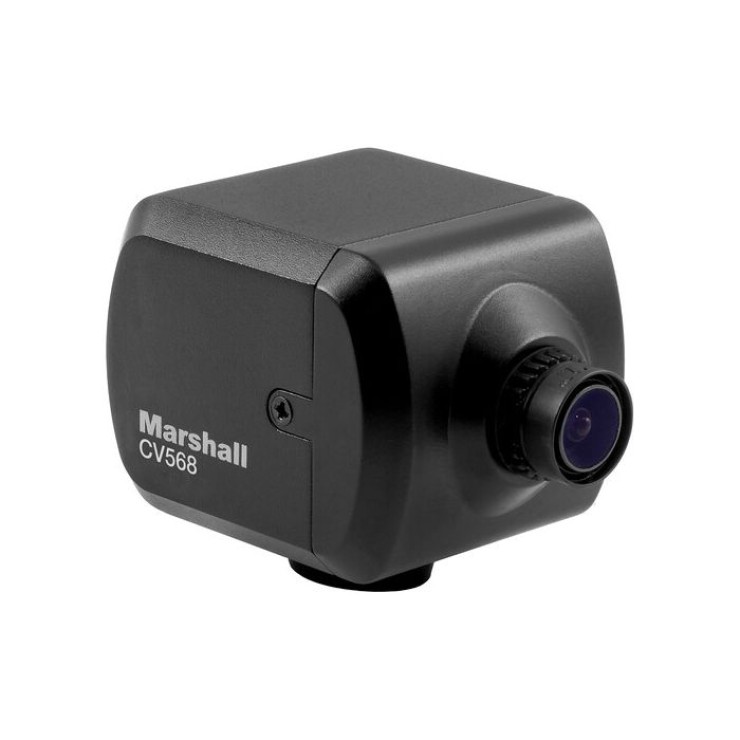

MARSHALL ELECTRONICS CV568 MINIATURE 1080P 3G/HD-SDI/HDMI CAMERA WITH GLOBAL SHUTTER & GENLOCK

Miniature HD Camera with Global Shutter and Genlock Sync features. Built around an impressive 1/1.8" Sony global sensor with 25% larger pixels and interchangeable M12 lens mount (comes with a 4.4mm - 84°) make this the most capable POV camera in the miniature camera lineup.

New Global Shutter CMOS Technology

Global Shutter camera sensors are nothing new to the broadcast proAV industry, however, when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge - Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously.

Genlock Tri-Level Sync Feature

Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at a higher frequency which makes the HD60 signal sync more accurate and more seamless.

25% Larger Pixel Size

Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a miniature camera size.

Durable, Flexible, Powerful

Marshall Miniature Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. The ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera.

Product Highlights:

• 1/1.8" 3.2MP Sony Exmor Sensor
• M12 Lens Mount, 4.4mm Lens Included
• Capture up to 1080p60 Video
• Global Shutter, Tri-Level Genlock Sync

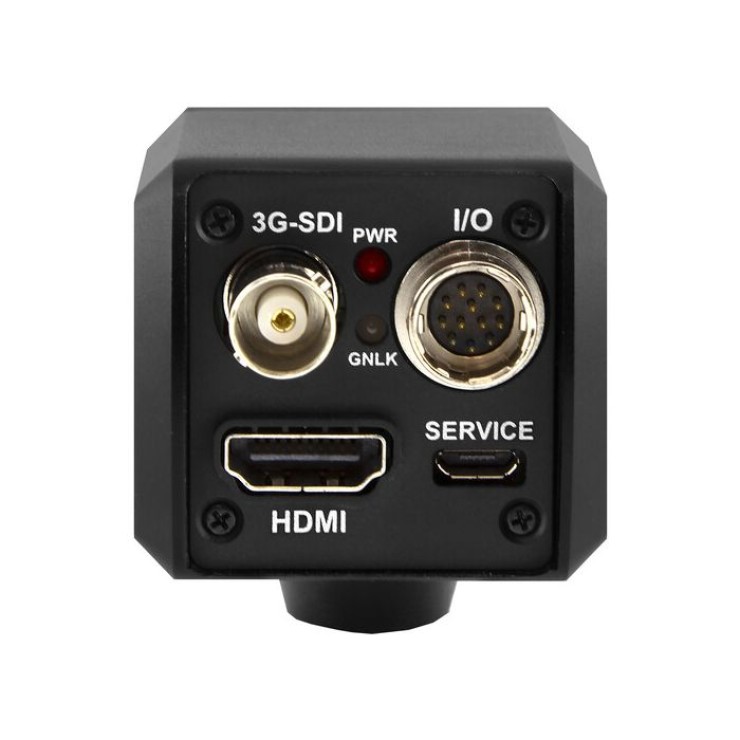

• 3G/HD-SDI & HDMI Outputs
• Digital Image Stabilization, AWB
• Image Flip/Mirror, Digital Zoom
• Mic/Line-Level Audio Input Selection
• RS-485 Control
