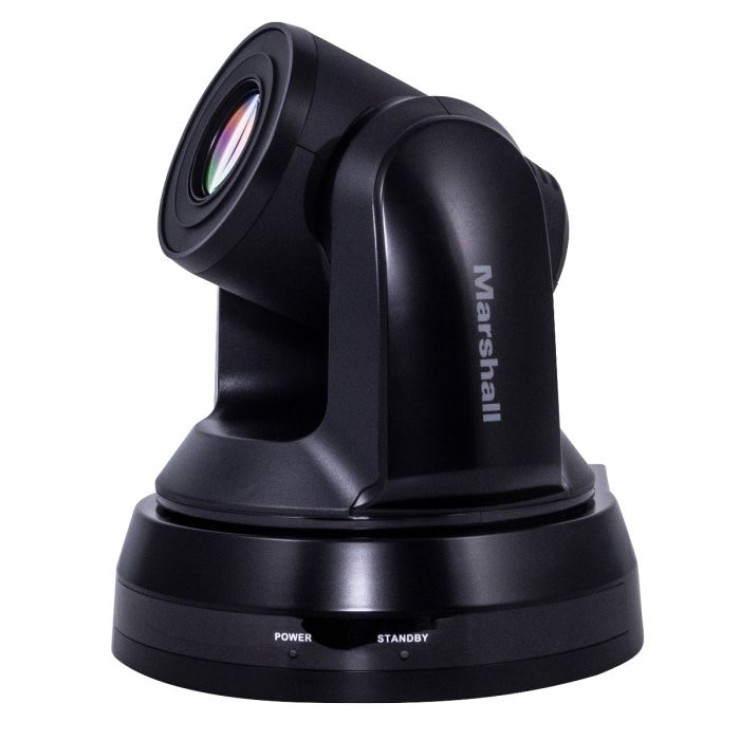

The black CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.
The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It's compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.
Items Included:
Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)
Remote Control
Power Adapter with Power Cord
RS-422 Connector
Ceiling Mount Kit
Limited 1-Year Warranty
CV620-BK4 - Specification
More Information
Image Sensor
Image Sensor:
1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:
1920 x 1080 (2.0 MP)
Image Sensor:
1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:
1920 x 1080 (2.0 MP)
Camera
Max Digital Zoom:
12x
Flip / Mirror Support:
Image Flip, Mirror (Vertical)
Max Digital Zoom:
12x
Flip / Mirror Support:
Image Flip, Mirror (Vertical)
Lens
Optical Zoom Ratio:
20x
Focal Length:
4.7 to 94mm
Maximum Aperture:
f/1.6 to 3.5
Focus Control:
Autofocus Manual Focus
Optical Zoom Ratio:
20x
Focal Length:
4.7 to 94mm
Maximum Aperture:
f/1.6 to 3.5
Focus Control:
Autofocus Manual Focus
Video Output
Broadcast System Compatibility:
NTSC
Output Formats:
SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 29.97, 30, 59.94, 60 fps
Embedded Audio:
SDI: 2-Channel HDMI: 2-Channel
Broadcast System Compatibility:
NTSC
Output Formats:
SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 50, 59.94, 60 fps 1280 x 720p at 29.97, 30, 59.94, 60 fps
Embedded Audio:
SDI: 2-Channel HDMI: 2-Channel
Control
Presets:
9 via IR, RS-232
Move Speed:
Pan: 5 to 300°/sec Tilt: 5 to 300°/sec
Movement Range:
Pan: 340° Tilt: 120°
Tally Light:
Yes
Supported Control Protocols:
IR Pelco-D RS-232 RS-422 VISCA
Presets:
9 via IR, RS-232
Move Speed:
Pan: 5 to 300°/sec Tilt: 5 to 300°/sec
Movement Range:
Pan: 340° Tilt: 120°
Tally Light:
Yes
Supported Control Protocols:
IR Pelco-D RS-232 RS-422 VISCA

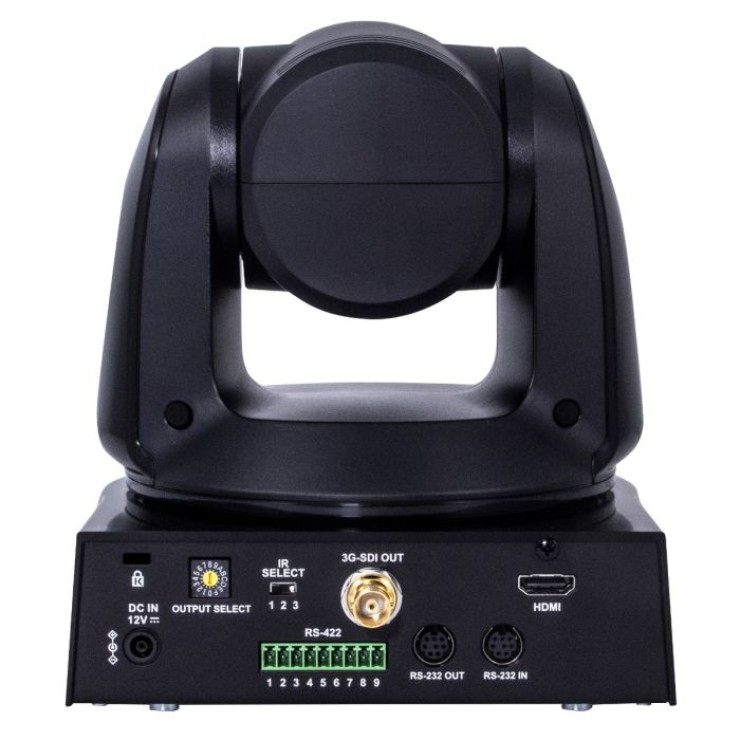

Interfaces
Video Output Connectors:
1 x BNC (3G-SDI) Male 1 x HDMI Type A Female
Control Interface:
1 x 8-Pin Mini-DIN (RS-232) Output 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 9-Pin Terminal Block (RS-422)
Video Output Connectors:
1 x BNC (3G-SDI) Male 1 x HDMI Type A Female
Control Interface:
1 x 8-Pin Mini-DIN (RS-232) Output 1 x 8-Pin Mini-DIN (RS-232) Input 1 x 9-Pin Terminal Block (RS-422)
