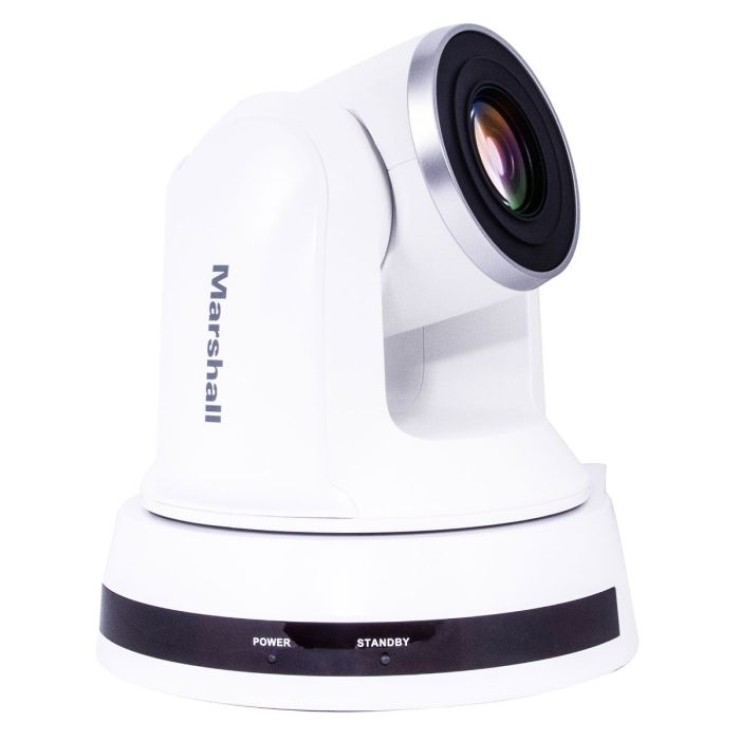

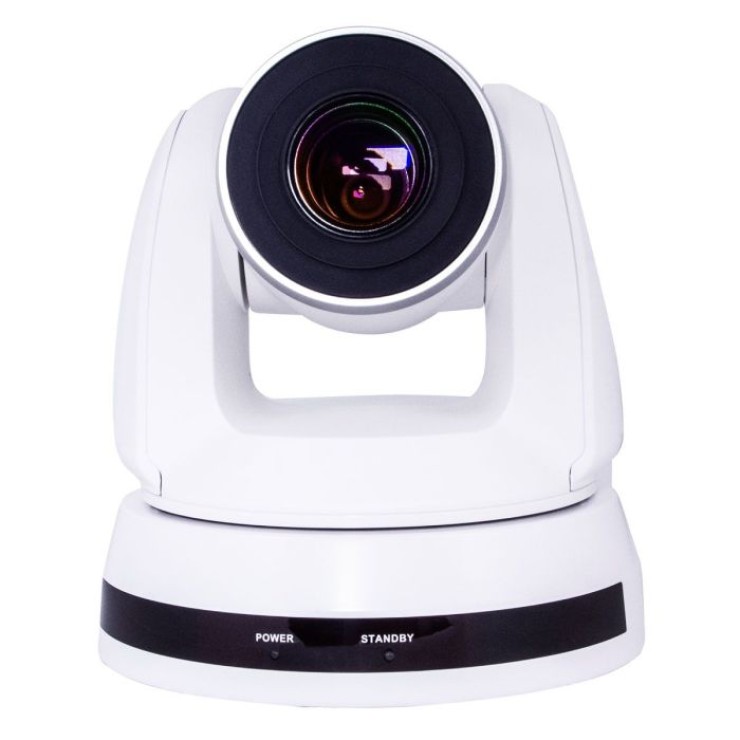

MARSHALL ELECTRONICS CV620 3G-SDI/HDMI PTZ CAMERA WITH 20X OPTICAL ZOOM (WHITE)
150$200$
Product Highlights:
Capture up to 1080p60 Video
2MP 1/2.8" Sensor, 5.3 to 110mm Lens
20x Optical Zoom, 12x Digital Zoom
3G/HD-SDI and HDMI Outputs
IR, RS-232, and RS-422 Serial Control
340° Pan, 120° Tilt
The white CV620 3G-SDI/HDMI PTZ Camera from Marshall Electronics is designed for professional conferencing applications. It captures video at up to 1080p resolution and is equipped with a 5.3 to 110mm lens for up to 20x optical zoom, and it also features a 12x digital zoom.
The CV620 features 3G/HD-SDI and HDMI outputs that support up to 1920 x 1080p60 resolution video. You can control and manage the camera using an IR remote or its RS-232 and RS-422 inputs with Pelco and VISCA serial protocols. It's compatible with separately available camera controllers such as the Marshall VS-PTC-IP. The camera is built with a smooth and quiet synchronous PTZ motor that pans 340° and tilts 120°.
Items Included:
Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (White)
Remote Control
Power Adapter with Power Cord
RS-422 Connector
Ceiling Mount Kit
Limited 1-Year Warranty
CV620-WH4 - Specification
More Information
Image Sensor
Image Sensor:
1-Chip 1/2.8" CMOS Sensor
Sensor Resolution:
2.0 MP
Camera
Max Digital Zoom:
12x
Flip / Mirror Support:
Image Flip
Lens
Optical Zoom Ratio:
20x
Focal Length:
5.3 to 110mm
Maximum Aperture:
f/1.6 to 3.8
Focus Control:
Autofocus Manual Focus
Video Output
Output Formats:
SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps 1920 x 1080i at 25, 29.97, 30, 50, 59.94, 60 fps 1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps
Control
Move Speed:
Pan: 5 to 300°/se
Movement Range:
Pan: 340° Tilt: 120
Supported Control Protocols:
Pelco-D Pelco-P RS-232 RS-422 VISCA
Interfaces

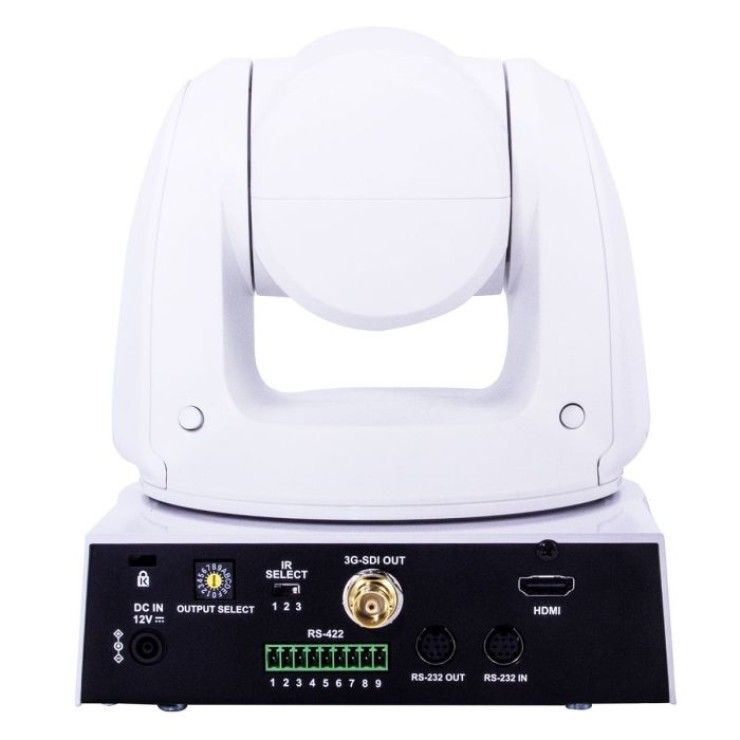

Video Output Connectors:
1 x BNC (3G-SDI / HD-SDI) Female 1 x HDMI Type A Female
Control Interface:
1 x 8-Pin Mini-DIN (RS-232) Input 1 x 8-Pin Mini-DIN (RS-232) Output 1 x 9-Pin Terminal Block (RS-422) Input
