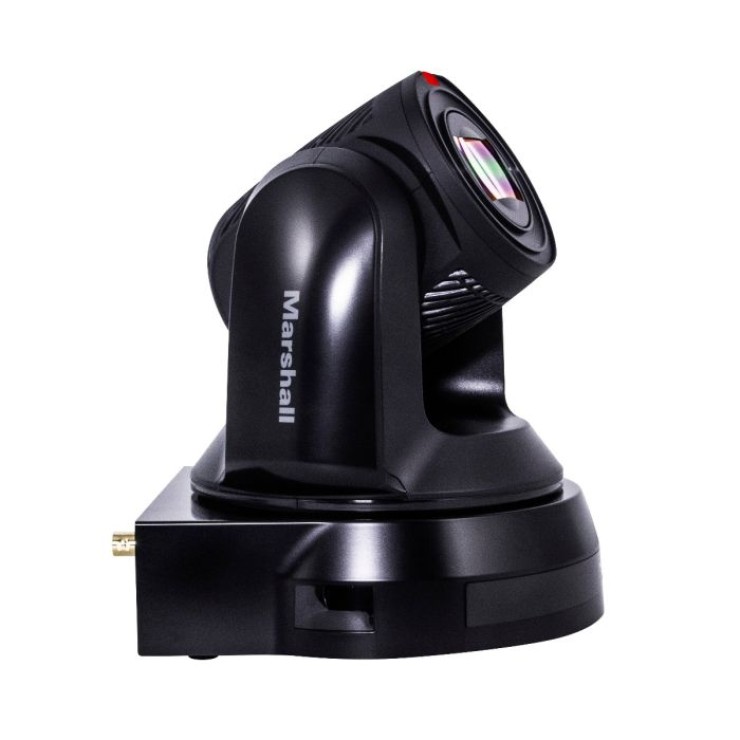

MARSHALL ELECTRONICS CV630-IP BROADCAST PRO AV UHD 4K IP PTZ CAMERA (BLACK)

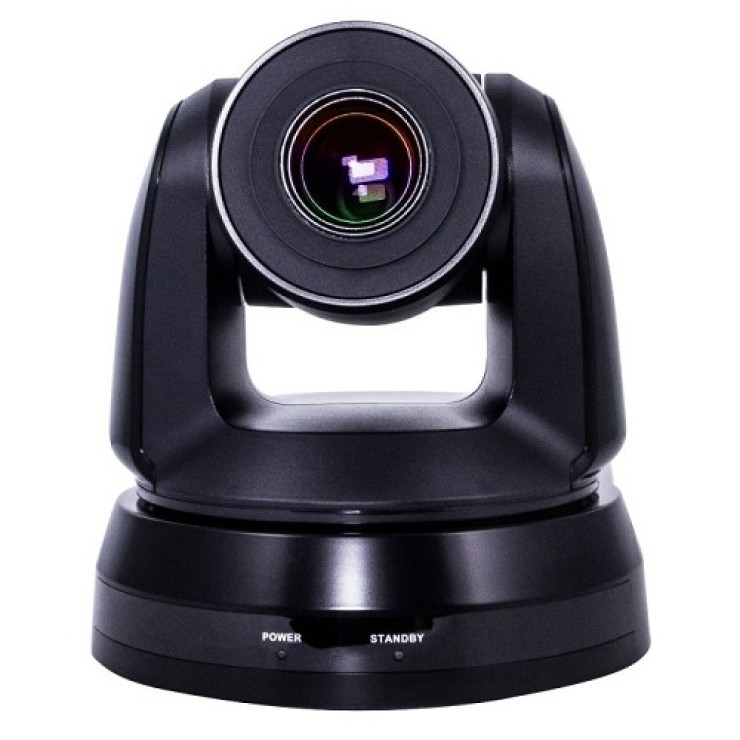

marshall-electronics-cv620-3g-sdi-hdmi-ptz-camera-with-20x-optical-zoom-black

150$ ~~200$~~

Product Highlights: Up to UHD 4K Resolution 8MP 1/2.5" Sensor 30x Optical Zoom, 70° Angle of View Ethernet, 3G/HD-SDI, and HDMI Outputs 35mm Equivalent 4.6 to 135mm Lens IR Remote Select

Category: Marshall

SKU: 10

The black CV630-IP Broadcast Pro AV UHD 4K IP PTZ Camera from Marshall Electronics is designed for professional conferencing applications. Its 8MP sensor captures up to 2160p UHD 4K resolution with a lens with 30x optical zoom from 4.6 to 135mm and a 70° angle of view. Connectivity features include 3G/HD-SDI and HDMI outputs and RJ45 Ethernet streaming and RS-232 serial control.

Stream video using H.265 and H.264 compression over IP for high-quality streaming with the RJ45 Ethernet port, and control the unit using IP, RS-232, or RS-422 with Visca, Pelco, and Onvif support. The camera is built with a smooth and quiet 340° pan, and 120° tilt, and it offers simultaneous PTZ and focus control for advanced transitions.

Key Features

8MP 1/2.5" sensor
Capture UHD 4K 3840 x 2160p
30x optical zoom
4.6 to 135mm lens
3G/HD-SDI and HDMI outputs
RJ45 Ethernet streaming control, PoE support
Wide 70° angle of view
Simultaneous 4D control for pan, tilt, zoom, and focus
340° horizontal pan, 120° vertical tilt
Mountable on desktop, wall, ceiling
Compatible with most integrated video management systems
Kensington lock port
Video resolution and frame rate select dial
IR remote select
Adjustable white balance, exposure, iris, gamma, and black level
Standby LED indicator
Items Included:
- Marshall Electronics CV630-IP Broadcast Pro AV UHD 4K IP PTZ Camera (Black)
- Remote Control
- Power Cord
- Power Adapter
- RS-422 Connector (Removable)
- Metal Installation Plate A
- Metal Installation Plate B
- Set of M3 Screws
- Limited 1-Year Warranty

CV630-IP - Specification

More Information

Image Sensor
Image Sensor:	1-Chip 1/2.5" CMOS Sensor
Sensor Resolution:	3840 x 2160 (8.0 MP)
mage Sensor:	1-Chip 1/2.5" CMOS Sensor
Sensor Resolution:	3840 x 2160 (8.0 MP)
Camera
Built-In Microphone Type:	Stereo
Flip / Mirror Support:	Image Flip, Mirror (Vertical)
Built-In Microphone Type:	Stereo
Flip / Mirror Support:	Image Flip, Mirror (Vertical)
Lens
Optical Zoom Ratio:	30x
Focal Length:	4.6 to 135mm
Field of View:	Horizontal: 70°
Maximum Aperture:	f/1.6 to 3.5
Focus Control:	Autofocus Manual Focus
Optical Zoom Ratio:	30x
Focal Length:	4.6 to 135mm
Field of View:	Horizontal: 70°
Maximum Aperture:	f/1.6 to 3.5
Focus Control:	Autofocus
:	Manual Focus
Video Output
Broadcast System Compatibility:	NTSC, PAL
Output Formats:	SDI, HDMI: 3840 x 2160p1920 x 1080p1280 x 720p
Embedded Audio:	SDI: 2-Channel HDMI: 2-Channel
IP Streaming:	H.264, H.265, RTMP, RTSP: 1080p, 720p
Broadcast System Compatibility:	NTSC, PAL
Output Formats:	SDI, HDMI: 3840 x 2160p1920 x 1080p1280 x 720p
Embedded Audio:	SDI: 2-Channel
:	HDMI: 2-Channel
IP Streaming:	H.264, H.265, RTMP, RTSP: 1080p, 720p
Control
Movement Range:	Pan: 340° Tilt: 120°
Tally Light:	Yes
Supported Control Protocols:	IP Pelco-D Pelco-P VISCA
Movement Range:	Pan: 340°
:	Tilt: 120°
Tally Light:	Yes
Supported Control Protocols:	IP
:	Pelco-D
:	Pelco-P
:	VISCA

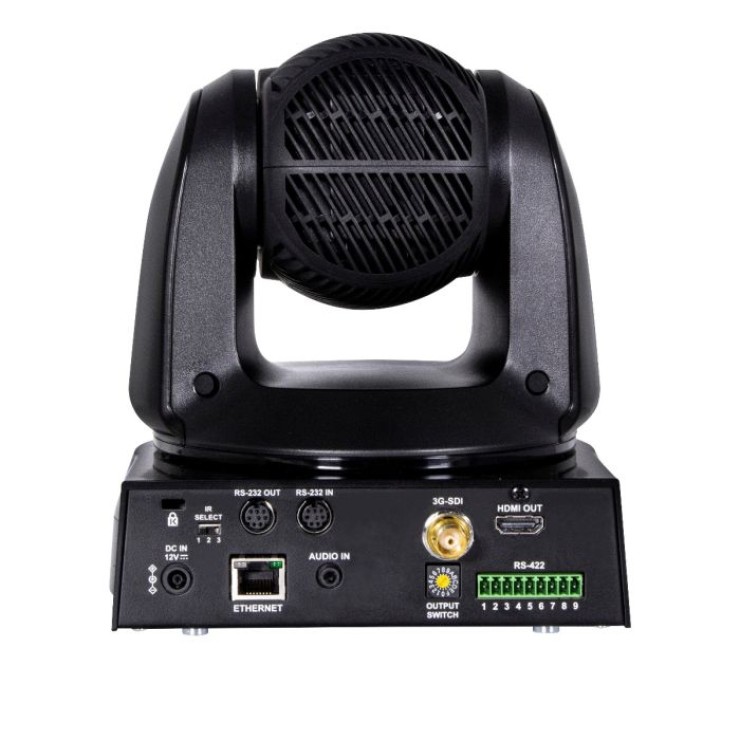

Interfaces
Video Output Connectors:	1 x BNC (3G-SDI) Female 1 x HDMI Type A (HDMI 1.4) Female
Audio I/O:	1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Control Interface:	1 x RJ45 (IP Control, LAN)
Other I/O:	1 x 8-Pin Mini DIN (RS-232) Input 1 x 8-Pin Mini DIN (RS-232) Output 1 x 9-Pin Euroblock (RS-422) Input/Output
Video Output Connectors:	1 x BNC (3G-SDI) Female
:	1 x HDMI Type A (HDMI 1.4) Female
Audio I/O:	1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
Control Interface:	1 x RJ45 (IP Control, LAN)
Other I/O:	1 x 8-Pin Mini DIN (RS-232) Input
:	1 x 8-Pin Mini DIN (RS-232) Output
:	1 x 9-Pin Euroblock (RS-422) Input/Output
Power
PoE Support:	Yes
Power Connectors:	1 x Barrel / Coaxial (12 VDC)
PoE Support:	Yes
Power Connectors:	1 x Barrel / Coaxial (12 VDC)
General
Security Lock Support:	Kensington Lock Slot
Security Lock Support:	Kensington Lock Slot
