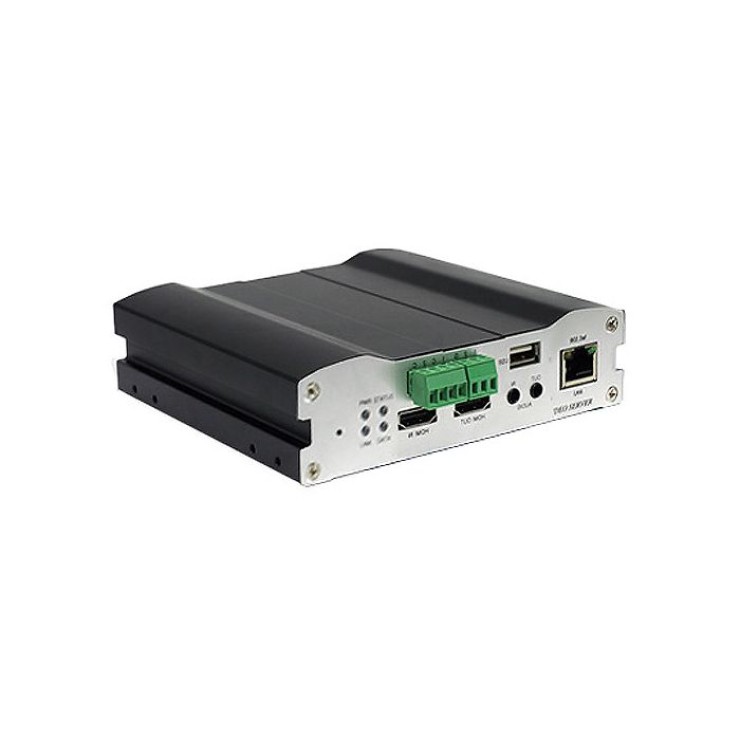

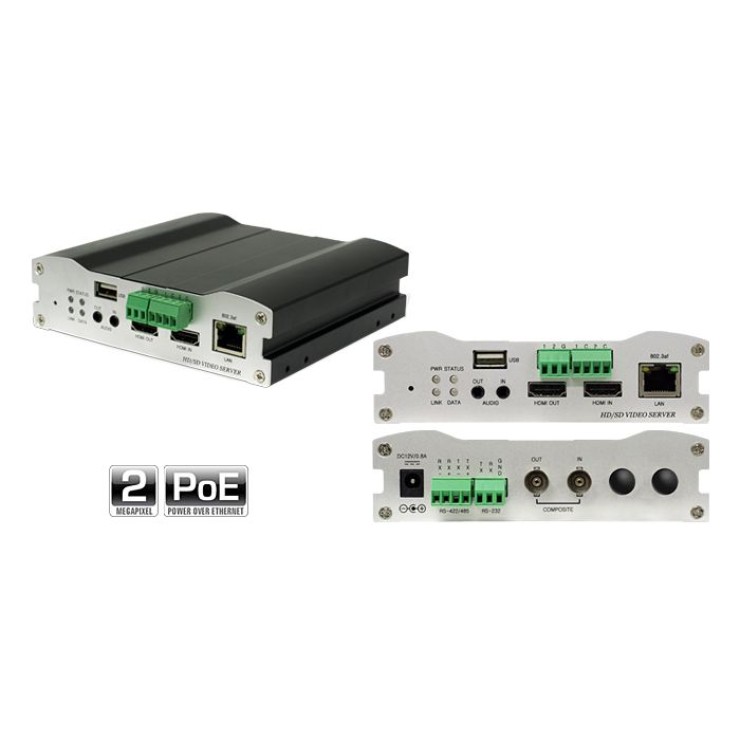

MARSHALL ELECTRONICS VS-102-HDI 2.0 MP HIGH RESOLUTION ENCODER/DECODER WITH HDMI

The Marshall VS-102-HDI is a High Definition Video Server that allows real-time transmission of HDMI or NTSC/PAL composite video signal along with bi-directional AAC-encoded high-definition stereo audio over standard IP networks and the internet. The Marshall VS-102-HDI incorporates advanced H.264 and MJPEG compression technology. This allows 50% more compression capacity over an existing IP Network while providing optimal video transmission quality even in networks with limited bandwidth.

The VS-102-HDI may be configured to operate as a Point-to-Point talent monitoring system. For example, the unit can operate as an encoder to compress and transmit A/V data over a LAN to another VS-102-HDI located in a Green Room or other location. The other unit can act as a decoder that receives the compressed data through the LAN and restores the data to its' original high-definition state. Additionally, other computers or VS-102-HDI decoders connected to the same network can monitor both the audio and video in multiple locations throughout a venue such as dressing rooms, stage manager, or box office at the same time. When properly configured, the VS-102-HDI may be simultaneously monitored through the internet.

Items Included:

Marshall Electronics VS-102-HDI 2.0 MP High-Resolution Encoder/Decoder with HDMI

Power Supply (For Non-PoE Use)

Limited 1-Year Warranty, Extendable to 2-Year with Product Registration

Product Highlight:

• High-Quality AV Encoder / Decoder (Selectable)
• Full HD resolution 1080p Encoding / Decoding
• Up to 30fps @ 1920 x 1080 streaming
• H.264/H.264 & H.264/MJPEG Dual Streaming
• Two-Way Audio Communication
• Mono Codec G.711 for Security applications
• Stereo Codec AAC for Broadcast applications
• HDMI Video Input / Output
• Composite Video Input / Output
• Audio Input / Output
• Instant Recording to an optional USB drive (USB 2.0)
• Supports DDNS (Dynamic Domain Name Server)
• Built-in PoE (Power Over Ethernet: 802af)
• RS-232 control built-in
• RS-422/485 control built-in
• 2 Sensor inputs
• 2 Alarm outputs
• Watchdog for system recovery
• Integrated Video Motion Detection
• Transmission of Video Data through the FTP server
• Wide Range of Video Bit Rate Control (32kbps ~ 10Mbps)
• PSIA and ONVIF compliant

Sure, here's the information you provided with proper spacing and formatting for better readability:

**General Specifications**

**System Mode:** Encoder, decoder

**Network**

- Network Interface: Ethernet 10/100Base-T on RJ-45 connector

- Network Protocol: TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP

**Video**

- Standards: Main Stream: H.264, Secondary Stream: H.264/MJPEG

- Bitrate: 32 to 10,240 Kbps

- Resolution: 1920 x 1080/60i to 352 x 240/30fps, 18 resolution steps

- Frame Rates: 1 to 30 fps

- Inputs: 1 x HDMI type-A, HDMI RX, 1 x Composite on BNC connector

- Outputs: 1 x HDMI type-A, HDMI TX, 1 x Composite on BNC connector (Default)

- Motion Detection: Sensitivity adjustment

**Audio**

- Standards: G.711, AAC

- Sample Rate: G.711: 8 kHz, AAC: 32 kHz

- Bitrate: G.711: 64 Kbps, AAC: 64 Kbps, 128 Kbps

- Input: 1 x Line-in on 3.5 mm stereo mini

- Output: 1 x Line-out on 3.5 mm stereo mini

**Serial Interface**

- Connectors: 1 x RS-232 on terminal block, 1 x RS-422/485 on terminal block

- Bitrate: 2,400 bps to 115,200 bps

**Sensor and Alarm**

- Sensor Input: 2 x NO contact on terminal block

- Alarm Output: 2 x NO contact on terminal block

- Beep: 1 x Buzzer (88 dB minimum)

- Reset Button: 1 x Factory reset button

**User Interface**

- System Status: 4 x LED

**Storage**

- Recording and Backup: 1 x USB 2.0 port

**Software**

- Software: VS Manager/VMS-16: Live Monitoring, recording, search and playback, backup

**General**

- Power Requirements: 12 VDC at 0.8 A, PoE (Power over Ethernet): 802.3af

- Power Consumption: 9.6 W maximum

- Operating Temperature: 14 to 122°F / -10 to 50°C

- Dimensions (W x D x H): 5.3 x 4.9 x 1.4" / 134 x 125 x 35 mm

- Weight: 17.8 oz / 504 g

**Packaging Info**

- Package Weight: 2.6 lb

- Box Dimensions (LxWxH): 11 x 9 x 3.8"
