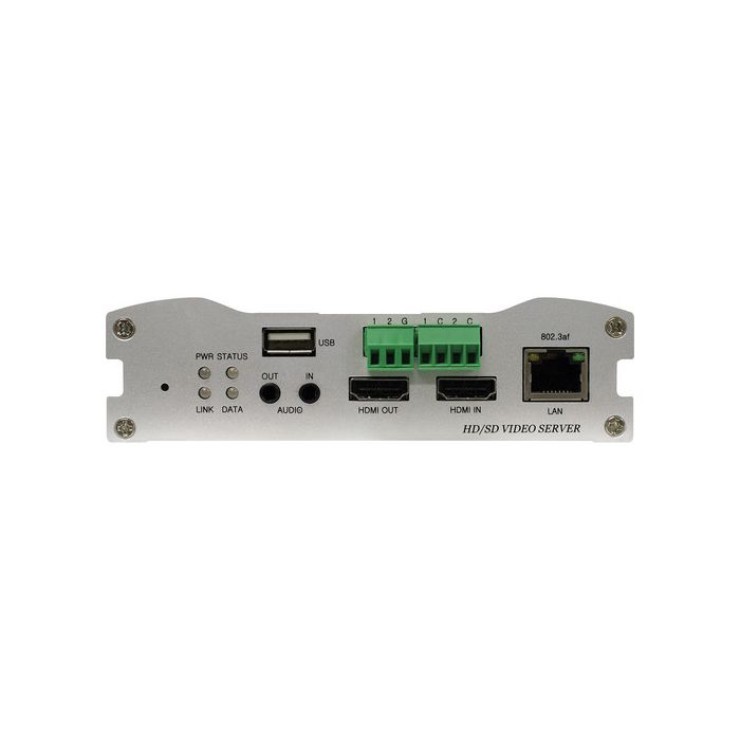

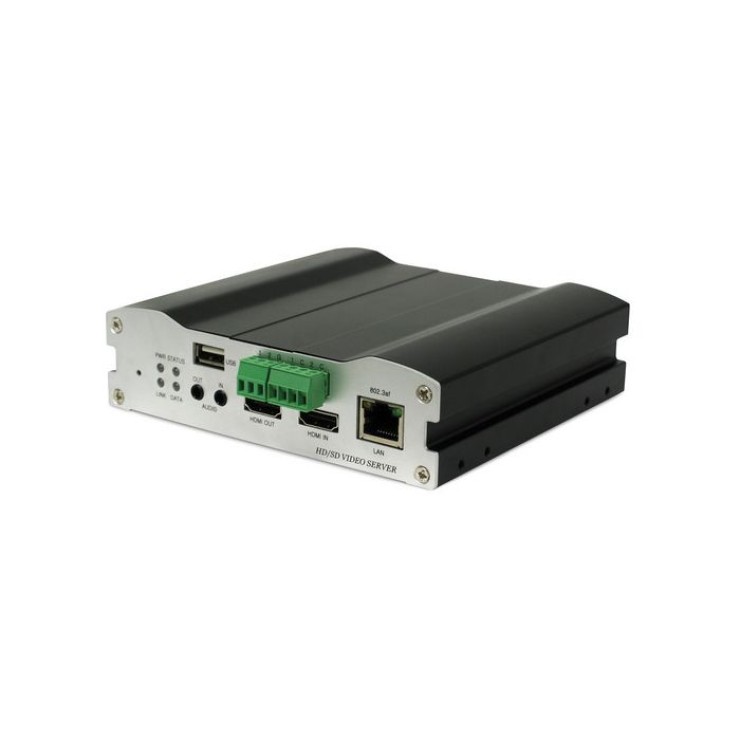

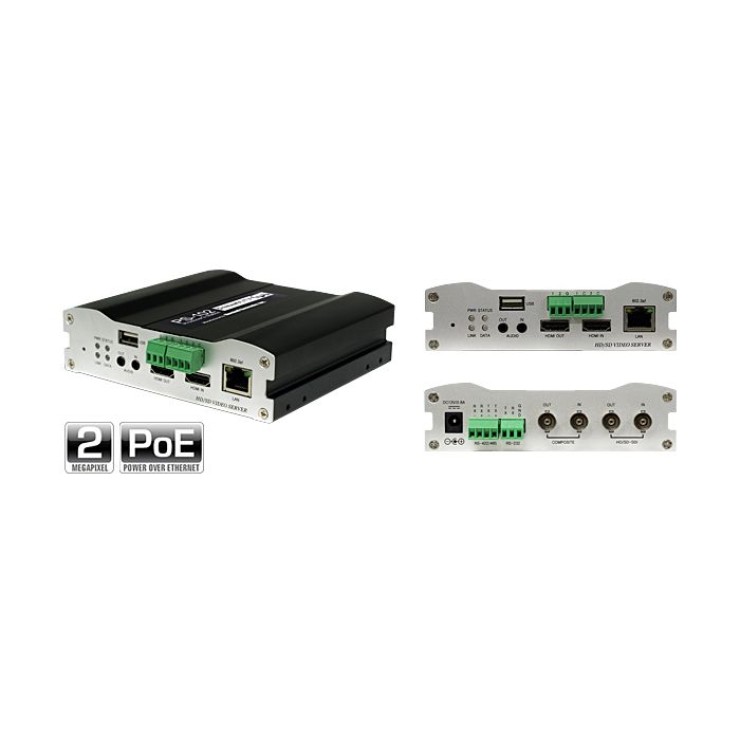

MARSHALL ELECTRONICS VS-102-HDSDI 2.0 MP HIGH RESOLUTION ENCODER / DECODER WITH HD-SDI

• Marshall Electronics VS-102-HDI 2.0 MP High-Resolution Encoder/Decoder with HDMI

• Power Supply (For Non-PoE Use)

• Limited 1-Year Warranty, Extendable to 2-Year with Product Registration

Product Highlights:

• High-Quality AV Encoder / Decoder (User Selectable)
• Full HD resolution 1080p Encoding / Decoding
• Up to 30fps @ 1920 x 1080 streaming
• H.264 & H.264 MJPEG Dual Streaming
• Two-Way Audio Communication
• Mono Codec G.711 for Security applications
• Stereo Codec AAC for Broadcast applications

Certainly! Here's the provided information with proper spacing and formatting for better readability:

**VS-102-HDSDI - Specification**

**System**

- System Mode: Encoder, Decoder

**Network**

- Network Interface: Ethernet 10/100Base-T (RJ-45)

- Network Protocol: TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP

**Video**

- Standards: Main Stream: H.264, Secondary Stream: H.264/MJPEG

- Bitrate: 32 ~ 10,240 Kbps

- Resolution: 1080i60, 1080p30 and lower resolutions

- Frame Rate Range: 1 ~ 30fps

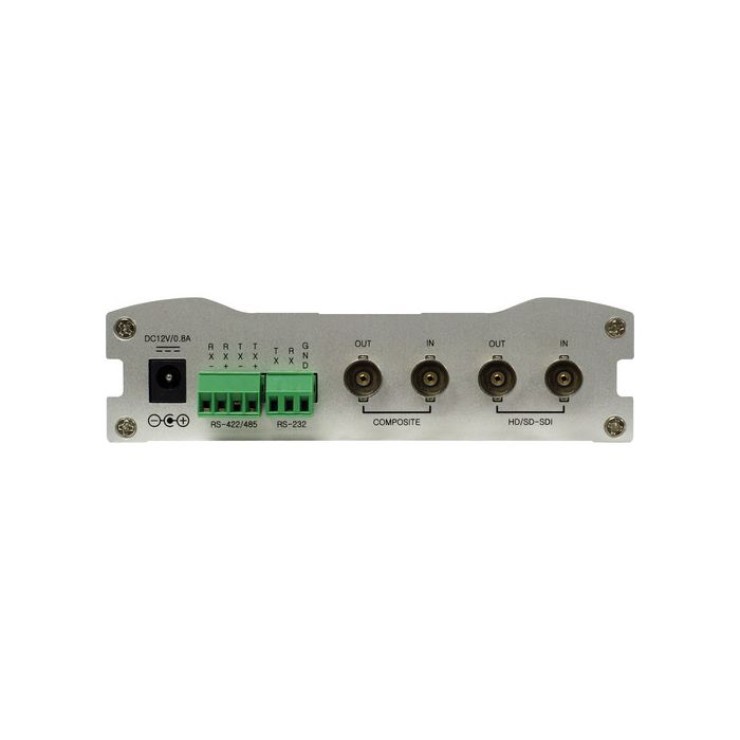

- Input 1: 1 x HDMI type-A, HDMI RX

- Input 2: 1 x BNC: HD-SDI

- Output 1: 1 x HDMI type-A, HDMI TX

- Output 2: 1 x BNC: HD-SDI

- Motion Detection: Sensitivity Adjustment

**Audio**

- Standards: G.711, AAC

- Sample Rate: G.711: 8 kHz / AAC: 32 kHz

- Data Rate: G.711: 64 Kbps, AAC: 64 Kbps, 128 Kbps

- Input: 1 x Line-In (Mini-Stereo)

- Output: 1 x Line-Out (Mini-Stereo)

**Serial**

- Port 1: 1 x RS-232 (Terminal Block)

- Port 2: 1 x RS-422/485 (Terminal Block)

- Data Rate: 2,400 bps ~ 115,200 bps

**Sensor**

- Sensor Input: 2 x NO Contact (Terminal Block)

**Alarm**

- Alarm Output: 2 x NO Contact (Terminal Block)

- Beep: 1 x Buzzer 88 dB Min

- Reset Button: 1 x Factory Reset Button

**User Interface**

- System Status: 4 x LED

**Storage**

- Recording/Backup: 1 x USB 2.0 Port

**Software**

- VS Manager/VMS-16 NVR: Live Monitoring, Recording, Search & Playback, Backup

**Physical**

- Dimensions: 134(W) x 125(D) x 35(H)mm

- Weight: 504 g

- Power Source: DC 12V/0.8A, PoE (Power over Ethernet): 802.3af

- Power Consumption: Max 9.6W

- Operating Temp.: -10°C ~ 50°C / 14°F ~ 122°F
