MOBILE VIEWPOINT PLAYOUT 2KX PLAYOUT WITH UP TO 4 HD/SD SDI OUTPUTS

The WMT playout portfolio makes it possible to receive live SD/HD video from any WMT system using broadband internet networks.

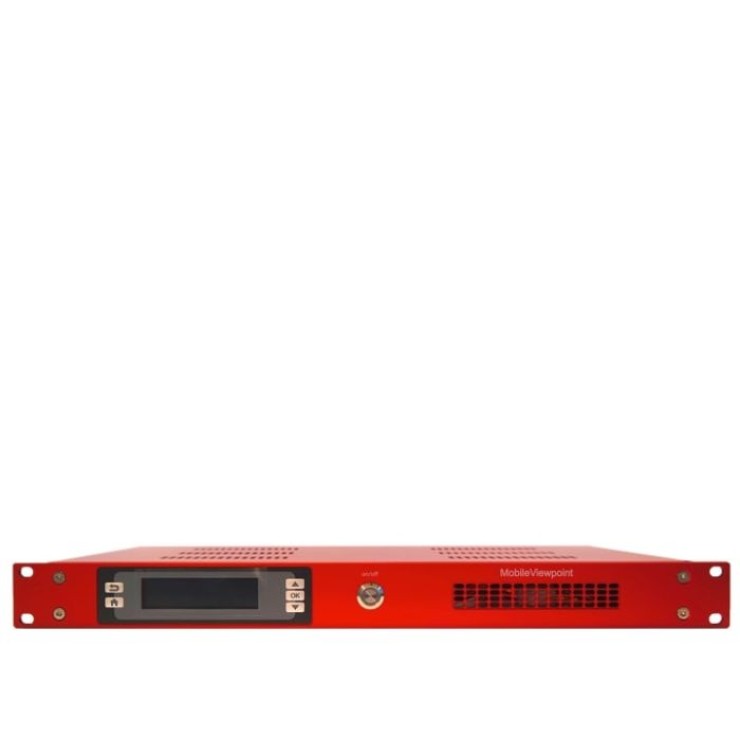

The 19-inch 1U high system possesses two Ethernet connections for video input and output. The WMT decoders connect to the internet with just a single Ethernet connection. When the correct ports are forwarded in the firewall the signals of a WMT will come in and turned into a video signal. This video signal will exit the WMT decoders through an SDI video connection with embedded audio. The systems support both DHCP and ­fixed IP number confi­guration via the front LCD panel.

We offer decoders in 3 different models

• 2K1; Decodes one WMT stream; one HD/SD SDI output
• 2K2; Decodes two WMT streams simultaneously; two HD/SD SDI outputs
• 2K4; Decodes four WMT streams simultaneously

Also available are the Playout 4C1 multicam decoder and Playout 4K1 4K UHD decoder. For our Multicam and 4K encoders, special decoders are required.

Point-to-point & Multipoint setup

The Playout 2KX consists of two or three decoders, depending on your requirements. It can be configured in a point-to-point setup or with a backend server and playout solution. The back-end server option can accommodate the transmission of up to 20 different WMT clients and connect to multiple playouts.

Key Features

• Receives and decodes 1- 4 WMT streams depending on the type of decoder
• Part of the WMT solution and utilizing the SDI playout system as the receiver
• Automatic control of video encoding bandwidth based on available bandwidth
• SD- or HD-SDI video with embedded audio (depending on the transmission coming from the WMT™)
• Four-channel balanced analog audio out (only single SDI output)
• IFB or return audio at less than a second delay

Manage & control

In combination with the web-based LinkMatrix platform, it is possible to control, manage and administer all WMT devices and connections. The LinkMatrix is a multi-destination and makes it possible to publish the same feed on many platforms, including social media and private CDNs.

Product Highlights:

• Receives and decodes up to 4 WMT streams or 1 4K stream simultaneously
• 4 channels balanced analog audio out (optional)
• Automatic control of video encoding based on available bandwidth
• Also available with 2 or 4 HD/SD SDI outputs
• Now with NDI and SRT support

Playout 2KX - Specification

More Information

INPUTS:

1x IFB or input (for audio return to the WMTô) upgradable (using Presonus audio device)

Microphone or line input

Ref input

Ethernet for connection to the internet

IP MANAGEMENT:

Ethernet 10/100/1000 Base-T

HARDWARE:

Dedicated appliance 90-240 Volt

Weighs approximately 2.1 kg

1U 19" rackmount

Power consumption average of 80 Watt

Redundant power supply on request
