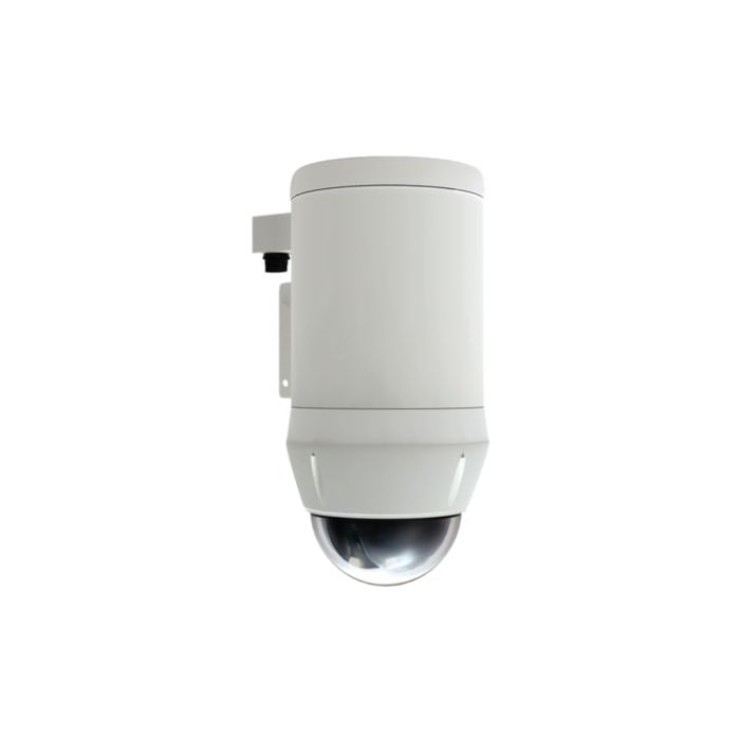

MOBILE VIEWPOINT WICAM STANDALONE ON SITE CAMERA

The WiCam is a combination of a high-quality video encoder, WMT-Multiplex software, and industrial hardware. The WiCam has by default 3x 3G/4G radio modules (upgradable to 8), WiFi, and RS485. Supporting both HDMI and SDI cameras and analog via a converter, the WiCam delivers a complete solution for video surveillance vehicles and standalone setups. The hardware is available for temperature ranges between -25 and 60 degrees Celsius.

The WiCam can multiplex up to 8 connections, which can be a combination of 3G/4G/WiFi/Fixed IP/CDMA2000 or any other technology. The WiCam provides by default HD-HDMI and SDI input and analog video and audio input via a separate converter. The WiCam encodes the video dynamically with H.264 in combination with AAC audio. The adaptive encoded video and audio are transported over the multiplexed connections. The system will provide video bandwidths between 150 kbit and 16 Mbit (capped) depending on available mobile bandwidth and send over auxiliary data. For remote control of PTZ cameras, there is an RS485 port available. Via a separate external display or the built-in WiFi access point from any smartphone, it is possible to monitor the unit.

The WiCam utilizes the patent-pending multiplexing Mplex technology to create a high data rate channel to deliver the highest quality video possible.

Solution

The MVP solution consists of 2 or 3 elements depending on your requirements. The system can be configured to use only a server and a website for viewing the image and recordings of the different cameras connected. On top of this, it is possible to connect dedicated IP cameras from Bosch and 360 Vision Technologies.

Product Highlights:

• 8 built-in modems
• Up to 40 Mbit H.265 encoding
• Available in three configurations: 1, 2, or 4 camera inputs
• Ultrathin and compact
• Ruggedized casing

WiCam - Specification
