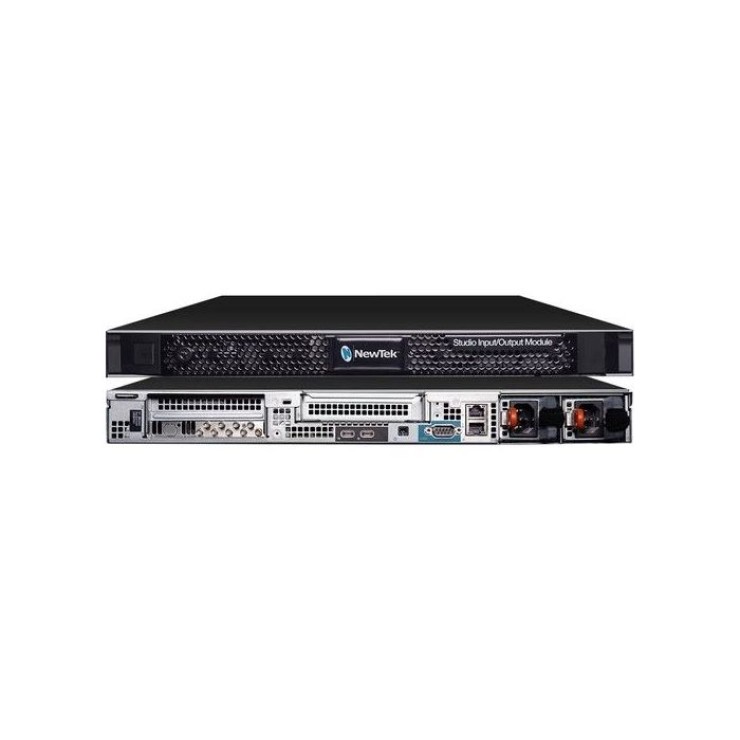

NEWTEK NC2 STUDIO I/O MODULE

Using versatile functionality ranging from NDI, SDI to IP video conversion by I/O channel expansion, to 4K UHD connectivity and IP interoperability, NewTek NC2 Studio I/O Modules offer the flexibility to outfit studios, facilities, or infrastructures not only for their current production needs but also those of the future.

NC2 Studio I/O Module offers support for 12G-SDI and 10 Gigabit Ethernet connectivity; it seamlessly connects multiple video and audio formats including NDI®, SDI, and other IP formats. This solution is far more than conversion; offering SDI signal capture, media file playback, selectable multi-viewers, and professional video scopes.

Features:

From connecting established and emerging technologies, to expanding the quantity and type of available inputs and outputs, to linking locations across your network, NewTek NC2 Studio I/O Modules are powerful, versatile, and fully turnkey systems made for IP video production workflows.

Dynamic I/O Configuration

System can be configured as 8 x 3G-SDI , 2 x 12G-SDI with 4 x 3G-SDI, or a wide range between. Independently configure each channel for resolutions up to 2160p at 60 frames per second.

8 Channel Recording

Simultaneously record up to 8 SDI inputs; combine with NewTek’s Network Remote Storage for the optimal power and adaptability.

Built for NDI®

Supporting 10Gb Ethernet, the NC 2 Studio I/O is ideally placed for use in high-speed networking environments such as broadcast workflows, and is perfect for NDI traffic. Built to work with NDI 5, NC 2 I/O supports all the latest and upcoming features.

Adapts to any workflow

NC 2 I/O is a powerful, adaptable solution offering IP flexibility while making use of existing SDI equipment and infrastructure. Audio integration provides adaptable workflows through connection with USB and network-based audio drivers (DANTE™/AES67/ASIO/WDM).1 Management and control of each channel can be harnessed locally, through integrated NDI KVM technology, or a web-based API.
1Compatible audio drivers and/or virtual sound card licenses required (sold separately)

Color Correction

Independently adjust the color characteristics of each channel, manually configuring brightness, contrast, hue, saturation, white balance, and more with integrated proc amp controls, or optionally enable automatic color matching between channels.

Configurable A/V Sources

Independently configure the video and audio for each channel, selecting from any source accessible to your Studio I/O Module.

Multi-Format Processing

Accept and deliver video in any combination of compatible formats, with resolution and frame rate configurable per channel.

Multiviewer

Monitor a single source or multiple live signals with selectable workspace layouts and customizable viewports.

NDI® KVM

Access the user interface and control your Studio I/O Module remotely from any compatible computer, device, or touchscreen connected to the same network.

Professional Audio

Present high-quality sound, with flexible audio integration to include comprehensive support* for Dante™, AES67, and ASIO sound devices*
* Compatible audio drivers and/or virtual sound card licenses required (sold separately)

Rackmount Chassis

Industry-standard 1RU rackmount chassis integrates into any professional production environment, setup, or workflow.

Redundant Power

Safeguard module availability with 550W redundant power supplies

Video Servers

Optionally configure each channel for stored media playback, with extensive file format support, on-screen transport controls, and Autoplay setting.

Waveform and Vectorscope

Calibrate and monitor video signals for broadcast compliance and viewing quality with built-in waveform and vectorscope displays.

Grab

Grab full-resolution still images of channel video for real-time use, post-production activities, or archive.

Hardware Destination

Direct the video and audio output from the designated channel to a specific SDI connector on the module backplane, or other supported devices where applicable.

Network Source Support

Optionally configure other network sources for input with support for real-time conversion and transmission of common IP video stream formats to include SRT, RTMP, RTSP, and HTTP.

Recording

Capture native-resolution video from one, multiple, or all channels to network attached storage

Remote Access

Monitor live signals and control your Studio I/O Module remotely from the browser of any networked device, including iOS and Android mobile devices, with a system-specific webpage.

Product Highlights:

• Dynamic I/O Configuration
• 8 Channel Recording
• Built for NDI®
• Adapts to any workflow
• Color Correction
• Configurable A/V Sources
• Multi-Format Processing
• Multiviewer
• NDI® KVM
• Professional Audio
• Rackmount Chassis
• Redundant Power

## More Information

**FG-003244-R001 - Specification**

**General:**

- Video In: NDI®2, SRT, SDI, RTMP, RTS

- Video Out: NDI®, SD

- IP I/O: Up to 8x

- SDI I/O: Up to 8x via HD-BNC

- 4K UHD I/O SDI I/O: Up to 2x via 12G-SDI, 6G-SDI, or quad-link 3G-SDI

- Media Playback Channels: Up to 8x

- Recording Channels: Up to 8x SDI Inputs Only

**Supported Video Formats:**

- 2160p: 59.94, 50, 29.97, 25, 24, 23.976

- 1080p: 59.94, 50, 29.97, 25, 24, 23.976

- 1080i: 59.94, 50

- 720p: 59.94, 29.97, 25, 24, 23.976

- 576i: 50

- 480i: 59.94

- 1080p: 60, 59.94, 50

- 1080p/PsF: 30, 29.97, 25, 24, 23.98

- 1080i: 30, 29.97, 25

- 720p: 60, 59.94, 50

- 576i: 25

- 480i: 29.97

**Supported Media Formats:**

- Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more

- Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more

- Audio: AIFF, MP3, WAV, and more

**Audio I/O:**

- Up to 8x SDI embedded

- Audio Networking: Native support for network audio input and output via NDI®

- Embedded SDI audio supported for all NDI® input and output video signals

- Support1 for Dante™, AES67, and ASIO protocols via compatible audio drivers

**Timecode:**

- LTC and VITC

**Signal Monitoring:**

- Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

**A/V Standards:**

- 12G-SDI (ST 2082-10)

- 6G-SDI (ST 2081-10)

- 3G-SDI Level A (ST 425-1 Level A Mapping),

- Quad Link 3G-SDI (ST 425-5),

- HD-SDI (ST 292),

- SD-SDI (ST 259)

**Video Processing:**

- Floating Point, YCbCr +A 4:4:4:4

**Audio Processing:**

- Floating Point, 96 kHz

**Genlock:**

- Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported

**Multiviewer:**

- 1x USB Type C

**NIC:**

- 1 x 10 Gigabit NIC (10GBASE-T over RJ45)

- 1 x 1 Gigabit NIC (RJ45)

**System Physical:**

- H 1.88in (4.28cm) x W18.97in (48.2cm) x D22.73in (57.75cm) / 23.19in (58.91cm) with Bezel - Racking Kit Included

- Weight: 27.38lb / 12.42kg
