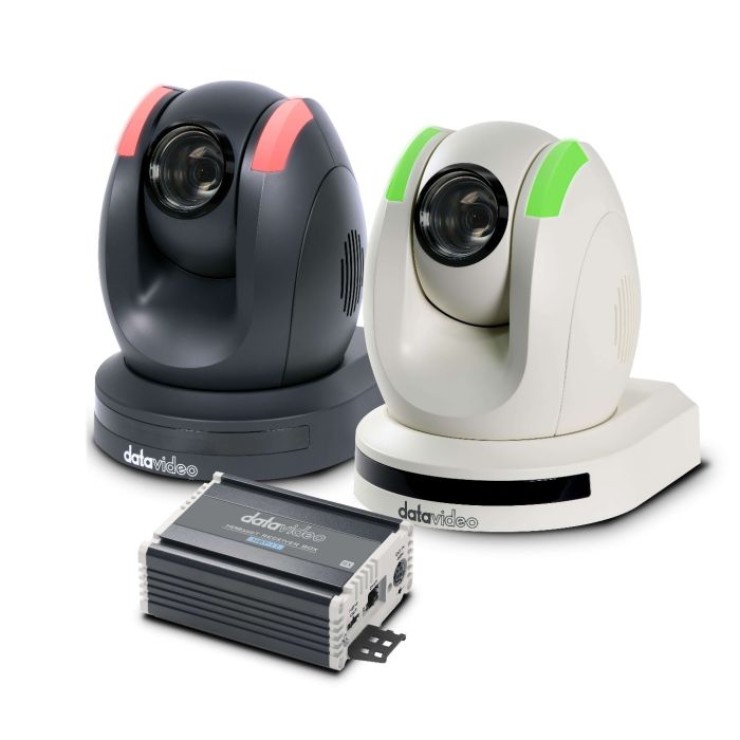

PTC-150T HD/SD PTZ VIDEO CAMERA WITH HDBASET TECHNOLOGY

The PTC-150T HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor, or tabletop.

The camera is equipped with HDBaseT Technology (HBT-11 Receiver Included) for remote control purposes, video image conveyance, power transmission, and Ethernet connection.

The camera captures HD video at 1920 x 1080 resolution and features a wide dynamic range with backlight compensation. The camera features a motorized 30x optical zoom capability and its image mirror and image rotation functions allow you to electronically adjust the image and deliver a correctly orientated image. In addition to the basic camera functions, the PTC-150T also has a receiver box that allows the user to control the camera at a remote location with just one Ethernet cable.

50 programmable presets including pan, tilt, and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or an available PTZ controller.

For multi-camera shoots, the built-in tally light can identify an active camera. The camera features a built-in IR cut filter in the image path for low-light shooting and
then returns for daytime shooting. Also, PTC-150T supports real-time position report on a per-frame basis; this is helpful in a virtual studio application.

Made with HDBaseT Technology

Rather than using one cable for video, a second cable for power, and a third cable for camera control, the PTC-150T is able to do all of the above using a single ethernet cable. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets).

One-person camera crew

The beauty of multiple PTC-150T cameras is the ability to control all of them from a single control panel. Pair cameras with the RMC-180 controller or with one of our HDBaseT mobile switchers like the HS-1600T, and you can reduce your camera crew to just... you.

Fantastic 3G Resolution with 30x Optical Zoom

The PTC-150T shoots video at a maximum resolution of 1080p60, with advanced digital noise reduction for beautiful, smooth image quality even in less-than-perfect lighting conditions. 30x optical zoom allows you to mount it near or far and still get great, sharp shots.

Black or White Body

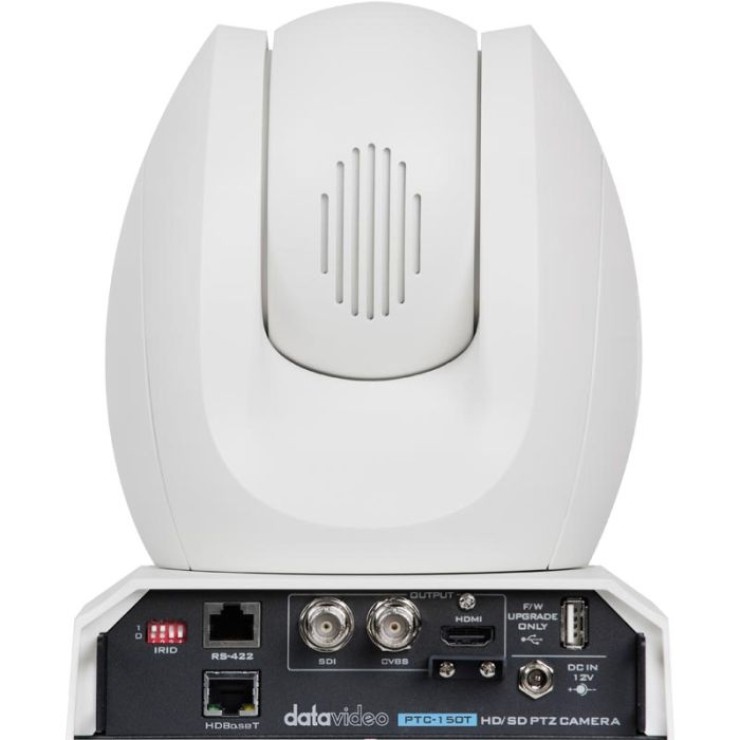

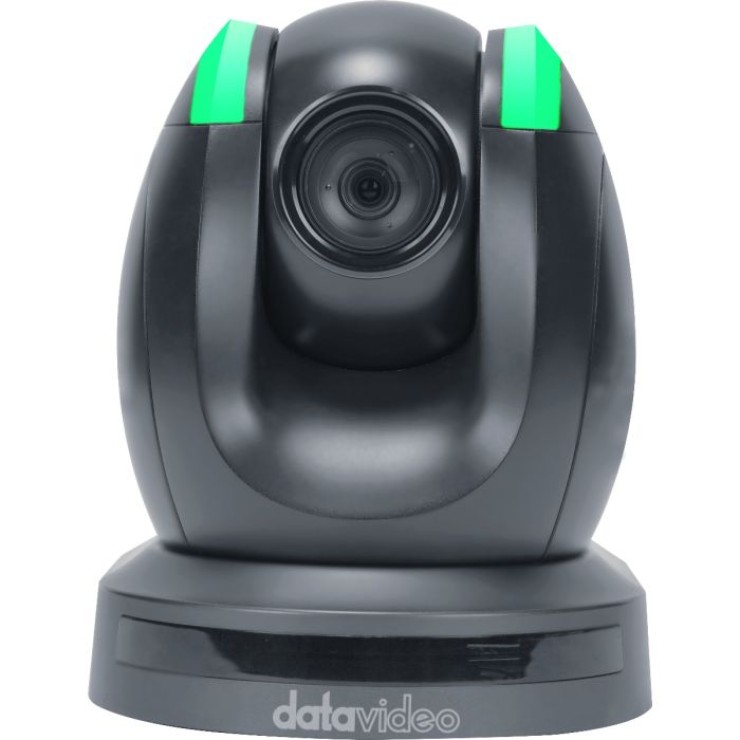

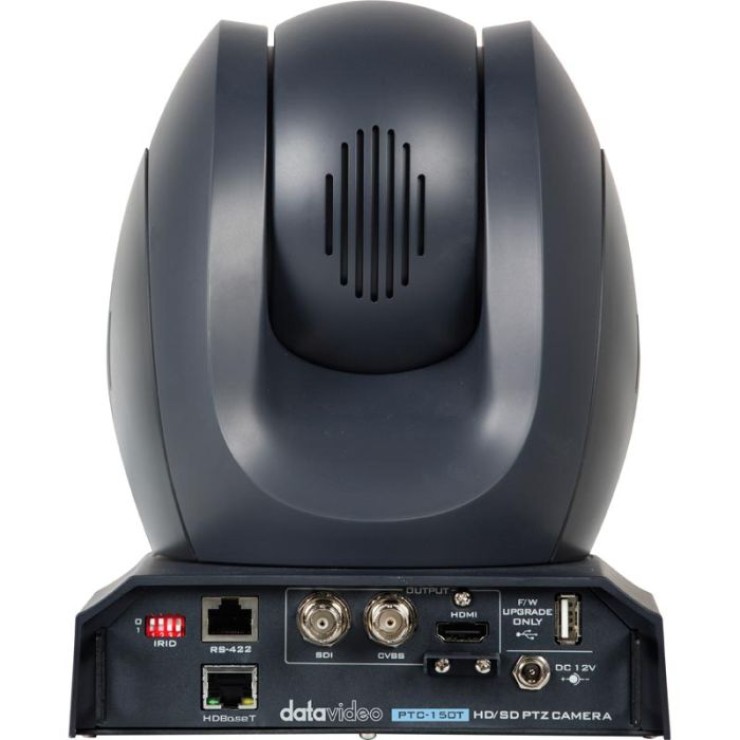

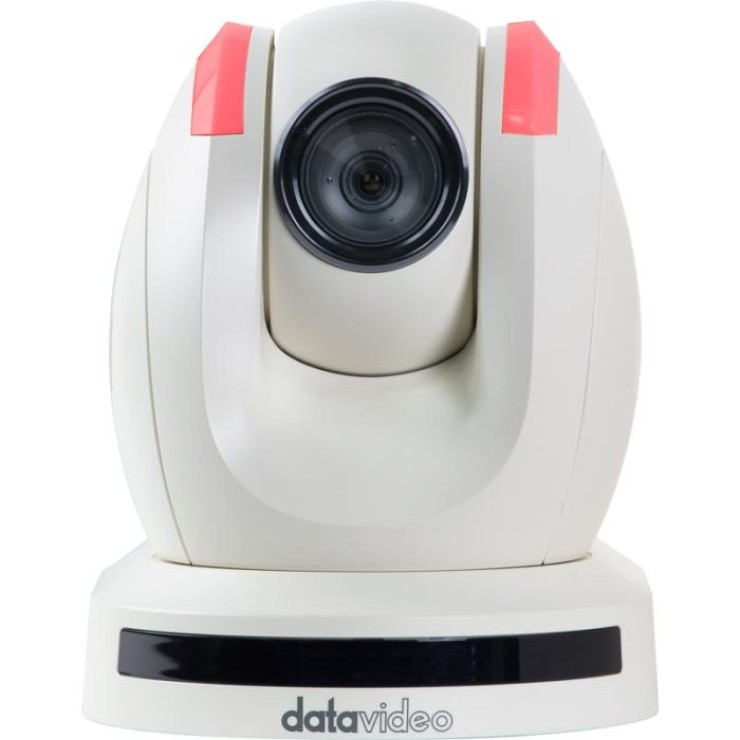

The PTC-150T is available in dark gray or white to remain inconspicuous in permanent setups.

ITEMS INCLUDED:

• 1 x PTC-150T/TW Unit

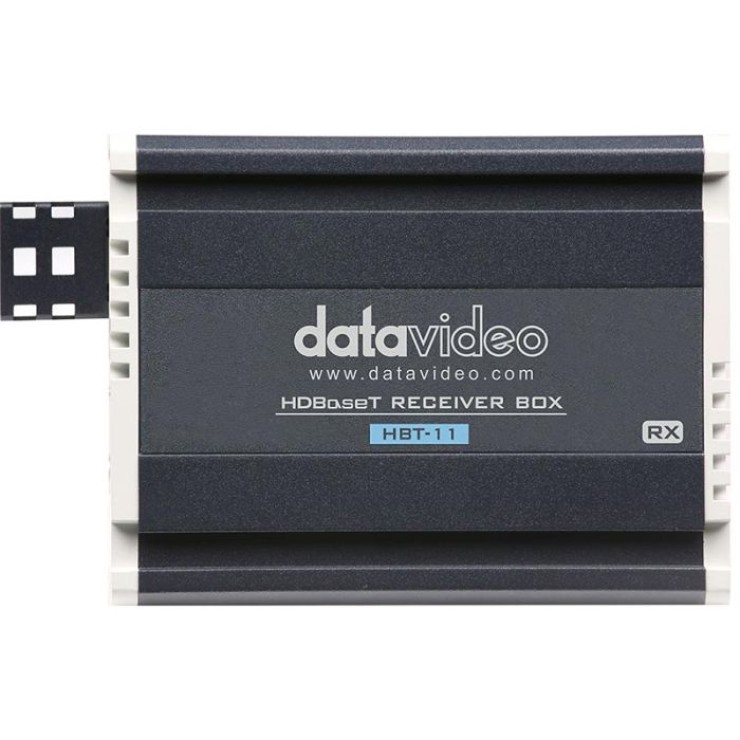

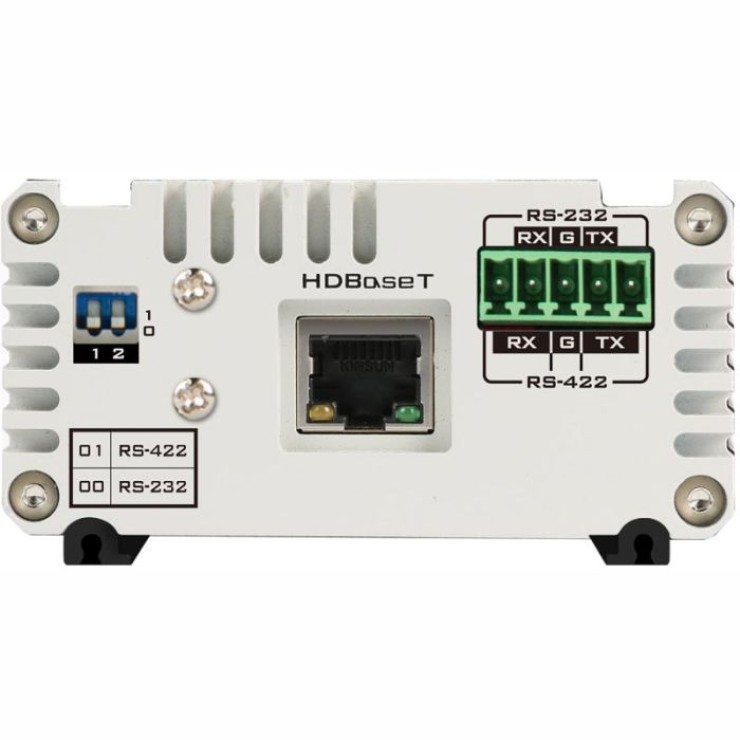

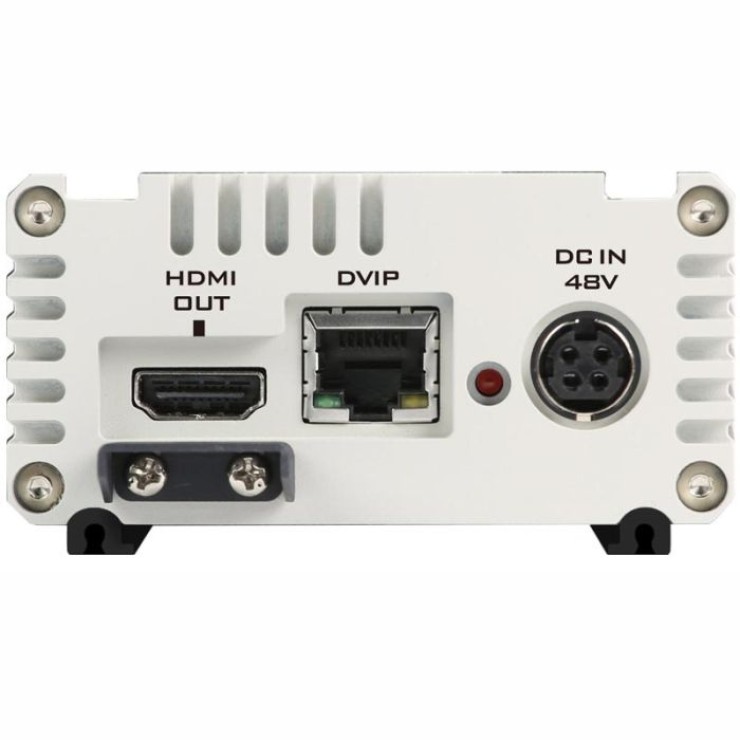

• 1 x HBT-11 Receiver Box
• 1 x IR remote controller
• 1 x PTC-150T/TW Thank You Card
• 1 x Ceiling mount bracket-A
• 1 x Ceiling mount bracket-B
• 6 x Ceiling mount bracket screw M3*4mm
• 1 x DC 12V Power Adaptor
• 1 x DC 48V Power Adaptor
• 2 x Power Cord
• 1 x A tightrope
• 1 x Phoenix connector to RJ-45

·         PTC-150T - Specification
