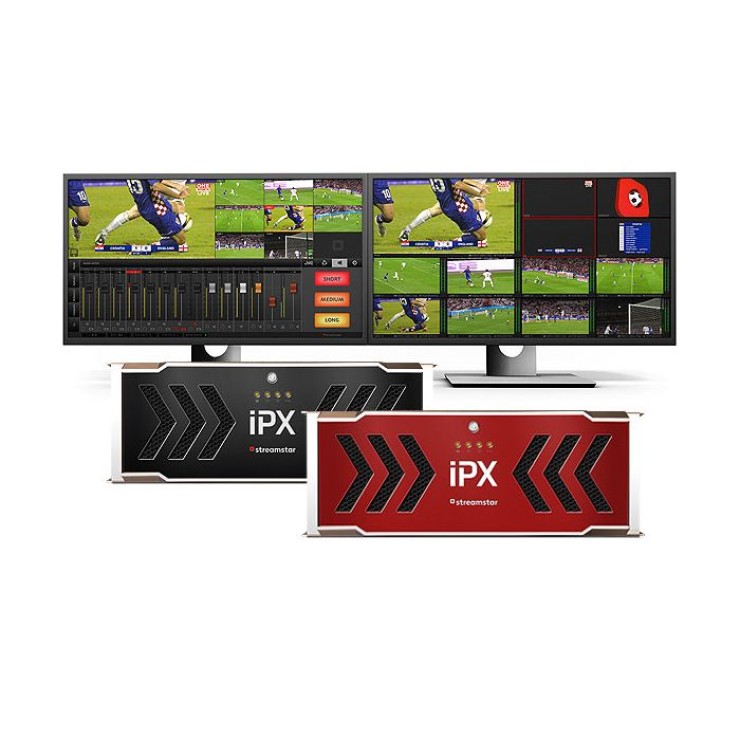

STREAMSTAR IPX 860 LIVE PRODUCTION AND STREAMING STUDIO

Line of robust, extreme performance, live production, and streaming studios that confidently deliver professional, broadcast quality results. Packed in a 4RU chassis with a redundant power supply, the systems support a variety of inputs and offer a full range of professional features including Streamstar's renowned replays and slomo, media playlists, amazing graphics capabilities, internal character generator, live sports graphics templates and their dynamic control and of course Streamstar's brilliantly designed, intuitive, touch screen user interface. These are the ultimate live sports production systems that deliver professional results with confidence and excellence.

Product Highlights:

• Intuitive and easy-to-use touchscreen user interface
• 4 to 8 channel 3G / HD-SDI / IP stream / NDI inputs (3G model dependent)
• 3G / HD-SDI / NDI / RTMP / TS output (3G model dependent)
• 4x Insert layers - Logo / Overlay / CG / Ingest
• Cut/Crossfade/Transitions automated switching modes
• Internal CG Live sports graphics
• External sports graphics over NDI
• Built-in Multiview with 3 modes
• Built-in Audio Mixer

 IPX 860 - Specification

More Information

**General**

**3G / HD-SDI Input:**

- 8 (HD)

**IP Video Stream Input:**

- 8

**NDI Input:**

- 8

**Ingest Input with Transparency (external GFX):**

- Yes

**3G/HD-SDI Output:**

- Yes

**NDI Output:**

- Yes

**GPU-based HDMI Output (Multiview grid / PGM):**

- Yes

**HDMI Output (PGM):**

- Yes

**SDI Embedded Audio:**

- Yes

**Audio Monitor:**

- Yes

**USB Audio Card Support (external Audio mixer):**

- Yes

**Replay channels:**

- 6

**Slow Motion Replay Playback:**

- Yes

**Instant highlights:**

- Yes

**Media - In/Out:**

- Yes

**Media - Unlimited Playback:**

- Yes

**Playlists Media Management System:**

- Yes

**Real-time camera preview, Media, Graphics:**

- Yes

**Switching/Mixing/PIP/Split layouts:**

- Yes

**External Multi-screen:**

- 3 viewing modes:

   1. full PGM

   2. 8x camera inputs grid

   3. 8x camera inputs + 4 DSK layers + PGM grid

**Graphics DSK - unlimited:**

- 4 layers of DSK with full transparency support

   1. CG - Character generator output

   2. OVERLAYS - animations in .flv or images in .png format

   3. LOGO (BUG) - animations in .flv or images in .png format

   4. INGEST - HDMI/DVI Input with keying or IP/NDI Input

**Internal Character Generator with Templates:**

- Yes

**Recording:**

- ISO recording in MPEG2 Intraframe (depending on the number of active replay channels)

   - HD: MPEG2 @ 18 Mbps or SD: MPEG2 @ 8 Mbps

- Simultaneous Stream Recording H.264 / .mp4 at streaming settings

**Live streaming:**

- Up to 1080p @ 10 Mbps

   - RTMP (H.264 + AAC)

**Simulcasting:**

- Yes

**RTMP & MPEG-TS simultaneous output:**

- Yes

**Audio Mixer:**

- Integrated, full-featured audio mixer with monitoring, video follow, muting, peaking...

**Supported Video Input Formats:**

- 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i60

**Supported Media Playback Formats:**

- mp4, m4v, wmv, mpg, mpeg, ts, avi, flv

**Video Processing:**

- Full 4:4:4:4 / ARGB / progressive video processing

**JVC Smart PTZ Control:**

- Yes

**JVC IP based CCU and Tally:**

- Yes

**Premium CONNECTED features:**

- Optional

**Redundant power supply:**

- Optional

**Accessories included:**

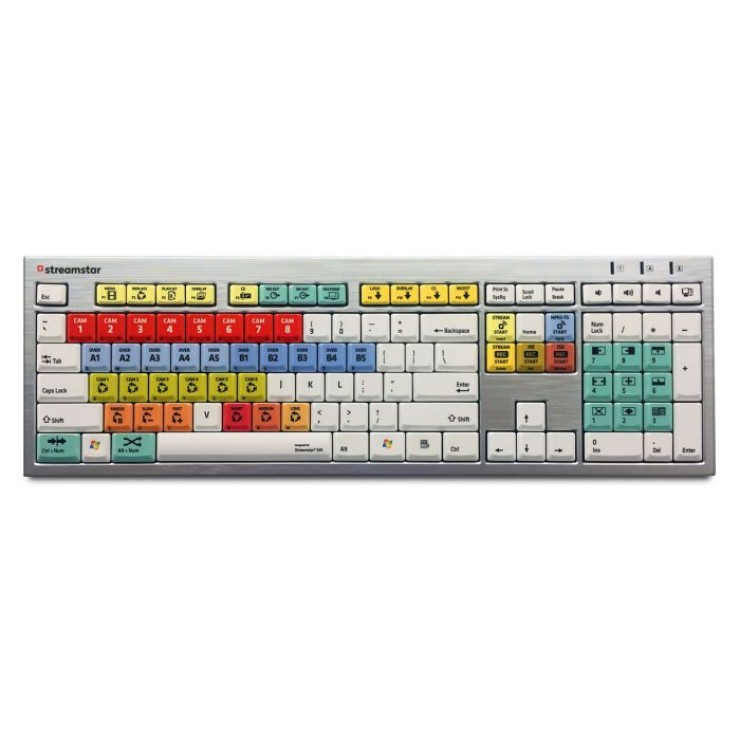

- Streamstar keyboard and mouse

**Form Factor:**

- 4RU rack
