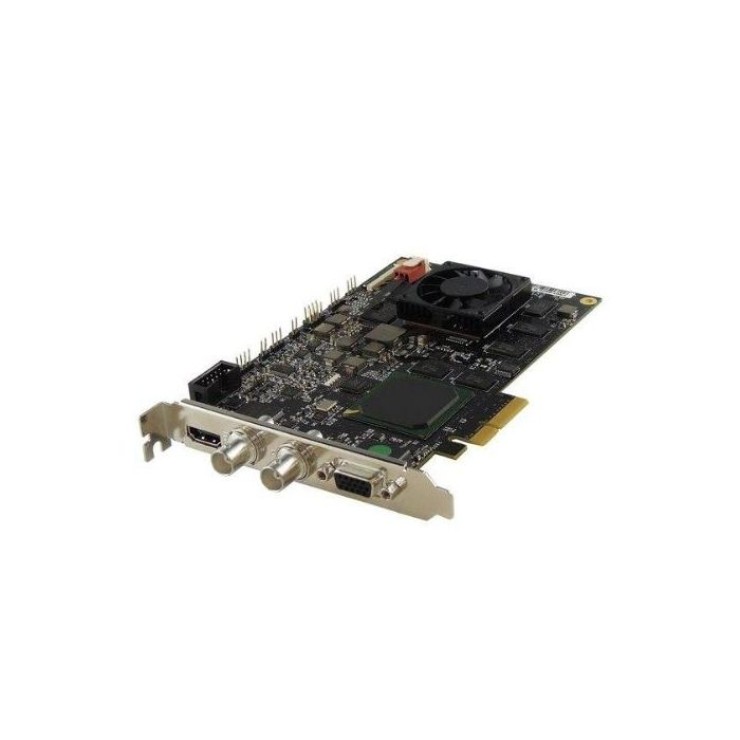

VITEC HDM1050

Based on HDM's successful design, VITEC’s HDM1050 HD/SD Decoder delivers broadcast quality for your demanding professional video applications. The embedded 4:2:2, 10bits Hardware decoder supports H.264 and MPEG-2 decoding up to 1080p60 over 3G-SDI, HDMI, and analog video. HDM1050 is the card of choice for any multi-boarding applications or use cases where CPU consumption matters.

Products Highlights:

• H.264 and MPEG-2 Hardware Decoder
• H.265 / HEVC Hybrid Decoder
• Decode from stream or file up to 1080p60, 4:2:2, 10 bits
• Continuous, frame-accurate, and seamless back-to-back playback

Here's the information with proper spacing:

**VIHDMI1050 - Specification**

**More Information**

**VIDEO OUTPUTS**

**Digital:**

- HD / SD-SDI up to 3Gb/s /1080p60 (SMPTE 259, 292, 424, 425-A)

- HDMI 1.3

- Secondary SD-SDI (SMPTE 259) for simultaneous HD & SD playback

**Analog:**

- YPbPr, RGB up to 1080p30

- Composite, S-video

**VIDEO INPUTS**

**Digital:**

- HD / SD-SDI up to 3Gb/s for seamless live video stream into an MPEG playlist

**SUPPORTED FORMATS**

**Video Formats:**

- 1080p, 1080i, 720p, NTSC, PAL

**Picture Size:**

- HD / SD

**Chroma Sampling Format:**

- 4:2:2 & 4:2:0

**Hardware Decoding:**

- H.264 and MPEG-2

**HEVC Profile:**

- Main422 10@L4.1 High Tier

**H.264 Profile:**

- Hi10@L4.2 (10 bits)

**MPEG-2 Profile:**

- HP@HL

**Color Standards:**

- BT.709 & BT.601

**File Formats:**

- MP4, MOV, MXF (OP1a/OP-Atom)

- MPEG-2 PS / TS

**Audio Codecs:**

- MPEG, LPCM, AAC, SMPTE302M, AC3, and SMPTE337M pass-through

**Maximum Video Bit Rate:**

- Up to 50 Mbps (HEVC)

- Up to 100 Mbps (H.264)

- Up to 150 Mbps (MPEG-2)

**AUDIO OUTPUTS**

**Embedded Audio Channel:**

- SDI (16), HDMI (8)

**Digital:**

- AES3 (8)

**Analog:**

- Unbalanced (2)

**ADVANCED FEATURES**

**Seamless frame-accurate playback:**

- Yes

**RS-422 control:**

- Sony 9-pin protocol, device mode

**VITC / LTC Output:**

- Yes

**Closed captioning:**

- CEA608/708, 608 Waveform

**CC Transports:**

- SMPTE RDD11 and OP47

- SMPTE436M for MXF files

**ANSI/SCTE 128, ATSC A/72 [CC & AFD in AVC/HEVC user data]**

**ATSC A/53d, ANSI/SCTE 21 [CC & AFD in MPEG2Video user data]**

**ANSI/SCTE 20 (DVS 157) [CC in MPEG2Video user data]**

**ETSI EN 301 775 [Teletext data in separate TS stream]**

**Genlock / Reference Input:**

- Yes

**Video / Audio adjustments:**

- Yes (Analog & Digital)

**Upscaling / Downscaling:**

- Any to Any resolution with auto-adaptive color conversion

**Deinterlacing:**

- Yes

**Streaming Interface:**

- Yes (UDP TS / RTSP / RTP, Unicast / Multicast)

**Monitoring / Preview:**

- Yes

**On-Screen Display (OSD):**

- Full screen - Alpha blended - Full frame rate (animation)

**Multiboarding:**

- Yes

**DEVELOPERS RESOURCES**

**Operating Systems:**

- Windows 7 / XP / Server 2003-2008 (32/64 bit)

**Software:**

- Powerful end-user application provided

**Development Kits:**

- Livewire SDK & Stradis SDK

**SYSTEM CONFIGURATION**

**Recommended Configuration:**

- Pentium Dual Core 2.5 GHz, 2GB RAM

**PCI Compliance:**

- PCIe rev1.1 (4 lanes)

**Dimensions of the board:**

- 167.7 x 111.2 mm (6.60” x 4.38”)

**Power consumption:**

- 12.5 W
