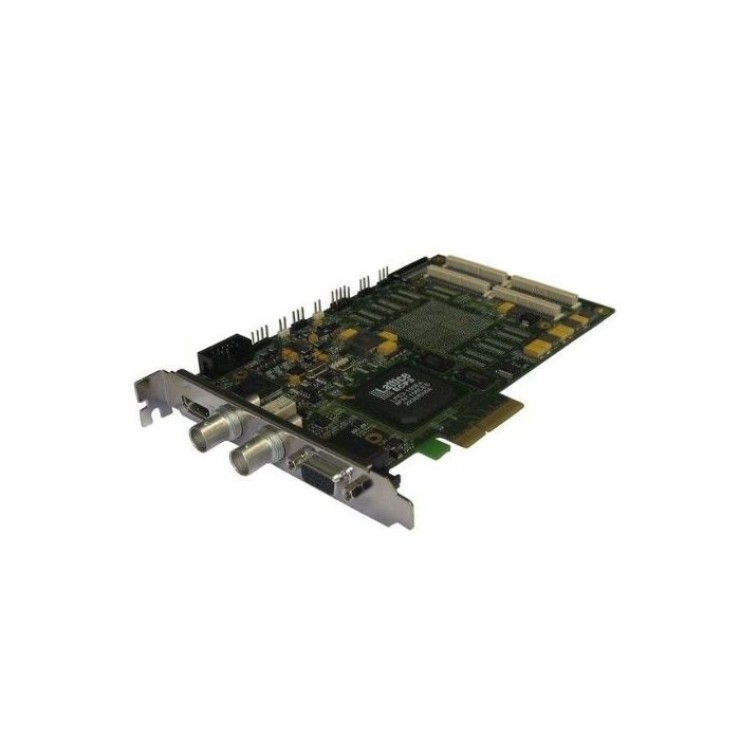

VITEC HDM850 MULTI-FORMAT HD/SD BROADCAST DECODER

HDM850 is the latest High Definition decoding product from Stradis. It supports multiple formats, including MPEG-2 and H.264 video decoding over 3G-SDI (from SD to 1080p60 - SMPTE259,292,424), HDMI, and analog video. As with all Stradis cards, HDM850 supports continuous, frame-accurate, and seamless back-to-back playback playback.

The easily-integrated Stradis HDM850 features an alpha-blended full-frame on-screen display,  an HD/SD-SDI input for insertion of live video content, and provides upscaling and downscaling to any resolution with the auto-adaptive color conversion making it your best ally to transition your SD content to the HD world (and vice versa). Dual outputs also allow decoded video to be simultaneously output in two distinct formats to create, for example, HD and SD versions of the same content. The HDM850 uses a hybrid hardware/software decoding engine that allows flexibility to support future codecs.

An SDK/API developer kit allows one or several Stradis HDM850 decoder cards to be integrated and controlled into a video system quickly and easily. SDK/API compatibility is ensured across the complete Stradis product range allowing a seamless upgrade to a different decoder. Upgrade to HD now!

HDM850 is also compatible with the Livewire framework of our VITEC encoder product line. Based on this technology, LW Player, a powerful decoding application, provides a plug-and-play experience.

Product Highlights:

• HD/SD H.264 and MPEG-2 decoder, 4:2:2 and 4:2:0 10-bit sampling
• HD/SD-SDI, HDMI, YPbPr, RGB & RGBHV, S-Video, and Composite video outputs
• 16x SDI / 12x HDMI embedded and 8x AES digital audio outputs plus 2x unbalanced audio outputs
• Upscaling/downscaling to any resolution with auto-adaptive color conversion
• OSD, Closed captioning, Genlock, LTC, and RS-422 control
• PCIe card(4 lanes), Multiboard support, Stradis, and Livewire SDK

Certainly, here's the information with proper spacing and bold headings:

**VIHD850 - Specification**

 **More Information**

**VIDEO OUTPUTS**

**Digital:**

- HD / SD-SDI up to 3Gb/s /1080p60 (SMPTE 259, 292, 424, 425-A)

- HDMI 1.3

- Secondary SD-SDI (SMPTE 259) for simultaneous HD & SD playback

**Analog:**

- YPbPr, RGB up to 1080p30, Composite, S-video

 **VIDEO INPUTS**

**Digital:**

- HD / SD-SDI up to 3Gb/s for seamless live video stream into an MPEG playlist

 **SUPPORTED FORMATS**

**Video Formats:**

- 1080p, 1080i, 720p, NTSC, PAL

- Picture Size: HD / SD

- Chroma Sampling Format: 4:2:2 & 4:2:0

**H.264 Profile:**

- Hi10@L4.2 (10 bits)

**MPEG-2 Profile:**

- HP@HL

**Color Standards:**

- BT.709 & BT.601

**File Formats:**

- MP4, MOV, MXF (OP1 a/OP-Atom) MPEG-2 PS / TS

**Audio Codecs:**

- MPEG, LPCM, AAC, SMPTE302M, AC3, and SMPTE337M pass-through

**Maximum Video Bit Rate:**

- Up to 100 Mbps (H.264) / 150 Mbps (MPEG-2)

 **AUDIO OUTPUTS**

**Embedded Audio Channel:**

- SDI (16), HDMI (8)

**Digital:**

- AES3 (8)

**Analog:**

- Unbalanced (2)

 **ADVANCED FEATURES**

**Seamless frame-accurate playback:**

- Yes

**RS-422 control:**

- Sony 9-pin protocol, device mode

**VITC / LTC Output:**

- Yes

**Closed captioning:**

- CEA608/708, 608 Waveform

**CC Transports:**

- SMPTE RDD11 and OP47

- SMPTE436M for MXF files

- ANSI/SCTE 128, ATSC A/72 [CC & AFD in AVC/HEVC user data]

- ATSC A/53d, ANSI/SCTE 21 [CC & AFD in MPEG2Video user data]

- ANSI/SCTE 20 (DVS 157) [CC in MPEG2Video user data]

- ETSI EN 301 775 [Teletext data in separate TS stream]

**Genlock / Reference Input:**

- Yes

**Video / Audio adjustments:**

- Yes (Analog & Digital)

**Upscaling / Downscaling:**

- Any to Any resolution with auto-adaptive color conversion

**Deinterlacing:**

- Yes

**Streaming Interface:**

- Yes (UDP TS / RTSP / RTP, Unicast / Multicast)

**Monitoring / Preview:**

- Yes

**On-Screen Display (OSD):**

- Full screen - Alpha blended - Full frame rate (animation)

**Multiboarding:**

- Yes

 **DEVELOPERS RESOURCES**

**Operating Systems:**

- Windows 7 / XP / Serveur 2003-2008 (32/64 bit)

**Software:**

- Powerful end-user application provided

**Development Kits:**

- Livewire SDK & Stradis SDK

 **SYSTEM CONFIGURATION**

**Recommended Configuration:**

- Pentium Dual Core 2.5 GHz, 4GB RAM

**PCI compliance:**

- PCIe rev1.1 (4 lanes)

**Dimensions of the board:**

- 167.7 x 111.2 mm (6.60” x 4.38”)

**Power consumption:**

- 10.3W
