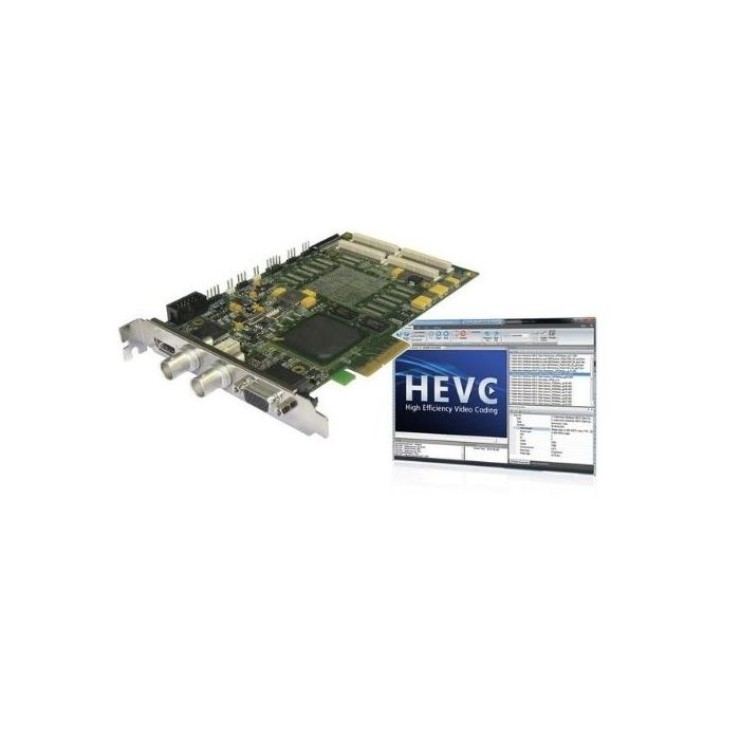

VITEC HDM850+

HDM850+ is the latest addition to the VITEC decoder product line, it supports HEVC decode over 3G-SDI (from SD to 1080p60). HDM850+ is fully featured for professional broadcast applications such as content distribution, station/news automation, and quality control or simply for rendering the latest video standards. Featuring unique frame-accurate playback and compatibility with HEVC, H.264, and MPEG-2 video standards (HD/SD), HDM850+ is the most advanced and versatile decoder card available on the market.

Product Highlights:

•   Unique seamless frame-accurate playback in HEVC /H.264 and MPEG-2
•   3G-SDI and HDMI outputs up to 1080p60
•   HD/SD HEVC decode (compliant to HM10.0 reference decoder)
•   HD/SD H.264 & MPEG-2 – 4:2:2 & 4:2:0, 10 bits sampling

Here's the information with proper spacing:

**VIHDM850 - Specification**

**More Information**

**VIDEO OUTPUTS**

**Digital:**

- HD / SD-SDI up to 3Gb/s /1080p60 (SMPTE 259, 292, 424, 425-A)

- HDMI 1.3

- Secondary SD-SDI (SMPTE 259) for simultaneous HD & SD playback

**Analog:**

- YPbPr, RGB up to 1080p30

- Composite, S-video

**VIDEO INPUTS**

**Digital:**

- HD / SD-SDI up to 3Gb/s for seamless live video stream into an MPEG playlist

**SUPPORTED FORMATS**

**Video Formats:**

- 1080p, 1080i, 720p, NTSC, PAL

**Picture Size:**

- HD / SD

**Chroma Sampling Format:**

- 4:2:2 & 4:2:0

**Profile:**

- HEVC up to Main422 10@ L4.1 High Tier

**Color Standards:**

- BT.709 & BT.601

**File Formats:**

- MP4, MOV, MXF (OP1a/OP-Atom)

- MPEG-2 PS / TS

**Audio Codecs:**

- MPEG, LPCM, AAC, SMPTE302M, AC3, and SMPTE337M pass-through

**Maximum Video Bit Rate:**

- Up to 20 Mbps (HEVC)

- Up to 100 Mbps (H.264)

- Up to 150 Mbps (MPEG-2)

**AUDIO OUTPUTS**

**Embedded Audio Channels:**

- SDI (16), HDMI (8)

**Digital:**

- AES3 (8)

**Analog:**

- Unbalanced (2)

**ADVANCED FEATURES**

**Seamless frame-accurate playback:**

- Yes

**RS-422 control:**

- Sony 9-pin protocol, device mode

**VITC / LTC Output:**

- Yes

**Closed captioning:**

- CEA608/708, 608 Waveform

**CC Transports:**

- SMPTE RDD11 and OP47

- Add SMPTE436M for MXF files

**ANSI/SCTE 128, ATSC A/72 [CC & AFD in AVC/HEVC user data]**

**ATSC A/53d, ANSI/SCTE 21 [CC & AFD in MPEG2Video user data]**

**ANSI/SCTE 20 (DVS 157) [CC in MPEG2Video user data]**

**ETSI EN 301 775 [Teletext data in separate TS stream]**

**Genlock/Reference Input:**

- Yes

**Video / Audio adjustments:**

- Yes (Analog & Digital)

**Upscaling / Downscaling:**

- Any to Any resolution with auto-adaptive color conversion

**Deinterlacing:**

- Yes

**Streaming Interface:**

- Yes (UDP TS / RTSP / RTP, Unicast / Multicast)

**Monitoring / Preview:**

- Yes

**On-Screen Display (OSD):**

- Full screen - Alpha-blended

**Multiboarding:**

- Yes

**DEVELOPER RESOURCES**

**Operating Systems:**

- Windows 7 / XP / Server 2003-2008 (32/64 bit)

**Software:**

- Powerful end-user application provided

**Development Kits:**

- Livewire SDK & Stradis SDK

**SYSTEM CONFIGURATION**

**Minimum Configuration:**

- H.264/MPEG-2: Pentium Dual Core 2.5 GHz, 2GB RAM

- HEVC: Pentium Quad Core 3.1 GHz, 4GB RAM

**PCI Compliance:**

- PCIe rev1.1 (4 lanes)

**Dimensions of the board:**

- 167.7 x 111.2 mm (6.60” x 4.38”)

**Power consumption:**

- 10.3 W
