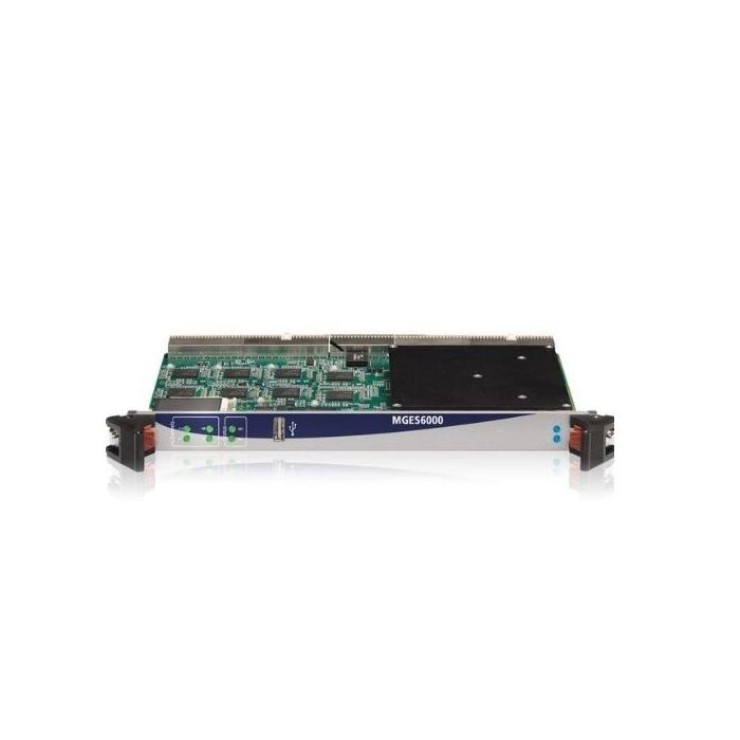

VITEC MGES 6000

The MGES-6000 Blade provides real-time hardware encoding of HD and SD video for all IPTV applications. It provides best-in-class picture quality with features including a secondary low-res channel, integrated resolution, and frame-rate scaling, streaming to as many as seven IP destinations from each port, and optional AES-256/128-bit encryption for securing classified or premium content.

Product Highlights:

• Choice of HD and SD license configurations for each IPTV encoding port
• Secondary stream capabilities for OTT, PIP, LAN/WAN dissemination, and more
• Best-in-class video quality at bit rates from 150 Kbps to 15 Mbps configurable for each primary and secondary channel
• Real-time AES-256/128-bit encryption

Here's the information with proper spacing:

**VIMGES6000 - Specification**

**More Information**

**HD Encoding**

**Video Codec:**

- Conforms to ISO / IEC14496-10 (H.264/AVC) High Profile Level 4.0

- 1920 x 1080 59.94i/29.97p/60i/30p/50i

- 1280 x 720 59.94p/29.97p/60p/30p/50p

- Chroma sampling: 4:2:0

- Encoding rate: 500 Kbps to 15 Mbps

- Aspect Ratios 16:9

- CBR Support with Optibase Smoothing™ algorithm

- Downscaling from HD to HD and HD to SD (down to QCIF)

**Audio Codec:**

- Up to 2 stereo pairs (embedded in SDI or HDMI, Unbalanced in Analog)

- Sampling Frequencies: 48kHz

- AAC-LC (32 to 384Kbps)

- MPEG 1 Layer 2 (32 to 384Kbps)

- Mono, stereo

**SD Encoding**

**Video Codec:**

- Conforms to ISO / IEC14496-10 (H.264/AVC) Baseline and Main Profile Level 3.0

- 720 x 480 x 29.97i/15i

- 720 x 576 x 25i/12i

- Chroma sampling: 4:2:0

- Encoding Rate: 200 Kbps to 6 Mbps

- Aspect Ratio: 4:3 and 16:9

- CBR Support with Optibase Smoothing™ algorithm

- Various downscaling options to as low as QCIF resolution

**Audio Codec:**

- Up to 2 stereo pairs embedded in SDI and Unbalanced in Analog, 1 stereo pair for HDMI

- Sampling Frequencies: 48kHz

- 16bit support

- AAC-LC (32 to 384Kbps)

- MPEG-1 Audio Layer 2 (56 to 384kbps)

- Mono, stereo

**Closed Captioning**

**Audio Codec:**

- CEA 608 from Line 21 and CEA 708 VANC extraction per SMPTE 334M

**Inputs and Outputs**

**Available Input Blades:**

- 4 x Serial Digital inputs, 75 Ohms BNC connectors (HD/SD-SDI Interface)

- 4 x HDMI (HD/SD) with support for protected (HDCP) and unprotected sources

- 4 x Composite analog inputs, 75 Ohms BNC connectors (Analog Interface)

**Audio Inputs:**

- Embedded audio up to 2 stereo pairs per video source for HD/SD-SDI and HDMI

- Unbalanced analog audio (RCA connector) up to 2 stereo pairs per video source

**Transport Outputs:**

- MPEG-2 Transport Stream encapsulation over UDP/IP
