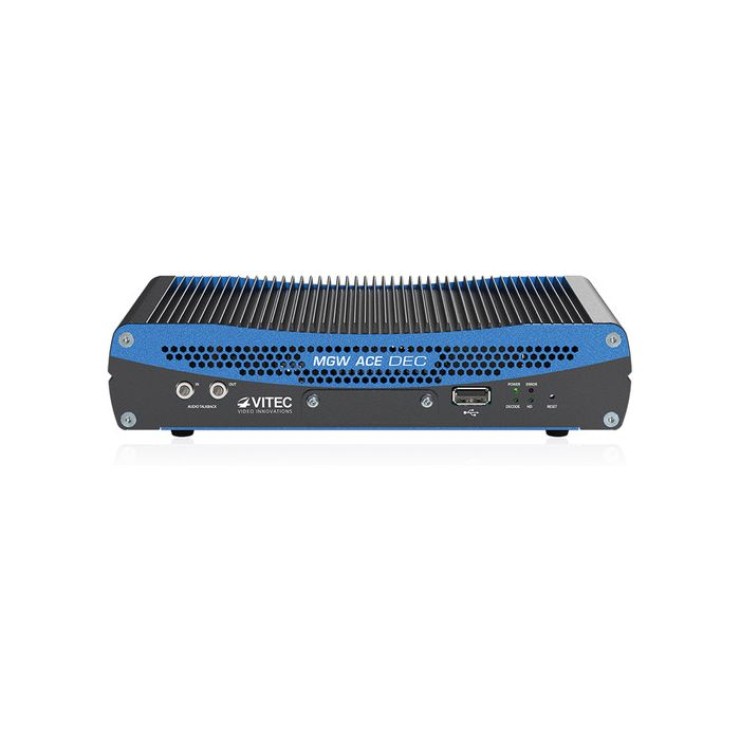

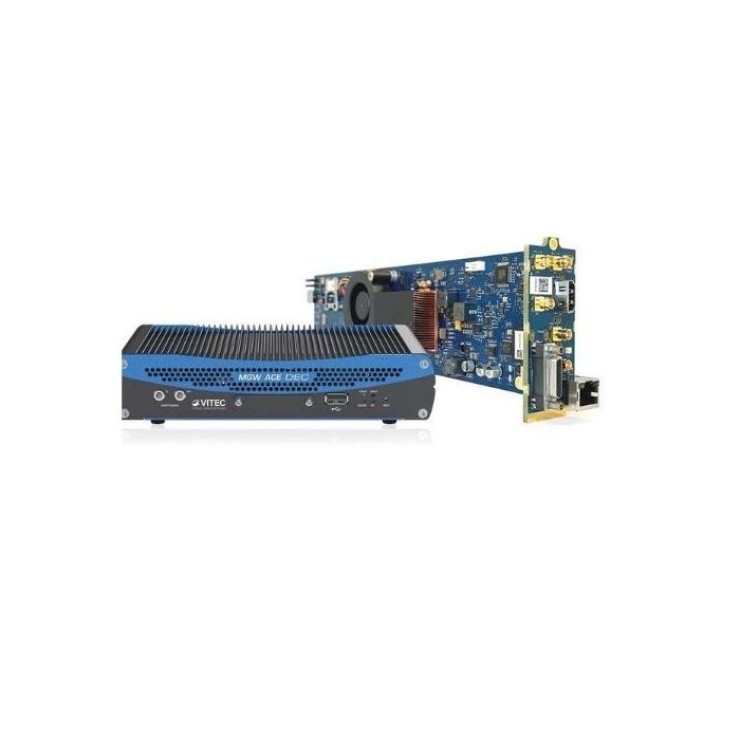

VITEC MGW ACE DECODER OG

VITEC Ace Decoder OG is a single-channel HEVC and H.264 decoding card allowing 4:2:2 10-bit up to UHDp60 quality video. MGW Ace Decoder is designed to always provide the best possible viewing experience and never miss a single frame. VITEC’s OpenGear IP decoding appliances deliver broadcast-quality video decoding with low latency at any rate, on any network. The openGear card, combined with VITEC's 100% hardware processing make the decoder family ideal for any video streaming IPTV application, production studios, broadcast facilities, or in the field

Product Highlights:

•   HEVC & H.264 Low latency decoding of HD/SD IP feeds
•   Broadcast quality decoding up to 4:2:2, 10 bits
•   Reliable, low-latency stream delivery with built-in Zixi, SRT, and ProMPEG stream protection
•   Rich, Industry standard video and audio output interfaces to match any setup

Certainly, here's the information with proper spacing and bold headings:

 **VI17590 - Specification**

 **More Information**

 **Stream Input Support**

**Video Decoder - HEVC & H.264:**

- MPEG-H HEVC (ISO/IEC 23008-2)

  - Profile/Level: up to Main422 10@L5.1 High Tier

  - Ultra Low Latency Mode (Licensed)

  - Color sampling / Bit-depth: up to 4:2:2 / 10 bits

  - Bit Rate: up to 100Mbps

  - Frame Rate: 1-60 fps.

  - Input Resolutions: from CIF up to 3840x2160

**MPEG-4 AVC/H.264 (ISO/IEC 14496-10 MPEG-4 AVC - Rec. ITU-T H.264):**

- Profile/Level: up to Hi10@L4.2

- Color sampling / Bit-depth: up to 4:2:2 / 10 bits

- Bit Rate: up to 100Mbps

- Frame Rate: 1-60 fps.

- Input Resolutions: from CIF up to 1920x1080

**Audio Decoder:**

- Up to x16 audio channels (x8 channels licensed)

- MPEG-4 AAC-LC (ISO/IEC 14496-3) and AAC-ELD Decode

  - Sample Rate: 48kHz

  - Bit Rate: 16-192kbs

- Dolby Digital / AC-3 Passthrough

**Network Protocols:**

- Support for SPTS and MPTS (SDT table support)

- UDP TS: MPEG Transport Stream over UDP

- RTP TS: MPEG Transport Stream over RTP

- RTP ES (RTSP): Elementary stream over RTP

- RTP ES (with SDP)

- Zixi™ Stream protection

  - Zixi P2P and Broadcaster modes

  - Zixi ABR streaming (Adaptive Bitrate)

- RTP TS with ProMPEG Forward Error Correction (SMPTE 2022)

- SRT (Caller, Listener, and RendezVous)

- RTMP

- HLS (MP4/TS, RFC8216)

- HTTP, NTP, SSH, SAP, SDP

**Security:**

- Real-time AES decryption for video, audio, and metadata

- 128 and 256-bit encryption key support

**Network Interfaces:**

- 2x Gigabit Ethernet ports for management and/or streaming

- DVB-ASI Input with loop through (SPTS / MPTS support)

- DHCP / Static IP address, IPv4, and IPv6 support

**Video Outputs:**

- 1 x 12G-SDI (SMPTE 2082-1), 2x on openGear board version

- 1 x 3G/HD-SDI/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M-A)

- 1 x HDMI 2.0

- 1x Composite (CVBS)

**Output Resolutions / Frame Rates:**

- 4096x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (4K -DCI)

- 3840x2160p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz (UHD)

- 2048x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz

- 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24, 23.976

- 1920x1080i @ 60, 59.94, 50 Hz

- 1280x720p @ 60, 59.94, 50, 30, 29.97, 25

- 720x480i @ 59.94 Hz (NTSC)

- 720x576i @ 50 Hz (PAL)

**Audio Outputs (Rear Panel):**

- SDI Embedded audio (PCM support)

- HDMI Embedded audio (PCM support)

- 2x AES3 Digital Audio (BNC Female)

- 1 x Analog unbalanced stereo audio, AC-coupled (RCA Female)

- 1 x Balanced analog stereo audio (XLR Male)

 **Ancillary Data Support:**

**Closed captions:**

- CEA-708 / CEA-608

- Transport:

  - ANSI/SCTE 128, ATSC A/72 [CC & AFD in H.264/HEVC user data]

  - SMPTE RDD11 [Ancillary data in TS stream]

- AFD (SMPTE 2016)

- Timecode (SMPTE12M-2)

- KLV over SDI: STANAG4609 / MISB streams over SDI (VANC per SMPTE 336M)

- High Dynamic Range (HDR) - SDI:

  - HDR10 (SMPTE ST 2084/ITU-R BT.2100)

  - HLG (ITU-R BT.2100) to SDI (SMPTE ST 2108)

**Talkback Audio:**

- Analog unbalanced stereo audio, AC-coupled (Mini Jack) - 1 x Input and 1x Output

**Management:**

- Secure Web-based remote management
