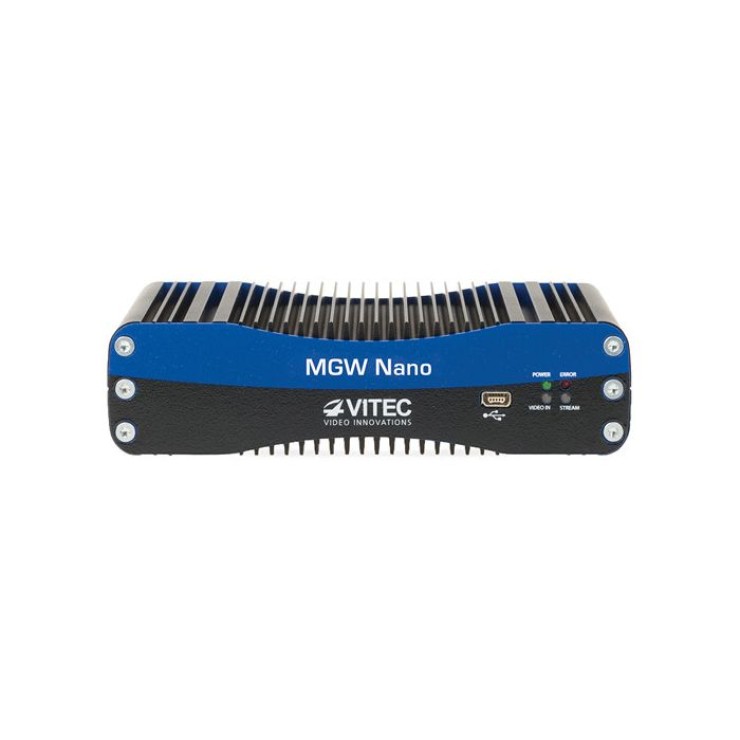

VITEC MGW NANO

The VITEC MGW Nano is a portable MPEG-4 H.264 encoder and streamer featuring one HD/SD-SDI and one HDMI input, Full HD processing, KLV metadata support, and hardware-based image stabilization. It's fanless and features no moving parts, offering 100% silent operation. Optimized for low-latency distribution of HD and SD video sources, it distributes IP video at broadcast-quality resolutions up to 1080p and a wide range of bit rates and frame rates. Measuring approximately 5" x 5", it's highly compact and is capable of being deployed on UAVs.

Product Highlights:

• H.264 AVC Encoder & Streaming Device
• Distributes IP Video at Up to 1080p
• Approx. 5" x 5"; Deployable on UAVs
• One HD/SD-SDI Input, One HDMI Input

Here's the information with proper spacing:

**VIMGWNEHD - Specification**

**More Information**

**General**

- **Video Inputs:**

  - 1 x HD-SDI/SD-SDI (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M)

  - 1 x HDMI (support for HDCP and non-HDCP protected sources), MIL-DTL-38999 Circular connector

  - 1 x Analog Composite RS-170 (BNC, 75 Ohm. Optional)

- **Input Resolutions/frame rates:**

  - 1920x1080p @ 60, 59.94, 50, 30, 29.97, 25, 24 Hz

  - 1920x1080i @ 60, 59.94, 50 Hz

  - 1600x1200p @ 85, 60, 50 Hz

  - 1366x768p @ 60, 50 Hz

  - 1280x1024p @ 60, 50 Hz

  - 1280x800p @ 60, 50 Hz

  - 1280x768p @ 60, 50 Hz

  - 1024x768p @ 60, 50 Hz

  - 1280x720p @ 60, 59.94, 50, 30, 29.97, 25 Hz

  - 720x480p @ 30, 29.97 Hz

  - 720x480i @ 59.94 Hz

  - 720x576p @ 25 Hz

  - 720x576i @ 50 Hz

- **Audio Inputs:**

  - 1 x SDI Embedded audio (Stereo and Mono)

  - 1 x HDMI Embedded audio (Stereo and Mono)

**Video Output:**

- H.264 (ISO\IEC 14496-10 AVC MPEG-4 part 10). Modes:

  - Baseline Profile L3

  - Main Profile L3 and L4

  - High Profile L4 and L4.1

- Bit Rate: 100 Kbps - 14 Mbps

- Frame Rate: 5-60 fps. Downsampling modes: third, half, three quarters

- Bit Rate Regulation Modes: Constant (CBR), Variable (VBR)

- Output Resolutions: Configurable from QCIF up to 1920x1080p30 / 1280x720p60

- Encoding Latency: 65 milliseconds (TurboVideo™ mode)

**Audio Output:**

- MPEG-4 AAC-LC (ISO/IEC 14496-3), MPEG-1 L2

- Stereo and mono modes

- Bit Rate: 32Kbps - 256Kbps in Stereo, 16Kbps - 128Kbps in Mono

- Sampling Rate: 16 kHz - 48 kHz

**Network Protocols:**

- Streaming Modes:

  - UDP TS, RTP TS, RTP ES TurboVideo™

- Error-Correction Technologies:

  - RTP TS with Forward-Error-Correction (FEC SMPTE 2022), Zixi™ Error Correction (with KLV/STANAG Metadata)

- Peripheral:

  - HTTPS, DHCP, NTP, SSH, SAP

**Management:**

- Secure Web-based remote management interface (HTTPS)

- Dashboard with dynamically updating I/O signal detection and streaming stats

- Autostart mode recovers saved configuration after the power cycle

- Remote firmware and software upgrade capability via command line / web-GUI

- System and channel event logging

- SSH interface with “get/set” or XML API for integration with 3rd party control software

**Security:**

- Real-time AES encryption for video, audio, and metadata. Interoperability with EZ TV and FITIS systems

- Password-protected browser and CLI control interfaces

**Metadata:**

- CoT over serial RS-232, KLV over serial/IP, KLV over SDI (VANC per SMPTE 336M)

- UAS Datalink Local Metadata Set (MISB STD 0601.5, STD 0902)

- Time Stamping and Transport of Compressed Motion Imagery and Metadata (MISB STD 0604.2)

- Cursor on Target (CoT) Conversions to Key- Length-Value (KLV) Metadata (MISB EG 0805)

- Security Metadata Universal and Local Sets for Digital Motion Imagery (MISB STD 0102.8)

- STANAG 4609 output stream over UDP/IP

- JITC-MIS Compliant streaming of HD/SD ISR video

**Environmental / Regulation:**

- Operating Temperatures: -40º C to +70º C (-40º F to +158º F)

- Relative Humidity: 5% to 95%

- MTBF: Ground – 9.00 years. Airborne – 12.70 years (As per MIL-HDBK-217F)

- MIL-STD-810G Certified

- MIL-STD-461F Certified

- Not controlled under ITAR

- TAA Compliant

**Physical:**

- 1.46" H x 5.59" W x 5.51" D (37.2mm H x 142mm W x 140mm D)

- 2.07lb (0.94Kg)

- Enclosure: Military-grade rugged aluminum case, composite MIL connectors

- Status LEDs for power, network activity, streaming, and video source indications

- Fan-less, no moving parts design, 100% silent operation

- Mounting holes for seamless installation in vehicles / flat surface

**Advanced Features:**

- Low latency HD/SD streaming from SDI or HDMI sources with metadata

- Hardware-based resolution and frame rate scaling

- Real-time image stabilization and cropping (Area of Interest Isolation)

- Motion-adaptive adjustment of bit-rate utilization in static scenes

- Zixi™ Real-Time Error Correction guarantees secure and artifact-free
