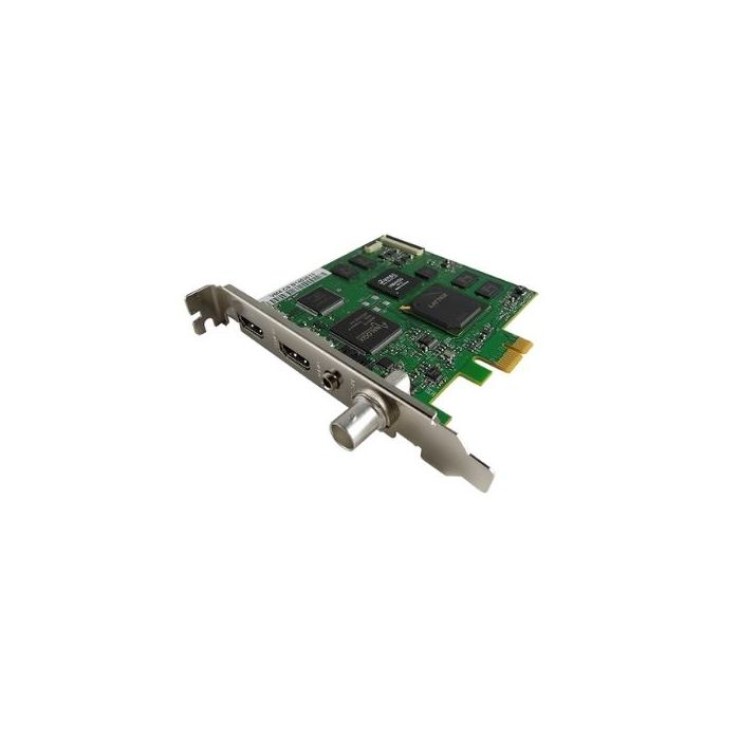

VITEC VM4-C9

Designed for demanding video applications, the VITEC VM4-C9 delivers extremely high-quality HD and SD H.264 encoding up to 1080p30 (SDI & HDMI). With its small size and its low power consumption, the VM4-C9 is perfect for industrial applications.

Product Highlights:

•   HD H.264
•   Live Streaming
•   HD-SDI  Support
•   HDMI In & Out

Here's the information with proper spacing:

**VIVM9 - Specification**

**More Information**

**Video Specifications**

**Inputs:**

- Composite, SDI, HDMI

**Input resolution:**

- Up to FD1

**Output:**

- HDMI

**H.264:**

- Yes (4:2:0)

**Bitrate H.264 SD:**

- 500 Kbit/s to 6 Mbit/s

**Bitrate H.264 HD:**

- 1 Mbit/s to 15 Mbit/s

**Bitrate Regulation:**

- CBR/VBR

**H.264 Profile:**

- Up to MP@L3

**H.264 Tools:**

- Deblocking filter, CABAC, MBAFF, Multislices, Adaptive noise filter

**Aspect ratios:**

- 4/3 & 16/9

**Transport Mux:**

- Yes

**MP4 Mux:**

- Yes

**GOP Definition:**

- I, IP, IBP, IBBP,…

**IP distance settings:**

- Yes

**MPEG-2 (4:2:0) SD:**

- 1 Mbit/s to 15 Mbit/s

**Transport Mux:**

- Yes

**Bitrate Regulation:**

- CBR/VBR

**MPEG-1:**

- 128 Kbit/s to 3 Mbit/s

**System mux:**

- Yes

**Bitrate Regulation:**

- CBR/VBR

**Audio Specifications**

**Inputs:**

- Analog Audio, SDI Embedded, HDMI Embedded

**Number of channels:**

- Analog (2), HDMI (8), SDI (16)

**Formats:**

- AAC-LC, MPEG-1 Layer 2

**AAC Bitrate:**

- 64 to 128 kbit/s

**MPEG-1 Layer 2 Bitrate:**

- 32 to 640 kbit/s

**Sampling Frequency:**

- 48 kHz

**Bits per sample:**

- 16 bits

**Video Format supported:**

**1080p (1920 x 1080):**

- N/A

**1080i (1920 x 1080):**

- N/A

**720p (1280 x 720):**

- N/A

**NTSC (720 x 480):**

- 29.97 fps

**PAL (720 x 576):**

- 25 fps

**Still Image while Encoding:**

**JPEG compression:**

- Yes

**Resolution:**

- Native resolution

**Deinterlacing:**

- Yes

**Advanced features**

**Preview on VGA:**

- Yes (Windows Only)

**Closed captioning:**

- Yes

**Ancillary data and VBI:**

- Yes

**SMPTE RD-11:**

- Yes

**VITC:**

- Yes

**Brightness, Contrast, Saturation, Hue adjustments:**

- Yes (Analog)

**Audio level adjustments:**

- Yes

**Pause/Resume mode:**

- Yes

**Split mode:**

- Yes

**Multiboarding:**

- Yes

**Options**

**Streaming:**

- TS over UDP/RTP, RTSP (Unicast, Multicast)

**On-Screen Display (OSD):**

- Yes

**Developers Resources**

**Operating systems:**

- Windows 7 (32 bits / 64 bits), Linux Ubuntu

**Development kits:**

- Dorsalista Framework

- Demo application source code

**System Configuration**

**Minimum configuration:**

- Core2Duo - 1.8 GHz, 2 GB RAM

**PCIe compliance:**

- PCIe (1 x lane)

**Dimensions of the board:**

- 117 x 99.5 mm / 4.60" x 3.92"

**Power consumption:**

- 8 W
