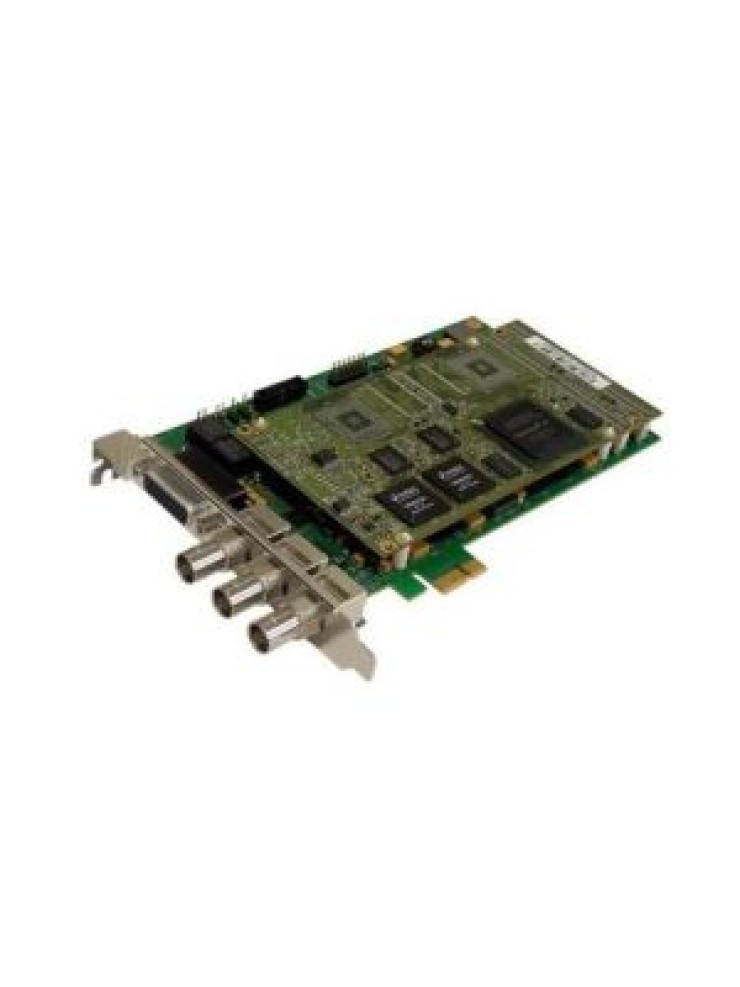

VITEC VMC-7440

Designed for demanding video applications, the VITEC VMC-7440 delivers extremely high-quality HD and SD H.264 encoding up to 1080p with 4:2:0 sampling. The PCIe 1-lane hardware-based encoder supports high definition up to HP@L4.1.

Products Highlights:

HD & SD H.264 encoding

AVC profile: MP@L3/HP@L4.1 at 1080p, 1080i, 720p

Video inputs: HD-SDI 3Gb/s and SDI digital, composite analog

Audio inputs: SDI embedded and AES/EBU digital, balanced and unbalanced stereo analog

Here's the information with proper spacing:

**VIVMC7440 - Specification**

**More Information**

**VIDEO SPECIFICATIONS**

**Inputs:**

- Composite,

- HD-SDI,

- SDI

**Outputs:**

- Composite,

- HD-SDI,

- SDI

**Compression:**

- (HD&SD) H.264 (4:2:0)

**AUDIO SPECIFICATIONS**

**Inputs:**

- Analog balanced

- Unbalanced stereo,

- AES-EBU,

- Embedded SDI (16)

**Formats:**

- MPEG-1 Layer 2

- AC-3, PCM

- AAC-LC

**Number of encoding channels:**

- Analog (2), AES-EBU (2),

- SDI embedded (2)

**Encoding parameters Operating Mode:**

- AAC Bitrate

- MPEG-1 Layer 2 Bitrate

- AC-3 Bitrate

- Sampling frequency

- Bits per sample: Stereo

- 64 to 128 Kbit/s

- 32 to 640 Kbit/s

- 32 to 640 Kbit/s

- 48 kHz

- 16 bits

**VIDEO FORMAT SUPPORTED**

**Format / Resolution:**

- 1080p / 1920 x 1080

- 1080i / 1920 x 1080

- 1080i / 1440 x 1080

- 720p / 1280 x 720

- NTSC / 720 x 480

- PAL / 720 x 576

- NTSC / 720 x 480

- PAL / 720 x 576

- UXGA (downscale in SXGA)

- SXGA

- XGA:

**Frame Rate /s:**

- 30, 29.97, 25, 24, 23.976

- 30, 29.97, 25, 24, 23.976

- 30, 29.97, 25, 24, 23.976

- 60, 59.94, 50, 30,

- 29.97, 25, 24, 23.976

- 29.97

- 25

**STILL IMAGE WHILE ENCODING**

**Resolution:**

- Native resolution

**Special:**

- Deinterlacing

**ADVANCED FEATURES**

**VITC:**

- Yes

**Brightness, Contrast, Saturation, Hue:**

- Yes

- Adjustments: Yes

**Audio level adjustment:**

- Yes

**Status overlaid on preview:**

- Yes

**Audiometer overlaid on preview:**

- Yes

**Pause / Resume mode:**

- Yes

**Multiboarding:**

- Yes

**Dual encoding:**

- Yes

- (2 files from a unique video source): Yes

**24/7 very long encoding:**

- Yes

**DEVELOPERS RESOURCES**

**Operating Systems:**

- Windows 7 / Vista / XP /

- Server 2003 & 2008 (32-bit)

**Development Kits:**

- LiveWire framework

- Demo application

- Source code

**SYSTEM CONFIGURATION**

**Minimum configuration:**

- P3 - 800 MHz,

- 512 MB RAM

**Dimensions of the board:**

- PCIe (1 lane)

**PCI compliance:**

- 180 x 111.15 mm

- (7.08” x 4.37”)

**Power consumption:**

- 18 W

**Compression Bitrate HD format:**

- Bitrate SD format

- Bitrate regulation mode

- MUX Elementary stream:

- (HD & SD) H.264 (4:2:0)

- 2 to 50 Mbit/s

- 600 Kbit/s to 10 Mbit/s

- CBR / VBR

- TS / MP4

- Yes

**Aspect ratios:**

- 4/3 & 16/9

**Inputs:**

- Composite

- HD-SDI, SDI

**Outputs:**

- Composite,

- HD-SDI, SDI

**Preview on VGA:**

- Yes

**GOP definition:**

- I, IP, IBP, IBBP, …

**Closed captioning:**

- Yes

**IP distance setting:**

- Yes

**Ancillary data and VBI:**

- Yes

**AVC profile:**

- MP@L3 / HP@L4.1

**AVC Tools:**

- Deblocking filter, CABAC,

- MBAFF, Multislices,

- Adaptive noise filter"
