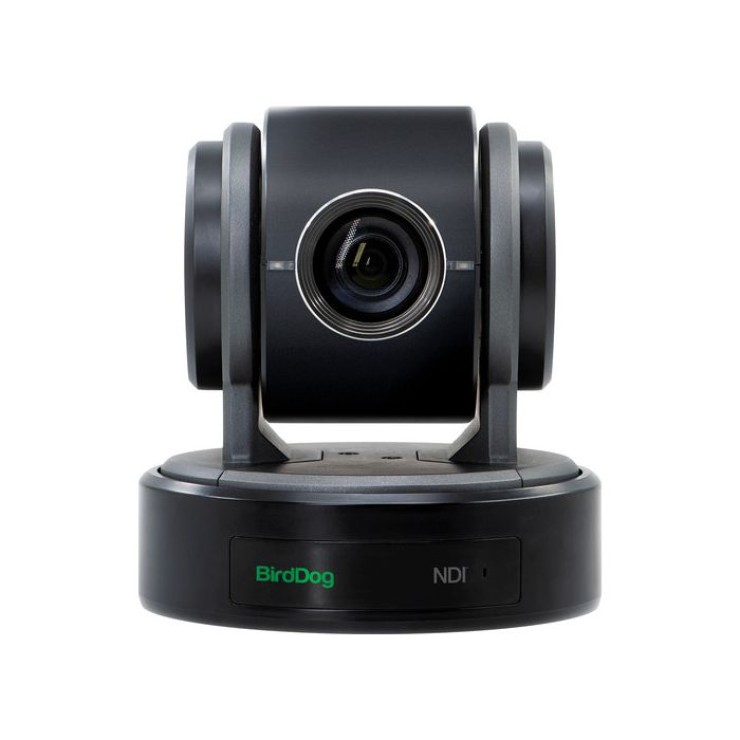

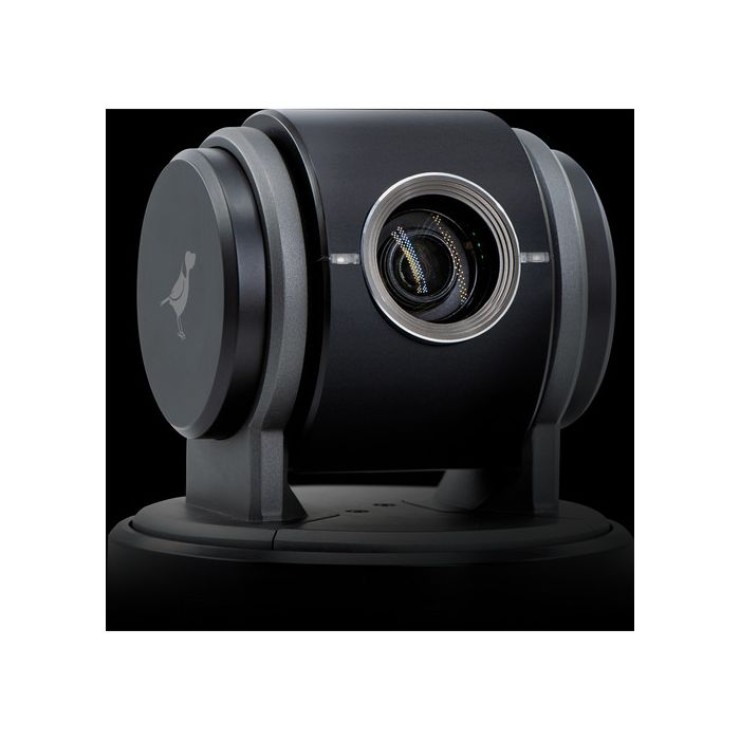

The Eyes P100, in black, is BirdDog's entry-level Full NDI indoor PTZ camera based on their custom NDI silicon chip. The P100 captures up to 1080p60 resolution and offers 10x optical zoom, ideal for small to mid-size meeting rooms and environments. The camera features simultaneous 3G-SDI and NDI outputs, allowing you to integrate into an NDI workflow and/or use legacy SDI equipment.

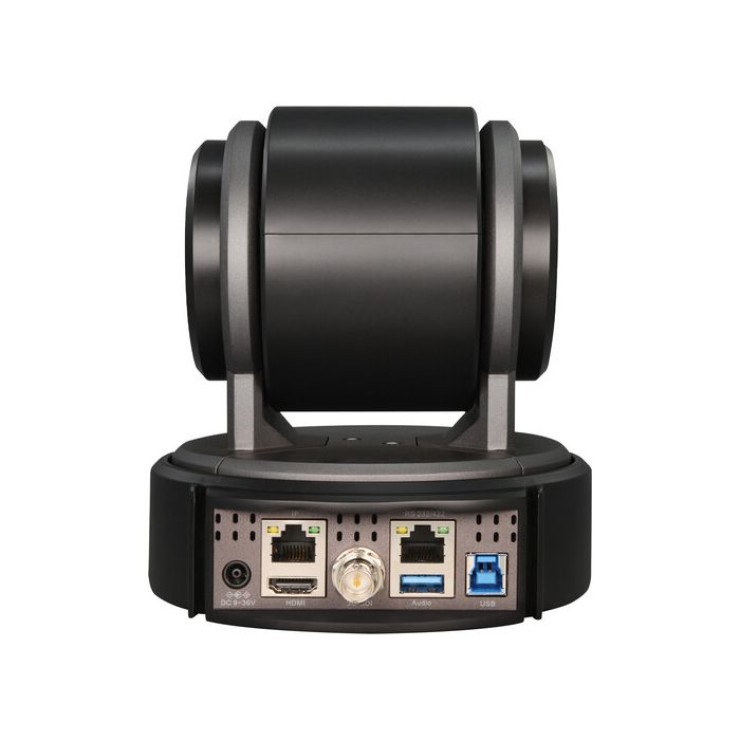

NDI is accessible via an Ethernet port provided on an included breakout cable. The breakout cable connects to an extension port on the rear of the camera and also offers a composite output, 3.5mm audio input/output jacks, and RS-232/422/485 control ports. The audio connectors allow the P100 to work with the BirdDog Comms NDI audio intercom platform. The BirdDog Comms Lite version of the software for Windows is included and it supports up to four BirdDog devices, and you can upgrade to the complete Comms Pro version at any later time. The camera is also compatible with the optional BirdDog Central software, which helps you decode NDI back to SDI (or HDMI). Also, the optional BirdDog PTZ Keyboard can be used over NDI or over RS-422/RS-232 in SDI mode.
As opposed to other types of NDI, such as NDI|HX, which is a compressed variant that reaches 12 Mb/s, the P100 features the visually lossless full NDI variable bit-rate iFrame codec that reaches up to 140 Mb/s at 1080p60.
Key Features
Entry-level Full NDI indoor PTZ camera
Up to 1080p60 resolution
10x optical zoom ideal for small to mid-size environments
Simultaneous 3G-SDI and NDI outputs
Includes breakout cable with an Ethernet port (NDI), composite output, 3.5mm audio jacks, and RS-232/422/485 control ports
128 presets
Up to 150°/s preset adjustment speed
350º continuous pan
Auto, manual, and push focus
0.5 lux minimum illumination
Includes BirdDog Comms Lite NDI audio intercom platform (Windows)
Optional BirdDog Central software supported for decoding NDI back to SDI
Optional BirdDog PTZ Keyboard supported
Imaging
Sensor Type
1/2.86"-Type CMOS Sensor
Sensor Resolution
Effective: 2.2 Megapixel
IR Cut Filter
Yes
Built-In ND Filter
None
Focus Control
Autofocus Manual Focus
Exposure Control
Shutter Type
Electronic Rolling Shutter
Shutter Speed
1/30000 to 1 Second
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
Lens
Focal Length
4.7 to 47mm
Optical Zoom Ratio
10x
Max Digital Zoom
12x
Field of View
Horizontal: 60.9 to 6.43°
Maximum Aperture
f/1.6 to 3
Video Capture
External Recording Modes
SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/50/59.94/60.00 fps
Broadcast Output
NTSC
IP Streaming
NDI, TCP, UDP 1920 x 1080 1280 x 720
Control
Presets
128
Move Speed
150°/sec
Movement Range
Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°)
Tally Light
No
Supported Control Protocols
Pelco-D VISCA
Interface
Video I/O
1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output 1 x RJ45 (NDI) Output 1 x USB-B Output
Audio I/O
1 x 1/8" / 3.5 mm TRS Stereo Input 1 x 1/8" / 3.5 mm TRS Stereo Output
