Product highlights: For Indoor Stadiums / Large Spaces Fast 30x Optical Zoom and Autofocus Suitable for Fast-Action Sporting Events Custom NDI Silicon Chip (140 Mb/s)

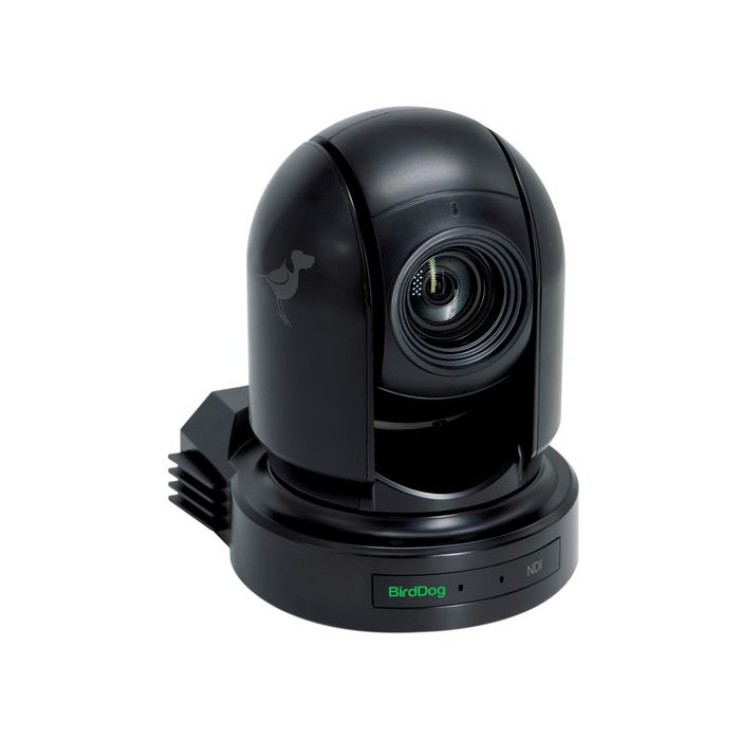

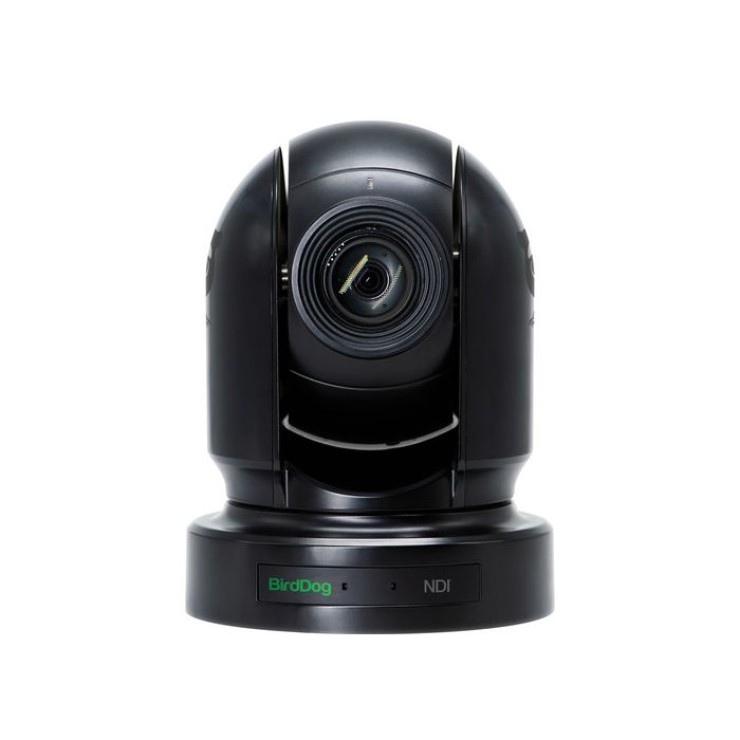

Combining BirdDog's custom NDI silicon chip, 30x optical zoom, and Sony backlit sensor and image module, the BirdDog Eyes P200, in black, is a full NDI 1080p60 PTZ camera designed for large indoor spaces. Thanks to the fast autofocus and zoom ensured by the true Sony image module, the P200 is highly suitable for catching all the fast action in places such as sporting events. As opposed to other types of NDI such as NDI|HX, which is a compressed variant that reaches 12 Mb/s, the P200 features the visually lossless full NDI variable bit-rate iFrame codec that reaches up to 140 Mb/s at 1080p60.
Simultaneous live SDI, HDMI, and full NDI outputs complete the camera as a comprehensive solution. Between these connections, you can control the Eyes P200 live via your full NDI workflow or integrate RS-422, RS-485, and RS-232 serial control. Also, the optional BirdDog PTZ Keyboard can be used over NDI or over RS-422/RS-232 in SDI mode. The P200 can be powered by Power-over-Ethernet (PoE) or via the included power adapter.
The Eyes P200 also comes with the BirdDog Comms Lite audio intercom software, which supports up to four BirdDog devices. Comms Lite is Windows compatible and offers features such as director push to talk, mute camera operator, auto-detect NDI sources, monitor camera audio and shortcut to Web console. For a more complete version of the application, an optional upgrade is available to Comms Pro. The camera is also compatible with the optional BirdDog Central software, which helps you decode NDI back to HDMI or SDI.
Imaging | Sensor Type | 1/2.8"-Type CMOS Sensor |
Sensor Resolution | Effective: 2.13 Megapixel | |
Built-In ND Filter | None | |
Image Stabilization | Digital | |
Focus Control | Autofocus Manual Focus | |
Exposure Control | Shutter Type | Electronic Rolling Shutter |
Shutter Speed | 1/10000 to 1 Second | |
Minimum Illumination | 0.01 Lux at 1/30 Shutter Speed | |
Flip / Mirror Support | Image Flip, Mirror (Vertical) | |
White Balance | 2000 to 10,000K Presets: ATW, AWB, Indoors, Manual, Outdoors | |
Lens | Focal Length | 4.3 to 129mm |
Optical Zoom Ratio | 30x | |
Max Digital Zoom | 12x | |
Field of View | Horizontal: 2.3 to 63.7° | |
Maximum Aperture | f/1.6 to 4.7 | |
Video Capture | External Recording Modes | SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/50/59.94/60.00 fps |
Broadcast Output | NTSC | |
IP Streaming | NDI, TCP, UDP 1920 x 1080 1280 x 720 | |
Control | Presets | 128 |
Move Speed | 150°/sec | |
Movement Range | Pan: 350° Tilt: 120° (-30 to 90°) | |
Tally Light | Yes | |
Supported Control Protocols | Pelco-D VISCA | |

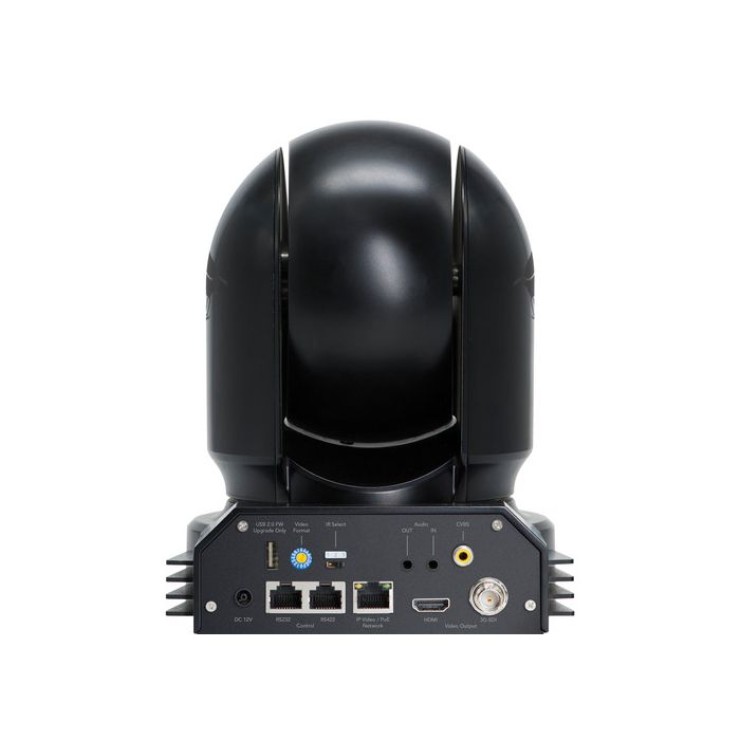

Interface | Video I/O | 1 x RJ45 (NDI) Output 1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Input 1 x 1/8" / 3.5 mm TRS Stereo Output | |
Other I/O | 1 x RJ45 Control 2 x RJ45 (RS-232, RS-422, RS-485) 1 x Unspecified USB | |
Power | PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (12VDC) Input | |
Environmental | Operating Temperature | 14 to 122°F / -10 to 50°C |
Operating Humidity | 80% | |
General | Mounting | 1 x 1/4"-20 Female |
OS Compatibility | Windows 10 or Later *As of November 2022: Check with the manufacturer for the most up-to-date compatibility | |
Certifications | FCC Part 15 *as per Manufacturer | |
Dimensions (W x H x D) | 6.3 x 7 x 8.7" / 160 x 178 x 220 mm | |
Weight | 4.41 lb / 2 kg | |
Packaging Info | Package Weight | 7.25 lb |
Box Dimensions (LxWxH) | 12.4 x 12.3 x 9.9" |
