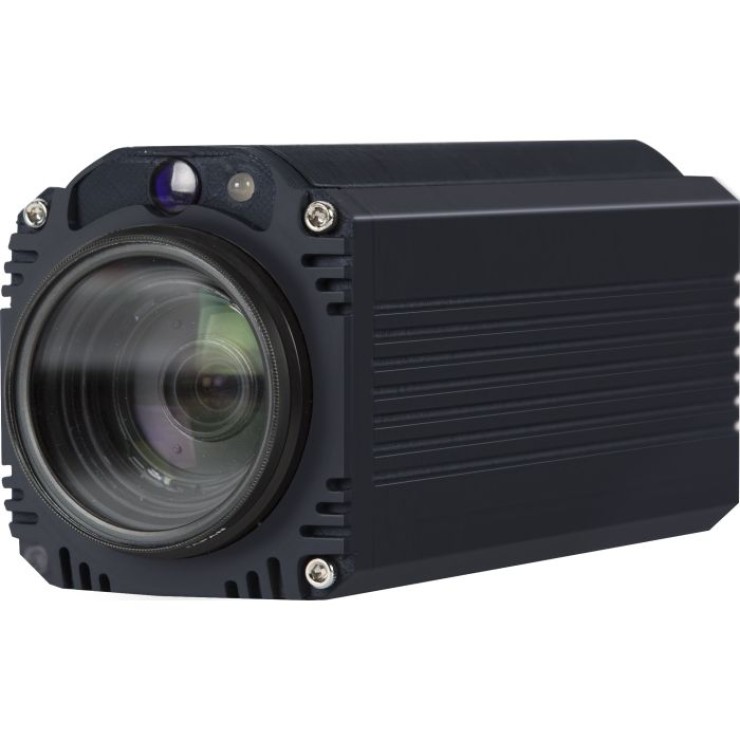

DATAVIDEO BC-80 HD BLOCK CAMERA WITH 30X OPTICAL ZOOM

• Captures up to 1080p59.94 video for simultaneous output via 3G/HD/SD-SDI and HDMI outputs
• 30x optical zoom

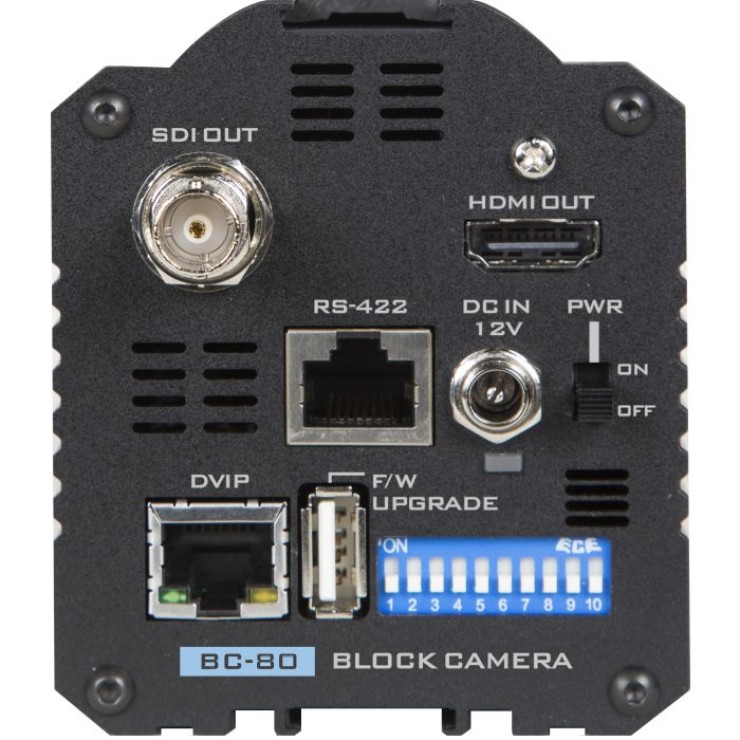

• RS-422 and DVIP RJ-45 control interfaces
• Supports the VISCA control protocol
• DIP switch
• Dual-color LED tally light on the front
• Long shoe mount slot on top for accessories
• Tripod mount on the bottom
• Adjustable shutter speed, gamma, iris, white balance, gain, and more
• 10 savable presets (for various settings)
• M52.0 x 0.75 filter thread
• Compact all-metal body

Items Included :

• 1 x BC-80 main unit
• 1 x Thank You Card
• 1 x IR remote control
• 1 x DC 12V power adaptor

Products Highlights :

• Up to 1080p59.94 Resolution Capture
• Simultaneous 3G/HD/SD-SDI & HDMI 1.3 Out
• 30x Optical Zoom
• RS-422 and DVIP RJ-45 Control Interfaces

BC-80 - Specification

More Information

Video format: 1080p 59.94/50/29.97/25 1080i 59.94/50 720p 59.94/50 Image Sensor: 1/2.8” type progressive scan CMOS sensor Effective Pixels (approx.): 2.14 Megapixels S/N Ratio: 50 dB Min. Illumination: Color : 0.4 lx (F1.6, 1/30 sec, 50IRE, Gain: High) B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High) Electronic Shutter: 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500) sec Zoom Ratio: 30x Optical Zoom Gamma Control: Off / Normal / Standard Mode 1-4 Iris Control: Auto / Manual Digital Noise Reductions: Yes On-Screen Display (OSD): English White Balance: AWB, MWB, One-push WB, Outdoor, Indoor, Fluorescent AGC / Gain Control: Auto / Manual (0 to 28 steps) Max. Gain Limit (6 to 28 steps) Mirror / Flip Image: Yes Focus Mode: Auto / Manual Preset: 10 Position Focal Length: f=4.3 mm (WIDE) to 129 mm (TELE) F1.6 to F4.7 Field of View (Horizontal, Wide): Approx. 63.7° (WIDE END) / 2.3° (TELE END) Image Compensation: Day & Night function Video Output: HDMI (V1.3) x 1 3G-SDI x 1 Tally LED: Dual color (Red, Green) Filter: M52.0 x 0.75 Thread with UV Protection Protocol: VISCA / DVIP Protocol Remote Control Interface and Transmit Distance: RS-422: Transmit up to 1000m DVIP (RJ45): 100m F/W Update: USB IR Control: Yes Camera Control Unit: RMC-180/RMC-300C Tripod Mount: 1/4-20 UNC Options: PTR-10 Color: Dark blue Dimension (LxWxH): 71 x 202 x 83 mm Weight: 0.7 kg Operating Temp. Range: 0~40 °C Power: DC 12V 15W What's in the Box: 1 x BC-80 main unit 1 x Thank You Card 1 x IR remote control 1 x DC 12V power adaptor

•
