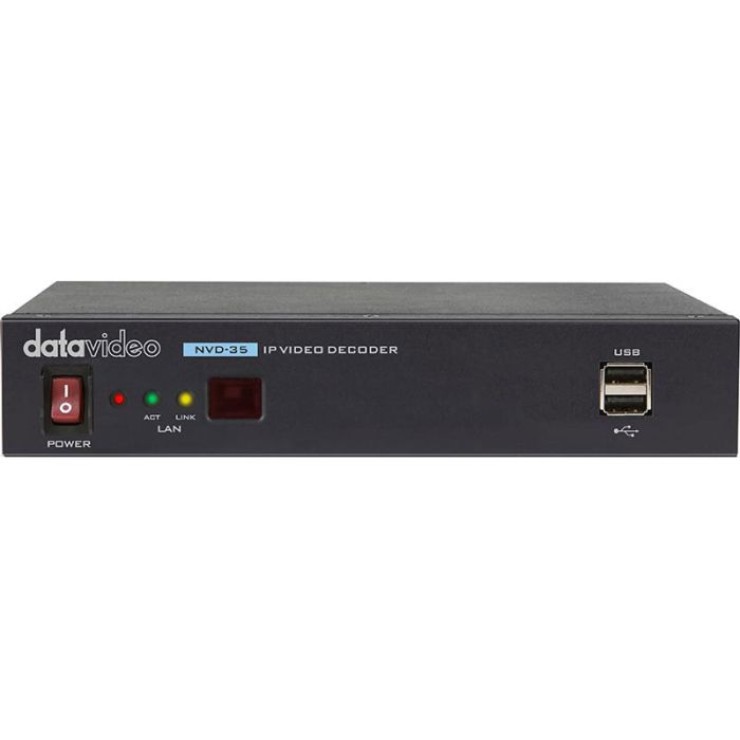

Datavideo NVD-35 IP Video Decoder

• Datavideo IP Video Decoder with SDI Output

• 12 VDC AD Switch

• Remote Control

Product Highlights :

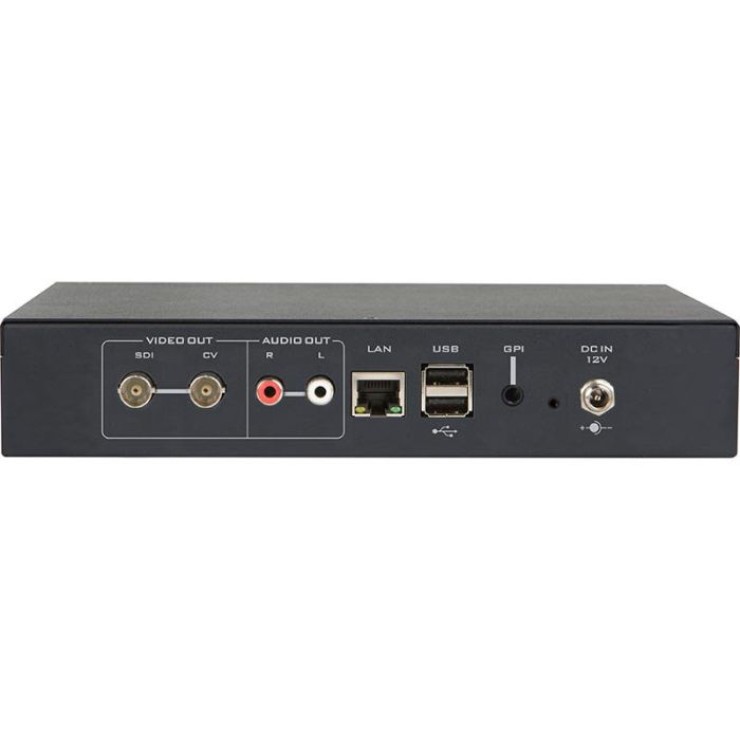

• SDI and Composite BNC Outputs
• Up to 1080p60 Resolution Output
• Stereo RCA and Embedded Audio Output
• Supports RTMP and Other Common Protocols

NVD-35 - Specification

More Information

General Specifications:

Audio/Video Input:

· RTSP over UDP (Unicast / Multicast)

· RTSP over TCP

· RTSP over HTTP

· MPEG-TS over UDP

· RTMP over TCP

· UDP raw (Unicast/Multicast)

· HLS over HTTP

· MPEG-TS over TCP Pull

· Video-sharing websites

Audio Output:

- 2 x RCA (L/R)

- SDI-embedded audio

Video Output:

- Composite (analog)

Network Feature:

- 1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP

Supported Video Resolution:

- 1080p 60/59.94/30/29.97/25/24

- 1080i 60/59.94/50

- 720p 60/59.94/50

- 576i 50 (PAL)

- 480i 60 (NTSC)

Control:

- Web browser UI for configuration and control.

- TCP/IP Socket commands

Update:

- Automatic firmware upgrade

Power:

- DC 12V, 1A

Environmental Conditions:

- Operating temperature: 0~40°C

- Storage temperature: -10~60°C

Dimension (LxWxH):

- 220 x 143 x 47 mm

Weight:

- 1 kg

What's in the Box:

- 1 x NVD-35 product

- 1 x AD Switch DC 12V

- 1 x Thank You Card

- 1 x Remote Control
