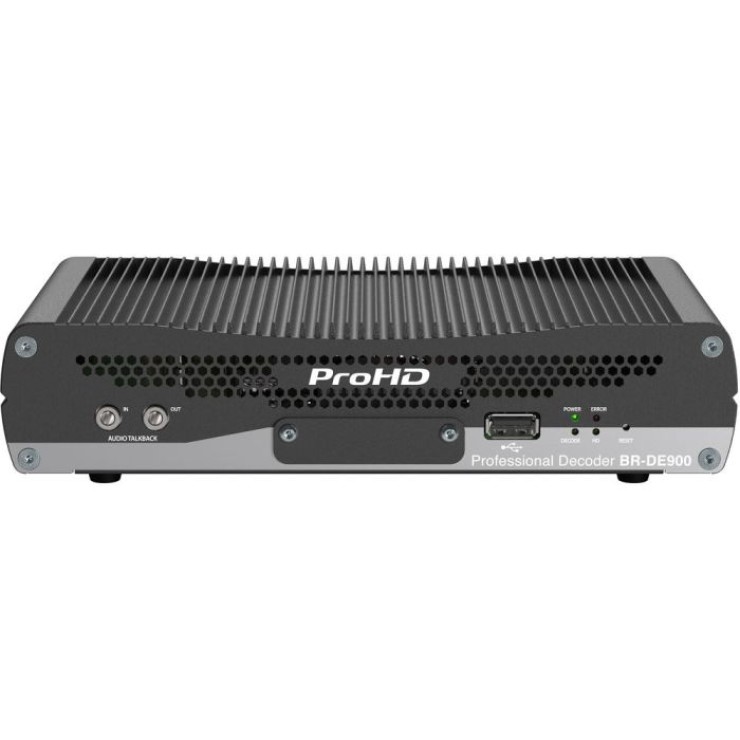

JVC BR-DE900 LIVE-STREAMING DECODER

The BR-DE900 decoder is a professional-grade, high-performance IP decoding appliance supporting the latest bandwidth-efficient HEVC/H.265 and H.264/AVC compression standards. It features a robust portable enclosure perfectly suited for field use and provides best-in-class video quality and industry-standard audio/video connectivity.

Features:

• Firmware v1.0.13 is now available. The BR-DE900 decoder is a professional-grade, high-performance IP decoding appliance supporting the latest bandwidth-efficient HEVC/H.265 and H.264/AVC compression standards.
• Stream forwarding feature, the BR-DE900 decoder efficiently redistributes the incoming stream within a private LAN/WAN network.
• It offers a large panel of video connectivity with dual 3G-SDI, HDMI2.0, and composite outputs which can be activated simultaneously.
• For point-to-point applications, when paired with JVC streaming cameras
• Stream forwarding feature: Decode Zixi-protected stream (HEVC or H.264) over baseband video while forwarding
• ZIXI Error correction License is optional!
• Performs reliable broadcast-quality decoding of HEVC or H.264 streams up to 1080p60 4:2:2 10 bits (respectively Main422 10P@L4.1 and Hi10@L4.2)
• Supporting the latest bandwidth-efficient HEVC/H.265 and H.264/AVC compression standards.
• Any feed resolution/frame rate to any output resolution frame
• BR-DE900 decoder provides low latency of 100% hardware-based decoding
• Bandwidth efficient H.264 codec and built-in stream protection technologies, Zixi or SMPTE 2022 Pro-MPEG
• The Decoder is based on the MGW-ACE decoder with special FW for JVCKENWOOD
•


• JVC BR-DE900 ProHD IP Decoder
• ACDC Power supply
• Limited 1-Year Warranty
•


• Product Highlights:



  • Firmware v1.0.13 is now available. The BR-DE900 decoder is a professional-grade, high-performance IP decoding appliance supporting the latest bandwidth-efficient HEVC/H.265 and H.264/AVC compression standards.
  • Stream forwarding feature, the BR-DE900 decoder efficiently redistributes the incoming stream within a private LAN/WAN network.
  • It offers a large panel of video connectivity with dual 3G-SDI, HDMI2.0, and composite outputs which can be activated simultaneously.
  • For point-to-point applications, when paired with JVC streaming cameras

NVD-35 - Specification

More Information

General Specifications:

Audio/Video Input:

· RTSP over UDP (Unicast / Multicast)

· RTSP over TCP

· RTSP over HTTP

· MPEG-TS over UDP

· RTMP over TCP

· UDP raw (Unicast/Multicast)

· HLS over HTTP

· MPEG-TS over TCP Pull

· Video-sharing websites

Audio Output:

- 2 x RCA (L/R)

- SDI-embedded audio

Video Output:

- Composite (analog)

Network Feature:

- 1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP

Supported Video Resolution:

- 1080p 60/59.94/30/29.97/25/24

- 1080i 60/59.94/50

- 720p 60/59.94/50

- 576i 50 (PAL)

- 480i 60 (NTSC)

Control:

- Web browser UI for configuration and control.

- TCP/IP Socket commands

Update:

- Automatic firmware upgrade

Power:

- DC 12V, 1A

Environmental Conditions:

- Operating temperature: 0~40°C

- Storage temperature: -10~60°C

Dimension (LxWxH):

- 220 x 143 x 47 mm

Weight:

- 1 kg

What's in the Box:

- 1 x NVD-35 product

- 1 x AD Switch DC 12V

- 1 x Thank You Card

- 1 x Remote Control
