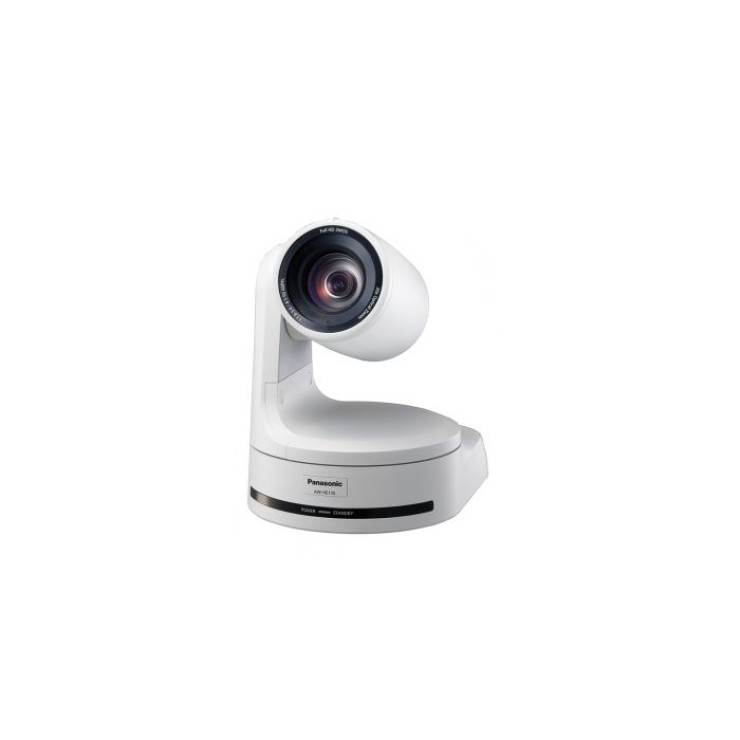

PANASONIC AW-HE130 FULL HD INTEGRATED PAN-TILT CAMCORDER

The AW-HE130 offers new and enriched functions for an expanded range of applications.

The highly sensitive camera is equipped with three newly developed 1/2.86-type MOS sensors, allowing for high-grade filming even in low light conditions, also offering a superior S/N ratio and high resolution. In addition to 3G-SDI and HDMI output, production quality full HD video output via IP transmission is supported with the AW-HE130W/K. The camera delivers up to four channels of IP streaming video (H.264), with configuration levels of quality level.

In addition to a sharp, fast F1,6, 20x optical zoom lens, the AW-HE130W/K is equipped with an innovative 1,4x digital extender that can increase the effective focal length of the lens by 40% while delivering smooth, high-resolution video. The new built-in Optical Image Stabilization System (OIS) automatically minimizes the effect of small vibrations from the surface where the camera is mounted caused; whether this is caused by the opening and closing of doors, nearby speakers, or other disturbances.

 Items Included:

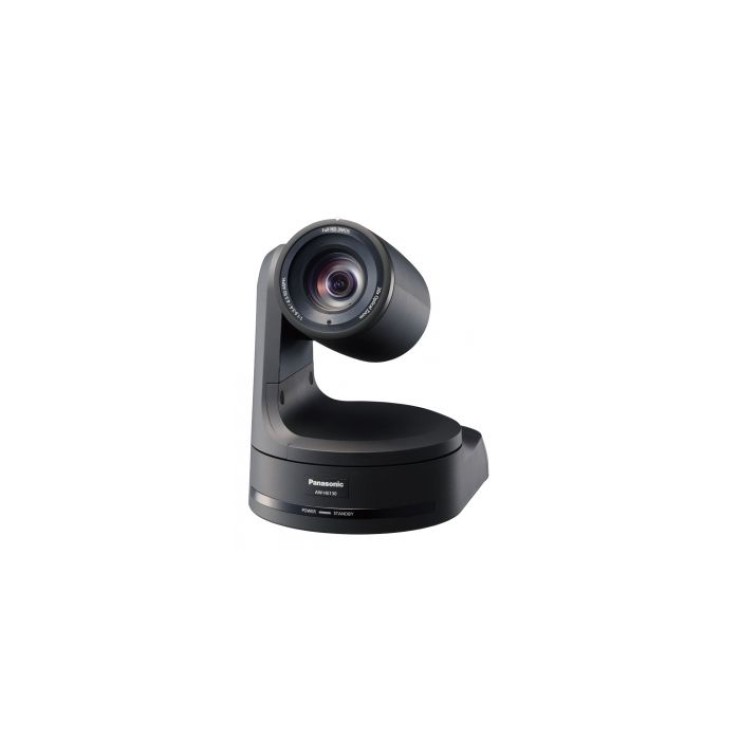

• Panasonic AW-HE130 HD Integrated PTZ Camera (Black)
• Mount Bracket
• Drop-Prevention Wire
• Bracket Mounting Screws (Bind-Head, M4 x 10mm)
• Main Unit Mounting Screw (M3 x 6mm)
• Cable Cover
• Power Cable
• AC Adapter

• AW-HE130 - Specification

  More Information

  Controller Controller Supported*1: AW-RP120G, AW_RP50, AK-HRP200G Controller Supported*1: AW-RP120G, AW_RP50, AK-HRP200G Imaging Lens: Motorized 20 zoom, F1.6 to F3.4 (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm) Minimum Illumination: 2 lx (50 IRE, F1.6, 36 dB) Synchro Scan: 59.94_Hz: 60.15 Hz to 642.21 Hz 50_Hz: 50.15 Hz to 535.71 Hz Horizontal Resolution: 1000 TV lines Typ (Center area) Gain Selection: Auto, 0 dB to 36 dB White Balance: AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K) Color Separation Optical System: 3MOS Focus: Switching between auto and manual Focus Distance: Entire zooming range: 800 mm (2.62 ft) Wide end: 400 mm (1.31 ft) Gamma: HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3 0.30 to 0.75 (Manual setting) Scene File: Scene1, Scene2, Scene3, Scene4 Lens: Motorized 20 zoom, F1.6 to F3.4 (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm) Minimum Illumination: 2 lx (50 IRE, F1.6, 36 dB) Synchro Scan: 59.94_Hz: 60.15 Hz to 642.21 Hz 50_Hz: 50.15 Hz to 535.71 Hz Horizontal Resolution: 1000 TV lines Typ (Center area) Gain Selection: Auto, 0 dB to 36 dB White Balance: AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K) Color Separation Optical System: 3MOS Focus: Switching between auto and manual Focus Distance: Entire zooming range: 800 mm (2.62 ft) Wide end: 400 mm (1.31 ft) Gamma: HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3 0.30 to 0.75 (Manual setting) Scene File: Scene1, Scene2, Scene3, Scene4 Shutter Electronic Shutter Speed: 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 29.97p: 1/30, 1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000 23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 Electronic Shutter Speed: 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 29.97p: 1/30, 1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000 23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 Sensor Imaging Sensors: 1/2.86-type Full-HD 3MOS Imaging Sensors: 1/2.86-type Full-HD 3MOS Chroma Chroma Amount Variability: OFF, -99 % to 40 % Chroma Amount Variability: OFF, -99 % to 40 % Camera Unit Frame Mix*2: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB Frame Mix*2: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB Pan-Tilt Head Unit Camera/Pan-Tilt Head Control: IP connecting cable • When connecting through a PoE+ hub: LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft) • When a PoE+ hub is not used: LAN cable*4 (category 5 or above, crossover cable) max.100 m (328 ft) RP connecting Cable LAN cable*4 (category 5 or above, straight cable), max. 1000 m (3280 ft) RS-422A, AW series protocol Pan-Tilt Operation Speed: 0.08°/s to 60°/s Tilting Range*7: –30° to 210°*5 Panning Range: ±175° Quietness: NC35 or less Camera/Pan-Tilt Head Control: IP connecting cable • When connecting through a PoE+ hub: LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft) • When a PoE+ hub is not used: LAN cable*4 (category 5 or above, crossover cable) max.100 m (328 ft) RP connecting Cable LAN cable*4 (category 5 or above, straight cable), max. 1000 m (3280 ft) RS-422A, AW series protocol Pan-Tilt Operation Speed: 0.08°/s to 60°/s Tilting Range*7: –30° to 210°*5 Panning Range: ±175° Quietness: NC35 or less Input/Output Video Output: HDMI: HDMI connector • HDCP is not supported. • Viera Link is not supported. HD/SD-SDI OUT: SMPTE424/SMPTE292/SMPTE259 standards 75 Ω (BNC x 1) VIDEO OUT: NTSC/PAL 1.0 V [p-p]/75 Ω (BNC x 1) Input Connector: DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported • Locking to a color subcarrier is not possible with BBS. PoE+ (IEEE802.3at standard) Video Output: HDMI: HDMI connector • HDCP is not supported. • Viera Link is not supported. HD/SD-SDI OUT: SMPTE424/SMPTE292/SMPTE259 standards 75 Ω (BNC x 1) VIDEO OUT: NTSC/PAL 1.0 V [p-p]/75 Ω (BNC x 1) Input Connector: DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported • Locking to a color subcarrier is not possible with BBS. PoE+ (IEEE802.3at standard) Interface Input/Output Connector: LAN: LAN connector for IP control (RJ_45), PoE+ RS-422: CONTROL IN RS-422A (RJ_45) MIC/LINE input: ø3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) • Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. -10 dBV ±3 DVB Input/Output Connector: LAN: LAN connector for IP control (RJ_45), PoE+ RS-422: CONTROL IN RS-422A (RJ_45) MIC/LINE input: ø3.5 mm stereo mini jack Input impedance: High impedance • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) • Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. -10 dBV ±3 DVB Package Dimensions (W x H x D): 180 mm x 228 mm x 234 mm (7-3/32 inches x 9 inches x 9-3/16 inches) (excluding protrusions, cable cover, direct ceiling mount bracket) Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F) Dimensions (W x H x D): 180 mm x 228 mm x 234 mm (7-3/32 inches x 9 inches x 9-3/16 inches) (excluding protrusions, cable cover, direct ceiling mount bracket) Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F) Mechanical Allowable Humidity Ranges: 20 % to 90 % (no condensation) Mass: Approx. 3.1 kg (6.83 lb) [Including mount bracket] Allowable Humidity Ranges: 20 % to 90 % (no condensation) Mass: Approx. 3.1 kg (6.83 lb) [Including mount bracket] Power Power Requirements: DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply) 1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply) Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Power Requirements: DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply) 1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply) Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Make Finish: AW_HE130WP/AW-HE130WE: Pearl white AW_HE130KP/AW-HE130KE: Metallic black Finish: AW_HE130WP/AW-HE130WE: Pearl white AW_HE130KP/AW-HE130KE: Metallic black General Note Note: *1: It may be necessary to upgrade the version of the controller to support the unit. For details on upgrading, visit the support page on the following website. http://pro-av.panasonic.net/ *2: This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF. *3: To ensure safety, the unit must be secured using the mount bracket supplied. *4: Use of an STP (shielded twisted pair) cable is recommended. *5: Depending on the pan or tilt position, the camera may be reflected in the image. *6: To ensure more safety, AW-HE130W/K can be secured by using the direct ceiling mount bracket (WV-Q105A). Installation Method: Stand-alone (Desktop) or suspended (Hanging)*3 Standard Accessories: Mount bracket for installation surface (Hanging*6 / Desktop): 1, Drop-prevention wire: 1, Drop-prevention wire mounting screw (comes attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer,spring washer) M3 x 6 mm: 1, Cable cover: 1, Power cable: 1, AC adaptor: 1, CD-ROM Note: *1: It may be necessary to upgrade the version of the controller in order to support the unit. For details on upgrading, visit the support page on the following website. http://pro-av.panasonic.net/ *2: This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF. *3: To ensure safety, the unit must be secured using the mount bracket supplied. *4: Use of an STP (shielded twisted pair) cable is recommended. *5: Depending on the pan or tilt position, the camera may be reflected in the image. *6: To ensure more safety, AW-HE130W/K can be secured by using the direct ceiling mount bracket (WV-Q105A). Installation Method: Stand-alone (Desktop) or suspended (Hanging)*3 Standard Accessories: Mount bracket for installation surface (Hanging*6 / Desktop): 1, Drop-prevention wire: 1, Drop-prevention wire mounting screw (comes attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer,spring washer) M3 x 6 mm: 1, Cable cover: 1, Power cable: 1, AC adaptor: 1, CD-ROM
