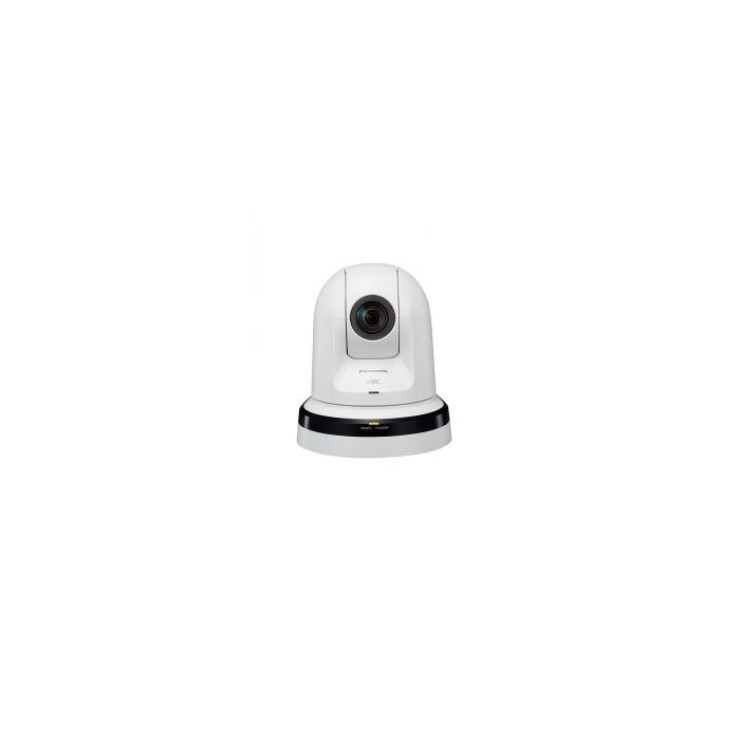

PANASONIC AW-UE70 INTEGRATED 4K & HD REMOTE CAMERA

Detail :

The compact AW-UE70 integrated remote camera delivers 4K images with excellent zoom range and exceptional pan-tilt performance. It includes a variety of advanced & intelligent features like in-camera 4K recording or 4K streaming over IP and can be used for applications such as remote video production, live events, signage, or video conferencing. Black and white versions are available

A 4K Remote Camera, and an Excellent HD Remote Camera:

This product is part of our optional two-year warranty program. This program is enhancing one of the best service programs in the industry and offers all customers the best after-sales service possible.

Despite its compact size, the AW-UE70 integrated remote camera can deliver 4K images with excellent zoom range and exceptional pan-tilt performance. This camera includes a variety of advanced and intelligent features, like in-camera 4K recording or 4K streaming over IP. The AW-UE70 remote camera is ready for the new demands of the industry through ultra HD resolution imagery. 4K images can be obtained in a variety of outputs including HDMI, USB, and LAN. Besides its 4K capability, this camera performs extremely well in HD, also supporting 1080/50p format and 3G-SDI output. The camera is available in both black and white to tailor to different environments.

Expanding the capabilities of broadcast camera systems:

With such a wealth of features and outputs, the AW-UE70 4K remote camera can be used for such applications as remote video production, live events, signage, or video conferencing among many others. This 4K remote camera also supports PoE+ (Power over Ethernet), meaning that only one Ethernet cable is required for power supply, control, video, and embedded audio. Through the AW-UE70, Panasonic is expanding the capabilities and applications of integrated remote camera systems.

Excellent 4K images via HDMI, USB and IP, plus HD via 3G-SDI

• 1/2.3-type MOS sensor
• Optical zoom 20x, extendable by iA zoom (22x in 4K / 30x in HD)
• Optical Image Stabilization (OIS) that compensates for vibration from audio speakers and closing doors
• High Dynamic Range function (HDR), suitable for backlit condition
• 4K video via HDMI, USB and LAN (UHD: 3840 x 2160 @25p)
• HD video via 3G-SDI (up to 1080/50p)
• External synchronization input, supporting both BB and Tri-level

A Single Cable Solution for Remote Video and Audio Capture:

• Supports PoE+*1 for lower installation costs
• 4K or Full HD streaming is supported, at different bit-rates up to 50Mbps
• Up to four channels of IP streaming in HD (H.264 encoding)
• Audio input for mic/line (stereo mini jack), with equalizer function
• Audio embedding and encoding to IP, HDMI, SDI, USB, and microSD recording
• IP control with image monitoring using PC, Mac, and mobile terminals
• Up to 100 cameras can be controlled via IP from a single controller
•

In-camera recording, also in 4K"

• Video and audio can be recorded on an inserted microSD card*2

• 4K and HD formats are supported, at different bit-rates up to 72Mbps

• Start/stop recording, clip downloading and FTP transferring can be controlled via IP

• Freeze During Preset function, enabling one-camera operation

• ND filter (Auto, Thru, 1/4, 1/16, 1/64)

• Night Mode makes shooting possible under IR light (supports automatic switching)

• Supports USB Video/Audio Class, so the camera can be used as a high-quality webcam

• Equipped with RS422 and RS232C (in/out) remote terminals

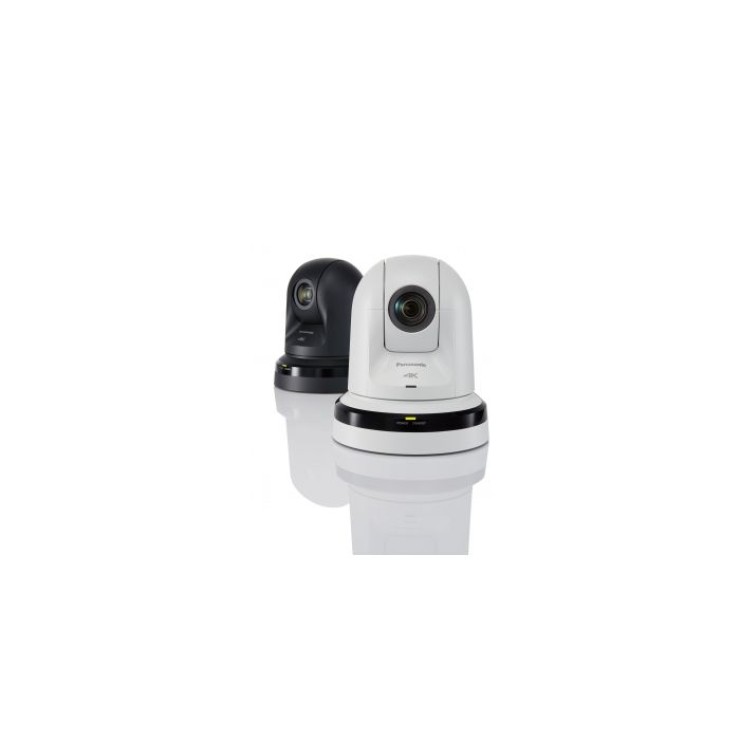

• Color variations (pearl white/metallic black) that can be chosen for different applications or conditions

• Camera control from iPad when it is used with optional Control Assist Camera AW-HEA10.*3

  Items Included:
  • Panasonic AW-UE70 4K Integrated Day/Night PTZ Indoor Camera (Black)
  • Mount Bracket
  • Drop-Prevention Wire (Attached)
  • 4 x Mounting Bracket Screw
  • Main Unit Mounting Screw (with Flat and Spring Washer)
  • Power Cable
  • AC Adapter
