Product Highlights: For Indoor Stadiums / Large Spaces Fast 10x Optical Zoom, 12x Digital Zoom Capture up to 1080p60 Resolution Full NDI, NDI|HX 2 Support Simultaneous SDI, HDMI, NDI & USB Output Suitable for Fast-Action Sporting Events NDI/VISCA-over-IP/RS-422/RS-232 Control Power-over-Ethernet & AC Power Includes Cam Control Windows Software

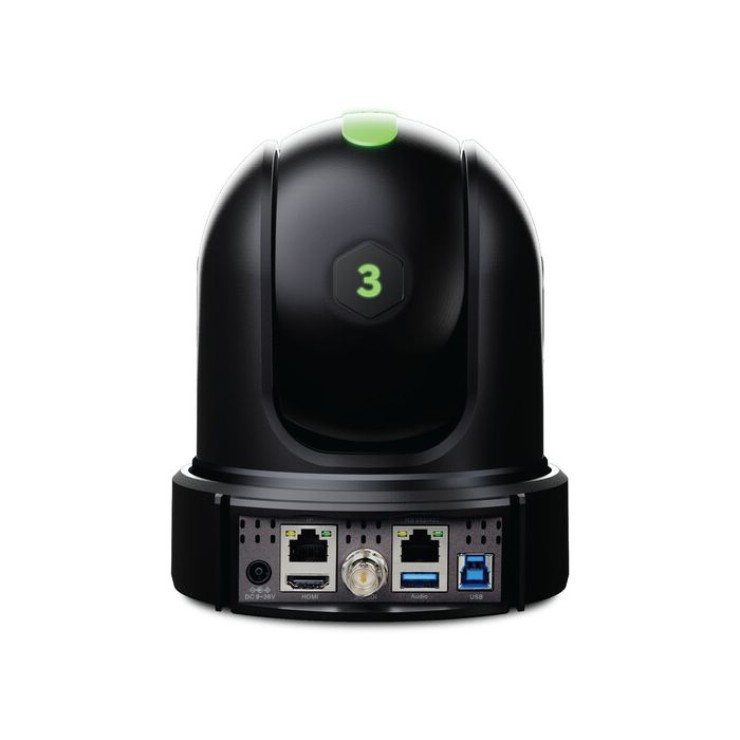

Combining BirdDog's custom NDI silicon chip, 10x optical zoom, 12x digital zoom, and a Sony backlit sensor, the black BirdDog Eyes P110 is a full NDI 1080p60 PTZ camera designed for small indoor spaces. With fast autofocus and zoom, the P110 is suitable for catching all the fast action in places such as sporting events but also works well as a meeting room camera. The P110 features the visually lossless full NDI variable bit rate up to 1080p60.
Simultaneous live SDI, HDMI, and full NDI outputs complete the camera as a comprehensive solution, and it also features a USB/UVC output to a computer that can utilize third-party streaming software. You can control the P110 via your full NDI workflow, IP web control, or integrate RS-422 and RS-232 serial control. The camera can be powered by Power-over-Ethernet (PoE) or via the included power adapter.
Items Included:
More InformationSPECS
Imaging | Sensor Type | 1/2.86"-Type CMOS Sensor |
Sensor Resolution | Effective: 2.2 Megapixel | |
Built-In ND Filter | None | |
Focus Control | Autofocus Manual Focus | |
Exposure Control | Shutter Speed | 1/30000 to 1 Second |
Minimum Illumination | 0.5 Lux | |
Flip / Mirror Support | Image Flip, Mirror (Vertical) | |
Lens | Focal Length | 4.7 to 47mm |
Optical Zoom Ratio | 10x | |
Max Digital Zoom | 12x | |
Field of View | Horizontal: 6.43 to 60.9° | |
Maximum Aperture | f/1.6 to 3 | |
Video Capture | External Recording Modes | SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p at 25/29.97/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/50/59.94/60.00 fps |
Broadcast Output | NTSC | |
IP Streaming | H.264, NDI, NDI|HX 1920 x 1080 1280 x 720 | |
Control | Presets | 128 |
Move Speed | Pan: 0.5 to 100°/sec Tilt: 0.5 to 72°/sec | |
Movement Range | Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°) | |
Tally Light | Yes | |
Supported Control Protocols | IP NDI Pelco-D RS-232 RS-422 VISCA | |
Interface | Video I/O | 1 x RJ45 (NDI) Output 1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output 1 x USB-B 2.0 Output |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Input 1 x 1/8" / 3.5 mm TRS Stereo Output | |
Other I/O | 1 x RJ45 Control 1 x Unspecified USB | |
Power | PoE Support | PoE+ 802.3at |
Power I/O | 1 x Barrel (12VDC) Input | |
Environmental | Operating Temperature | 14 to 122°F / -10 to 50°C |
Operating Humidity | 80% | |
General | Mounting | 1 x 1/4"-20 Female |
Certifications | FCC Part 15 *as per Manufacturer | |
Dimensions (W x H x D) | 5.7 x 6.7 x 6" / 145 x 171 x 152 mm | |
Weight | 2.2 lb / 1 kg | |
Packaging Info | Package Weight | 6.2 lb |
Box Dimensions (LxWxH) | 11.5 x 9.1 x 8.8" |
