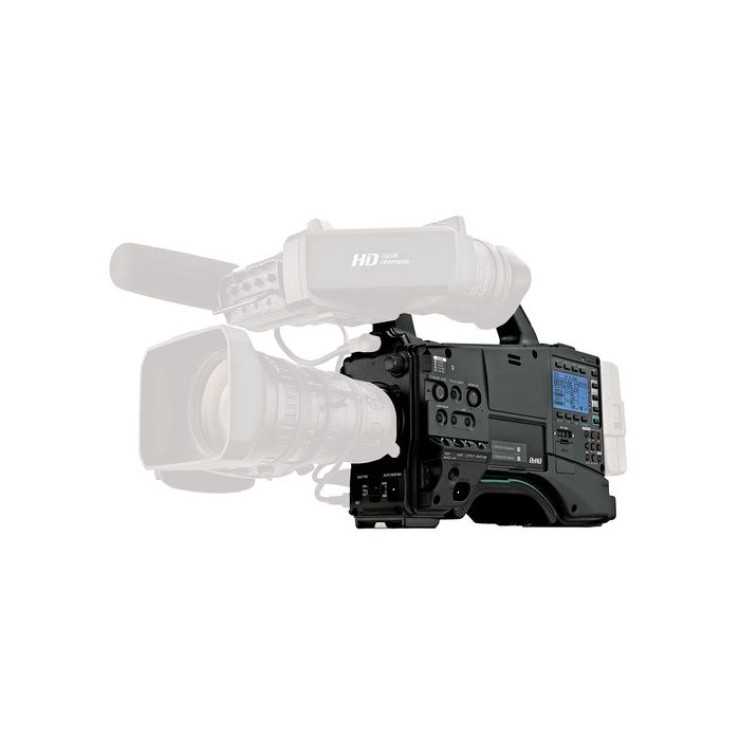

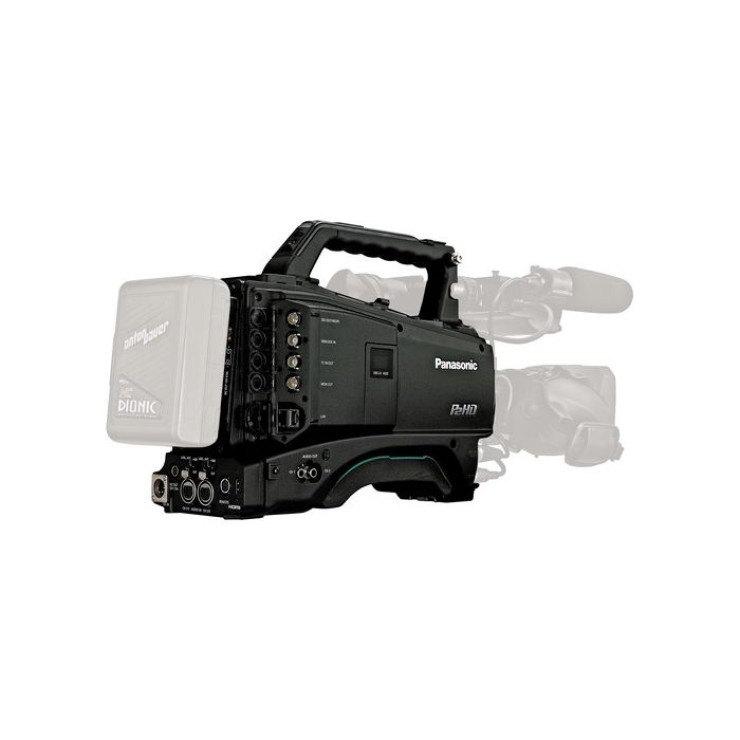

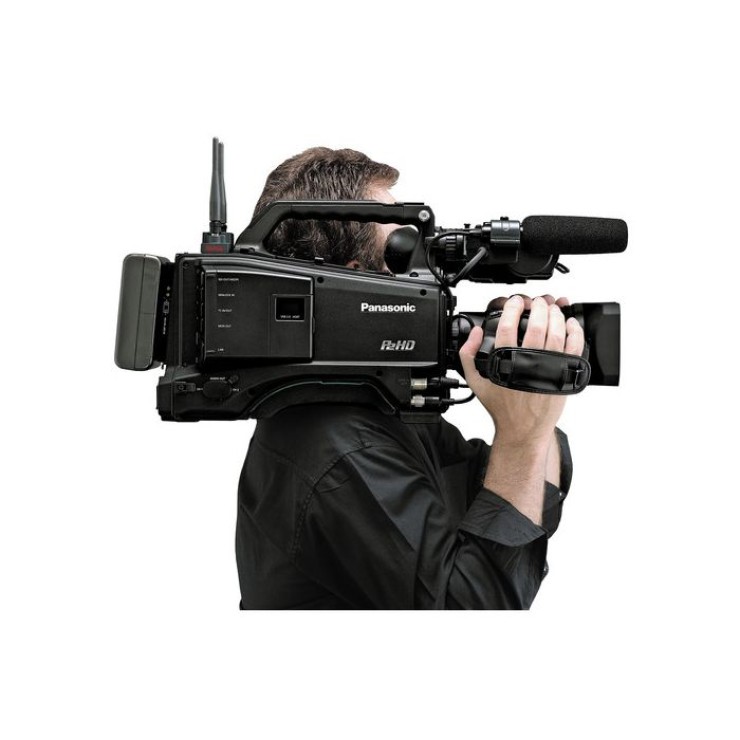

PANASONIC AJ-PX800 “P2 CAM” MEMORY CARD CAMERA RECORDER

150$ ~~200$~~

Designed to be lighter than their previous 3 MOS ENG style cameras, the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder is a full-featured 2/3" ENG style video camera with an interchangeable lens system. Please note that this item only includes the camera body and does not include the lens or viewfinder. Suitable for newsgathering, the camera captures Full HD at up to 59.94p, recording to optional P2 cards, or micro P2 cards with an optional adapter. Using codecs in the AVC-ULTRA family allows you a choice of compression and data rate to suit your needs, and you can record proxy files on optional SD cards using the built-in SD media card slot.

Category: Panasonic

SKU: 10

Designed to be lighter than their previous 3 MOS ENG style cameras, the Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder is a full-featured 2/3" ENG-style video camera with an interchangeable lens system. Please note that this item only includes the camera body and does not include the lens or viewfinder. Suitable for newsgathering, the camera captures Full HD at up to 59.94p, recording to optional P2 cards, or micro P2 cards with an optional adapter. Using codecs in the AVC-ULTRA family allows you a choice of compression and data rate to suit your needs, and you can record proxy files on optional SD cards using the built-in SD media card slot.

It features an SD/HD-SDI, and an HDMI output, as well as a monitor output switchable between SD/HD and Composite. With both Genlock in and Timecode In/Out, the camera is suitable for multi-camera and single-camera news coverage. The camera comes ready to interface with your network via the built-in Ethernet connector. You can attach an optional USB dongle to the camera for wireless connectivity using WiFi, 4G, or LTE. The camera features a variety of in-camera image settings, including Flash Band compensation, which minimizes the effects of still photo camera flashes captured on video. The built-in Uni Slot accepts optional wireless audio recording.

2/3" Type Interchangeable Lenses

Compatible with 2/3" type B4 bayonet mount interchangeable lenses allows you to choose from a variety of 2/3 type zoom lenses for broadcasting and other professional uses from third-party manufacturers.

Sensor

3 x MOS sensors with 2.2 MP resolution, provide 1920 x 1080 Full HD images with a signal-to-noise ratio 62:1 dB.

Built-In ND Filters

Clear, 1/4, 1/16, 1/64

Image Processing and Settings

Chromatic Aberration Compensation: When using a CAC-compatible lens, the camera compensates for the small amount of circumjacent chromatic aberration (circumjacent blur) that is not corrected by the lens.

Dynamic Range Stretcher: Suppresses blocked shadows and blown highlights to achieve a visually wide dynamic range.

Advanced Flash Band Compensation.

Select from 7 Gamma curves.

Image adjustments include H Detail, V Detail, Detail Coring, Skin Tone Detail, Chroma Level, Chroma Phase, Master Pedestal, Knee, Matrix (NORM1/NORM2/FLUO/CINE-LIKE), High Color, White Clip.

The Scan reverse function allows you to horizontally or vertically flip your recording/display.

2x/4x digital zoom

Slow shutter and Synchro scan function

Shooting Assist Functions

User Interface "SmartUI": Multiple functions can be set easily with minimum operation, requiring optional compatible LCD.

Focus Assist: "EXPAND" for center zoomed image and "Focus-in-Red" can be displayed on the optional viewfinder.

Focus Bar: Focus level shown as a bar.

Scene Files/User Files: Up to eight scene files can be stored onto an SD memory card.

Gain: The position gains selector with assignable gain levels up to +42 dB (Super Gain.)

User Buttons: Allow you to assign frequently used functions to specific buttons.

White Balance: The camera features Shockless White Balance and Auto White Balance with auto-tracking.

The camera can display a simplified Waveform, Vectorscope display, as well as two different Zebra bar patterns selectable from 0 to 109% in 1% steps.

Y-Get: Measures brightness at the center and displays numerical data.

Display Marker: Displays center marker, safety zone, and frame marker.

AVC-ULTRA Codec Family

AVC-Intra: An intra-frame compression method that is highly suited to image production, AVC-Intra100/50.

AVC-LongG: An intra-frame compression method that is ideal for providing on-air content direct from the shooting location and for workflows that use content transferred over the internet. Three-bit rates are available: AVC-LongG50/25/12 Mbps. AVC-LongG25 provide 10 bit/4:2:2 quality at a bit rate of approximately 25 Mbps

AVC-Proxy: Low-bit-rate, high-resolution, high-sound quality proxy video (Quick Time/H.264) includes metadata for efficient offline editing that can later be used to conform that original master files.

HD/SD Multi Format/Multi Codec

The camera supports 59.94 Hz/50 Hz switching for convenient use in productions headed for global use, and records 1080/60i,* 50i, 24p,* 25p, 30p*, and 720p HD/SD multiple format. DVCPRO HD/DVCPRO50/DVCPRO/DV recording is also supported.

Note: 60i, 60p, 24p, and 30p are actually 59.94i, 59.94p, 23.98p, and 29.97p

P2 Dual Card Slots

Supports microP2 cards with an optional adapter.

Simul Rec: Records simultaneously onto two P2 cards.

Dual-codec recording: Records a low-rate AVC-Proxy file while recording main data in AVC-Intra/AVC-LongG.

Hot-Swap Rec: You can hot-swap P2 cards for continuous non-stop rec, replacing one card as it fills up.

One-Clip rec mode: Records up to 99 consecutive cuts as a single clip.

Loop rec: Repeatedly records a pre-determined period, when the data card is filled, it will start overwriting the earliest recording on the card.

Pre-rec: Continuously stores footage before pressing Rec Start, in effect allowing you to record before you press the record button.

Note: Not available in 24p, 25p, or 30p mode.

Interval rec: Automatically records intermittently based on a set interval and recording time.

One-shot rec: A frame-shot recording function useful for animation.

Text Memo: Up to 100 memos can be posted onto a clip as bookmarks.

Note: Not available in loop rec, interval rec, or one-shot rec.

Shot Marker: Used to mark clips as OK, NG, etc.

Note: Not available in loop rec, interval rec, or one-shot rec.

24-Bit Four-Channel Audio Recording

AVC-Intra and AVC-LongG modes support 24bit/48kHz/4CH digital audio recording. Audio sources for each channel can be selected for each channel, choosing from mic-in, line-in, and wireless receiver.

Note: AVC-LongG12 mode does not support 24-bit digital audio recording. Audio can be played back by using 24-bit digital audio equipment.

Wired/Wireless LAN Network Functions

The standard LAN (Ethernet) port allows network connection via a wired LAN. Installing the optional AJ-WM30 Wireless Module provides the AJ-PX800G with wireless LAN (IEEE 802.11g/n) connectivity, enabling access to the following functions from a network-connected PC/Mac, tablet device or smartphone:

Proxy Preview: Plays back proxy files (AVC-Proxy), downloads file/clip information, displays and allows editing of metadata, and enables addition/ deletion of shot marks and text memos.
Camera Remote: Allows confirmation of camera status and thumbnails and enables remote camera control (recording, time code setting, and user bits)
Playlist Editing (direct mode): Playlists can be created using proxy video with a PC/Mac or tablet. The workflow can be streamlined to be faster by rough editing on location, and then transferring the content files. The results can be saved together with the edited playlist, then played out of the camera and/or copied using a web application.
File Transfer: The FTP client function lets you transfer clips from the camera recorder to a network.

USB Dongle Slot

Accepts optional 4G/LTE/WiFi dongles providing wireless connectivity including file transfer and proxy streaming.

Product Highlights:

Three 2/3" MOS Sensors 2.2 MP Resolution
Full HD 1920x1080 up to 59.94p
AVC-ULTRA Recording & Simultaneous Proxy
Dual P2 Slots, Single SD Card Slot
HD-SDI HDMI & Monitor Output
Genlock In, Timecode In/Out
LAN Network Functions
USB Slot for Optional WiFi/4G/LTE Dongle
Flash Band Compensation
Uni-Slot for Wireless Mics

Items Included:

Panasonic AJ-PX800 P2 HD AVC-ULTRA Camcorder
Shoulder Strap
Lens Port Cap
Limited 1-Year Warranty

J-PX800 - Specification

More Information


LAN:	100BASE-TX/10BASE-T
Weight:	Approx. 2.8 kg (6.2 lbs.) (body only, excluding the battery and accessories)
Power:	DC 12 V (11.0 V to 17.0 V)
Operating Temperature:	0°C to 40°C (32°F to 104°F)
Power Consumption:	22 W (when the optional board AG-YA600G is installed)
Operating Humidity:	10% to 85% (relative humidity)
Lens:	12 pin
Sampling Frequency:	AVC-Intra100/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD: Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz) Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz) DVCPRO50: Y: 13.5 MHz, PB/PR:6.75 MHz DVCPRO: Y: 13.5 MHz, PB/PR: 3.375 MHz
Shutter Speed:	60i/60p mode: 1/60 (OFF) sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 30p mode: 1/30 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 24p mode: 1/24 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec. 50i/50p mode: 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec. 25p mode: 1/25 (OFF) sec., 1/50 sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
Slow Shutter Speed:	60i/60p mode: 1/15 sec., 1/30 sec. 30p mode: 1/15 sec. 24p mode: 1/12 sec. 50i/50p mode: 1/12.5, 1/12.5 sec. 25p mode: 1/12.5 sec.
Recording Media:	P2 card (for microP2 card: the adaptor is required)
Quantizing:	AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25: 10 bit AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV:8 bit
Speaker:	20 mm diameter, round x 1
Included Accessories:	Shoulder strap, Mount cap
Lens Mount:	2/3 type bayonet
Horizontal Resolution:	1000 TV or higher (center)
Dimensions:	144 mm (W) x 267 mm (H) x 350 mm (D) (5-21/32 inches x 10-1/2 inches x 13-25/32 inches) Body only, excluding protrusion
Storage Temperature:	-20°C to 60°C (-4°F to 140°F)
Headroom:	18 dB/20 dB (switchable with menu)
Sensitivity:	NORMAL mode: F9 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F10 (2000 lx, 3200 K, 89.9% reflection, 1080/50i) HIGH SENS mode: F12 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F13 (2000 lx, 3200 K, 89.9% reflection, 1080/50i)
Recording Audio Signal:	AVC-Intra100/AVC-Intra50: 48 kHz/16 bit, 4CH and 48 kHz/24 bit, 4CH switch AVC-LongG50/AVC-LongG25: 48 kHz/24 bit, 4CH AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 48 kHz/16 bit, 4CH
Recording Video Signal:	1080/59.94i, 1080/29.97pN, 1080/23.98pN, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 480/29.97p, 1080/50i, 1080/25pN, 720/50p, 720/25pN, 576/50i, 576/25p
VF:	20 pin
Video Compression Format:	AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile AVC-LongG50/AVC-LongG25/AVC-LongG12: MPEG-4 AVC/H.264 DVCPRO HD/DVCPRO50/DVCPRO: DV-Based Compression DV: DV Compression
Audio Compression Format:	AAC-LC, Linear PCM
Minimum Subject Illumination:	Approx. 0.22 lx (HIGH SENS MODE, F1.4, +42 dB (S.GAIN))
System Format:	1080/59.94i, 1080/23.98psF, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Video Compression Format (Proxy):	H.264/AVC Baseline Profile, H.264/AVC High Profile
Gain Setting:	NORMAL mode: -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB HIGH SENS mode: -6 dB, -3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, 21 dB, 24 dB, 27 dB, 30 dB
Super Gain (S.GAIN):	Selectable from 30 dB, 36 dB, 42 dB
Synchro Scan Shutter:	60i/60p mode: 1/60.0 sec. to 1/250.0 sec. 30p mode: 1/30.0 sec. to 1/250.0 sec. 24p mode: 1/24.0 sec. to 1/250.0 sec. 50i/50p mode: 1/50.0 sec. to 1/250.0 sec. 25p mode: 1/25.0 sec. to 1/250.0 sec.
Image S/N:	62 dB (standard)
Approx. Recording Time* (1GB):	AVC-G6 2CH MOV: Approx. 13 min. SHQ 2CH MOV: Approx. 25 min. HQ 2CH MOV: Approx. 78 min. LOW 2CH MOV: Approx. 135 min. These are reference values for continuous recording using Panasonic products. The recording time may differ depending on the scene or the number of clips.
SDI Out/In (Option):	BNCx1 1.5 G HD SDI: 0.8 V [p-p], 75 ohms SD SDI: 0.8 V [p-p], 75 ohms
USB 2.0 (Sub Host):	Type A connector, 4 pin (exclusively for wireless module AJ-WM30)
Note:	The weight and dimensions shown are approximate. Specifications are subject to change without notice. * Time shown above is when you record a series of 1 shots to a P2 card. Depending on number of shots you record, the time will get shorter than the number shown above.
Pickup Devices:	2/3 type 2.2 million pixels, MOS x 3
ND Filter:	1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Shutter Open Angle:	3.0 deg to 360.0 deg (in 0.5 deg steps, angle display)
Recording Formats:	AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25/AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV formats switchable
Recording/Playback Time*:	16GB x 1 32GB x 1 64GB x 1 AVC-Intra100: Approx. 16min. Approx. 32min. Approx. 64min. AVC-Intra50: Approx. 32min. Approx. 64min. Approx. 128min. AVC-LongG50: Approx. 32min. Approx. 64min. Approx. 128min. AVC-LongG25: Approx. 64min. Approx. 128min. Approx. 256min. AVC-LongG12: Approx. 120min. Approx. 240min. Approx. 480min. DVCPRO HD: Approx. 16min. Approx. 32min. Approx. 64min. DVCPRO 50: Approx. 32min. Approx. 64min. Approx. 128min. DVCPRO/DV: Approx. 64min. Approx. 128min. Approx. 256min. These are reference values for continuous recording using Panasonic products. The recording time may differ depending on the scene or the number of clips.
MON Out:	BNCx1 (Can be switched to HD SDI/SD SDI/analog composite on SmartUI. ) 1.5 G HD SDI: 0.8 V [p-p], 75 ohms SD SDI: 0.8 V [p-p], 75 ohms Composite: 1.0 V [p-p], 75 ohms
HDMI Out:	HDMIx1 (HDMI type A terminal, not compatible with VIERA Link)
Audio In:	XLR (3 pins) x 2 LINE/MIC (switch selection) LINE: 0 dBu MIC: -50 dBu/-60 dBu (menu selection), +48 V ON/OFF (switch selection)
MIC In:	XLR (3 pins) x1, +48 V supported (selectable menu) -40 dBu/-50 dBu/-60 dBu (selectable menu)
Wireless In:	25 pin, D-SUB, -40 dBu, 2CH supported
Audio Out:	Pin jack x 2 (CH1, CH2), Output level: 600 ohms, 316 mV
Phones Out:	3.5 mm diameter stereo mini jack x1
Genlock In:	BNCx1, 1.0 V [p-p], 75 ohms
TC In/Out:	BNCx1, IN/OUT switch selection IN: 0.5 V [p-p] to 8 V [p-p], 10 k ohms OUT: 2.0 ±0.5 V [p-p], Low impedance
DC In:	XLRx1, 4 pins, DC 12 V (DC 11.0 V to 17.0 V)
DC Out:	4 pin, DC 12 V (DC 11.0 V to 17.0 V), maximum output current 1.5 A
Remote:	10 pin
USB 2.0 (Host):	Type A connector, 4 pin
USB 2.0 (Device):	Type B connector, 4 pin
