PANASONIC AK-UC3000 4K STUDIO HANDY CAMERA WITH LEMO CCU CONNECTOR

150$ ~~200$~~

The AJ-CX4000 is the latest addition to the 4K camcorder ‘CX Series’, which has been introduced to support UHD content acquisition for newsgathering operations, stream live events, and for sports and documentary capture.

Category: Panasonic

SKU: 10

The Panasonic AK-UC3000 4K Studio Handy Camera with LEMO CCU Connector is a professional, multi-format camera that captures 4K UHD, 1080i/p, or SD video using a single MOS sensor. It features a B4 mount and integrates a conversion lens system that allows you to use virtually any 2/3" format ENG lens to cover the large-format sensor. The camera can capture at NTSC or PAL broadcast-compatible frame rates. The camera is designed for studio work and does not incorporate a recorder, instead outputting via 3G-SDI outputs or the fiber optic connection. It can also be used in a handheld configuration while retaining the same output capabilities. It captures images at up to 59.94 fps in both 4K UHD and HD, and it features a hi-speed mode that allows you to capture at 239.76 or 200 fps in HD depending on what signal format you are shooting.

A variety of image controls allow you to adjust the image quality, with such high-performance functions as dynamic range stretch, cine gamma curve, and skin tone detail correction. Independent servo-controlled ND and CC filter wheels provide creative opportunities to handle a wide variety of shooting conditions. A LEMO connector enables an optical fiber cable connection to an optional CCU that increases the camera's flexibility.

Note:

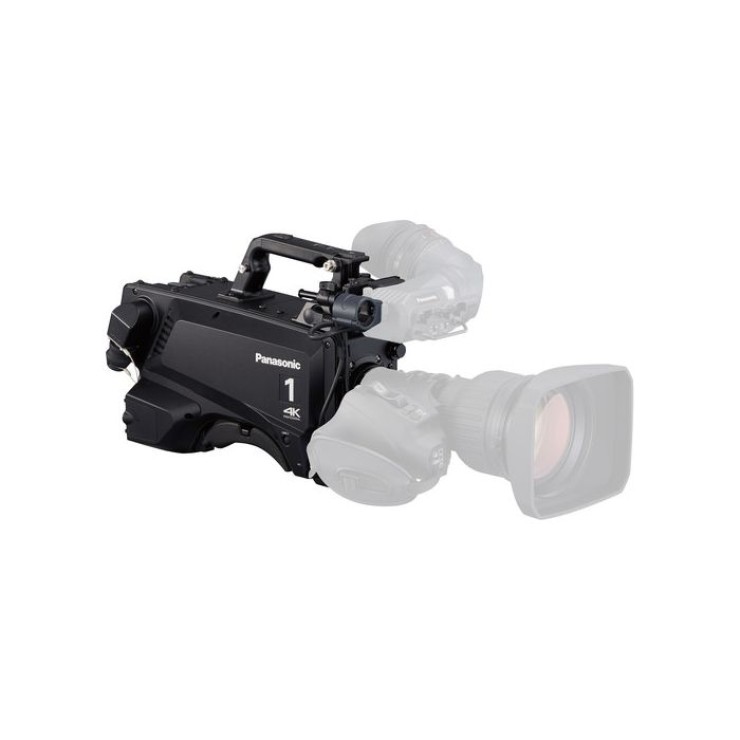

This camera does not include a lens or viewfinder, which can be purchased separately.

Internal Converter Lens

An integrated conversion lens allows you to directly use 2/3" lenses with the camera without an external optical adapter. The converter lens expands the image to cover the large-format MOS sensor and compensates for the lack of prism block.

Fiber Optic Connection

The camera can connect to an optional AK-UCU500 CCU over 6500' feet away via a fiber optic cable. Using an external power supply and general-purpose optical fiber transmission device (not included) enables the CCU and camera to be separated by over 32,000 feet.

Output

With the addition of an optional AK-UCU500 CCU, the camera can output 4K UHD, as well as HD/SD video simultaneously. UHD video is output from the CCU, while the camera outputs HD/SD via its built-in 3G-SDI BNC outputs.

Dynamic Range Stretch

The DRS function is available when capturing in HD. It automatically lessens the appearance of blocked shadows and blown highlights when dark and bright areas are mixed in the same scene. This provides a more natural-looking image.

Rolling Shutter Reduction and Flash Band Compensation

The rolling shutter artifact has been reduced by reading out the MOS sensor signal at high speed. In addition, using a camera-signal-processing LSI high-precision flash band detection and compensation function, Panasonic was able to eliminate the flash band phenomenon (light and dark areas appearing in the same frame) that occurs when a flash goes off during shooting.

4x High-Speed Shooting in 1080p

The AK-UC3000 camera system can record 1080p at up to 239.76 fps when recording in NTSC-compatible (60 Hz) mode, or 200 fps when recording in PAL-compatible (50 Hz) mode. Depending on your playback frame rate (59.94/50/29.97/25/23.98) this translates into between 4 and 10x slow motion. Please note that additional equipment (not included) is required to record the high-speed video.

Chromatic Aberration Compensation

This feature engages an algorithm to compensate for the chromatic aberration of select lenses, allowing the camera to capture sharper images with reduced chromatic aberration.

Gamma Curves

You can choose from Film Rec (V-Rec or F-Rec), and film-like 1/2/3 to fine-tune the image you are capturing.

12-Axis Color Correction

Access to a built-in 12-axis color correction matrix enables fine-tuning of the hue and saturation of individual colors, allowing you to tweak the standard EBU or NTSC color correction presets.

Skin Tone Correction

This function allows you to adjust the detail level of skin tones, using two discrete types of correction, so you can soften the appearance of wrinkles and skin texture. Adjustments can be made to the entire hue phase, so you can apply it to skin tones of all kinds. You can also apply the detail correction to specific colors even if it is not a skin tone.

Focus Assist Functions

Focus-in-Red - focus peaking
Expand (magnifies the center of the image)
Square - displays boxes around the parts of the image that are sharpest in the frame

Video and Data Transmission Functions (Trunk)

Video and data can be transmitted between a camera and a CCU (camera control unit) using an optical fiber cable. This allows you to match system expansion to operation conditions.

HD-SDI (CCU camera) two lines, VBS (CCU camera) two lines: Can be used for monitoring with prompter or camera (studio floor monitor), etc.
HD-SDI (camera CCU) one line: This line can be used to transmit an additional video signal of a handheld or remote camera to the studio. Since the camera video input is equipped with a frame synchronizer, asynchronous video signals can also be used.
LAN (1000BaseT) one line: To be used to control external devices and remote cameras by IP protocol. Transmission of streaming video is also supported.
DATA (RS422A or RS232C) two lines: Can be used to transfer lens and pedestal position data in a virtual system.

Camera Functions

Color temperature display and adjustment from 2000 to 15,000K
Camera settings including VF markers can be saved to and loaded from an SD card
Lens files for flare and shading values are supported
The camera supports IP control and at a future time IP streaming
12 VDC output with 2.5 and 1 A output ports
The body incorporates four user-definable buttons

Servo Controlled ND and CC Filters

Incorporating two independent motorized filter wheels allows you to make in-camera adjustments of ND (exposure) as well as color temp/effects/diffusion. The ND filter wheel features a Cap (no light pass through), clear, 1/4, 1/16. and 1/64, while the color correction wheel features cross, diffusion, 3200, 4300, and 6300K.

Intercom

The camera features two independent intercom channels, Intercom 1 and Intercom 2, in addition, a mix mode allows you to listen to both intercom channels simultaneously.

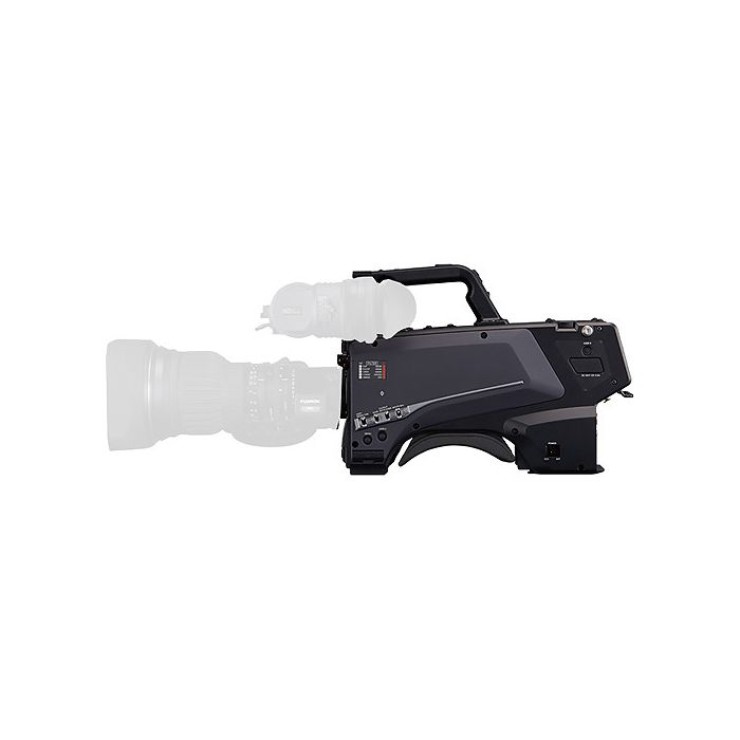

Low-Profile Body Design with Adjustable Shoulder Pad

The camera's low-profile design makes it easier to see to the right of the camera, and the shoulder pad features approximately an inch of adjustment for fine-tuning the camera's balance.

Product Highlights:

Single Large UHD 4K MOS Sensor
B4 Lens Mount for 2/3" Lenses
For Studio or Handheld Use
1080i/p 59.94/50/23.98p
Hi-Speed up to 239.76/200 fps in HD
Dynamic Range Stretch in HD
12-Axis Color Correction, Gamma Curves
Skin Tone Detail Correction
Servo Control ND/CC Filters
LEMO Camera to CCU Connector

Items Included:

Panasonic AK-UC3000 4K Studio Handy Camera with LEMO CCU Connector
Limited 1-Year Warranty

AK-UC3000 - Specification

More Information


Power Supply:	DC 12 V (when using an external power supply) AC 240 V, 50 Hz/60 Hz (when AK-UCU500P/AK-UCU500PS/ AK-UCU500E/AK-UCU500ES is connected)
Power Consumption:	119 W (maximum, when connecting to an external 12 V and including supply to externally connected devices) 360 W (maximum, when AK-UCU500P/AK- UCU500PS/ AK-UCU500E/AK-UCU500ES is connected and including supply to externally connected devices)
Operating Temperature:	-10 °C to 45 °C (14°F to 113°F) (Preheating is required under a temperature of 0 °C (32 °F) or below)
Storage Temperature:	-20 °C to 60 °C (-4°F to 140°F)
Operating Humidity:	85% or less (relative humidity)
Weight:	Approx. 4.4 kg (9.70 lbs.) (body only, excluding the accessories)
Dimensions (W x H x D):	Body only 151 mm x 267 mm x 371.5 mm (5-31/32 inches x 10-17/32 inches x 14-21/32 inches) (excluding protrusions)
Pickup Devices:	11 million pixels, CMOS x 1
Optical Filter:	CC: 3200 K, 4300 K, 6300 K, Cross, Diffusion ND: CAP, Clear, 1/4, 1/16, 1/64
Lens Mount:	2/3-type bayonet
Sensitivity:	Two shooting modes [HIGH SENS]: F10 (59.94 Hz)/F11 (50 Hz) [NORMAL]: F6 (59.94 Hz)/F7 (50 Hz) 2000 lx, 3200 K, when white reflectivity is 89.9%
Horizontal Resolution:	4K: 1800 TV lines or above (center, AK-UCU500P/ AK-UCU500PS/AK- UCU500E/AK-UCU500ES output) HD: 1000 TV lines or above (center)
S/N:	60 dB or above
Horizontal Modulation:	50% or above (27.5 MHz)
Gain Switching:	[NORMAL]: -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 [HIGH SENS]: -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36
Shutter Speed:	• [59.94i]/[59.94p] mode: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 • [29.97p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 • [23.98p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 • [50i]/[50p] mode: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 • [25p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000

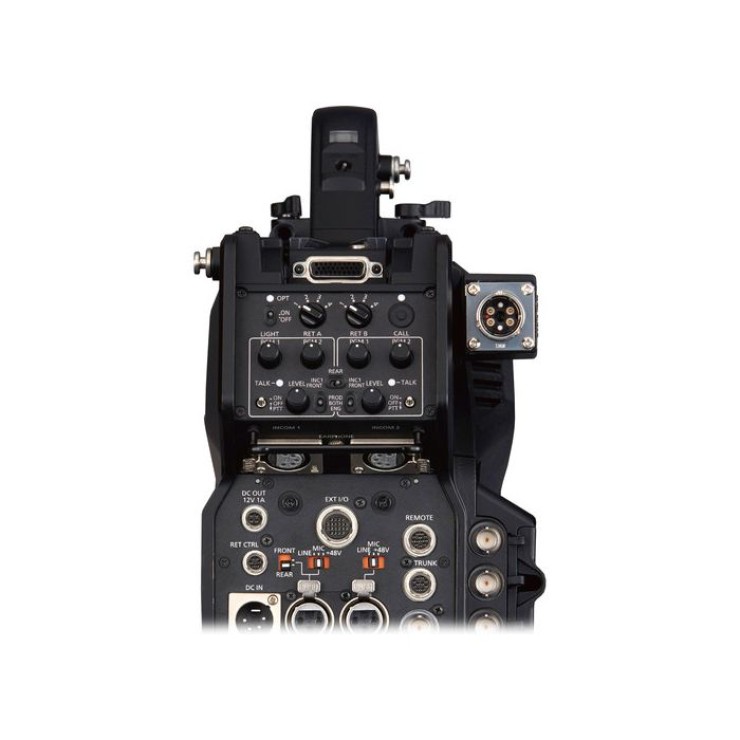

[HD SDI 1] Terminal:	BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 ohm
[HD SDI 2] Terminal:	BNC x 1 HD (3G/1.5G): 0.8 V [p-p], 75 ohm
[AUX] terminal:	BNC x 1 Functions as terminal/ terminal by switching the setting in the menu : HD (1.5G) : VBS signal 1 V [p-p], 75 ohm
[G/L IN/PROMPTER OUT] terminal:	BNC x 1 : Tri-level SYNC or BB (black burst) : VBS signal 1 V [p-p], 75-ohm Functions as when standalone, and as when AK-UCU500P/ AK-UCU500PS/ AK-UCU500E/AK-UCU500ES is connected
[MIC 1] terminal:	XLR x 1, 3-pin // switchable For, / switchable : 0 dBu, +4 dBu menu selection available : -60 dBu, -40 dBu, or -20 dBu menu can be selected
[MIC 2] terminal:	XLR x 1, 3-pin // switchable : 0 dBu, +4 dBu menu selection available : -60 dBu, -40 dBu, or -20 dBu menu can be selected
[MIC] terminal (front):	XLR x 1, 3-pin Switchable with terminal
[Intercom 1] Terminal:	XLR x 1, 5-pin
[Intercom 2] Terminal:	XLR x 1, 5-pin
[EARPHONE] terminal:	Stereo mini jack x 1, 3-pin
[OPT FIBER] terminal:	Optical composite connector x 1
[LENS] terminal:	12-pin x 1
[VF] terminal:	20-pin x 1
[VF] terminal (rear):	29-pin x 1
[DC In] Terminal:	XLR x 1, 4-pin, DC 12 V
[DC Out 12V 1A] Terminal:	4-pin x 1
[RET CTRL] terminal:	6-pin x 1
[EXT I/O] terminal:	20-pin x 1, DC 12 V, 0.5 A
[Remote] Terminal:	10-pin x 1
[TRUNK] terminal:	12-pin x
[DC OUT 12V 2.5A] terminal:	2-pin x 1
[LAN] Terminal:	RJ-45 x 1
[USB2.0] terminal (host):	Type A connector, DC 5 V, 0.5 A
Build-up Terminal:	20-pin x 1
General
Image Device:	1 x Large Format MOS sensor
Video Recording System:	NTSC/PAL
Lens Mount:	2/3" Bayonet
Built-in Filters:	Neutral Density: Cap, Clear, 1/4, 1/16, 1/64 CC: 3200K, 4300K, 6300K, Cross, Diffusion
Video Format:	UHD 4K P: 59.94/50/25/23.98 PsF: 29.97/25/23.98 HD 1080p: 59.94/50 1080i: 59.94/50/23.98p (over 59.94i) 1080PsF: 29.97/25/23.98 720p: 59.94/50 480i: 59.94 576i: 50 High-Speed HD 1080p: 239.76/200 (requires optional CCU and recorder)
Sensitivity:	HIGH SENS F10 (1080 59.94i)/F11 (1080/50i) @2000 lx, 3200K, 89.9% white NORMAL F6 (59.94 Hz)/F7 (50 Hz) @2000 lx, 3200K, 89.9% white
Gain:	HIGH SENS −6, −3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36 NORMAL −6, −3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30
S/N Ratio:	60 dB
Shutter Speed:	59.94i/p 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 29.97p 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 23.98p 1/48, 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 50i/p 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 25p 1/50, 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
Connectors:	Video 3G/HD-SDI: 2 x BNC Aux: 1 x BNC (HD Trunk or Prompter 2) CCU: 1 x LEMO Connector Genlock In/Prompter Out 1 x BNC Audio Mic 1: 1 x 3-pin XLR (line/mic/+48) Mic 2: x 3-pin XLR (line/mic/+48) Front Mic: 3-pin XLR female (x1 Input) Audio L/R: RCAx2 (x1 Output) Earphone: 3.5mm Mini Jack (x1 Output) PROMPT: BNC (x2 Output) GENLOCK: BNC (x1 Input) AUX: BNC (x1 Input/Output) INCOM: 4-pin XLR (x2) Lens: 12-pin
Power Requirements:	12 VDC (during external power supply operation) 240 VAC (when CCU is connected)
Power Consumption:	35 W (12 VDC supply/camera body only)
Environmental:	Operating Temperature: 14 to 113°F / -10 to 45°C (preheating required below 32°F / 0°C) Storage Temperature: -4 to 140°F / -20 to 60°C Storage Humidity: Less than
Dimensions (WxHxD):	5.9 x 10.5 x 14.6" / 151.0 x 267.0 x 371.5 mm (excluding protrusions)
Weight:	9.9 lb / 4.5 kg
Packaging Info
Package Weight:	13.75 lb
Box Dimensions (LxWxH):	19.6 x 15.2 x 10.8"
