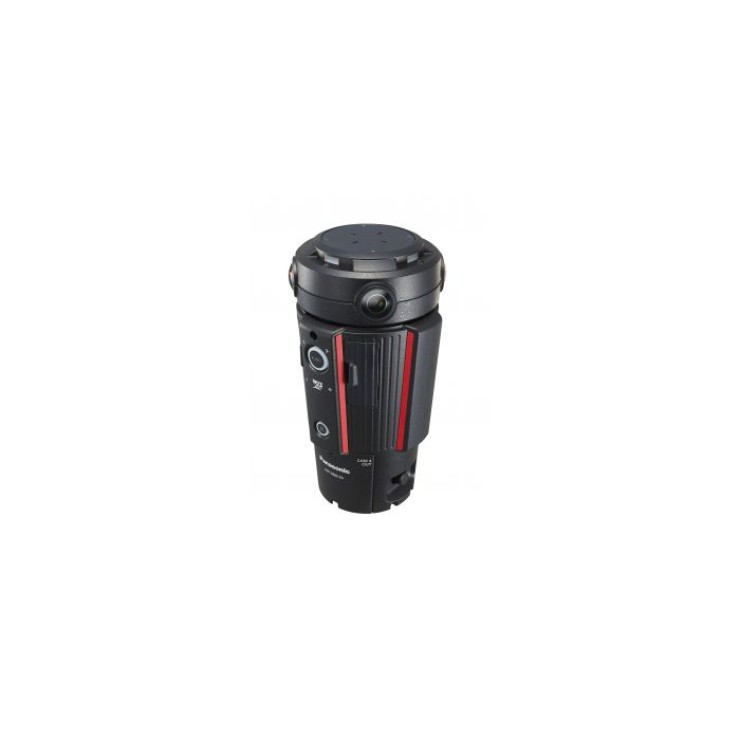

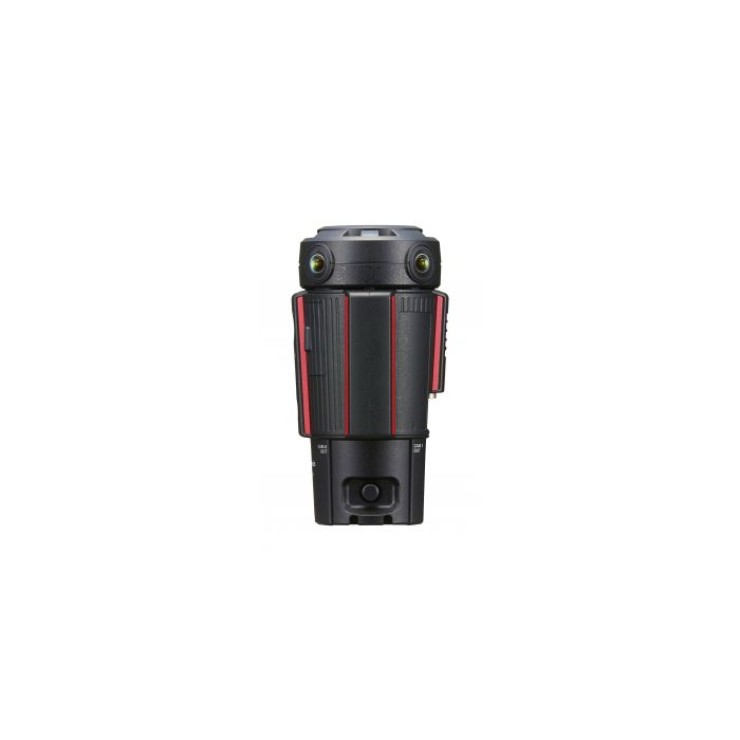

PANASONIC AW-360B10 & AW-360C10 360-DEGREE LIVE CAMERA

Details :

The 360-degree Live Camera generates 2:1 equirectangular format 360-degree video by stitching the output of four cameras. This 360-degree video can give you the feeling of being in a variety of scenes, such as live broadcasts of sports, concerts, and other stadium events.  The 4K (3840×1920) high image quality provides the immersiveness as if you were there. There is also a high level of operability, with natural images matched to the environment being generated by automatically controlling the exposure and white balance of the output of four cameras without a PC. In addition, seamless video can be generated because the high-precision “Real-time active stitching function" continuously changes the stitching position by automatically detecting a subject at the seam. Real-time video transmission is possible because 4K/30p high-resolution video is generated with low latency. Easy installation and uninstallation at a shooting site make operation even more flexible. Not only is this system capable of monitoring and changing configuration remotely with a PC via a network, but also it allows for control from iPad in a Wi-Fi environment. Furthermore, the 360-degree Live Camera is designed for professional use, offering high reliability with features that suit their smallest needs such as the prevention of unexpected cable removal.

Highlights

• 360 degrees coverage with 4 synchronized cameras for a 2:1 image ratio

• 4K uncompressed 360 degrees video output (HDMI)

• Highly precise real-time active stitching

• Optimal for live applications with low latency

• Automatic white balance and exposure

The 360-degree Live Camera generates 2:1 equirectangular format 360-degree video by stitching the output of four cameras. This 360-degree video can give you the feeling of being in a variety of scenes, such as live broadcasts of sports, concerts, and other stadium events.

The 4K (3840×1920) high image quality provides the immersiveness as if you were there. There is also a high level of operability, with natural images matched to the environment being generated by automatically controlling the exposure and white balance of the output of four cameras without a PC. In addition, seamless video can be generated because the high-precision “Real-time active stitching function" continuously changes the stitching position by automatically detecting a subject at the seam.

Real-time video transmission is possible because 4K/30p high-resolution video is generated with low latency. Easy installation and uninstallation at a shooting site make operation even more flexible. Not only is this system capable of monitoring and changing configuration remotely with a PC via a network, but also it allows for control from iPad in a Wi-Fi environment. Furthermore, the 360-degree Live Camera is designed for professional use, offering high reliability with features that suit their smallest needs such as the prevention of unexpected cable removal.

Product Highlights:

• 360 degrees coverage with 4 synchronized cameras for a 2:1 image ratio
• 4K uncompressed 360 degrees video output (HDMI)
• Highly precise real-time active stitching
• Optimal for live applications with low latency
• Automatic white balance and exposure
•


• AW-360B10 & AW-360C10 - Specification

  More Information

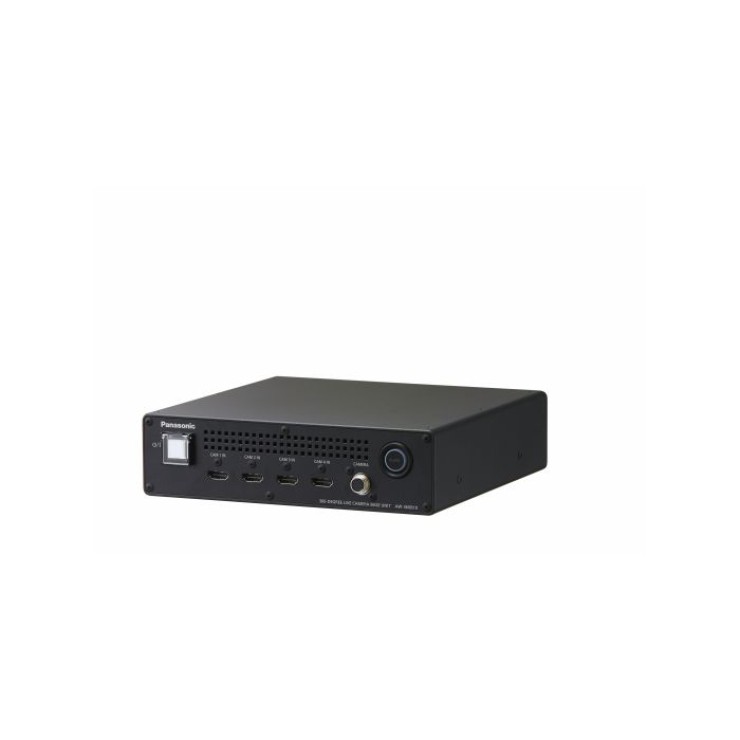

  Power Supply: DC 12 V (11 V to 17 V) Power Consumption: 11 W (TBD) Operating Temperature: 0°C to 40°C Weight: 620g (TBD) Dimensions (W x H x D): 96 mm x 180 mm x 96 mm (TBD) (3-25/32 inches x 7-3/32 inches x 3-25/32 inches) Sensor: 1/2.3" type MOS x 4 Lens: Fixed focal length SuperFishEye F2.4, f=1.83mm Input /Output Connector | HDMI out: Type D x4 Input /Output Connector | Power: Camera head option cable Input /Output Connector | SD card slot: micro SD card slot (for firmware upgrade) Switches: POWER, FUNC LED: POWER, ALM Internal Microphone: 4ch. LAN: RJ45 (for monitoring and control) HDMI In: Type A x 4 Resolution: 1240 x 620, 920 x 460 SD Card Slot: SD card slot (for firmware upgrade) Compression: Motion JPEG DC In: XLR 4 pin HDMI Out: Type A x1 HDMI Output | Stitching Format: 2:1 Equirectangular HDMI Output | Resolution: 3840 x 1920/1920 x 960 HDMI Output | Frame Rate: 29.97p/25p/59.94p/50p Power for camera head: Camera head option cable SW: POWER, FUNC Max. connections: Max.4 Standard protocols: IPv4 TCP/IP, HTTP
