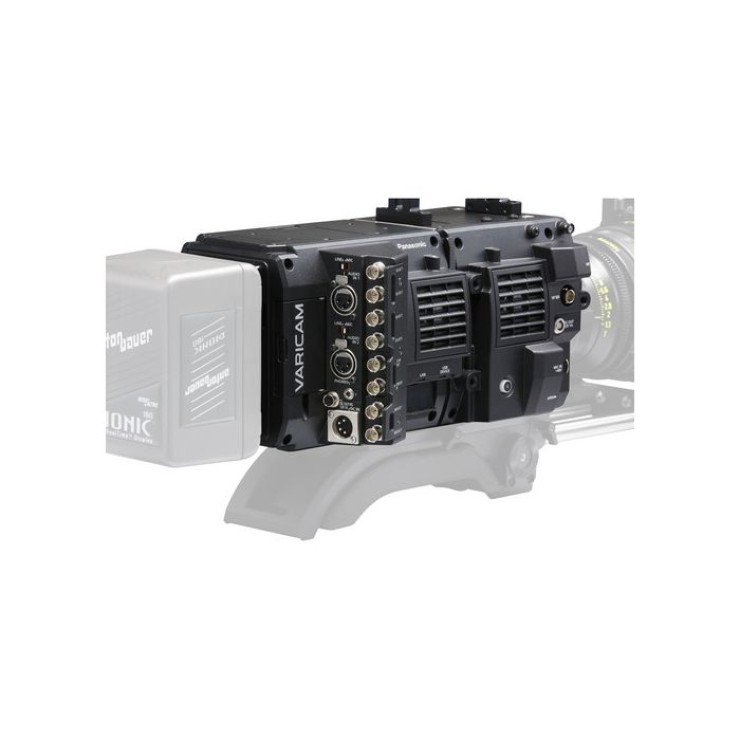

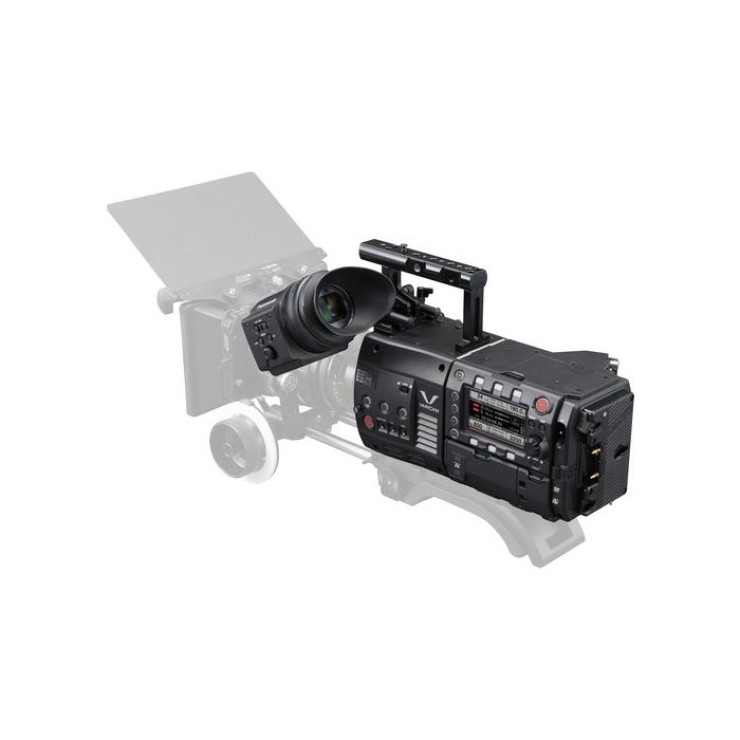

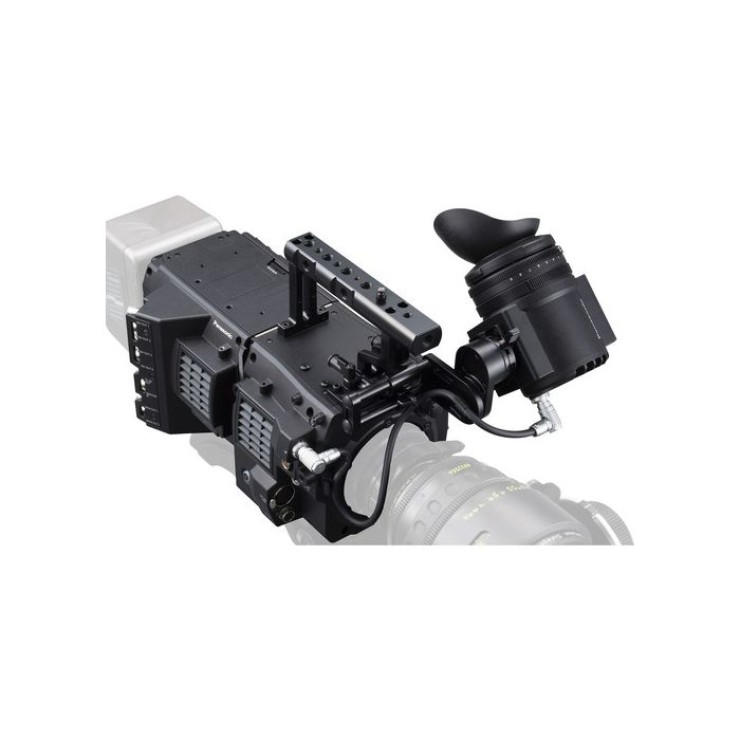

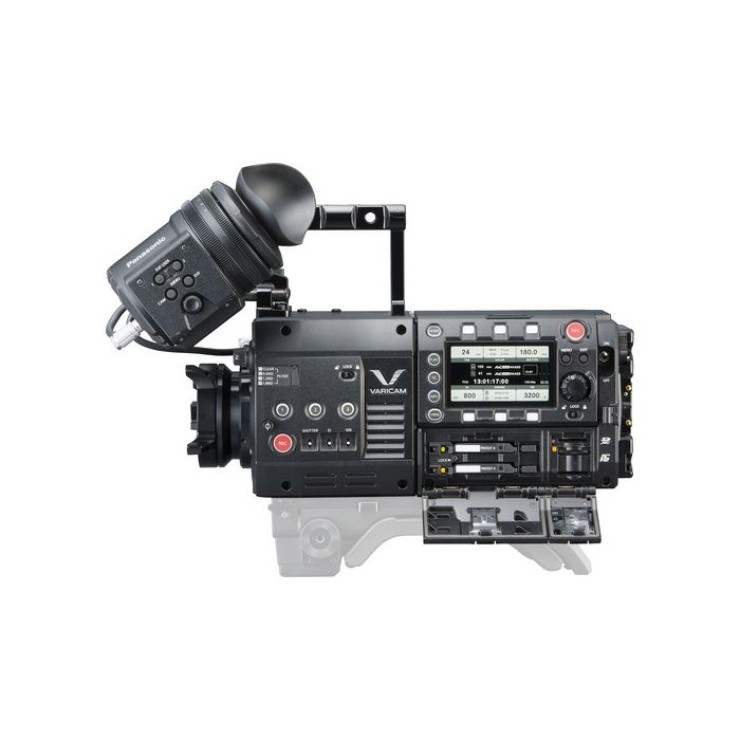

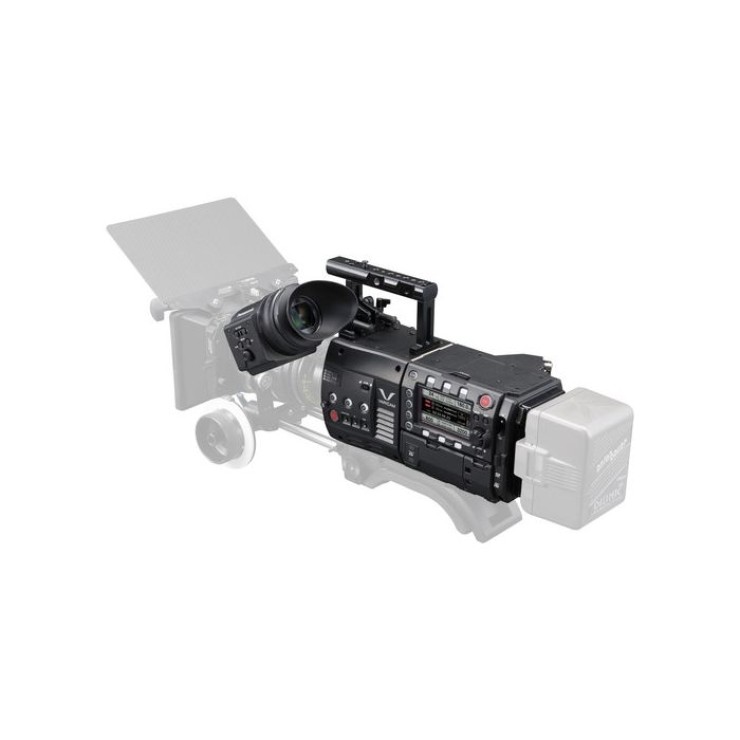

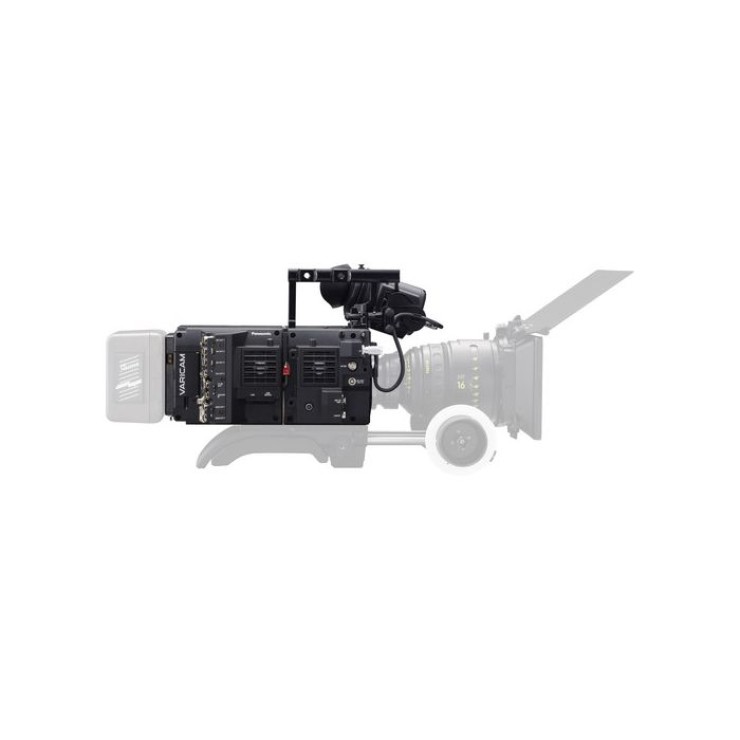

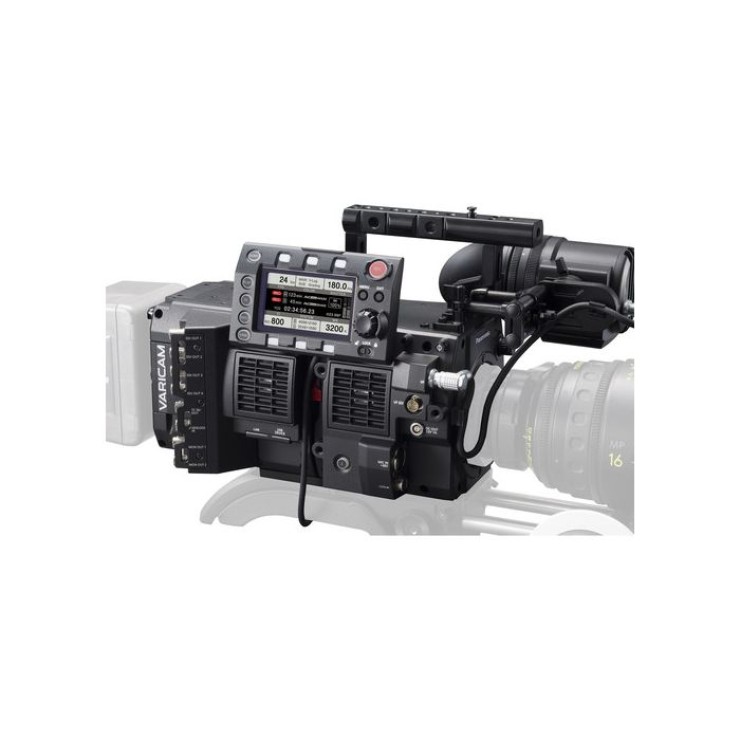

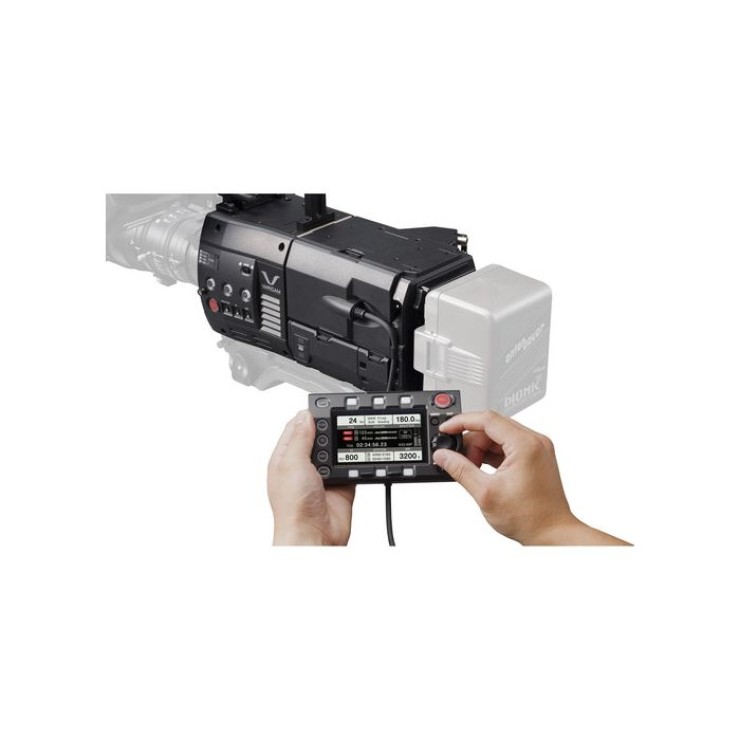

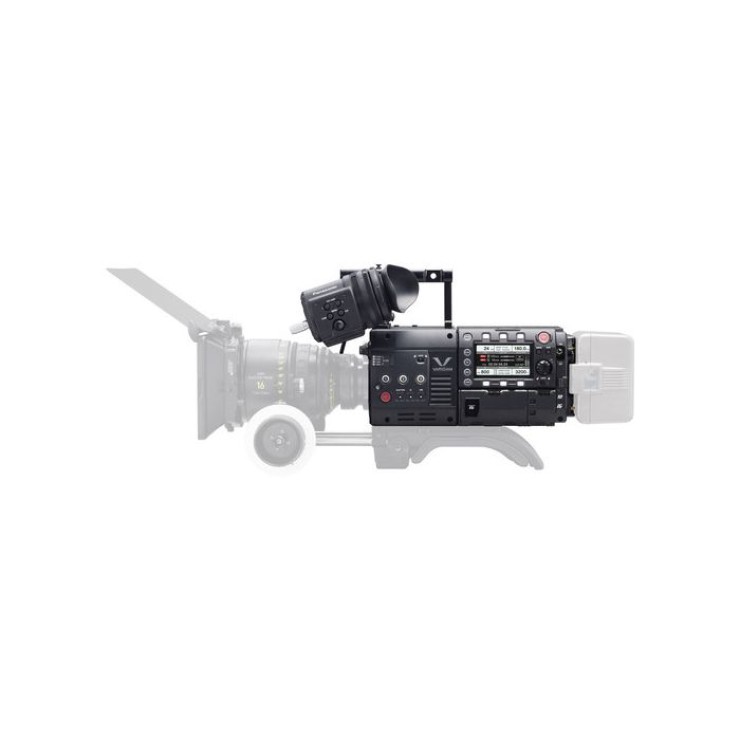

PANASONIC VARICAM 35 CAMERA KIT

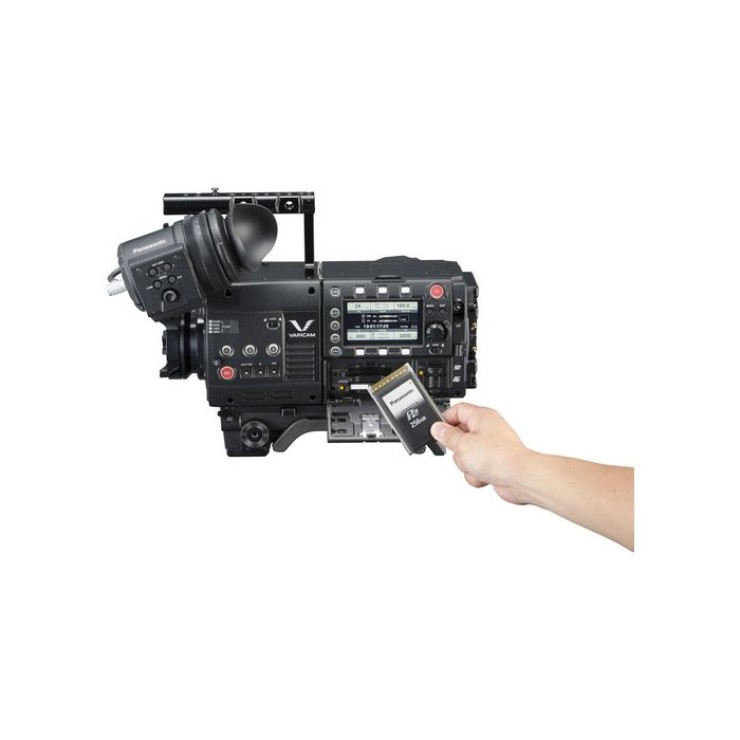

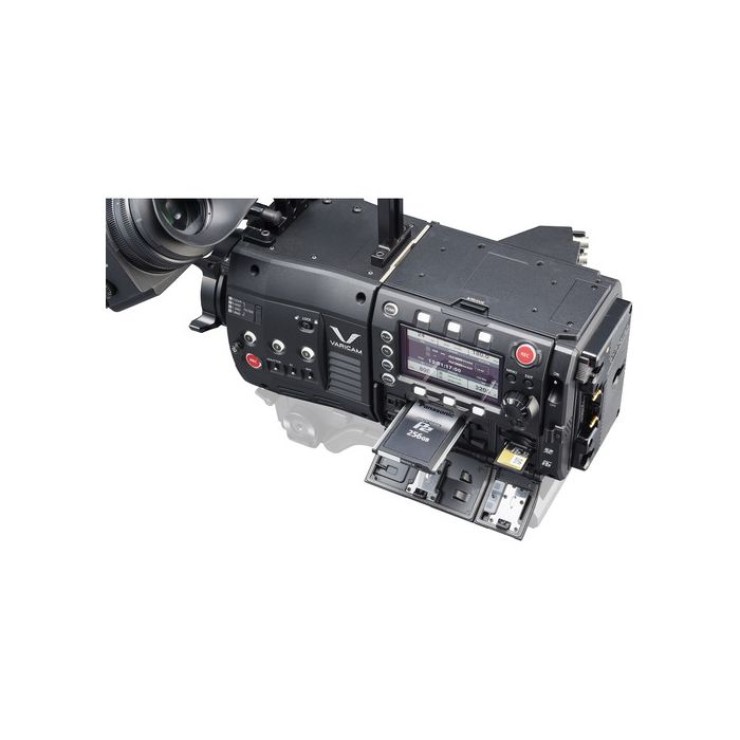

The VariCam 35 Camera Kit from Panasonic includes a Super35 4K VariCam camera head and a recording module. The camera head supports video at resolutions up to 3840 x 2160. It features a 35mm PL lens mount and clear, 0.6, 1.2, and 1.8 ND filters. The Recording Module supports a resolution of up to 4096 x 2160. It features an expressP2 card slot, a P2 card slot, and a microP2 card slot for recording media. The approximate recording time is 25 minutes. The recording module has an SDI output, two monitor outputs, a VF SDI port, two 3-pin XLR audio inputs, an XLR microphone input, and a stereo 3.5mm jack. It also has a speaker, a LAN port, a USB host port, and a USB device port.

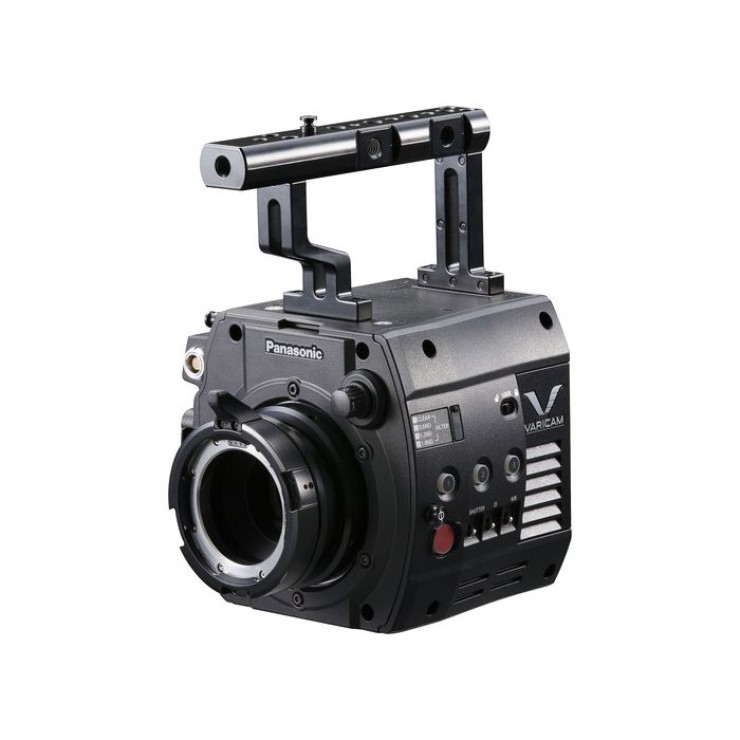

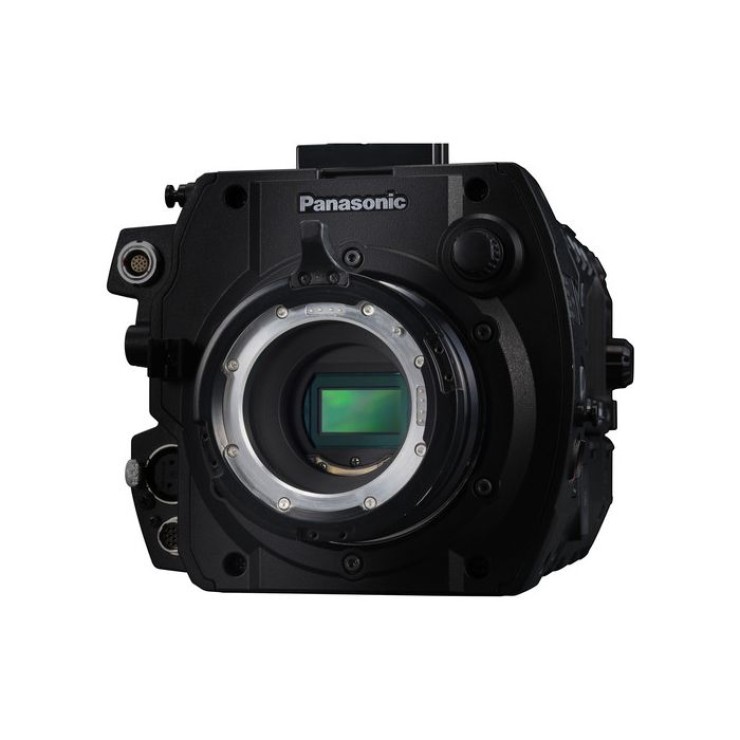

The Super35 4K VariCam Camera Head from Panasonic is designed to be used with the AU-VREC1 recording module. It supports video at resolutions up to 3840 x 2160. It features a 35mm PL lens mount and clear, 0.6, 1.2, and 1.8 ND filters. This camera head supports 10.3 million total pixels and 8.9 million effective pixels.

Items Included:

• Panasonic Super35 4K VariCam Camera Head (PL Mount)
• Limited 1-Year Warranty

• Panasonic Recording Module for VariCam 35/VariCam HS Camera Head

Product Highlights:

• Super35 4K VariCam Camera Head
• Recording Module
•


• VARICAM-35 - Specification

  More Information

  Image Sensor Image Sensor Size: Super35 Sensor Type: MOS Sensor Resolution: Actual: 3840 x 2160 ISO: 800 to 5000 Advertised Dynamic Range: 14 Stops Camera Lens Mount: PL Mount Shutter Speed: 1/24 to 1/250 sec Shutter Angle: 1 to 358° Built-In ND Filter: Mechanical Filter Wheel with Clear ND Filters Recording Media: None Variable Frame Rates: Up to 120 fps ELF EVF: Optional, Not Included Power Power Connectors: None DC Input Power: 11 to 17 VDC at 1 A Battery Type: None Operating Current: 1:00 AM Panasonic Recording Module For VariCam 35/VariCam HS Camera Head Specs : I/O Video: 1 x BNC (3G-SDI) Output : 2 x BNC (3G-SDI) Output Audio: 2 x XLR Mic/Line Input : 1 x XLR Mic Input : 1 x 3.5 mm Line Output Power: 1 x 4-Pin XLR (1 A12 VDC) Input : 1 x 4-Pin (Unspecified Type) (1 A12 VDC) Output : 1 x 2-Pin (Unspecified Type) (1 A12 VDC) Output Other I/O: 1 x LAN (RJ45) Input/Output : 1 x USB 2.0 (USB Type-B) Output : 1 x USB 2.0 (USB Type-A) Input Card Slot: 1 x SD Format Support Video Format: SDI : DCI 4K: 59.94/50/29.97/25/24/23.98 : UHD 4K: 59.94/50/29.97/25/23.98 : 1080p: 59.94/50/29.97/25/23.98 Video Signal Conversion: None Recording Pulldown Conversion: None Camera Trigger: None Pre-Roll Record: None Encoding Formats: Up to 4096 x 2160 : ProRes 4444 Recording Media: 2 x expressP2 (UHS-II) : 2 x microP2 (UHS-II) General Warranty Length: Limited 1-Year Warranty

•


•
