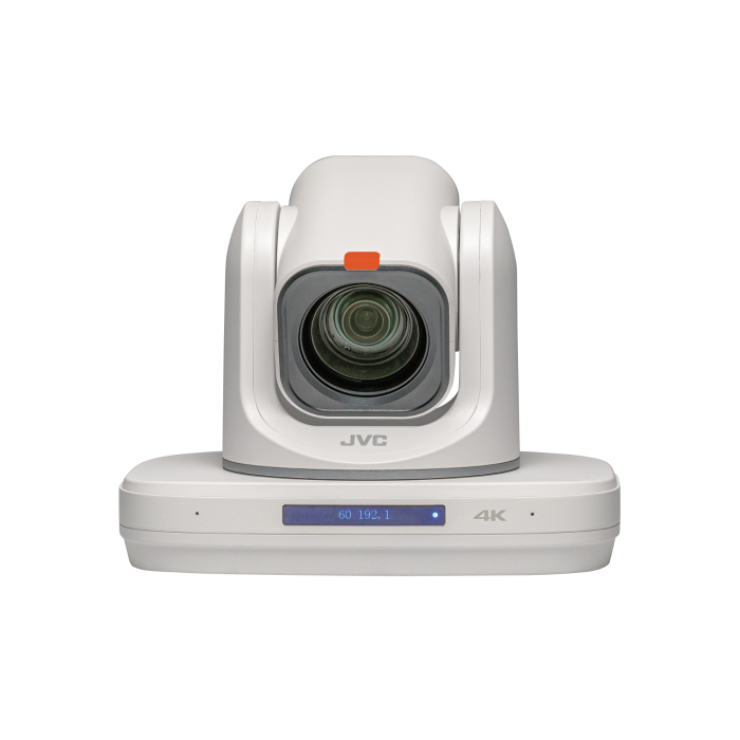

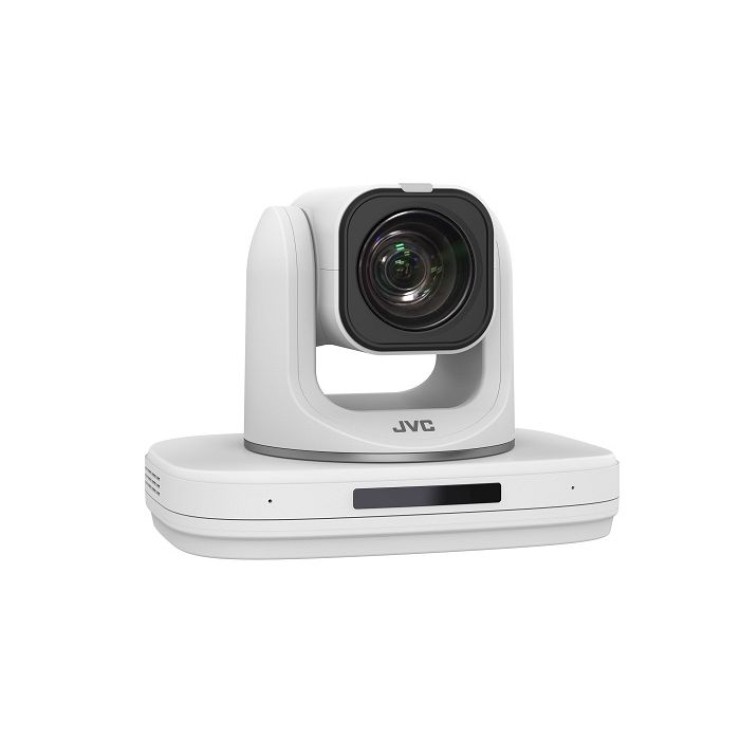

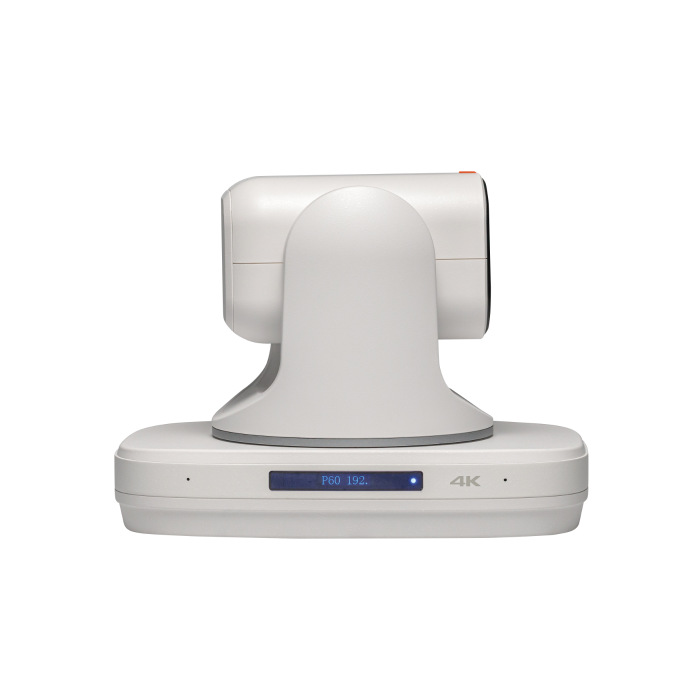

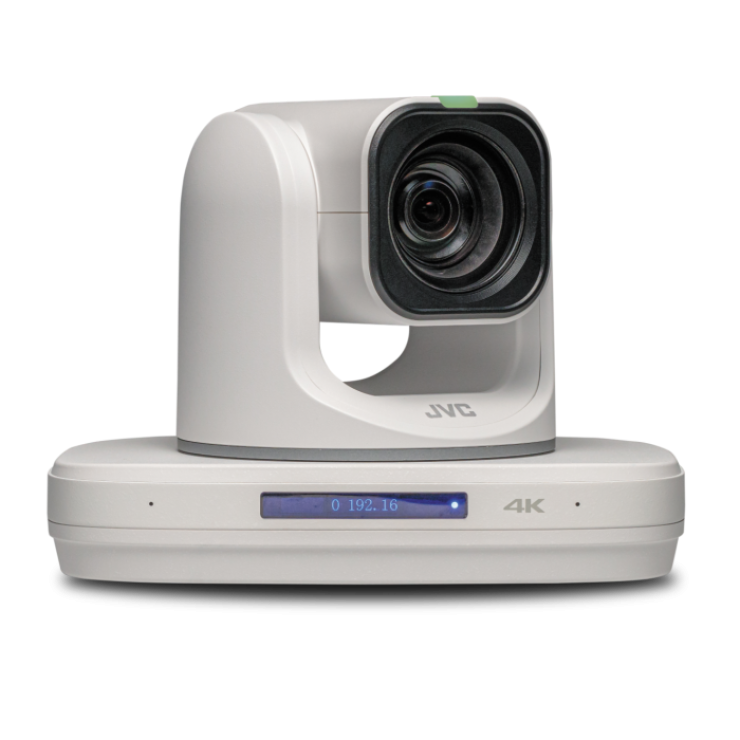

JVC KY-PZ510NWE ULTRA WIDE ANGLE 4K60P NDI/HEVC AUTO-TRACKING PTZ CAMERA WITH 3G-SDI/HDMI/USB/IP OUTPUT (WHITE)

1. JVC’s robotic pan, tilt, and zoom 4K video production camera, the KY-PZ510NWE offers automatic tracking NDI®|HX, SRT and supports POE for a true 'One Wire Solution'. Ideal for studio or field use, this PTZ model enables reliable remote IP production for education, corporate, live events, and sports applications.

   Features

   • NDI|HX support
   • Supports Smart Auto Tracking
   • 1/2.8-inch CMOS sensor (8.40 million pixels)
   • Can memorize 255 preset settings and positions
   • Wide 80° optical zoom lens with 12x zoom ratio (3.4mm ~ 41.6mm, F1.8 ~ F3.7)
   • Multiple protocol streaming SRT, RTSP, RTMP, RTMPS
   • Powerful encoding engine supports H.265, H.264 & MJPEG
   • Built-in IP address display for easy setup
   • Built-in Internal Microphones
   • Simultaneous high (4K) and low-resolution encoding with main and substream
   • LAN Connector supports Power over Ethernet (POE)
   • Compatible with RM-LP100 controller using JVC protocol and API
   • 3G-SDI and HDMI 2.0 (4K) digital outputs
   • USB C Connector supports UVC 1,1 - 1,5 mode
   • Remote control via RS232, RS485 and JVC IP protocoll
   • Ships with IR controller, mounting bracket, power adapter & RS232 cable

Items Included:

AC/DC adapter cable 1- Power Cable

Cable 2- RS232 Cable

Instructions- User Manual, Warranty Card

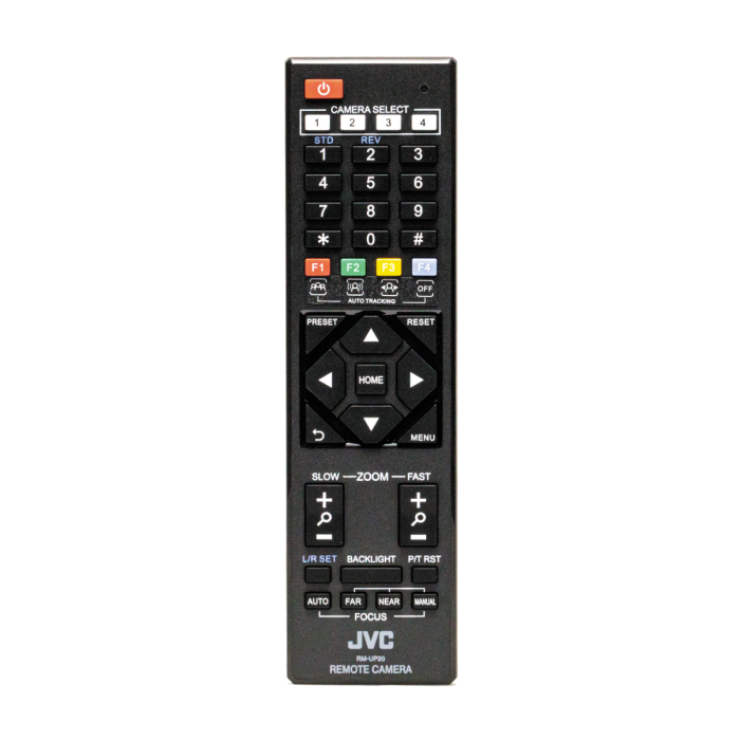

Remote Control unit - IR controller

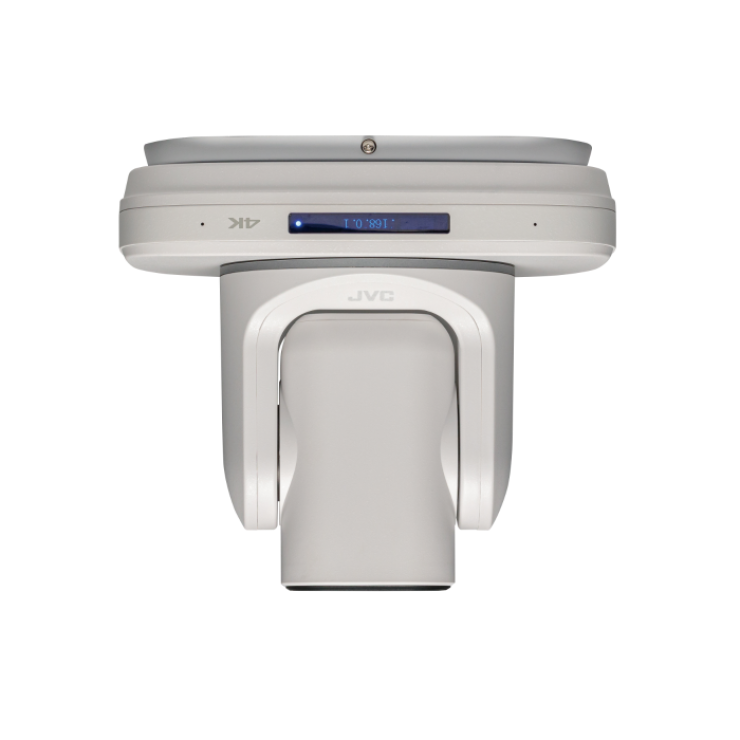

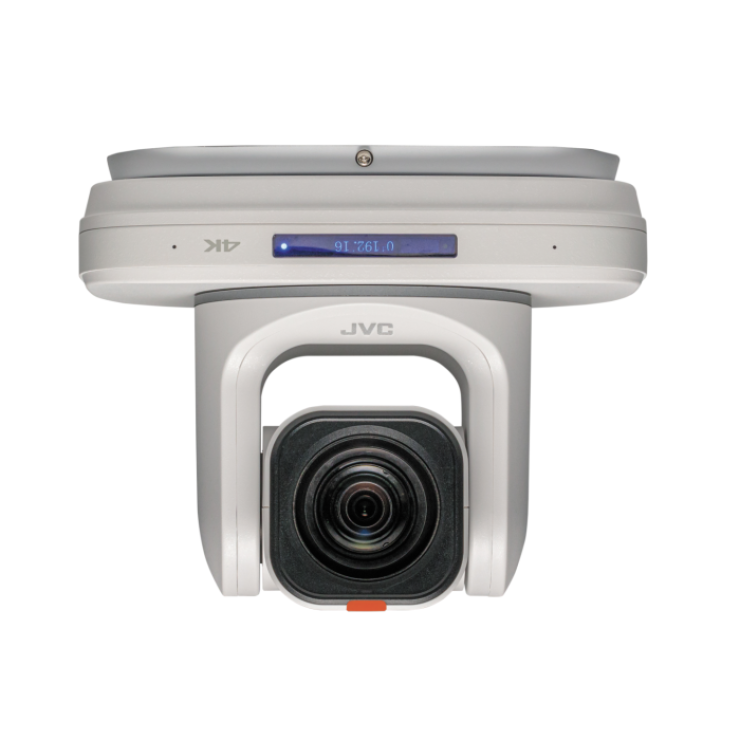

Ceiling mount bracket

Model	KY-PZ510NBE(Black)/WU(White)	KY-PZ510BE(Black)/WU(White)
Description	4K 60P PTZ REMOTE CAMERA with NDI®/HX	4K 60P PTZ REMOTE CAMERA
Camera Section
Sensor	1/2.8 inch, CMOS, effective pixels: 8.40M	1/2.8 inch, CMOS, effective pixels: 8.40M
Scanning Mode	Progressive	Progressive
Lens	12x, f = 3.47mm ~ 41.7mm, F1.8 ~ F3.7	12x, f = 3.47mm ~ 41.7mm, F1.8 ~ F3.7
Digital Zoom	OFF, 4x, 8x, 16x	OFF, 4x, 8x, 16x
Minimal Illumination	0.5Lux @ (F1.8, AGC ON)	0.5Lux @ (F1.8, AGC ON)
Gain	0db to 45db	0db to 45db
Shutter	1/30s ~ 1/10000s	1/30s ~ 1/10000s
White Balance	Auto, Indoor, Outdoor, One-Push, Manual	Auto, Indoor, Outdoor, One-Push, Manual
Horizontal Angle of View	80° to 7.5°	80° to 7.5°
Vertical Angle of View	49.9° to 4.3°	49.9° to 4.3°

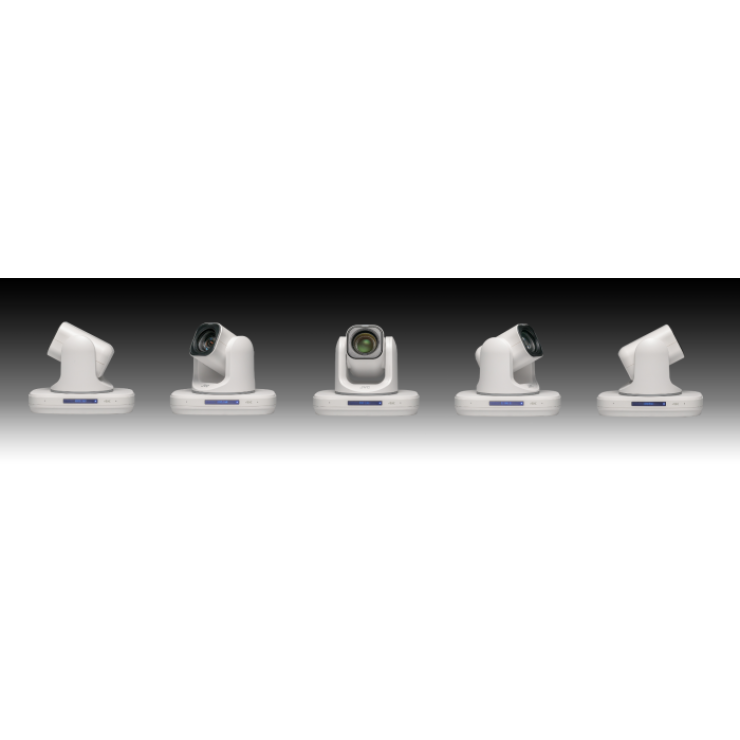

Horizontal Rotation Range	±162.5°±162.5°	±162.5°
Vertical Rotation Range	-30° ~ +90°	-30° ~ +90°
Pan Speed Range	1.8° ~ 80.5°/s	1.8° ~ 80.5°/s
Tilt Speed Range	1.5° ~ 49°/s	1.5° ~ 49°/s
H/V Flip	Supported	Supported
H/V Auto Inversion	Supported	Supported
Image Freeze	Supported	Supported
Number of Preset	255	255
Preset Accuracy	0.1°	0.1°

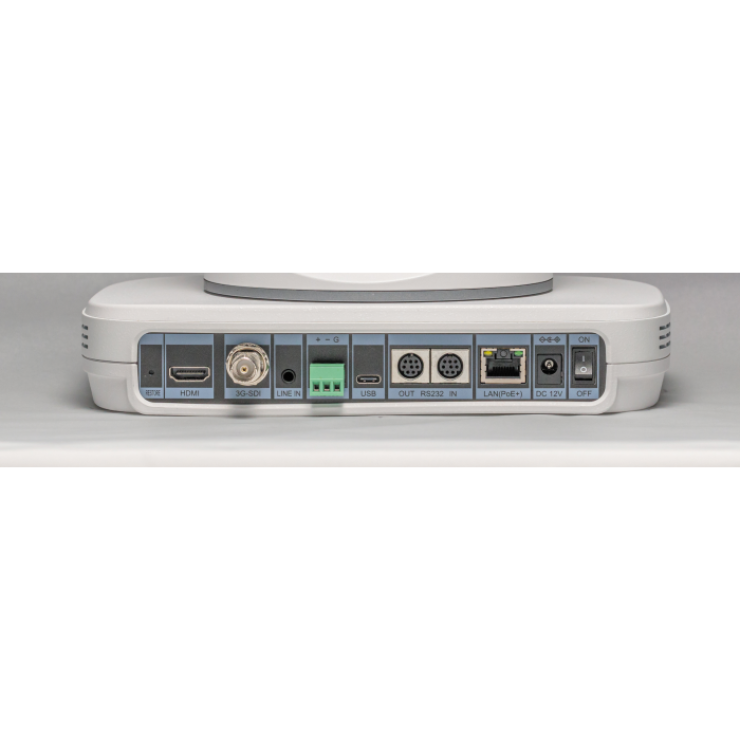

Input / Output Interfaces
HDMI Output	TYPE A, Max 3840x2160/ 60p, 50p	TYPE A, Max 3840x2160/ 60p, 50p
3G-SDI Output	BNC type, Embedded audio Video: SMPTE 424M ,SMPTE 292M Audio: SMPTE 299M, Max 1920x1080, 60p, 50pBNC type, Embedded audio Video: SMPTE 424M ,SMPTE 292M Audio: SMPTE 299M, Max 1920x1080, 60p, 50p	BNC type, Embedded audio Video: SMPTE 424M ,SMPTE 292M Audio: SMPTE 299M, Max 1920x1080, 60p, 50pBNC type, Embedded audio Video: SMPTE 424M ,SMPTE 292M Audio: SMPTE 299M, Max 1920x1080, 60p, 50p
Network Interface (LAN)	RJ-45 (Ethernet ): 1000BASE-T/100BASE-TX	RJ-45 (Ethernet ): 1000BASE-T/100BASE-TX
Audio Interface	Stereo Mini-jack φ 3.5mm	Stereo Mini-jack φ 3.5mm
USB Type-C for UVC	Including UAC UVC Ver1.0 - Ver1.5 MJPEG/H.264, MAX: 3840x2160/30p (Host mode not supported)	Including UAC UVC Ver1.0 - Ver1.5 MJPEG/H.264, MAX: 3840x2160/30p (Host mode not supported)
Communication Interface	RS-232C 8-pin Mini-DIN, RS485 2-pin Phoenix port	RS-232C 8-pin Mini-DIN, RS485 2-pin Phoenix port
Network
Video Compression	H.265/HEVC, H.264/MotionJPEG	H.265/HEVC, H.264/MotionJPEG
Video Stream	Main Stream Resolution: 640x360 to 3840x2160, Frame Rate: 25p to 60p Sub Stream Resolution: 320x240 to 720x480, Frame Rate: 25p to 60p	Main Stream Resolution: 640x360 to 3840x2160, Frame Rate: 25p to 60p Sub Stream Resolution: 320x240 to 720x480, Frame Rate: 25p to 60p
Streaming Protocol	RTSP/RTP H.264: 3840x2160/60p50p/60Mbps with VITC H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC MJPEG: 1920x1080/60p50p RTMP, RTMP H.264: 3840x2160/60p50p/60Mbps SRT H.264: 3840x2160/60p50p/60Mbps with VITC H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC NDI® 5 (NDI®|HX) H.264: 3840x2160/60p50p/60Mbps H.265: 3840x2160/60p50p(MultiSlice)/60Mbps H.265: 3840x2160/30p25p(SingleSlice)/60Mbps	RTSP/RTP H.264: 3840x2160/60p50p/60Mbps with VITC H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC MJPEG: 1920x1080/60p50p RTMP, RTMP H.264: 3840x2160/60p50p/60Mbps SRT H.264: 3840x2160/60p50p/60Mbps with VITC H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC
Remote Protocols	NDI, Standard, Pelco, JVC (WEB API, RM-LP100)	Standard, Pelco, JVC (WEB API, RM-LP100)
VITC, Superimposition on Streaming	RTSP, SRT, UDP 4K/60p support	RTSP, SRT, UDP 4K/60p support
Generic Specifications
LED	Tally: Green x1, Red x 1; Power On (front): Blue x1	Tally: Green x1, Red x 1; Power On (front): Blue x2
Power	DC12V (AC adapter), PoE+ (IEEE802.3at standard)	DC12V (AC adapter), PoE+ (IEEE802.3at standard)
Power Consumption	14.5W or less	14.5W or less
Temperature	Operating: 32°F～104°F, Storage: -40°F～140°F	Operating: 32°F～104°F, Storage: -40°F～140°F
Humidity	Operating: 30% to 80%, Storage: Under 85%	Operating: 30% to 80%, Storage: Under 85%
Dimensions (WxHxD)	11.6" x 9.5" x 9.3"	11.6" x 9.5" x 9.3"
Net Weight	Approximately 7.9 lbs.
