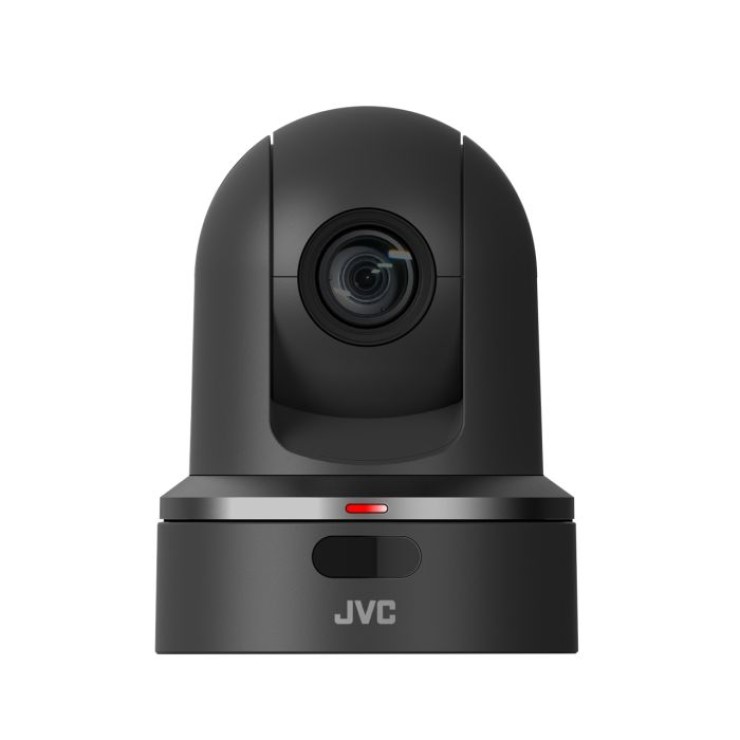

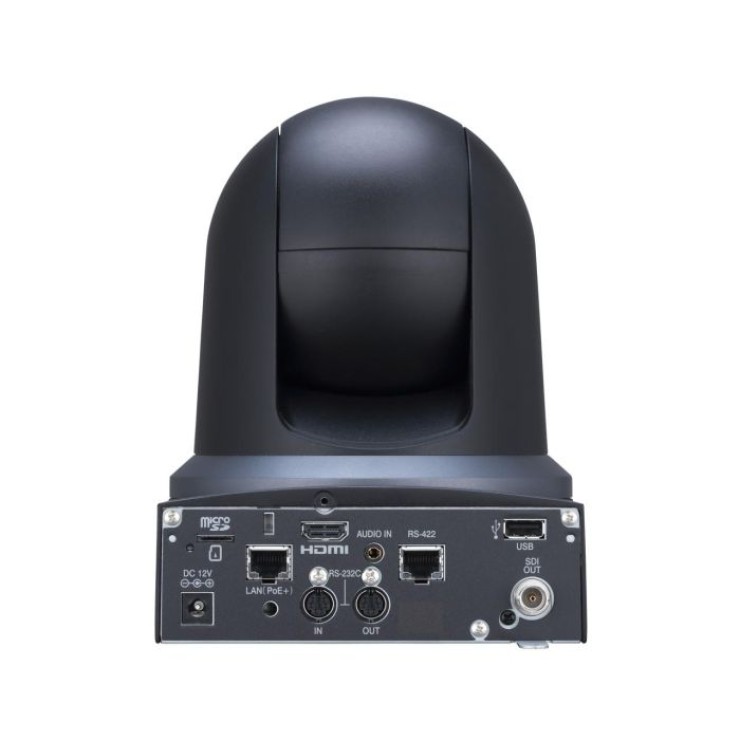

JVC KY-PZ100BE ROBOTIC PTZ IP PRODUCTION CAMERA (BLACK)

JVC’s first robotic pan, tilt, and zoom video production camera, the KY-PZ100, features JVC’s unique IP communications engine, providing network connection via Wi-Fi, 4G/LTE, or LAN. Ideal for studio or field use, the PTZ camera offers all the IP connectivity from JVC’s range of live-streaming camcorders.

Features

• 4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*
• 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
• NEW HD Recording to SSD*
• 1" (effective) CMOS sensor with high picture quality
• F12 Sensitivity
• Newly-developed 4K lens with 20x zoom
• HDR recording, HLG, or J-Log1 (10-bit)
• 4K Rec + HD streaming + 4K HDMI output
• Broadcast overlay on video and streaming
• High performance 1080 60p/50p live streaming
• NEW SRT Live Streaming Protocol (optional selection ZIXI or SRT) also RTMPS Protocol available
• Low latency and high-quality streaming up to 20Mbps

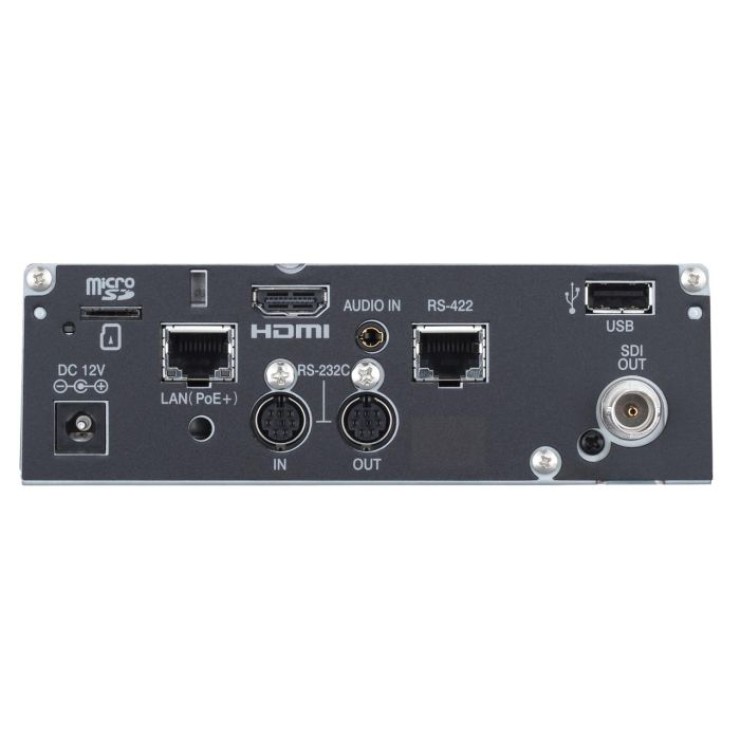

• LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
• Return over IP (Return video and IFB)
• Auto FTP to upload native video clips automatically
• NEW Progressive Auto FTP File transfer
• NTP Time server supported
• Built-in wireless LAN (2.4GHz/5GHz) MIMO with external antenna
• Backup to SSD*
• 40x lossless dynamic zoom
• 4-inch high-resolution LCD monitor
• XLR audio connectors

Items Included:

• JVC KY-PZ100BE Robotic PTZ  Camera (Black)
• AC/DC adapter
• Power cord
• Mounting screws
• IR controller
• Ceiling mount bracket
• Fall Prevention wire
• Template.

• KY-PZ100BE - Specification

  More Information

  Camera Front-End Specifications Image Sensor (inch): 1/2.8 Inch CMOS Number of Sensors: 1 Mega Pixels: 13 The gain in dB: 0 to 48 Shutter speed: 1/8 to 1/10000 White Balance modes: FAW, AWA, 3200K, 5600K, Manual Optical Specifications Lens mount: Internal Optical Zoom X times: 30 Dynamic Zoom x times: 12 Lens F Number: 1.6 to 4.7 Lens ratio from/to: 4.3mm to 129mm Lens ratio equivalent to 35mm: 31mm to 915mm Auto Focus: Yes Optical Image Stabilization: Yes Build in ND Filters: PTZ Head Features PTZ Head Features PAN Angle in degree +/-: 175 PAN Speed with AC Adapter max degree/sec.: 480 PAN Speed with POE+ max degree/sec.: 400 TILT Angle in degree: -30 to 90 TILT Speed with AC Adapter max degree/sec.: 300 TILT Speed with POE+ max degree/sec.: 200 Preset Positions: 100 Recording Formats Media: micro SDHC/microSDXC Media Class: Class 10 Recording slots: 1 Encoder: H.264 Recording Resolution Formats: Resolution 1920 x 1080 Resolution 1280 x720: Yes, 60p/50p/30p/25p Recording Data Rate 1: 5, 18, 28Mbps Recording Data Rate 2: 35Mbps (UHQ) Recording Data Rate 3: 50Mbps (XHq/YUV422) Audio Channels: 2 Audio Recording modes: LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy) Audio Filters: Yes, Wind Cut, Gains IP Section of the Product IP Main Connection: USB A Host, Ethernet LAN RJ45 1000Base-T with POE+ IP Connection supports: Ethernet, WIFI - and LTE USB Adapters IP Features Live-Streaming: Yes IP Features Remote: Yes, via RM-LP100 or Web-Browser, no apps are needed IP Features FTP: Yes Live-Streaming Bitrates: 0.3,0.8,1.5, 2.5, 3,5,8,12,16, 20Mbps Live-Streaming Protocols: RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI Live-Streaming Single Cast: Yes Live-Streaming Multicast: Yes Live-Streaming reconnect: Yes Live-Streaming and simultaneous REC: Yes Live-Streaming Pre-sets of destinations: 4 FTP Protocol formats: FTP / SFTP / FTPS FTP / SFTP / FTPS: FTP servers preset FTP server presets: 4 Note for all kinds of USB Adapters: The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: a WIFI dongle / 3G/4G dongle or a CAT Network adapter. The Adapter you going to be using must be registered (see attached compatible list), cause all of these Adapter needs dedicated drivers, which are to be implemented into the camcorder. In the case of LTE adapters, there must be done a pre-set of these dongles in your local PC first! Recommendation for WIFI USB Adapters (EU only): WIFI Dongle 1: Sitecom WLA.1001 WIFI Dongle 2: EnGenius EUB1200AC /Realtek RTL8812AU WIFI Dongle 3: ASUS USB1200AC /Realtek RTL8812AU WIFI Dongle 4: D-LINK DWA-172 (revA1) /Realtek RTL8811AU WIFI Dongle 5: EDIMAX EW-781UTC /Realtek RTL8811AU WIFI Dongle 6: D-LINK DWA-171(revA1) /Realtek 8811AU WIFI Dongle 7: TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!! WIFI Dongle 8: Wideband (over Amazon) ACWIFI DEWIFIC001A IN-OUT´s Connections OUT HDSDI: Yes, 3G OUT HDMI: Yes IN Audio AUX: Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo Wired remote IN: Yes, RS232C IN/OUT 8 PIN Mini-DIN PTZ Serial Interface RS-422: Yes, Serial over RJ-45 connector PTZ Supported Protocols: Serial, PelcoD, IP JVC, IP others Power and Environment Spec Power AC: Yes, via AC/DC Adapter Operation Temperature in Celsius degrees: 0 to 40 Operation Humidity in %: 30 to 80 Mechanical Information Weight in kg: 2 Measurements (WxHxD) in mm: W 154 x H 200.7 x D 191 Include Package AC/DC adapter: Yes Cable 1: Yes, the Power cord Instructions: Yes Remote Control unit: Yes, the IR controller Fall Prevention wire: Yes Ceiling mount bracket: Yes Additional s: Yes, Mounting screws, for Fall Prevention
