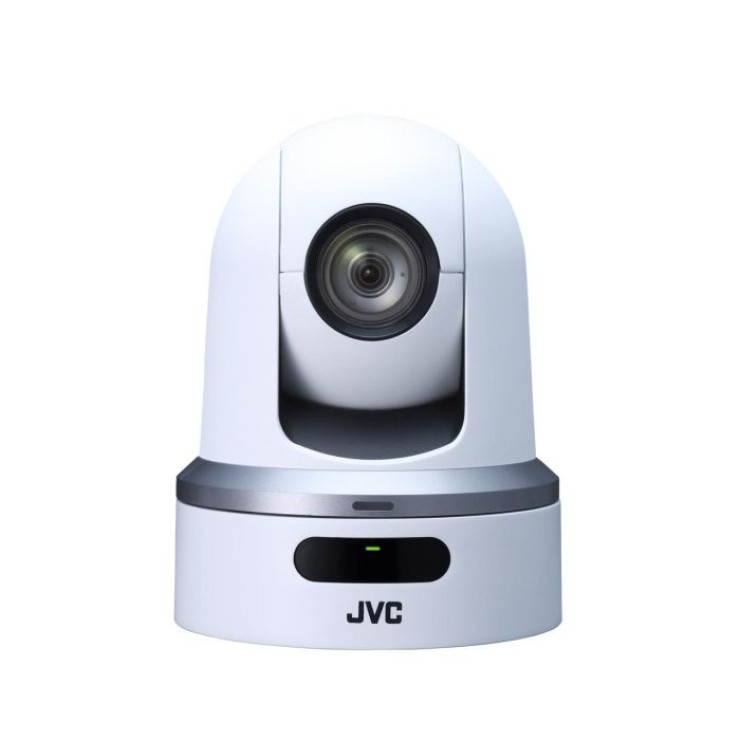

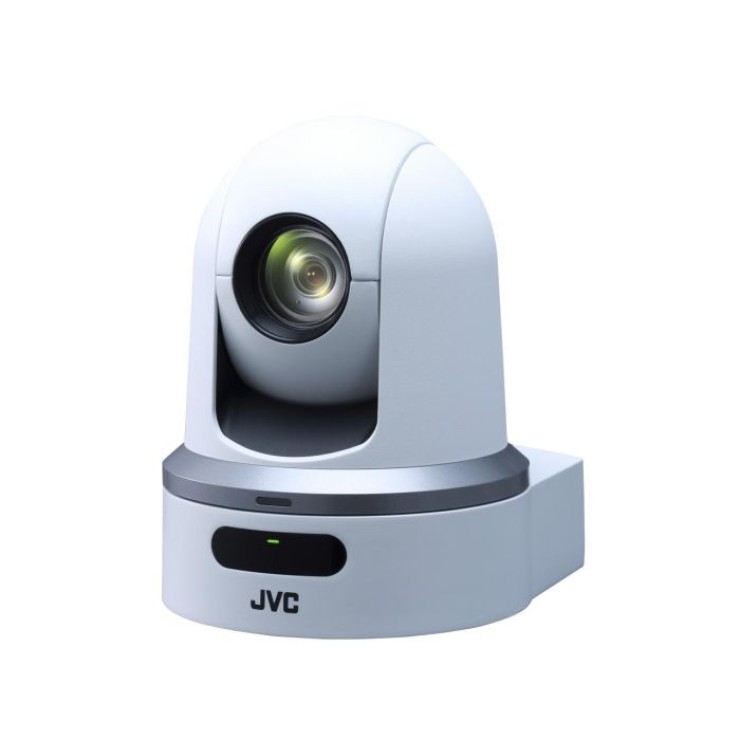

JVC KY-PZ100WE ROBOTIC PTZ FULL HD NETWORK VIDEO PRODUCTION CAMERA- WHITE

jvc-ky-pz100be-robotic-ptz-ip-production-camera-black

150$ ~~200$~~

JVC’s first robotic pan, tilt, and zoom video production camera, the KY-PZ100, features JVC’s unique IP communications engine, providing network connection via Wi-Fi, 4G/LTE, or LAN. Ideal for studio or field use, the PTZ camera offers all the IP connectivity from JVC’s range of live-streaming camcorders.

Category: JVC

SKU: 10

Advanced IP network communication and live HD streaming

The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your program with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.

Features

1/2.8-inch CMOS sensor (2.2 million pixels)
Optical zoom lens with 30x zoom ratio (4.3-129mm, f/1.6~4.7)
Can memorize 100 preset settings and positions
Robotic pan, tilt, and zoom
Remote control via RS-232C / RS-422, or via IP controller
Micro SDHC/SDXC memory card recording
Full HD 1080p, 1080i, 720p video
3G-SDI and HDMI digital outputs
IR controller
Advanced IP communications capability:?Streaming with SMPTE 2022 forward error correction. Advanced Zixi reliable communication with ARQ, FEC, and adaptive bitrate control. Low latency streaming. RTMP streaming directly to the content delivery networks (JVC VIDEO CLOUD, YouTube, Ustream, etc.)
USB host connection for WiFi or 4G LTE adapter
LAN connector supports Power over Ethernet
Can be mounted upside-down or right-side-up
2 channels audio (or 1 channel balanced audio w/phantom power)

Product Highlights :
- 1/2.8" CMOS Sensor, 1080i/p, 720p
- Remote Pan, Tilt, and Zoom
- 30x Optical Zoom
- 0.01 Lux in LoLux Mode

Items Included:

JVC KY-PZ100WE Robotic PTZ Network Video Production Camera (White)

Power Supply

Remote Control

Ceiling Mount Bracket

Set of Screw

KY-PZ100WE - Specification

More Information

Camera Front-End Specifications
Image Sensor (inch):	1/2.8 Inch CMOS
Number of Sensors:	1
Mega Pixels:	13
The gain in dB:	0 to 48
Shutter speed:	1/8 to 1/10000
White Balance modes:	FAW, AWA, 3200K, 5600K, Manual
Optical Specifications
Lens mount:	Internal
Optical Zoom X times:	30
Dynamic Zoom x times:	12
Lens F Number:	1.6 to 4.7
Lens ratio from/to:	4.3mm to 129mm
Lens ratio equivalent to 35mm:	31mm to 915mm
Auto Focus:	Yes
Optical Image Stabilization:	Yes
Build in ND Filters:
PTZ Head Features
PAN Angle in degree +/-:	175
PAN Speed with AC Adapter max degree/sec.:	480
PAN Speed with POE+ max degree/sec.:	400
TILT Angle in degree:	-30 to 90
TILT Speed with AC Adapter max degree/sec.:	300
TILT Speed with POE+ max degree/sec.:	200
Preset Positions:	100
Recording Formats
Media:	micro SDHC/microSDXC
Media Class:	Class 10
Recording slots:	1
Encoder:	H.264
Recording Resolution Formats
Resolution 1920 x 1080:	Yes, 60p/50p/30p/25p/60i/50i
Resolution 1440 x 1080:	Yes, 60i/50i
Resolution 1280 x720:	Yes, 60p/50p/30p/25p
Recording Data Rate 1:	5, 18, 28Mbps
Recording Data Rate 2:	35Mbps (UHQ)
Recording Data Rate 3:	50Mbps (XHq/YUV422)
Audio Channels:	2
Audio Recording modes:	LPCM 2ch, 48 kHz/16 bit (HD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
Audio Filters:	Yes, Wind Cut, Gains
IP Section of the Product
IP Main Connection:	USB A Host, Ethernet LAN RJ45 1000Base-T with POE+
IP Connection supports:	Ethernet, WIFI - and LTE USB Adapters
IP Features Live-Streaming:	Yes
IP Features Remote:	Yes, via RM-LP100 or Web-Browser, no apps are needed
IP Features FTP:	Yes
Live-Streaming Bitrates:	0.3,0.8,1.5, 2.5, 3,5,8,12,16, 20Mbps
Live-Streaming Protocols:	RTMPS,RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI
Live-Streaming Single Cast:	Yes
Live-Streaming Multicast:	Yes
Live-Streaming reconnect:	Yes
Live-Streaming and simultaneous REC:	Yes
Live-Streaming Pre-sets of destinations:	4
FTP Protocol formats:	FTP / SFTP / FTPS
FTP server presets:	4
Note for all kinds of USB Adapters:	The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: a WIFI dongle / 3G/4G dongle or a CAT Network adapter. The Adapter you going to be using must be registered (see attached compatible list), cause all of these Adapter needs dedicated drivers, which are to be implemented into the camcorder. In the case of LTE adapters, there must be done a pre-set of these dongles in your local PC first!
Recommendation for WIFI USB Adapters (EU only):	Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but the product name is not changed, we can´t track such issues so may is possible that such dongles even its mentioned here, may not work. The Adapters below are workable in the 2,4 GHz and 5 GHz infrastructure.
WIFI Dongle 1:	Sitecom WLA.1001
WIFI Dongle 2:	EnGenius EUB1200AC /Realtek RTL8812AU
WIFI Dongle 3:	ASUS USB1200AC /Realtek RTL8812AU
WIFI Dongle 4:	D-LINK DWA-172 (revA1) /Realtek RTL8811AU
WIFI Dongle 5:	EDIMAX EW-781UTC /Realtek RTL8811AU
WIFI Dongle 6:	D-LINK DWA-171(revA1) /Realtek 8811AU
WIFI Dongle 7:	TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!
WIFI Dongle 8:	Wideband (over Amazon) ACWIFI DEWIFIC001A
Recommendation for Ethernet adapters
Ethernet Dongle 1:	EDIMAX EU-4208
Ethernet Dongle 2:	Sitecom LN-030 V2 not Sitecom LN-030 V3
Ethernet Dongle 3:	Hamlet HNU2GTX
Ethernet Dongle 4:	D-LINK DUB-E100 (rev C1)
Ethernet Dongle 5:
Recommendation for 3G/4G (LTE) Adapters:	Dear Customer, for most countries we have a recommendation for adapters, please download of info sheet for LTE support, below you find a special recommendation, which should work in most countries.
LTE Specials 1:	Universal LTE dongle Huawei E8372LTE Wingle so far works with Telekom/O2/Vodafone, others have not been tested yet.
LAN Terminal:	Yes, RJ45 1000Base-T with POE+ /48V support

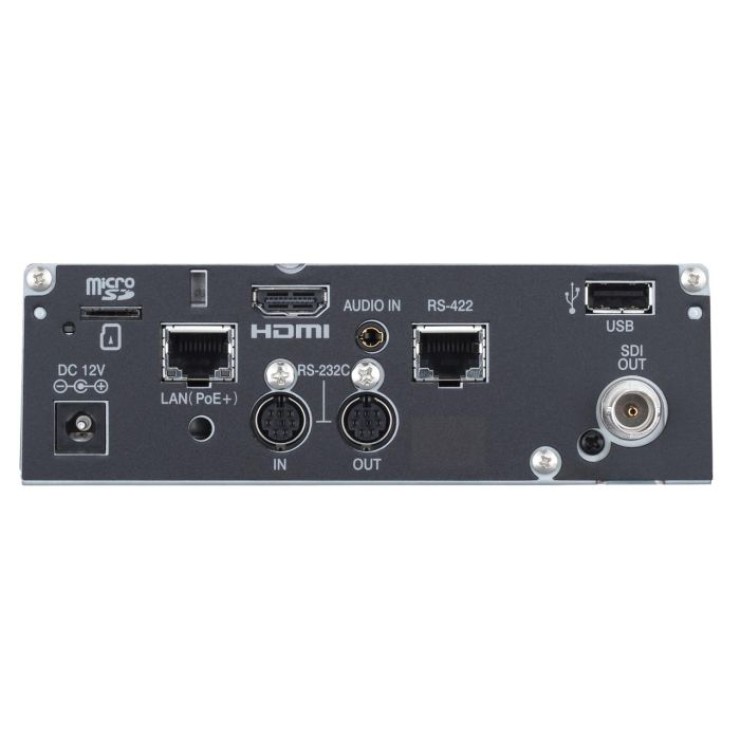

IN-OUT´s Connections
OUT HDSDI:	Yes, 3G
OUT HDSDI Format max.:	1080/60p,50p 8 Bit 4:2:2 EE
OUT HDMI:	Yes
OUT HDMI Format max.:	1920x1080 60/50p 8 Bit 4:2:2
IN Audio AUX:	Yes, 3.5mm mini jack x1 (MIC balanced mono/ unbalanced Stereo with Power or LINE Balanced Mono/ Unbalanced Stereo
Wired remote IN:	Yes, RS422 Serial Control (RJ-45)
Wired remote IN:	Yes, RS232C IN/OUT 8 PIN Mini-DIN
USB HOST:	Yes
PTZ Serial Interface RS-422:	Yes, Serial over RJ-45 connector
PTZ Serial Interface RS-232C in/out:	Yes, over 8 PIN mini DIN
PTZ Supported Protocols:	Serial, PelcoD, IP JVC, IP others
Power and Environment Spec
Power AC:	Yes, via AC/DC Adapter
Power DC:	Yes, 12 Volt or DC42V to 57V POE+ over Network LAN
Battery types
Power consumption:	1.6 Ampere (AC-Adapter), 04 Ampere (POE+)
Operation Temperature in Celsius degrees:	0 to 40
Storage Temperature in Celsius degrees:	-20 to 50
Operation Humidity in %:	30 to 80
Storage Humidity under %:	85
Mechanical Information
Weight in kg:	2
Measurements (WxHxD) in mm:	W 154 x H 200.7 x D 191
Include Package
AC/DC adapter:	Yes
Cable 1:	Yes, the Power cord
Instructions:	Yes
Additional s:	Yes, Mounting screws, for Fall Prevention
Remote Control unit:	Yes, the IR controller
Ceiling mount bracket:	Yes
Fall Prevention wire:	Yes
Template:	Yes

SPECS

Imaging	Image Sensor	1/2.8"-Type CMOS
	Sensor Resolution	Effective: 2.13 Megapixel
	Built-In ND Filter	None
	Image Stabilization	Digital
Exposure Control	Shutter Type	Electronic Rolling Shutter
	Shutter Speed	1/10000 to 1/8 Second
	Gain	0 to 48 dB
	Signal-to-Noise Ratio	50 dB
	White Balance	3200 to 5600K Presets: AWB, Manual
Lens	Focal Length	4.3 to 129mm (35mm Equivalent Focal Length: 30.5 to 915mm)
	Optical Zoom Ratio	30x
	Max Digital Zoom	12x
	Maximum Aperture	f/1.6 to 4.7
Video Capture	External Recording Modes	SDI/BNC / HDMI 1920 x 1080 at 25/30.00/50/60.00 fps 1920 x 1080i at 50/60.00 fps 1280 x 720 at 50/60.00 fps
	Internal Recording Modes	H.264 1920 x 1080p at 25/29.97/50/59.94 fps [28 to 50 Mb/s] 1920 x 1080i at 50/59.94 fps [5 to 50 Mb/s] 1280 x 720 at 25/29.97/50/59.94 fps [5 to 35 Mb/s]
	Audio Recording	MOV: 2-Channel 48-Bit 16 kHz LPCM Audio
	Broadcast Output	NTSC/PAL
	IP Streaming	H.264, MPEG2, RTMP, RTP, RTSP, TCP, UDP, ZIXI 1920 x 1080 at 25p, 30p, 50p, 60i, 60p (3.0 to 20.00 Mb/s) 1280 x 720 at 25p, 30p, 50p, 60p (1.5 to 20.00 Mb/s) 640 x 360 at 25p, 30p (0.3 to 3.0 Mb/s)
Control	Presets	100
	Move Speed	Pan: 480°/sec Tilt: 300°/sec
	Movement Range	Pan: 350° (-175 to 175°) Tilt: 120° (-30 to 90°)
	Tally Light	Yes
	Supported Control Protocols	IP Pelco-D RS-422 RS-485
	Wireless Range	23' / 7 m (IR)
Interface	Media/Memory Card Slot	Single Slot: microSDXC Only
	Video I/O	1 x BNC (3G-SDI) Output 1 x HDMI Output
	Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
	Other I/O	1 x RJ45 (LAN, RS-422) 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x Unspecified USB (LAN) Input/Output
	Built-In Speaker	No
Power	PoE Support	PoE+ 802.3at
	Power I/O	1 x Barrel (12VDC up to 1.2 A) Input
	Power Consumption	PoE: 42 to 57 VDC at 0.4 A
Environmental	Operating Temperature	32 to 104°F / 0 to 40°C
	Storage Temperature	-4 to 122°F / -20 to 50°C
General	Mounting	1 x 1/4"-20 Female for Ceiling/Desktop/Tripod
	OS Compatibility	Windows 7 to 10 macOS 10.11 *As of November 2022: Check with the manufacturer for the most up-to-date compatibility
	Certifications	FCC Part 15 Class A, ICES-3 A *as per Manufacturer
	Dimensions (W x H x D)	6.1 x 7.9 x 7.5" / 154 x 200.7 x 191 mm
	Weight	4.19 lb / 1.9 kg
Packaging Info	Package Weight	7.45 lb
	Box Dimensions (LxWxH)	12.2 x 11.9 x 10"
