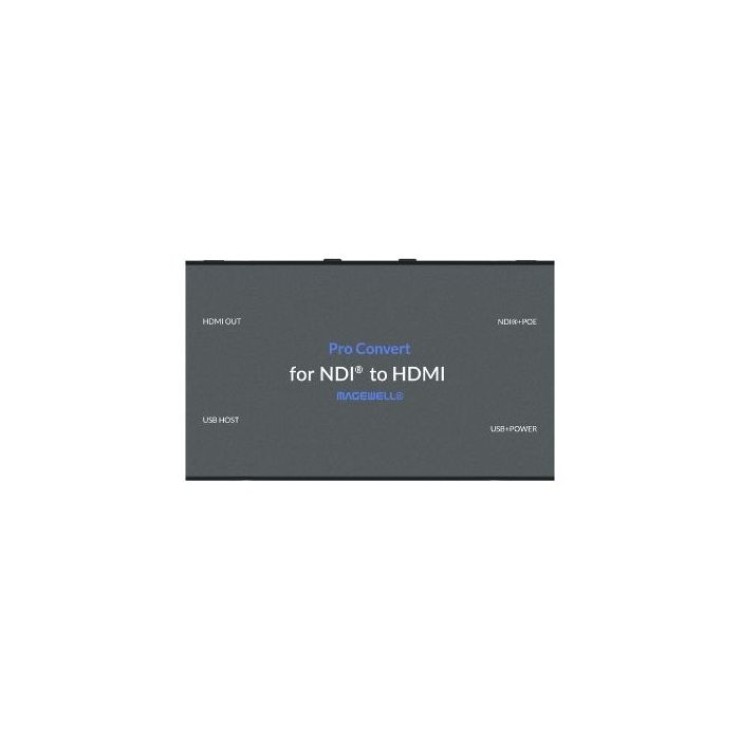

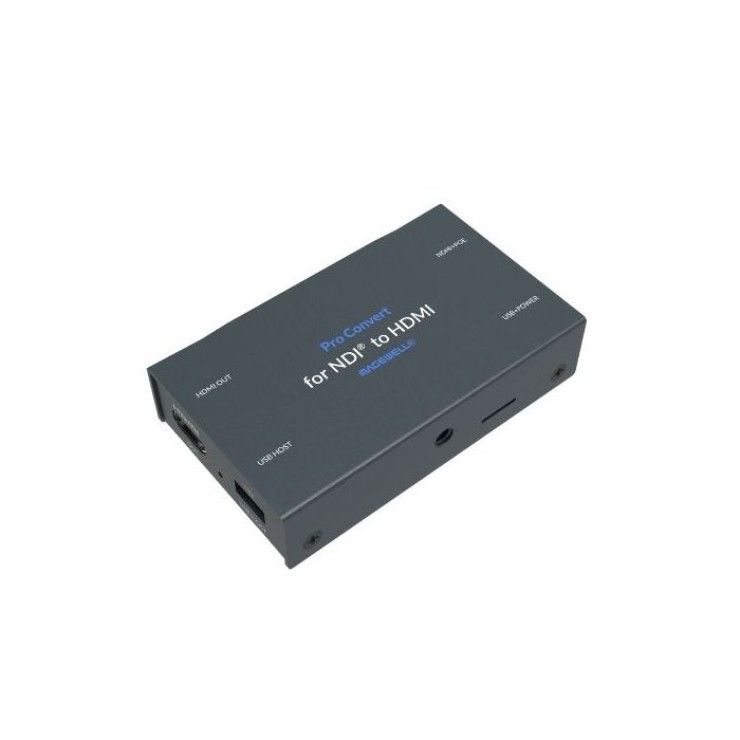

MAGEWELL PRO CONVERT FOR NDI TO HDMI DECODER

• Decode NDI, RTSP, HTTP, RTMP Pull/Push, and TS streams over UDP/SRT/RTP
• H.264 and H.265 format support
• Customized EDID support
• Up to 2K60 NDI input stream
• Up to DCI 4K HDMI output signals
• NDI decoder converts from 2K to 2K60 output; from 4K to 4K15 output
• 96 kHz, 16-bit, 8-channel audio streams

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

• 150 megapixel decoding
• Tally indicators
• Audio meter and audio meter scale
• Audio gain, sample rate, and channel settings
• Center marker
• Safe area
• Video scaling, frame rate, and aspect ratio conversion
• Video color format conversion with YUV BT.601, YUV BT.709 color format support
• Auto or manual selection of input color format
• Remote control passthrough for PTZ camera
• Video frame rate conversion
• Video vertical and mirror flip

• Pro Convert encoder
• Magewell Bridge for NDI
• NewTek Connect
• NDI Studio Monitor
• OBS Studio
• vMix
• VLC
• IP Camera
• Haivision

Items Included:

• Magewell Pro Convert NDI to HDMI Decoder
• Power Adapter
• L-Bracket
• USB Cable
• Limited 2-Year Manufacturer Warranty

Product Highlights:

• Convert NDI Signal to HDMI Stream
• Embedded Audio Supported
• Up to DCI 4K NDI Input
• Up to 2K60p or 4K15 HDMI Output
• Power Adapter + PoE
• HDMI/DVI Output, EDID Support
• 1/4"-20 Mounting Thread
• Web UI, LED, Tally Indicators

 **More Information**

 **SPECS**

 **Inputs/Outputs**

**Video Inputs:**

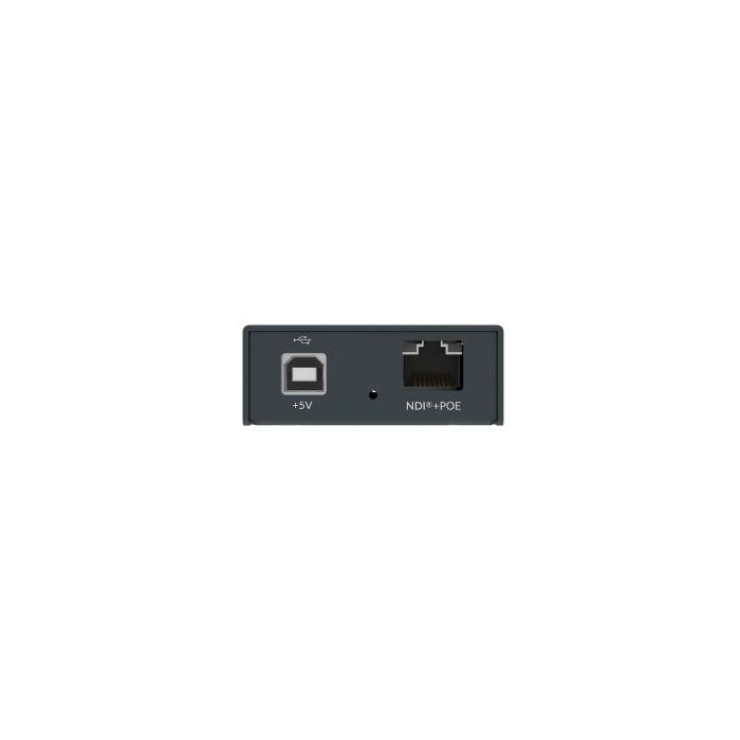

- 1 x RJ45 (NDI) Female

**Video Outputs:**

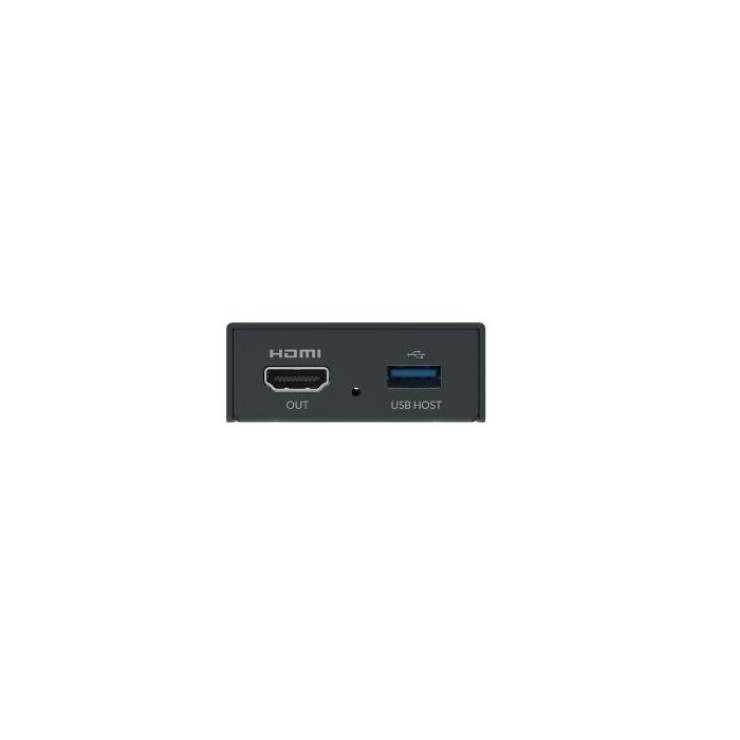

- 1 x HDMI (HDMI 2.0/DVI) Female

**Other I/O:**

- 1 x USB-B Control Input (Shared Power)

- 1 x USB-A Control Input

 **Format Support**

**Input Video Format:**

- RJ45 (4:4:4/4:2:2 RGB, YUV)

- DCI 4K at 60 fps

- DCI 2K 60 fps

**Output Video Format:**

- HDMI

- DCI 4K at 15 fps

- DCI 2K 60 fps

**Embedded Audio:**

- 8-Channel

 **Standards**

**EDID Support:**

- Manual Control

 **Hardware**

**Tally Light:**

- Yes

**Wi-Fi:**

- None

 **Power**

**Power I/O:**

- 1 x USB-B (5 VDC at 2.1 A) Input

**PoE Support:**

- PoE 802.3af

**Power Consumption:**

- Device: 1.1 A / 5 W

 **Environmental**

**Operating Temperature:**

- 32 to 77°F / 0 to 45°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90%

 **General**

**Dimensions:**

- 3.98 x 2.36 x 0.91" / 10.1 x 6 x 2.3 cm

 **Packaging Info**

**Package Weight:**

- 1.3 lb

**Box Dimensions (LxWxH):**

- 8.5 x 7.7 x 1.7"
