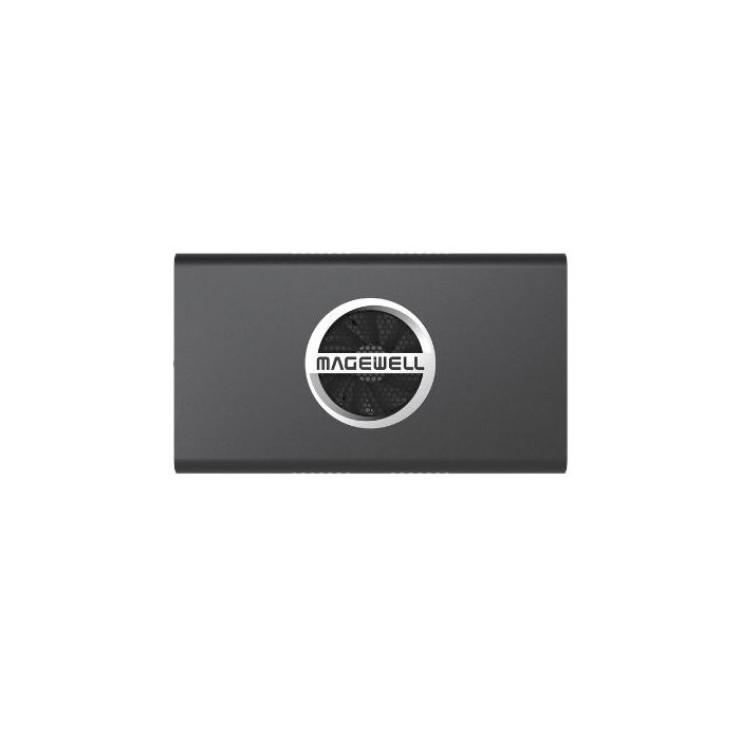

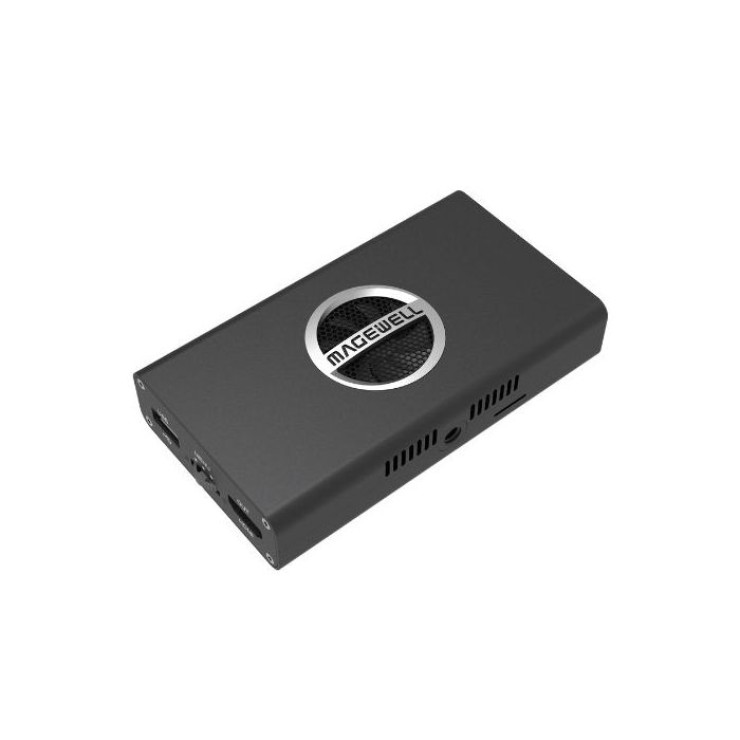

MAGEWELL PRO CONVERT H.26X TO HDMI 4K

• Very-low latency
• Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or onboard controls
• HTTP-based APIs for custom integration
• Image flip for inverted projector installations and safe area controls
• Automatic output optimization for target display with integrated up/down conversion

• Support for up to 4K 60fps signal decoding
• Compatible with H.264/H.265 streams in protocols including RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP

• Support for up to 4096x2160 60fps HDMI output
• Support for 96 kHz, 16-bit 8-channel audio streams

• Provide comprehensive information regarding the device and decoded signals in real time
• Allows to configure how a signal is processed and decoded, including:
  • OSD setting, deinterlacing, resolution, frame rate, AR conversion
  • Audio gain, sample rate, and audio channel mapping
  • Network connection
• Update firmware
• Support USB RNDIS/ECM
• Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
• Provide HTTP APIs

Items Included:

• Magewell Pro Convert H.26x to HDMI 4K
• Power Adapter with Set of International Plugs
• USB Type-A to Type-B Cable
• L-Bracket
• Limited 2-Year on Main Unit
• Limited 2-Year Manufacturer Warranty

Product Highlights:

• Decodes Videos in H.264 and H.265
• Supports SRT/RTSP/RTMP/UDP/RTP/HLS/HTTP
• Automatically Optimizes to Match EDID
• Web Interface

 **More Information**

 **SPECS**

**Inputs/ Outputs**

**Video Inputs:**

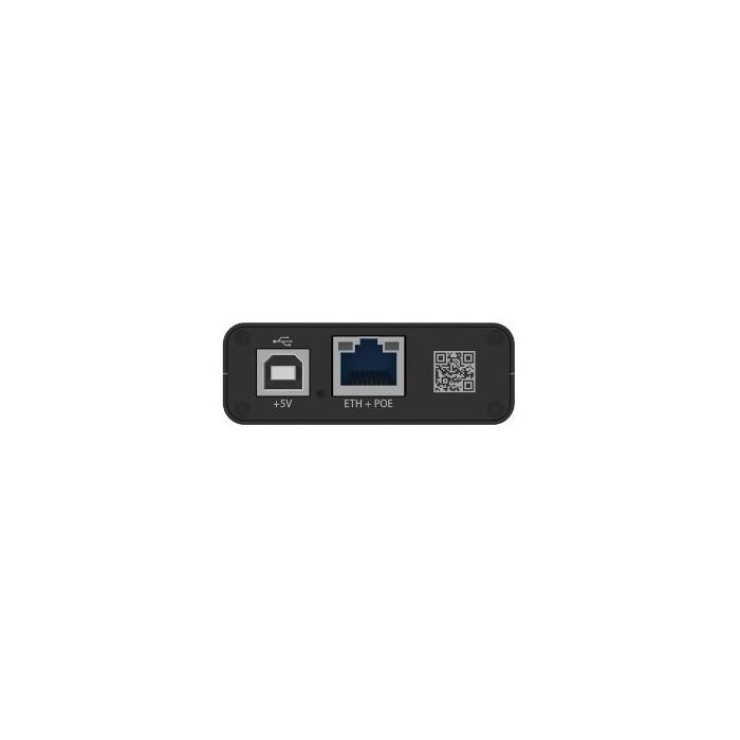

- 1 x RJ45 (RTSP)

**Audio Inputs:**

- None

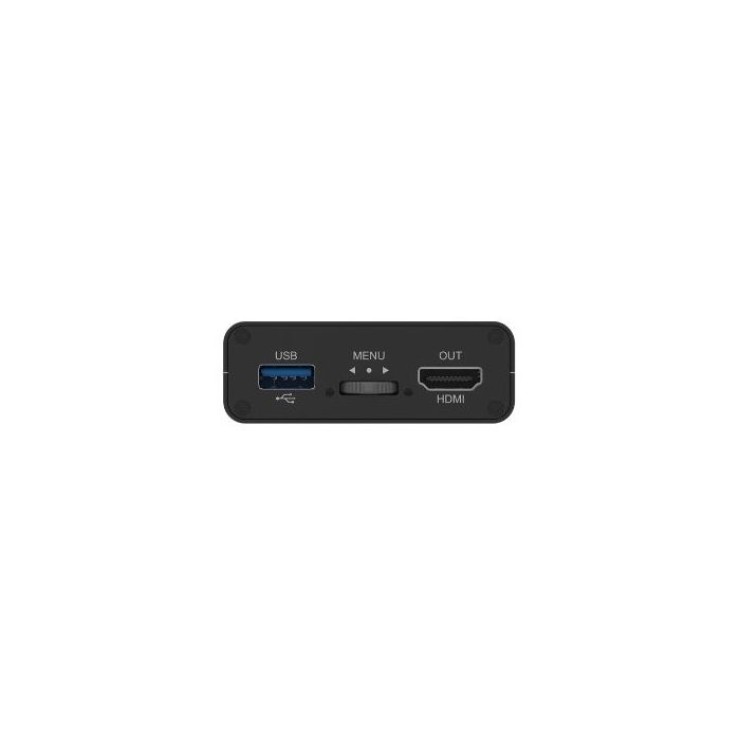

**Video Outputs:**

- 1 x HDMI (HDMI 2.0)

**Audio Outputs:**

- None

**Other I/O:**

- 1 x USB-B Input

- 1 x USB-A Input/Output

**Expansion Slots:**

- None

**Format Support**

**Output Video Format:**

- HDMI

- DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps

- UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps

- 1080p Ultrawide (2560 x 1080) 23.98/24/25/29.97/30/50/59.94/60 fps

- 1440p 60/100/120/144 fps

- 1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120 fps

- 1080i 50/59.94/60 fps

- 720p 23.98/24/25/29.97/30/50/59.94/60 fps

- 576p 50 fps

- 576i / 625 lines 50 fps

- 480p 59.94/60 fps

- 480i / 525 lines 59.94/60 fps

**Standards**

**EDID Support:**

- Auto-Detect

**HDR Compatibility:**

- Not Specified by Manufacturer

**IP Streaming**

**Video IP Decoding:**

- H.264, H.265: 720 x 480 to 4096 x 2160

**Audio IP Decoding:**

- AAC

**Hardware**

**Media Card Reader:**

- 1 x SD (Unspecified Type)

**Wi-Fi:**

- None

**Power**

**Power I/O:**

- 1 x USB-B Input

**PoE Support:**

- PoE 802.3af

**Power Consumption:**

- Device: 5 VDC at 1.6 A (7.5 W)

**Environmental**

**Operating Temperature:**

- 32 to 77°F / 0 to 45°C

**Storage Temperature:**

- -4 to 158°F / -20 to 70°C

**Operating Humidity:**

- 5 to 90% (Non-Condensing)

**General**

**Dimensions:**

- 4.6 x 2.6 x 0.9" / 117.5 x 66.7 x 23.4 mm

**Packaging Info**

**Package Weight:**

- 1.475 lb

**Box Dimensions (LxWxH):**

- 8.4 x 4.6 x 2.7"
